汽车起重机的变幅抖动问题

doi:10.13229/j.cnki.jdxbgxb.20240584

摘要/Abstract

摘要：

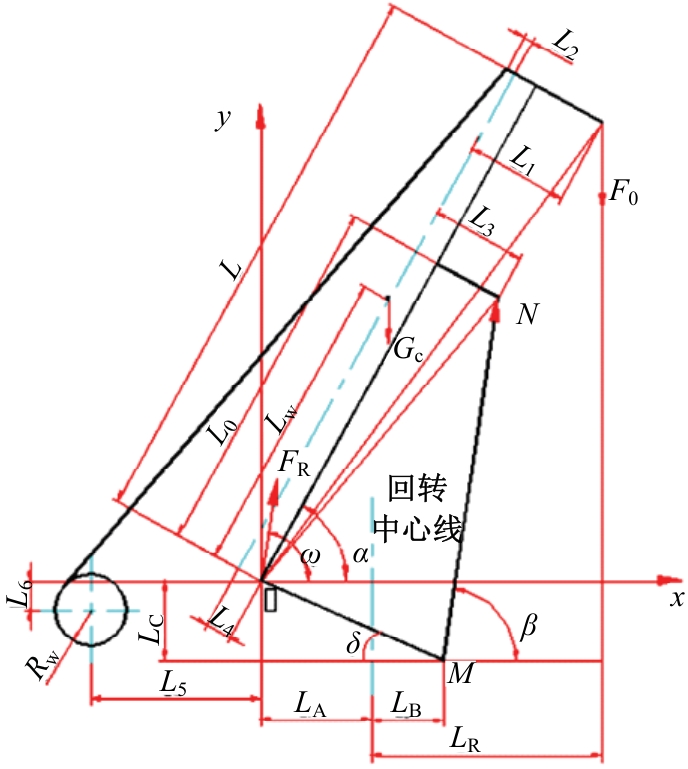

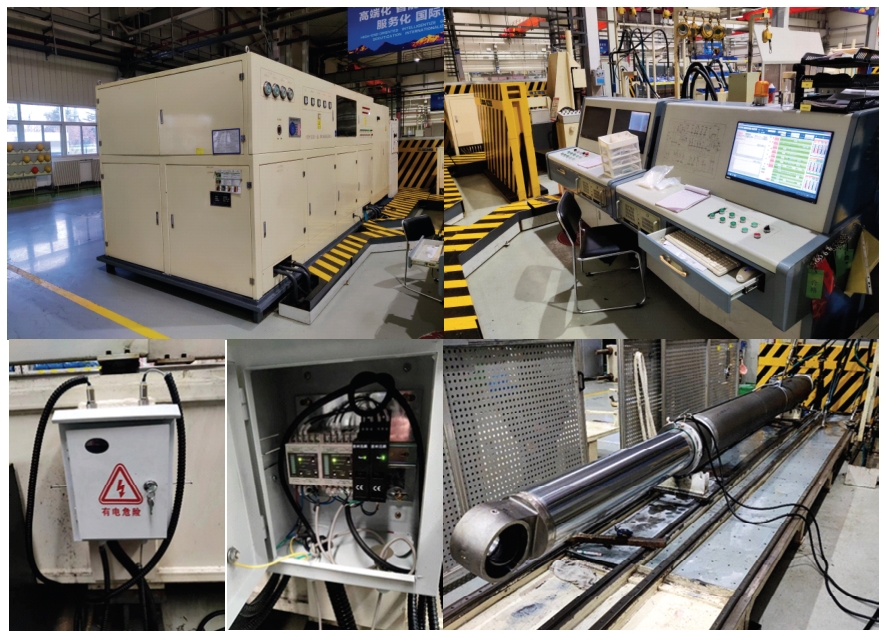

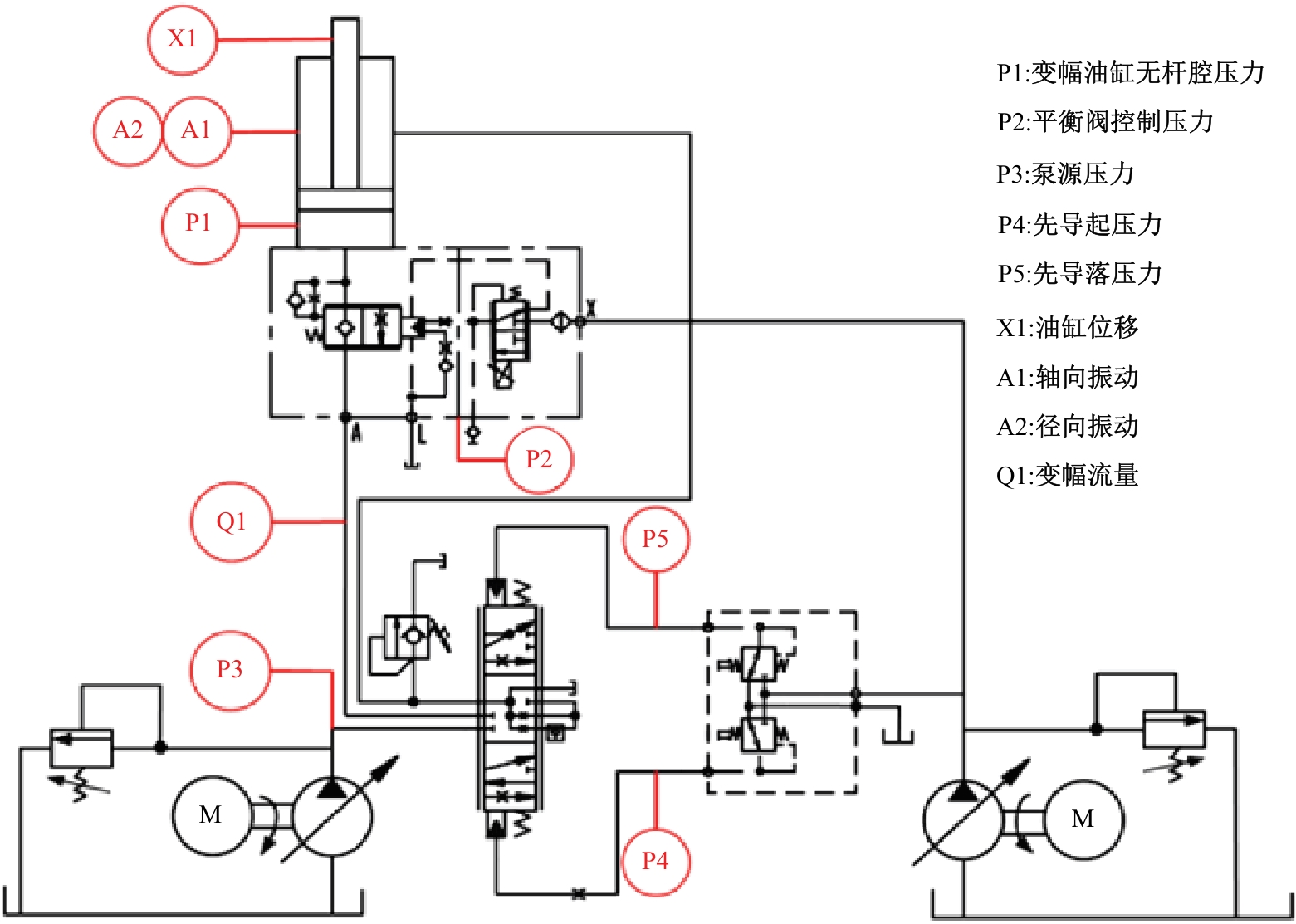

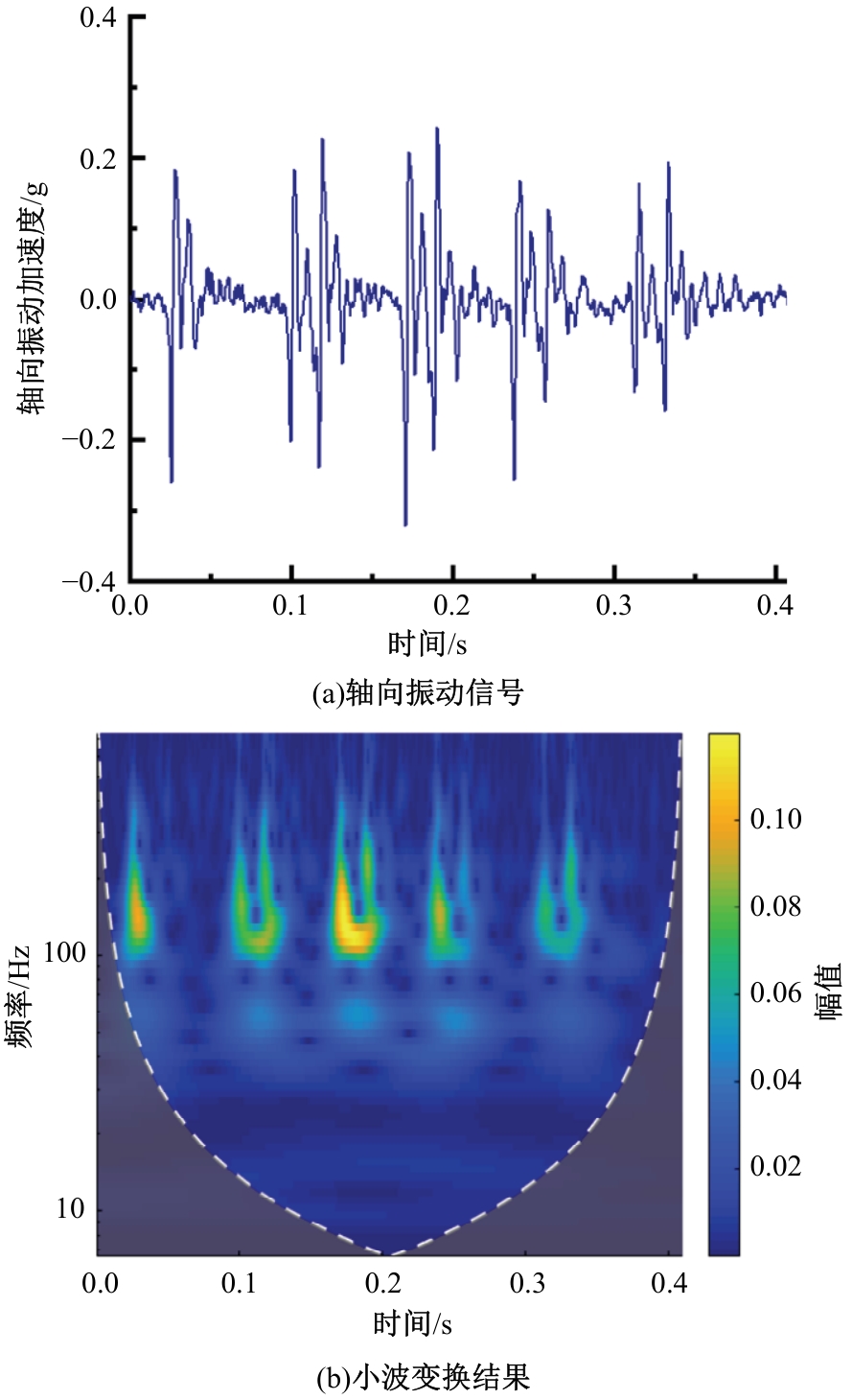

针对汽车起重机的变幅抖动问题，首先基于变幅液压系统原理和变幅机构动力学分析了变幅抖动现象的成因机理；然后，开展了正常主机与抖动主机的现场测试，运用时频分析方法揭示了不同变幅现象下测试信号的特征差异，制订了变幅抖动现象的量化评价指标；最后，将变幅抖动量化评价指标推广至油缸出厂检测试验台，建立了变幅抖动的出厂试验方法。研究结果表明：变幅油缸内部摩擦力过大是起重机变幅抖动的主要原因；正常主机与抖动主机的振动加速度信号具有明显的特征差异，可以作为变幅抖动现象的量化评价指标；改进后的油缸出厂检测试验台测试结果与主机测试结果具有良好一致性，能够实现变幅抖动现象的前置检测。

关键词: 汽车起重机, 变幅抖动, 时频分析, 量化表征, 出厂检测

Abstract:

In response to the problem of luffing vibration in automotive crane， firstly， this article analyzes the causes and mechanisms of luffing vibration based on the principle of luffing vibration hydraulic system and the dynamics of luffing mechanism. Then， on-site tests were conducted on normal and shaking hosts， and time-frequency analysis methods were used to reveal the differences in test signal characteristics under different amplitude changes. Quantitative evaluation indicators for amplitude change shaking phenomena were developed. Finally， the quantitative evaluation index of luffing vibration was extended to the oil cylinder factory inspection test bench， and the factory test method for luffing vibration was established. The research results indicate that excessive internal friction force in the luffing oil cylinder is the main cause of crane luffing vibration； the vibration acceleration signals of normal and shaking hosts have obvious characteristic differences， which can be used as the quantitative evaluation index for luffing vibration phenomenon； the improved oil cylinder factory inspection test bench has good consistency between the test results and the host test results， and can achieve pre detection of luffing vibration phenomenon.

Key words: truck crane, luffing vibration, time-frequency analysis, quantitative characterization, factory inspection

中图分类号:

TG213

陈晋市,王彤阳,商茹恒,李永奇,霍东阳,陈希. 汽车起重机的变幅抖动问题[J]. 吉林大学学报(工学版), 2026, 56(1): 44-53.

Jin-shi CHEN,Tong-yang WANG,Ru-heng SHANG,Yong-qi LI,Dong-yang HUO,Xi CHEN. Problem of luffing vibration in truck crane[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(1): 44-53.

图/表 18

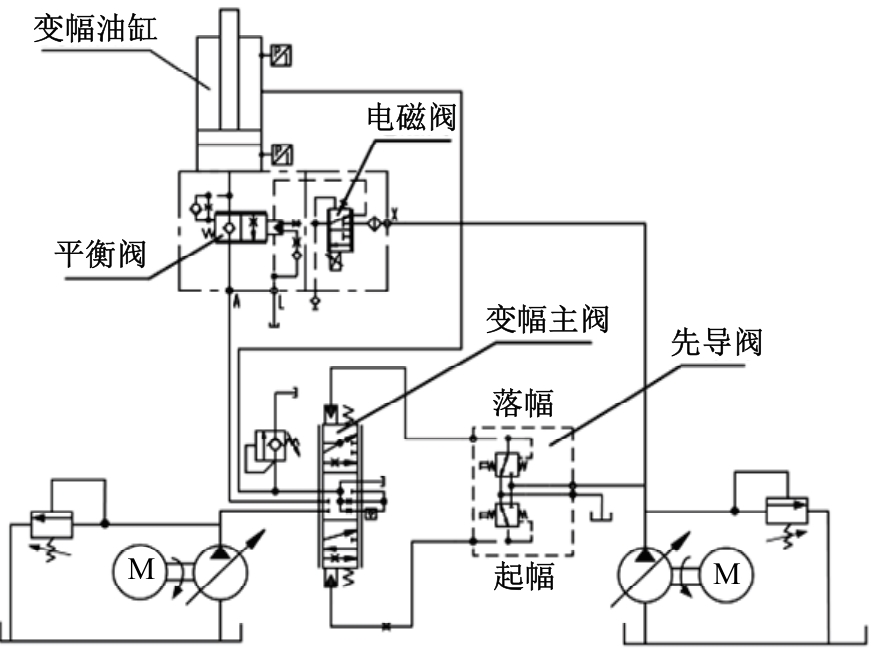

图1

图2

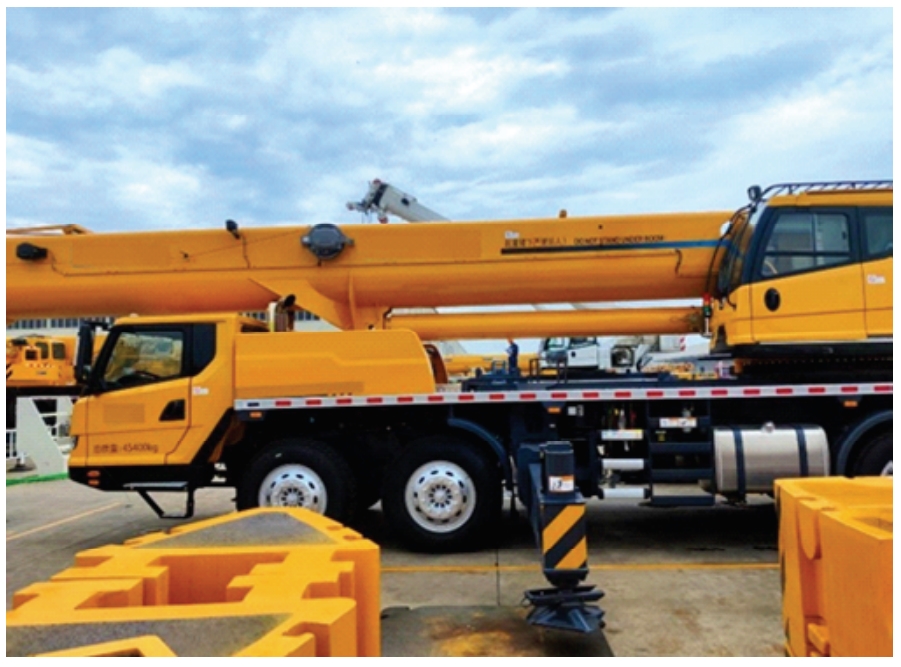

图3

图4

表1

时域特征值"

时域特征	计算公式
平均值	$s ˉ = 1 N ∑ i = 1 N s i$
标准差	$ρ t = 1 N ∑ i = 1 N (s i - s ˉ) 2 12$
峭度	$1 N ∑ i = 1 N (s i - s ˉ) 4 ρ t 4$
最大值	$s m a x$
最小值	$s m i n$
峰峰值	$s m a x - s m i n$
均方根	$R M S = (1 N ∑ i = 1 N s i 2) 12$
峰值因子	$s m a x / R M S$
波形因子	$R M S / 1 N ∑ i = 1 N s i$
脉冲因子	$s m a x / 1 N ∑ i = 1 N s i$

表1

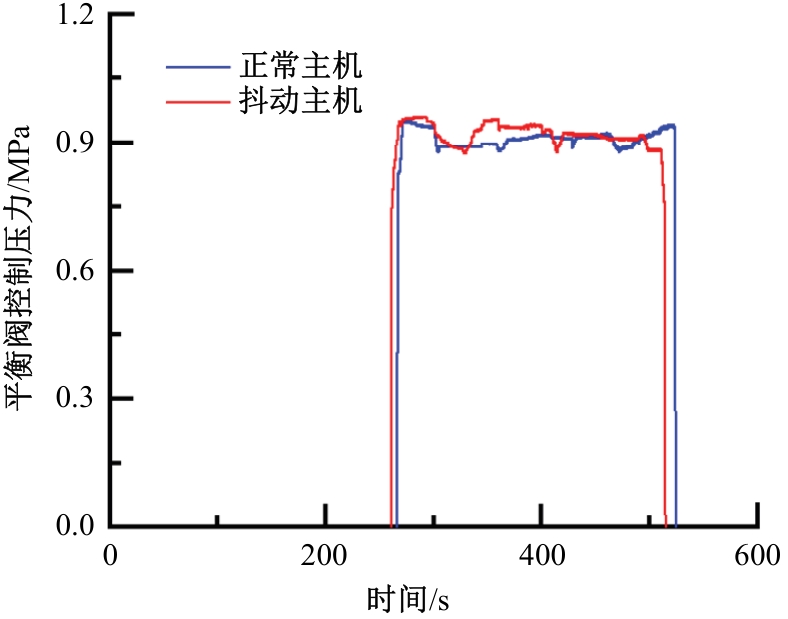

图5

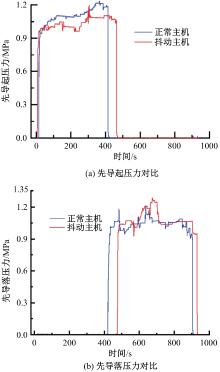

图6

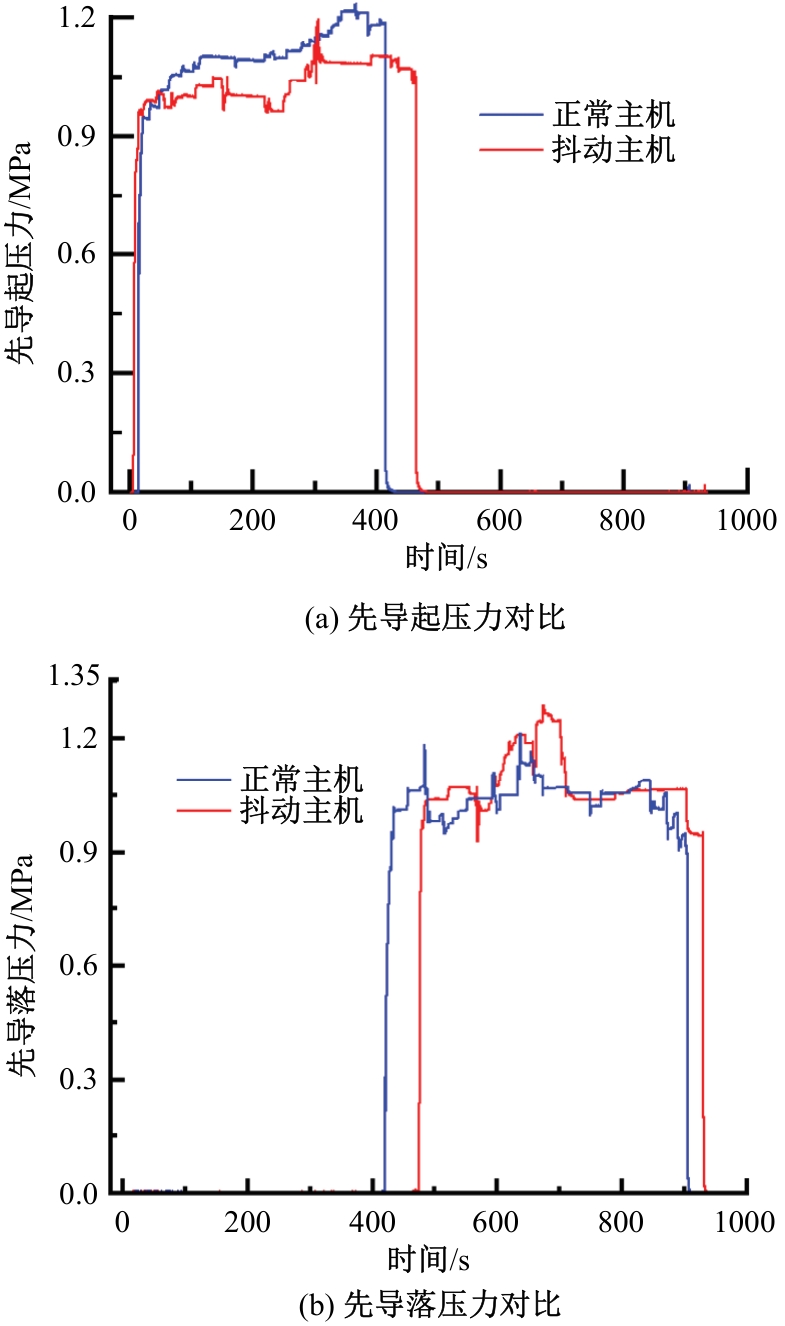

图7

图8

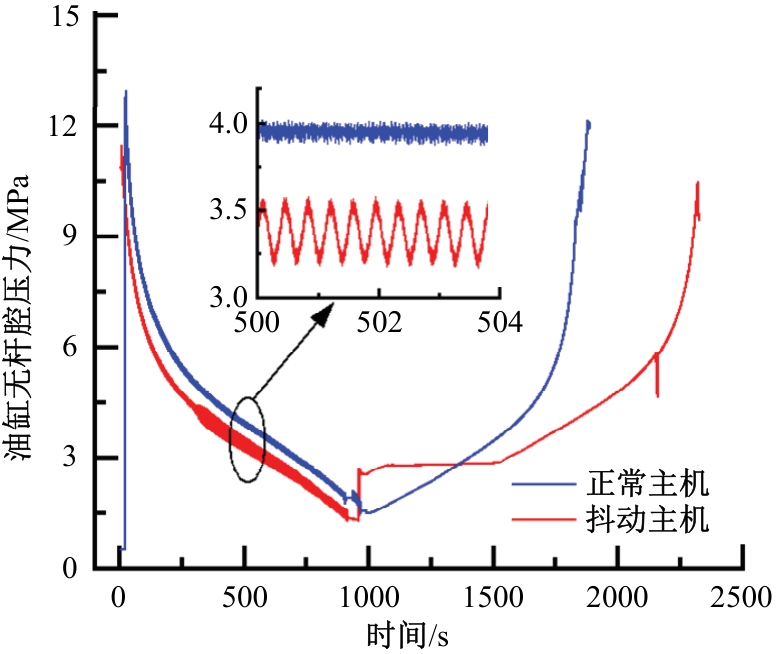

图9

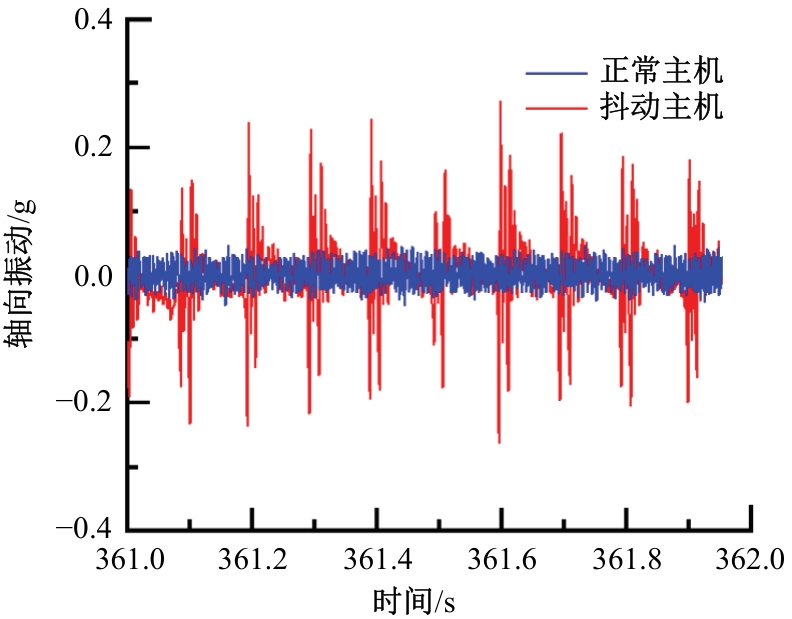

图10

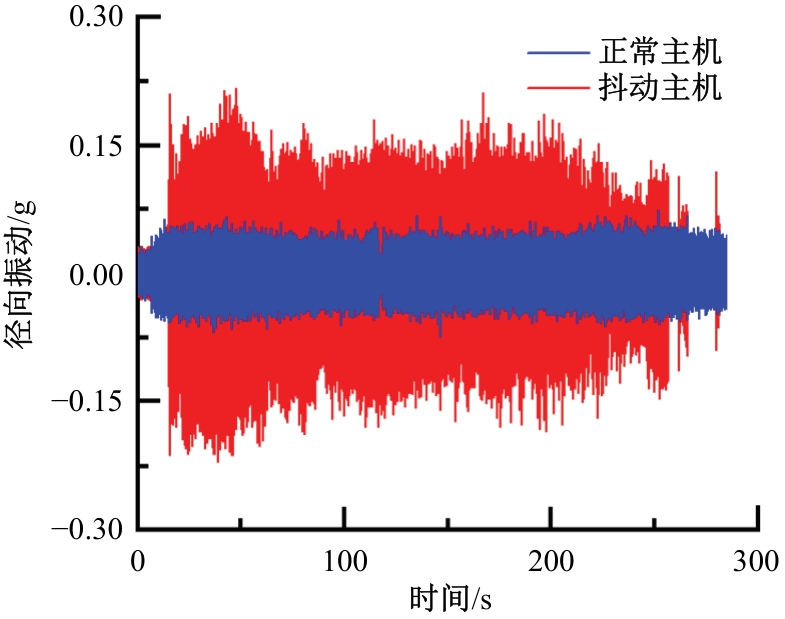

图11

表2

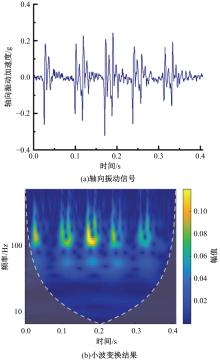

图12

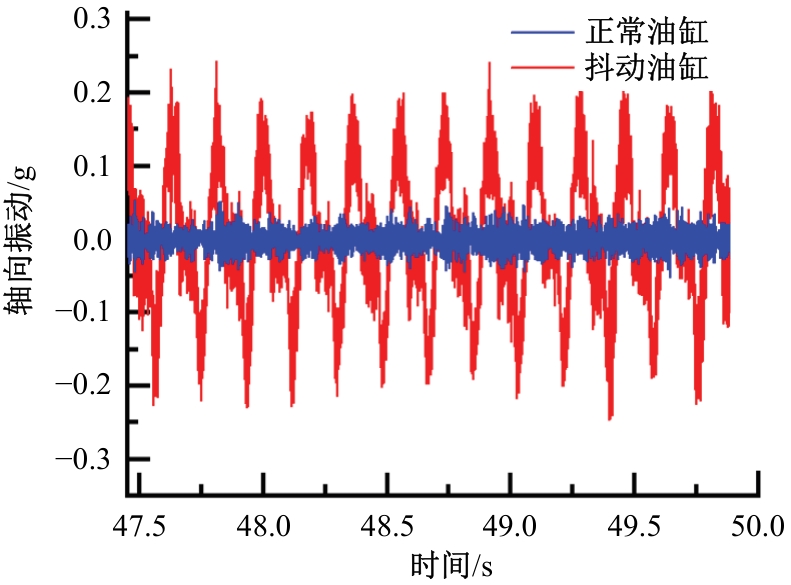

图13

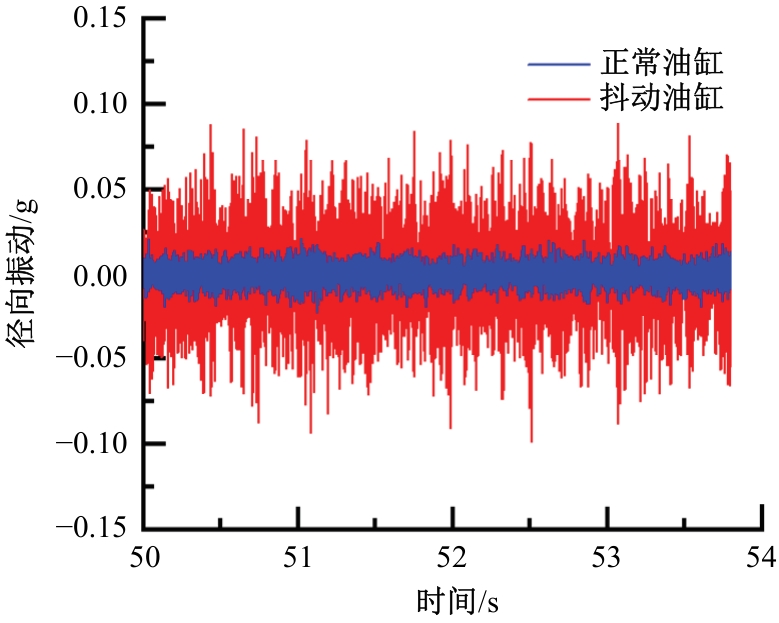

图14

表3

图15

参考文献 22

[1]	王庆远, 唐红美. 汽车起重机发展趋势浅析[J]. 工程机械文摘, 2012(2): 48-50.
	Wang Qing-yuan, Tang Hong-mei. Analysis of the development trends of truck crane[J]. Construction Machinery Digest, 2012 (2): 48-50.
[2]	王晶. GT750E汽车起重机车架结构研究[D]. 大连:大连理工大学机械工程学院, 2016.
	Wang Jing. The research of structure of GT750E truck crane frame[D]. Dalian: School of Mechanical Engineering, Dalian University of Technology, 2016.
[3]	李银德. 汽车起重机变幅系统的可靠性分析及安全评价[D]. 太原: 太原科技大学机械工程学院, 2012.
	Li Yin-de. Reliability analysis and safety evaluation of the luffing system of the truck crane[D]. Taiyuan: School of Mechanical Engineering, Taiyuan University of Science and Technology, 2012.
[4]	巩锐. 浅谈国内汽车起重机的轻量化发展策略[J].机电信息, 2015(30): 73-76.
	Gong Rui. Brief discussion on the lightweight development strategy of domestic truck crane[J]. Mechanical and Electrical Information, 2015(30): 73-76.
[5]	王照卓. 汽车起重机变幅系统动态特性分析及反馈补偿设计[D]. 长沙:中南大学机电工程学院, 2022.
	Wang Zhao-zhuo. Dynamic characteristics analysis and feedback compensation design of truck crane luffing system[D]. Changsha: School of Mechanical and Electrical Engineering, Central South University, 2022.
[6]	邵焱. 汽车起重机机液变幅系统刚柔耦合建模与振动特性分析[D]. 太原: 太原理工大学机械与运载工程学院, 2022.
	Shao Yan. Rigid-flexible coupling modeling and vibration characteristics analysis of mechanical-hydraulic luffing system of truck crane[D]. Taiyuan: School of Mechanical and Transportation Engineering, Taiyuan University of Technology, 2022.
[7]	姚俊威. 汽车起重机起升机构液压系统动态特性研究[D]. 太原: 太原科技大学机械工程学院, 2012.
	Yao Jun-wei. Research on dynamic characteristics of hydraulic system of truck crane lifting mechanism[D]. Taiyuan: School of Mechanical Engineering,Taiyuan University of Science and Technology, 2012.
[8]	金耀,贺欣, 夏毅敏, 等. 汽车起重机变幅机构的耦合建模仿真与运动学分析[J]. 机械设计, 2017, 34(9): 12-17.
	Jin Yao, He Xin, Xia Yi-min, et al. Coupled modeling simulation and kinematics analysis of luffing mechanism for mobile crane[J]. Mechanical Design, 2017, 34(9): 12-17.
[9]	回良秋. 汽车起重机的故障分析及处理措施[J].科技创新与应用, 2012(21): 96.
	Hui Liang-qiu. Fault analysis and handling measures of truck crane[J]. Technology Innovation and Application, 2012(21): 96.
[10]	刘冬一, 丁小峰. 起重机液压变幅机构抖动现象分析及改进措施[J]. 公路与汽运, 2016(3): 140-142.
	Liu Dong-yi, Ding Xiao-feng. Analysis and improvement measure for the vibrate phenomenon of the hydraulic luffing mechanism of crane[J]. Highways & Automotive Applications, 2016(3): 140-142.
[11]	王承震. 汽车起重机变幅系统抗冲击与微动性能研究[D]. 杭州: 浙江大学机械工程学院, 2011.
	Wang Cheng-zhen. Research on the anti-impact characteristic of hydraulic luffing system on mobile crane[D]. Hangzhou: School of Mechanical Engineering, Zhejiang University, 2011.
[12]	Xie H, Zhang G. Research on characteristics of the piloted follow-up load control valve in automobile crane luffing system[C]∥Measuring Technology and Mechatronics Automation, Hong Kong, China, 2013: 887-892.
[13]	李凡, 郭津津, 戈北京. 基于Matlab和ADAMS的起重机变幅机构优化与仿真分析[J]. 起重运输机械, 2016(2): 55-58.
	Li Fan, Guo Jin-jin, Ge Bei-jing. Optimal and simulation analysis for luffing mechanism of crane based on Matlab and ADAMS[J]. Hoisting and Conveying Machinery, 2016(2):55-58.
[14]	刘晓峰, 王殿龙, 滕儒民, 等. 基于刚柔耦合的起重机柔性臂动力学分析[J]. 起重运输机械, 2011(9):50-53.
	Liu Xiao-feng, Wang Dian-long, Teng Ru-min, et al. Dynamic analysis of crane flexible boom based on rigid-flexible coupling[J]. Hoisting and Conveying Machinery, 2011(9):50-53.
[15]	Doçi I, Hamidi B, Lajqi S. Dynamic analysis and control of jib crane in case of jib luffing motion using modelling and simulations[J]. IFAC-PapersOnLine, 2016, 49(29):163-168.
[16]	朱春风, 白健信, 肖兴元. 平地机回转圈侧移液压缸爬行抖动现象的原因分析及其改进措施[J]. 工程机械与维修, 2022(3): 36-37.
	Zhu Chun-feng, Bai Jian-xin, Xiao Xing-yuan. Cause analysis and improvement measures for the crawling and shaking phenomenon of the lateral displacement hydraulic cylinder in the grader rotation circle[J]. Construction Machinery & Maintenance, 2022(3): 36-37.
[17]	任震南. 自平衡重载压力机以及油膜承载特性研究[D]. 天津: 天津工业大学机械工程学院, 2017.
	Ren Zhen-nan. Research on self balancing heavy load press and oil film bearing characteristics[D]. Tianjin: School of Mechanical Engineering, Tianjin University of Technology, 2017.
[18]	Jia L, Su X, Yu G, et al. Extraction of transferred charge signal of gas-solid two-phase flow based on nonlinear time domain analysis[J]. Journal of Electrostatics, 2024, 128: No.103905.
[19]	Cui F, Dong G, Chen Y, et al. Numerical modeling and data signal analysis of GPR array based on dual-field domain-decomposition time-domain finite element method[J]. Journal of Applied Geophysics, 2023, 208: No. 104876.
[20]	范小宁, 杜晨辉, 罗志宏. 基于小波变换和模态曲率差的起重机金属结构损伤识别[J]. 安全与环境学报, 2021, 21(1): 147-153.
	Fan Xiao-ning, Du Chen-hui, Luo Zhi-hong. Damage identification of the crane metal structures based on the wavelet transformation and modal curvature difference[J]. Journal of Safety and Environment, 2021, 21(1): 147-153.
[21]	Guo J, Si Z, Xiang J. A compound fault diagnosis method of rolling bearing based on wavelet scattering transform and improved soft threshold denoising algorithm[J]. Measurement, 2022, 196: No. 111276.
[22]	曹立峰, 胡金萍, 曹广志. 起重机控制手柄输入信号滤波器的设计[J]. 机械工程师, 2013(6): 111-112.
	Cao Li-feng, Hu Jin-ping, Cao Guang-zhi. Design of input signal filter for crane control handle[J]. Mechanical Engineer, 2013(6): 111-112.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

项目		最大值	最小值	RMS	峭度	波形因子	峰形因子	脉冲因子
正常	轴向/g	0.058	-0.066	0.012	3.445	1.280	5.334	6.829
正常	径向/g	0.132	-0.127	0.026	3.444	1.291	5.128	6.620
抖动	轴向/g	0.459	-0.324	0.056	7.522	1.570	8.270	12.984
抖动	径向/g	0.332	-0.303	0.043	5.203	1.380	7.667	10.582

项目		最大值	最小值	RMS	峭度	波形因子	峰形因子	脉冲因子
正常	轴向/g	0.058	-0.066	0.013	3.176	1.162	3.172	3.528
正常	径向/g	0.051	-0.050	0.008	3.830	1.194	3.057	3.840
抖动	轴向/g	0.422	-0.553	0.148	4.923	1.512	5.751	5.671
抖动	径向/g	0.156	-0.148	0. 201	5.009	1.353	7.419	10.040
