Na2SiO3/NaAlO2协同电石渣激发矿渣的增强机理

doi:10.13229/j.cnki.jdxbgxb.20241343

摘要/Abstract

摘要：

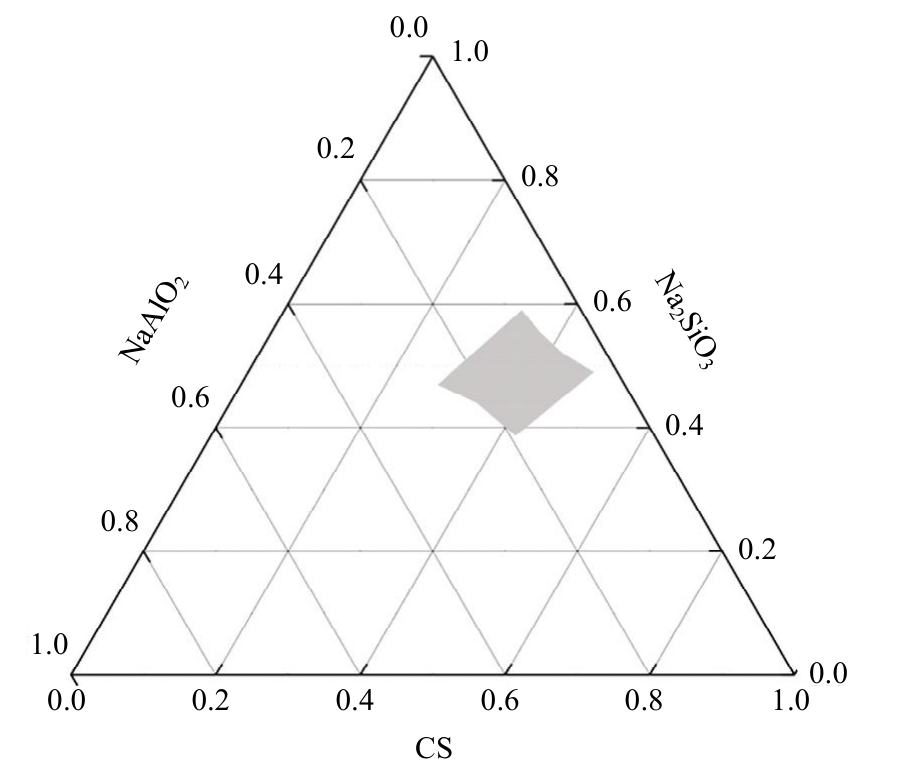

为解决工业固废电石渣制备碱激发矿渣胶凝材料时出现的强度低等问题，采用单纯形重心设计法探究硅酸钠/偏铝酸钠协同电石渣激发矿渣时流动度、凝结时间和抗压强度的变化规律，分析其增强机理。结果表明，优化后的激发剂最佳配比是硅酸钠含量为39%~59%，偏铝酸钠含量为5%~25%，电石渣含量大于26%且不超过47%。硅酸钠和偏铝酸钠均能增强体系碱度，加速硅铝质组分溶解，促进C-（A）-S-H等水化产物的生成。偏铝酸钠水解时的双重效应会加速铝氧四面体聚合，提高基体的早期强度；硅酸钠为体系提供了充足的硅氧四面体，保证了后期强度的持续发展；电石渣中的Ca²⁺与溶液中的CO₃^2-和［Al（OH）₄］^-结合形成了碳酸钙和水化碳铝酸钙，使结构更加密实。硅酸钠/偏铝酸钠协同电石渣激发矿渣时体系活性较高，力学强度和工作性能较好，微观结构也趋于凝胶化和致密化。

关键词: 道路工程, 单纯形重心设计法, 硅酸钠?偏铝酸钠?电石渣, 碱激发矿渣, 增强机理

Abstract:

In order to solve the problem of low strength in the preparation of alkali-activated slag cementitious materials from industrial solid waste carbide slag， this study used the simplex center of gravity design method to explore the changes of fluidity， setting time and compressive strength when sodium silicate/sodium metaaluminate cooperated with carbide slag to activate slag， and analyzed its enhancement mechanism. The results show that the optimum ratio of the optimized activator is that the content of sodium silicate is 39%~59%， the content of sodium aluminate is 5%~25%， and the content of carbide slag is more than 26% and less than 47%. Both sodium silicate and sodium aluminate can enhance the alkalinity of the system， accelerate the dissolution of aluminosilicate components， and promote the formation of hydration products such as C-（A）-S-H. The double effect of sodium aluminate hydrolysis will accelerate the polymerization of aluminum oxide tetrahedron and improve the early strength of the matrix. Sodium silicate provides sufficient silicon oxygen tetrahedron for the system， which ensures the sustainable development of the later strength. After the hydrolysis of carbide slag， it combines with CO₃^2- and ［Al（OH）₄］^- in the solution to form calcium carbonate and hydrated calcium carbonate， which makes the structure more dense. When sodium silicate/sodium aluminate cooperates with carbide slag to activate slag， the system has higher activity， better mechanical strength and working performance， and the microstructure tends to be gelled and densified.

Key words: road engineering, simplex center of gravity design method, sodium silicate-sodium aluminate-carbide slag, alkali-activated slag, strengthening mechanism

中图分类号:

TU526

高英力,刘伟祥,朱俊材,祝张煌,陈腾飞,熊浩宇. Na₂SiO₃/NaAlO₂协同电石渣激发矿渣的增强机理[J]. 吉林大学学报(工学版), 2026, 56(7): 1915-1925.

Ying-li GAO,Wei-xiang LIU,Jun-cai ZHU,Zhang-huang ZHU,Teng-fei CHEN,Hao-yu XIONG. Strengthening mechanism of Na₂SiO₃/NaAlO₂ synergistic carbide slag to activate slag[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(7): 1915-1925.

图/表 14

表1

表2

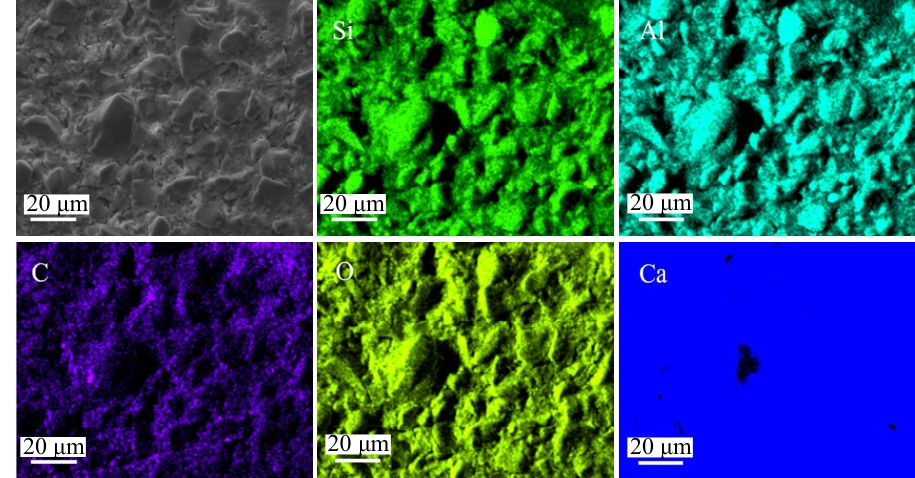

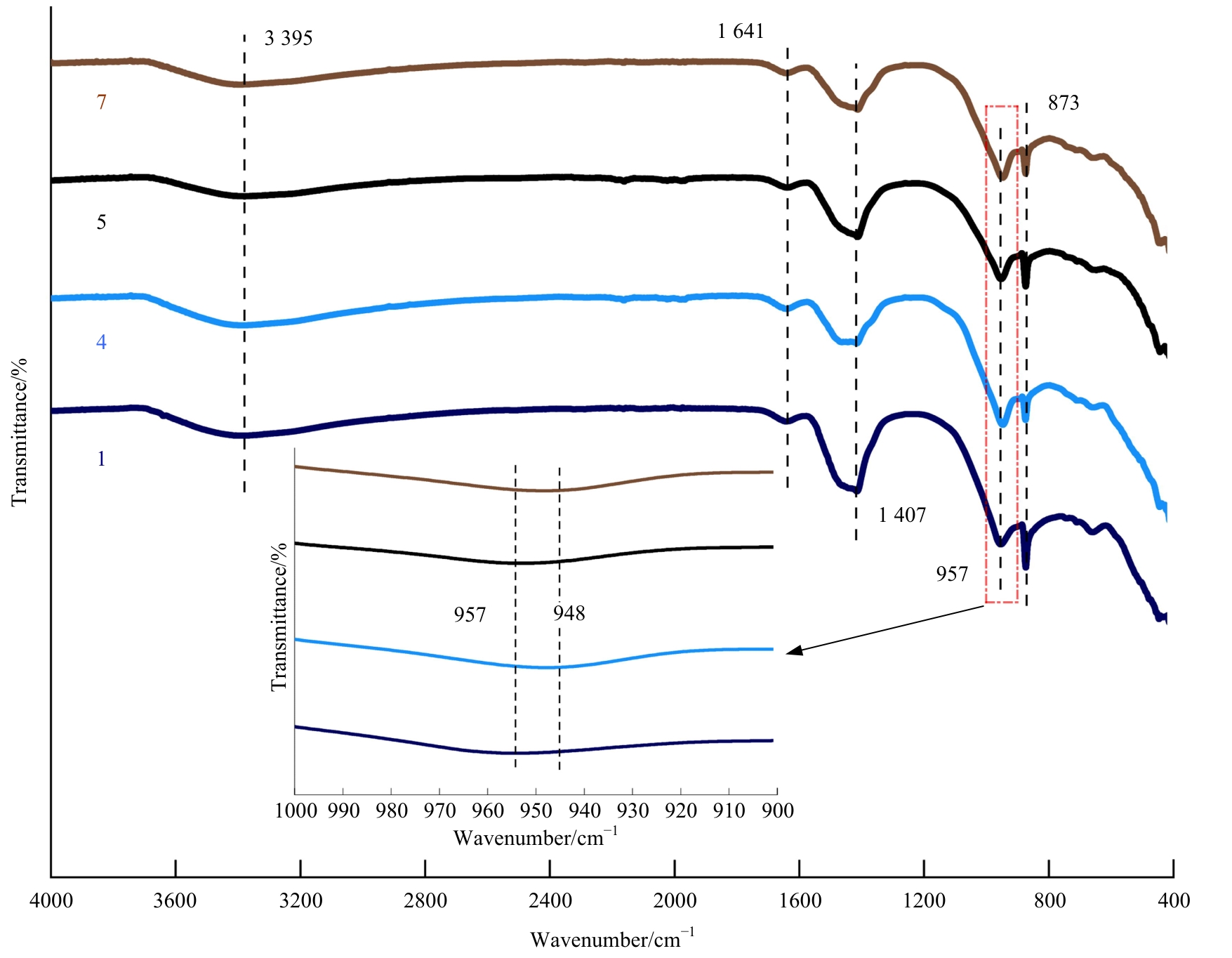

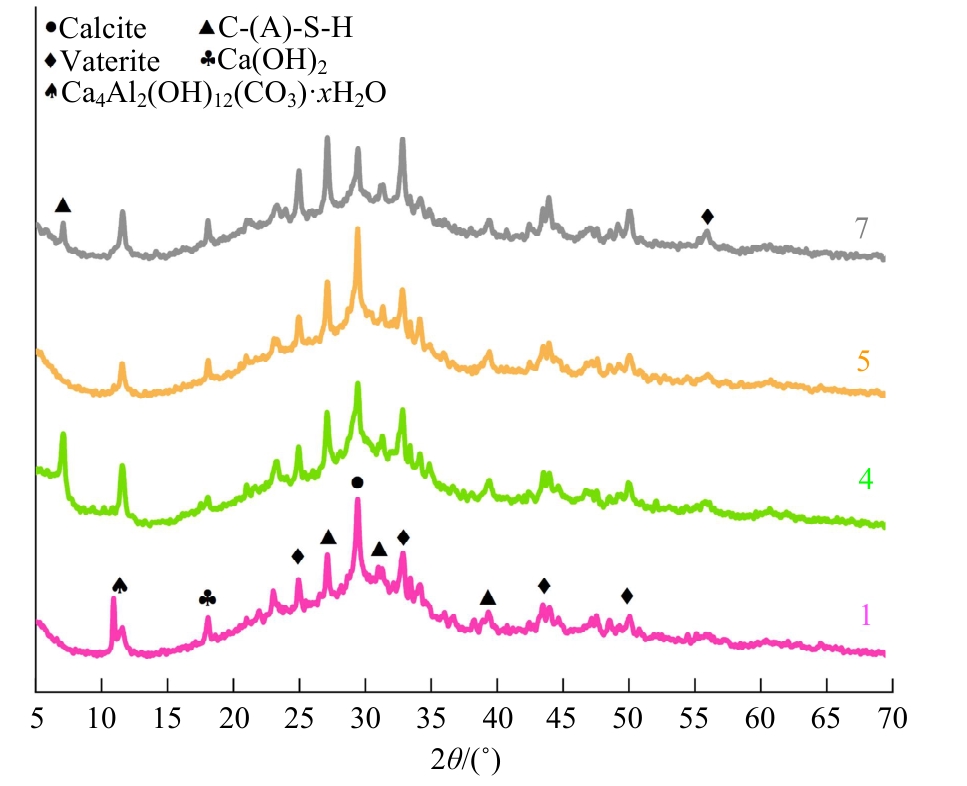

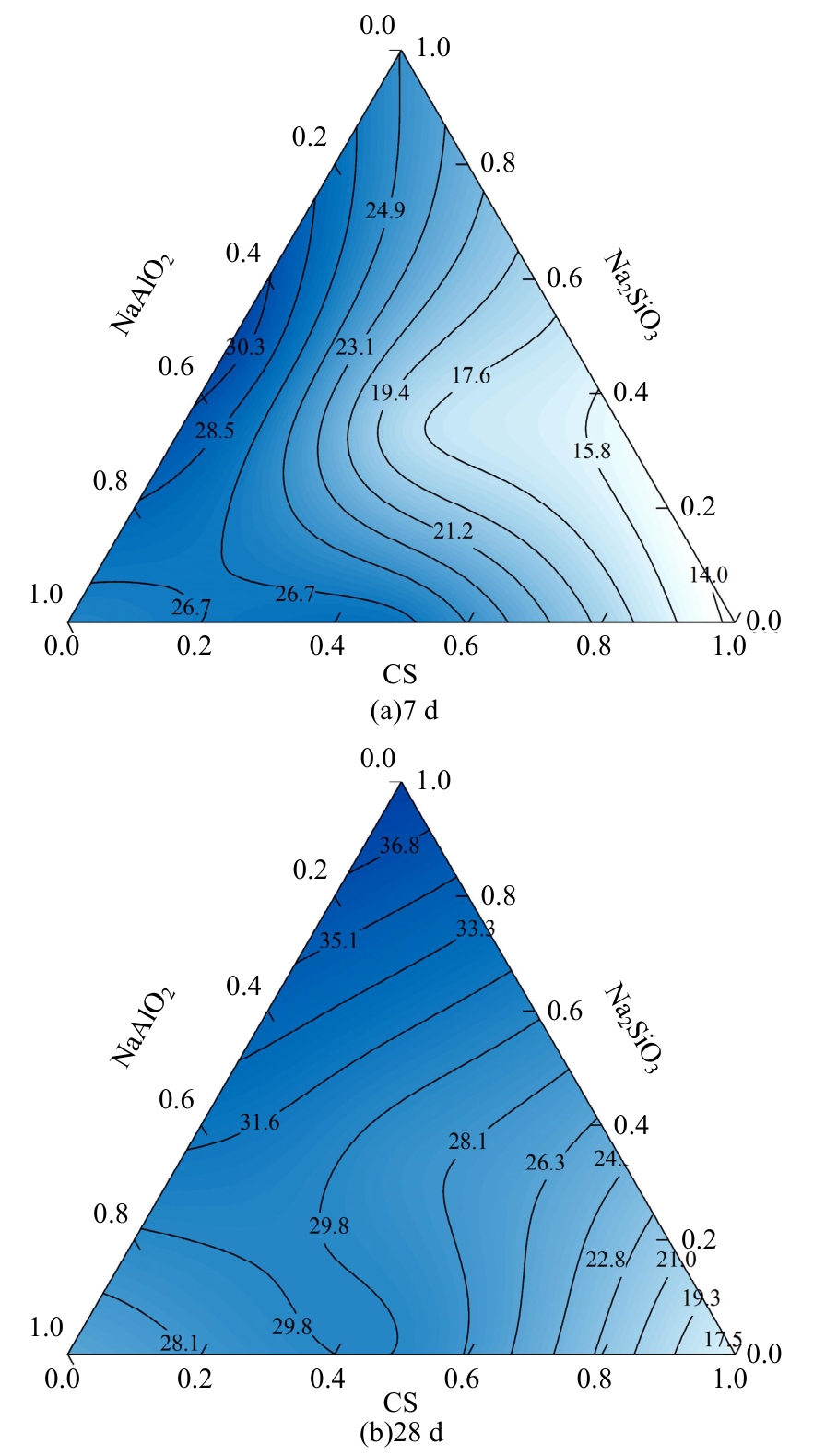

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表3

图11

参考文献 40

[1]	Wei J X, Cen K. Empirical assessing cement CO₂ emissions based on China's economic and social development during 2001-2030[J]. Science of the Total Environment, 2019, 653: 200-211.
[2]	高英力, 曹韩硕, 卜涛, 等. 尾矿砂对混杂纤维水泥砂浆性能的影响研究[J]. 长沙理工大学学报:自然科学版, 2023, 20(5): 105-114.
	Gao Ying-li, Cao Han-shuo, Bo Tao, et al. Study on the effect of tailing sand on the mechanical properties of hybrid fiber reinforced cement mortar[J]. J Changsha Univ Sci Tech(Nat Sci), 2023, 20(5): 105-114.
[3]	Sun B, Ye G, Schutter G. A review: Reaction mechanism and strength of slag and fly ash-based alkali-activated materials[J]. Construction and Building Materials, 2022, 326: No.126843.
[4]	Liu J, Hu L, Tang L. Utilisation of municipal solid waste incinerator(MSWI) fly ash with metakaolin for preparation of alkali-activated cementitious material[J]. Journal of Hazardous Materials, 2021, 402: No.123451.
[5]	Pasupathy K, Ramakrishnan S, Sanjayan J. Enhancing the chemical foaming process using superplasticizer in aerated geopolymer concrete[J]. Construction and Building Materials, 2022, 324: No.126535.
[6]	杨世玉, 赵人达, 靳贺松, 等. 单组分地聚物砂浆的力学性能和微观结构分析[J]. 西南交通大学学报, 2021, 56(1): 101-107.
	Yang Shi-yu, Zhao Ren-da, Jin He-song, et al. Mechanical performance and microstructure of single component geopolymer mortar[J]. Journal of Southwest Jiaotong University, 2021, 56(1): 101-107.
[7]	Seo J, Park S, Yoon H N, et al. Utilization of calcium carbide residue using granulated blast furnace slag[J]. Materials, 2019, 12(21): No.3511.
[8]	Cong P, Mei L. Using silica fume for improvement of fly ash/slag based geopolymer activated with calcium carbide residue and gypsum[J]. Construction and Building Materials, 2021, 275: No.122171.
[9]	罗晓洪, 张世俊, 郭荣鑫, 等. 电石渣替代水泥作碱激发剂对过硫磷石膏胶凝材料性能和微观结构的影响[J]. 材料导报, 2023, 37(): 298-304.
	Luo Xiao-hong, Zhang Shi-jun, Guo Rong-xin, et al. Effect of carbide slag instead of cement as alkali activator on properties and microstructure of excess-sulphate phosphogypsum cementitious material[J]. Materials Reports, 2023, 37(Sup.2): 298-304.
[10]	陈友治, 吴修齐, 殷伟淞, 等. 电石渣对复合胶凝材料力学性能和微观结构的影响[J]. 硅酸盐通报, 2023, 42(9): 3196-3203.
	Chen You-zhi, Wu Xiu-qi, Yin Wei-song, et al. Effect of calcium carbide residue on mechanical properties and microstructure of composite cementitious material[J]. Bulletin of the Chinese Ceramic Society, 2023, 42(9): 3196-3203.
[11]	张大旺, 王栋民. 地质聚合物混凝土研究现状[J]. 材料导报, 2018, 32(9): 1519-1527.
	Zhang Da-wang, Wang Dong-min. Research status of geopolymer concrete[J]. Materials Reports, 32(9): 1519-1527.
[12]	田威, 云伟, 贺文昊, 等. 矿渣基地聚物固化黄土抗压强度及固化机制研究[J]. 土木工程学报, 2025,58(11):140-152.
	Tian Wei, Yun Wei, He Wen-hao, et al. Study on compressive strength and curing mechanism of slag based geopolymer solidified loess[J]. China Civil Engineering Journal, 2025,58(11):140-152.
[13]	刘扬, 陈湘, 王柏文, 等. 碱激发粉煤灰-矿渣-电石渣基地聚物的制备及强度机理[J]. 硅酸盐通报, 2023,42(4):1353-1362.
	Liu Yang, Chen Xiang, Wang Bo-wen, et al. Preparation and strength mechanism of alkali-activated fly ash-slag-carbide slag based geopolymer[J]. Bulletin of the Chinese Ceramic Society, 2023,42(4):1353-1362.
[14]	廖嘉欣, 王健, 孔祥明, 等. 硫酸铝和偏铝酸钠对水泥浆体强度发展影响机理[J]. 建筑材料学报, 2024,27(12):1071-1080.
	Liao Jia-xin, Wang Jian, Kong Xiang-ming, et al. Insights into the Effect of aluminum sulfate and sodium aluminate on the compressive strength development of cement mortars[J]. Journal of Building Materials, 2024,27(12):1071-1080.
[15]	Chen B, Wang J, Zhao J. Effect of sodium aluminate dosage as a solid alkaline activator on the properties of alkali-activated slag paste[J]. Advances in Materials Science and Engineering, 2021, 13: No. 6658588.
[16]	史才军, 王德辉, 安晓鹏, 等. 基于多种性能要求的混凝土组成设计方法[J]. 硅酸盐学报, 2018(2): 230-238.
	Shi Cai-jun, Wang De-hui, An Xiao-peng, et al. Method for mixture design of concrete with multiple performance requirements[J]. Journal of the Chinese Ceramic Society, 2018(2): 230-238.
[17]	张佳丽. 碱激发电石渣/玻璃粉制备胶凝材料及性能研究[D]. 济南: 山东交通学院交通土建工程学院, 2024.
	Zhang Jia-li. Preparation and properties of cementitious material by alkali-activated calcium carbide residue/glass powder[D]. Jinan: School of Traffic and Civil Engineering, Shandong Jiaotong University, 2024.
[18]	En O, Ming L, Yong H, et al. Comparative mechanical and microstructural properties of high calcium fly ash one-part geopolymers activated with Na₂SiO₃-anhydrous and NaAlO₂ [J]. Journal of Materials Research and Technology, 2021, 15: 3850-3866.
[19]	Wang Y, Alrefaei Y, Dai J. Roles of hybrid activators in improving the early-age properties of one-part geopolymer pastes[J]. Construction and Building Materials, 2021, 306: No.124880.
[20]	苏岳威, 张宁, 吕宪俊, 等. 水玻璃模数对矿渣基胶凝材料水化特性及动力学的影响[J]. 材料导报, 2020, 34(A1): 271-276.
	Su Yue-wei, Zhang Ning, Xian-jun Lü, et al. Effects of water glass modulus on the hydration properties and kinetics of slag-based cementitious materials[J]. Materials Review, 2020, 34(A1): 271-276.
[21]	Zhao X, Liu C, Wang L, et al. Physical and mechanical properties and micro characteristics of fly ash-based geopolymers incorporating soda residue[J]. Cement and Concrete Composites, 2019(98): 125-136.
[22]	Hajjaji W, Andrejkovičová S, Zanelli C, et al. Composition and technological properties of geopolymers based on metakaolin and red mud[J]. Materials & Design, 2013, 52: 648-654.
[23]	Bernal S A, Provis J L, Rose V, et al. Evolution of binder structure in sodium silicate-activated slag-metakaolin blends[J]. Cement and Concrete Composites, 2011, 33(1): 46-54.
[24]	Du Z, Sheng S, Guo J. Effect of composite activators on mechanical properties, hydration activity and microstructure of red mud-based geopolymer[J]. Journal of Materials Research and Technology, 2023, 24: 8077-8085.
[25]	Wang C, Wen P, Wang M, et al. Preparation and characterization of road alkali-activated blast furnace slag paste[J]. Construction and Building Materials, 2018, 181: 175-184.
[26]	Puertas F, Palacios M, Manzano H, et al. A model for the C-A-S-H gel formed in alkali-activated slag cements[J]. Journal of the European Ceramic Society, 2011, 31(12): 2043-2056.
[27]	Zhu Z, Gao Y, Liu J, et al. Strength enhancement mechanism of slaked lime on one-part AAM prepared from sodium carbonate-activated slag[J]. Journal of Materials in Civil Engineering, 2024, 36(11): No.04024343.
[28]	Li Y, Yin J, Yuan Q, et al. Fresh and hardened properties of cement paste and mortar incorporating calcined cutter soil mixing residue[J]. Construction and Building Materials, 2022, 357: No.129376.
[29]	Lodeiro G I, Macphee D E, Palomo A. Effect of alkalis on fresh C-S-H gels FTIR analysis[J]. Cement and Concrete Research, 2009, 39(3): 147-153.
[30]	Ylmén R, Wadsö L, Panas I. Insights into early hydration of Portland limestone cement from infrared spectroscopy and isothermal calorimetry[J]. Cement and Concrete Research, 2010, 40(10): 1541-1546.
[31]	肖建敏, 李辉, 雷睿欣. 碱矿渣水泥早期反应产物微观结构演化过程[J]. 建筑材料学报, 2024, 27(5): 381-390.
	Xiao Jian-min, Li Hui, Lei Rui-xin. Microstructural evolution of early reaction products in alkali-activated slag cement at early age[J]. Journal of Building Materials, 2019, 27(5): 381-390.
[32]	Liu L, Liu H, Xu Y, et al. Mechanical properties and microstructure of alkali-activated slag grouting materials exposed to flowing NAHCO₃ solution[J]. Journal of Materials in Civil Engineering, 2022, 34(12): No.04022332.
[33]	Zhang J, Li S, Li Z. Investigation the synergistic effects in quaternary binder containing red mud, blast furnace slag, steel slag and flue gas desulfurization gypsum based on artificial neural networks[J]. Journal of Cleaner Production, 2020, 273: No.122972.
[34]	刘连利, 翟玉春, 刘玉静, 等. 水合碳铝酸钙的性质及脱硅反应研究[J]. 化学通报, 2004(5): 368-372.
	Liu Lian-li, Zhai Yu-chun, Liu Yu-jing, et al. Research on desilication reaction and property of calcium hydroaluminocarbonate[J]. Chinese Chemical Bulletin, 2004(5): 368-372.
[35]	杨敬斌, 方媛, 李东旭. 碱胶凝材料水化产物C-A-S-H与N-A-S-H的研究进展[J]. 硅酸盐通报, 2017, 36(10): 3292-3297.
	Yang Jing-bin, Fang Yuan, Li Dong-xu. Hydration products C-A-S-H and N-A-S-H of alkali-activated materials[J]. Bulletin of Silicate, 2017, 36(10): 3292-3297.
[36]	刘家文. 碳酸钙-铝酸盐矿物复合体系的水化行为与胶凝性能研究[D]. 重庆: 重庆大学材料科学与工程学院, 2020.
	Liu Jia-wen. Research on hydration behavior and cementitious properties of calcium carbonate and aluminate minerals composite systems[D]. Chongqing: College of Materials Science and Engineering, Chongqing University, 2020.
[37]	何小芳, 张亚爽, 李小庆, 等. 水泥水化产物的热分析研究进展[J]. 硅酸盐通报, 2012, 31(5): 1170-1174.
	He Xiao-fang, Zhang Ya-shuang, Li Xiao-qing, et al. Research progress of thermal analysis in cement hydration[J]. Bulletin of Ceramics, 2012, 31(5): 1170-1174.
[38]	Longhi M A, Zhang Z, Rodriguez E D, et al. Efflorescence of alkali-activated cements(geopolymers) and the impacts on material structures: a critical analysis[J]. Frontiers in Materials, 2019(6): No.89.
[39]	刘源涛, 王琰帅, 董必钦. 偏铝酸钠激发石灰石粉的胶凝材料合成机理研究[J]. 材料导报, 2023, 37(1): 91-95.
	Liu Yuan-tao, Wang Yan-shuai, Dong Bi-qin. Synthesis mechanisms of sodium metaaluminate-activated limestone-based cementitious material[J]. Materials Review, 2023, 37(1): 91-95.
[40]	Chen T, Gao Y, Li Y, et al. The strength, reaction mechanism, sustainable potential of full solid waste alkali-activated cementitious materials using red mud and carbide slag[J]. Construction and Building Materials, 2024, 449: No.138454.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

材料	CaO	SiO₂	Al₂O₃	SO₃	Fe₂O₃	MgO
GGBS	34.00	34.20	17.60	1.62	1.01	6.21
CS	92.90	3.47	1.51	1.11	0.60	0.08

元素	物质的量比
元素	No.1	No.4	No.5	No.7
O	56.3	55.3	57.4	56.4
C	17.7	18.6	17.2	17.2
Ca	11.5	10.1	9.5	10
Si	7	6.5	7	7
Al	3.9	4.5	3.8	4.5
Mg	2.9	2.8	2.9	2.9
Na	0.2	1.5	1.6	1.4

Na₂SiO₃/NaAlO₂协同电石渣激发矿渣的增强机理

Strengthening mechanism of Na₂SiO₃/NaAlO₂ synergistic carbide slag to activate slag

RICH HTML

PDF (PC)

摘要/Abstract

引用本文

使用本文

图/表 14

参考文献 40

相关文章 15

Metrics

本文评价

推荐阅读 0

[1]	张航,熊宇豪,吕能超. 基于停车视距的高速公路下坡段货车制动可靠性[J]. 吉林大学学报(工学版), 2026, 56(2): 383-392.
[2]	李博,梁媛,马云东,于露. 寒区高铁隧道口边坡冻融失稳智能监测预警方法[J]. 吉林大学学报(工学版), 2025, 55(9): 2985-2997.
[3]	张航,孙煜,马宝林,牛世豪,王星月,吕能超. 高速公路双车道出口辅助车道长度可靠性设计[J]. 吉林大学学报(工学版), 2025, 55(8): 2611-2618.
[4]	徐凌,王小兵,袁捷,任华平,韩乙锋,徐西永. 回填狭窄区粉砂基可控低强度材料制备与性能[J]. 吉林大学学报(工学版), 2025, 55(8): 2657-2668.
[5]	田耀刚,蒋静,赵成,杨小敏,张军,贾侃. 水性环氧树脂改性高早强砂浆的耐温机制[J]. 吉林大学学报(工学版), 2025, 55(7): 2203-2211.
[6]	龙志友,万昭龙,董是,杨超,刘肖扬. 基于变分模态分解和极端梯度提升的公路边坡位移预测[J]. 吉林大学学报(工学版), 2025, 55(7): 2320-2332.
[7]	姚康,董侨,陈雪琴,史斌,颜世傲,王翔. 基于相场正则化黏聚区模型的混凝土混合型细观断裂行为[J]. 吉林大学学报(工学版), 2025, 55(7): 2286-2297.
[8]	韦万峰,张洪刚,张仰鹏,杨帆,唐伯明,孔令云. 废胶粉改性沥青改性机理、制备及性能研究进展[J]. 吉林大学学报(工学版), 2025, 55(6): 1834-1853.
[9]	杨轸,郑瑞平,巩喆. 路网道路服役性能和交通状态耦合仿真预测[J]. 吉林大学学报(工学版), 2025, 55(6): 1973-1983.
[10]	张安顺,付伟,张军辉,高峰. 长沙压实黏土剪切特性及应力-应变关系表征[J]. 吉林大学学报(工学版), 2025, 55(5): 1604-1616.
[11]	王黎明,宋子坤,周辉,魏文,袁浩. 超声处置石油沥青的流变学响应及响应机理[J]. 吉林大学学报(工学版), 2025, 55(4): 1346-1355.
[12]	徐俊鹏,郑传峰,杜艳韬,王雨航,路政,范文军. 寒区沥青混合料在水-热-力三场耦合作用下的损伤效应[J]. 吉林大学学报(工学版), 2025, 55(3): 877-887.
[13]	俞靖洋,李东钊,张志清,王真,孙海林,布海玲,李明春. 环保型蓄盐沥青混合料性能损伤演变[J]. 吉林大学学报(工学版), 2025, 55(3): 888-898.
[14]	杨彦海,李百川,杨野,王崇骅,岳靓. 基于虚拟劈裂试验的集料椭球表面基构造[J]. 吉林大学学报(工学版), 2025, 55(2): 653-663.
[15]	念腾飞,韩召,魏智强,王国伟,戈锦果,李萍. 考虑骨料形态的沥青混合料细观数值建模方法[J]. 吉林大学学报(工学版), 2025, 55(2): 639-652.

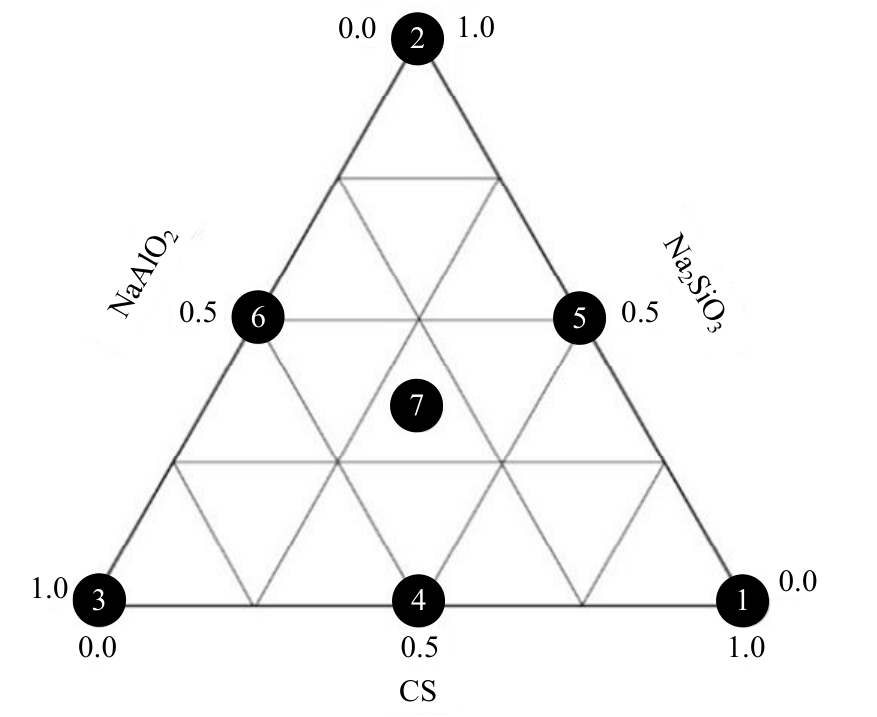

No.	CS	Na₂SiO₃	NaAlO₂
1	100	0	0
2	0	100	0
3	0	0	100
4	50	0	50
5	50	50	0
6	0	50	50
7	100/3	100/3	100/3
