双带揉搓式残膜打捆装置与载膜箱的结构设计与试验

doi:10.13229/j.cnki.jdxbgxb.20250030

摘要/Abstract

摘要：

针对现有残膜打捆过程中存在的结构复杂、打捆皮带寿命低、膜捆直径不可调、卸膜位置不确定和与现有残膜回收机配套性差等问题，设计了一种双带揉搓式残膜打捆装置，介绍了配套整机工作流程、残膜打捆结构组成及工作过程，重点对双带揉搓式残膜打捆装置、张紧装置及载膜箱进行设计。通过对打捆作业过程进行力学分析，确定了各功能部件的结构参数和工作参数。为验证双带揉搓式残膜打捆装置的作业性能和效率，以打捆腔角度、打捆带摩擦因数和打捆带线速度为试验因素，在此基础上，以残膜成捆率、残膜捆密度和打捆效率为响应变量，设计三因素三水平的二次回归试验，建立回归模型，分析各因素对残膜成捆率和捆密度的影响，并进行参数优化与试验验证。试验结果表明：影响残膜成捆率的因素由大到小依次为：打捆腔角度>打捆带线速度>打捆带摩擦因数；影响残捆密度的因素依次为：打捆带线速度>打捆腔角度>打捆带摩擦因数；影响打捆效率的因素依次为：打捆带摩擦因数>打捆带线速度>打捆腔角度。理论最优的设计参数如下：打捆腔角度为33°，打捆带选草坪纹打捆带摩擦因数为0.83，打捆带线速度为1.03 m/s。研究结果可为残膜打捆装置设计与高质量作业提供参考。

关键词: 残膜打捆, 膜捆直径可调节, 双带打捆装置, 载膜箱, 正交试验

Abstract:

A dual belt residual film bundling device has been designed to address the problems of complex structure， low service life of bundling belts， adjustable tightness of film bundling， uncertain unloading position， and poor compatibility with existing residual film recycling machines in the existing residual film bundling process. This article introduces the composition and working process of the residual film bundling structure， with a focus on optimizing the design of the bundling device， tensioning device， and film carrying box. By conducting a dynamic analysis of the bundling process， the structural and operational parameters of each functional component were determined. To verify the operational performance and efficiency of the dual belt residual film bundling device， three factor three-level quadratic regression experiments were conducted with bundling chamber angle， bundling belt friction coefficient， and bundling belt linear speed as experimental factors， and residual film bundling rate， residual film bundling density， and bundling efficiency as response values. A regression model was established to analyze the effects of each factor on residual film bundling rate， residual film bundling density， and bundling efficiency， and parameter optimization and experimental verification were carried out.The experimental results show that the factors affecting the bundling rate of residual film are in descending order： bundling chamber angle>bundling belt linear velocity>bundling belt friction coefficient； The factors that affect the density of residual film bundling are in the following order： bundling belt line speed>bundling chamber angle>bundling belt frictioncoefficient； The factors that affect packaging efficiency are in the following order： the friction coefficient of the strapping belt>the angle of the strapping chamber>the linear velocity of the strapping belt. Theoretical optimal design parameters： bundling chamber angle is 33°， packing belt friction coefficient is 0.83， and packing belt linear velocity is 1.03 m/s. The research results provide reference for the design and high-quality operation of residual film bundling devices.

Key words: tying device, adjustable bale diameter, double-belt baling device, film magazine, orthogonal experiment

中图分类号:

S225

王敏,霍尚,曹肆林,营雨琨,何玉泽,卢勇涛. 双带揉搓式残膜打捆装置与载膜箱的结构设计与试验[J]. 吉林大学学报(工学版), 2026, 56(8): 2260-2278.

Min WANG,Shang HUO,Si-lin CAO,Yu-kun YING,Yu-ze HE,Yong-tao LU. Structural design and testing of double belt residual film binding device and film carrying box[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(8): 2260-2278.

图/表 41

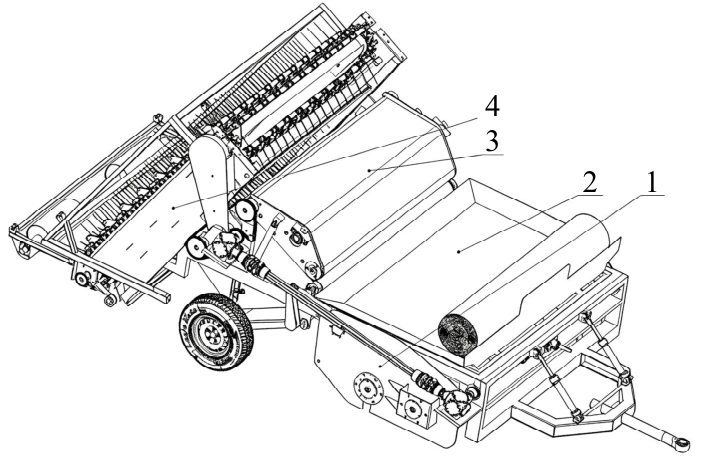

图1

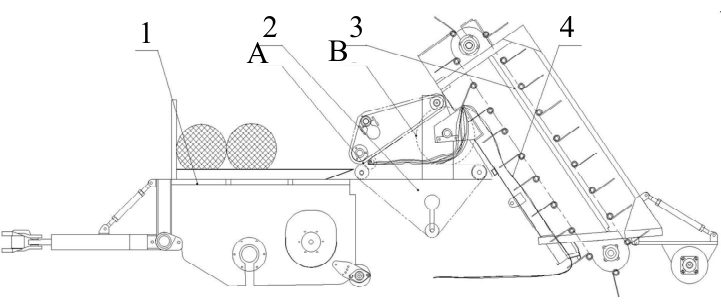

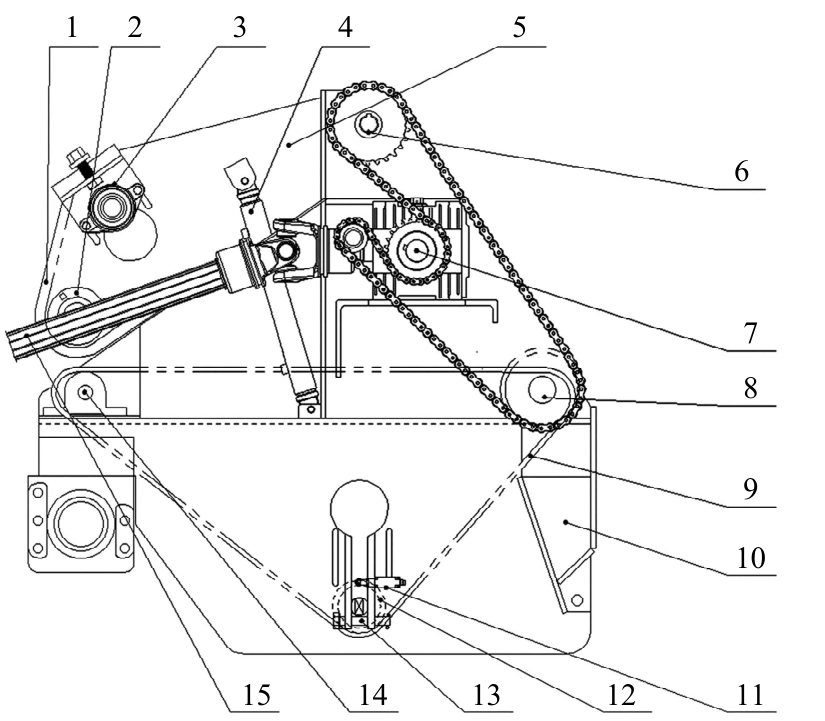

图2

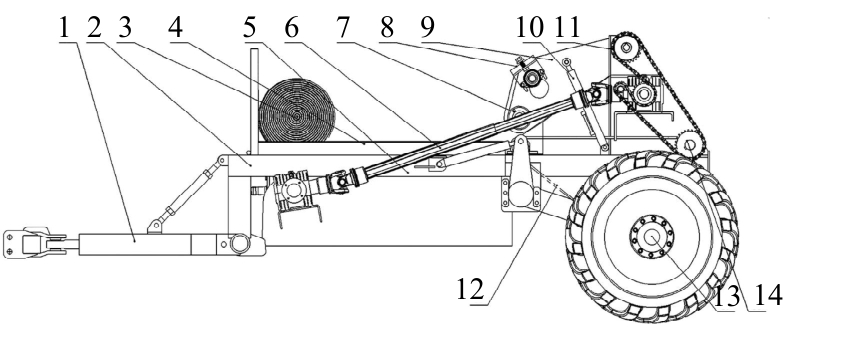

图3

表1

表2

图4

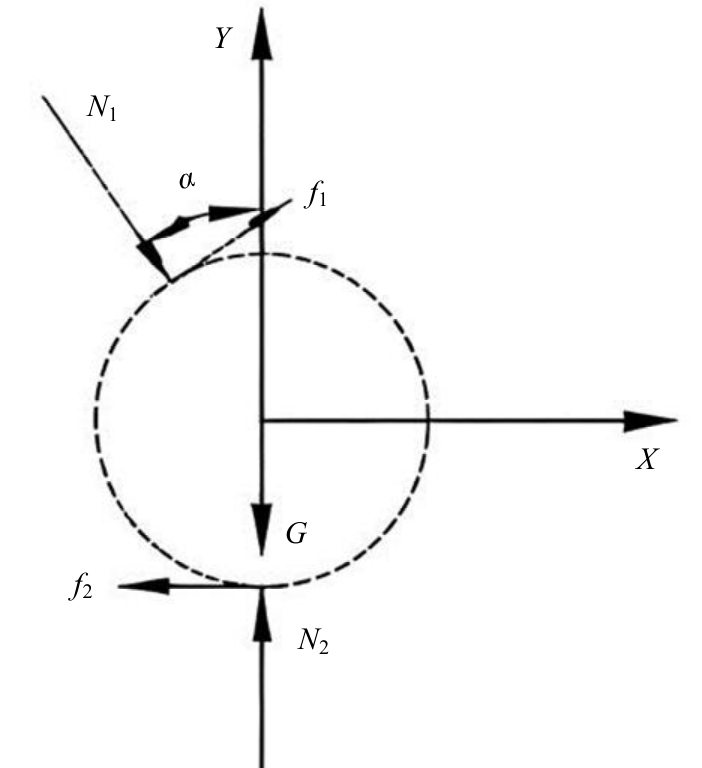

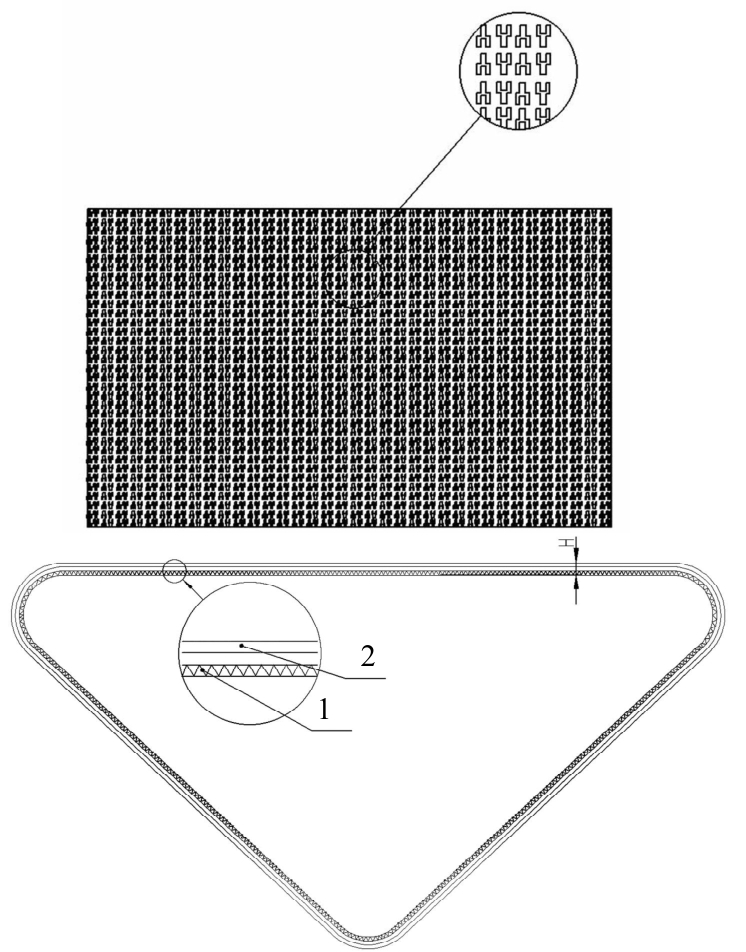

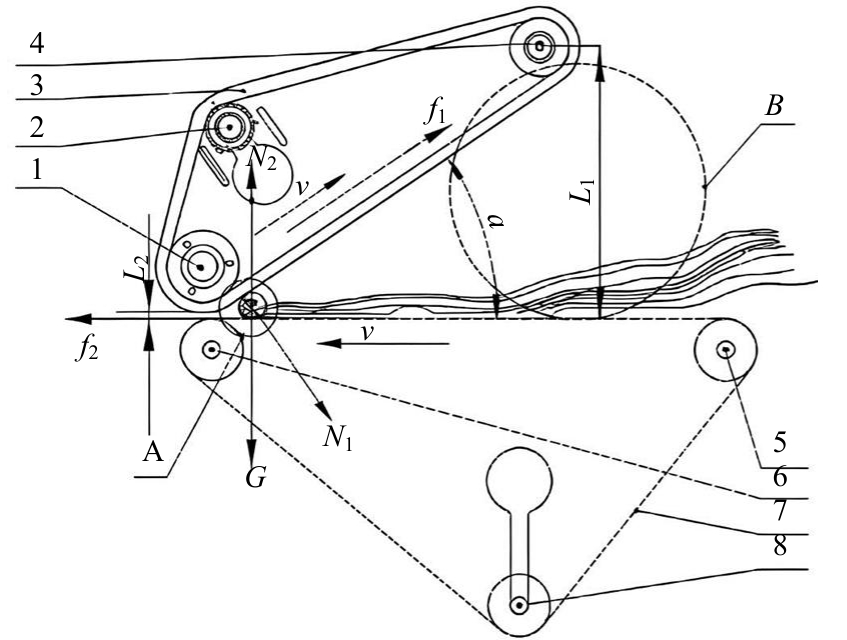

图5

图6

图7

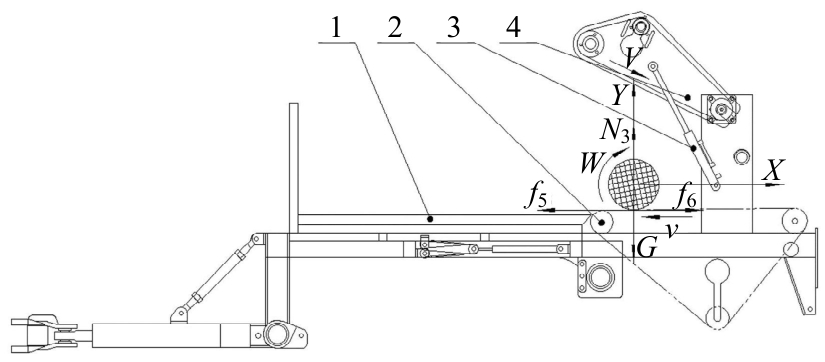

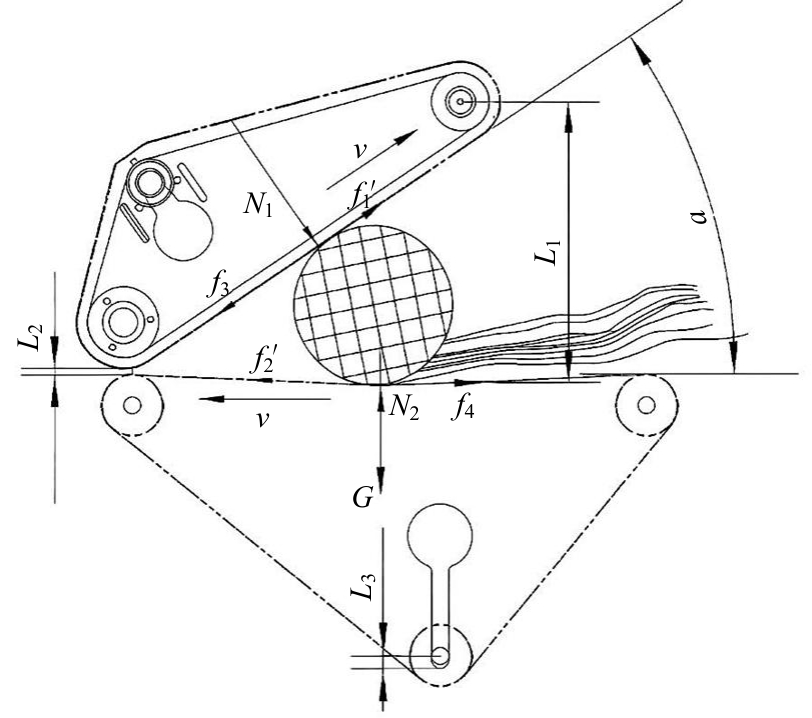

图8

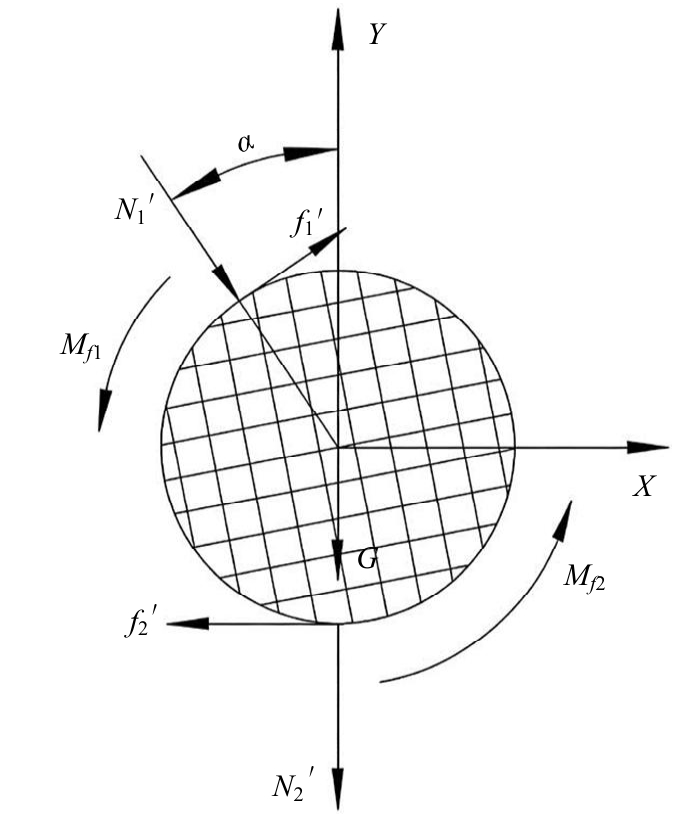

图9

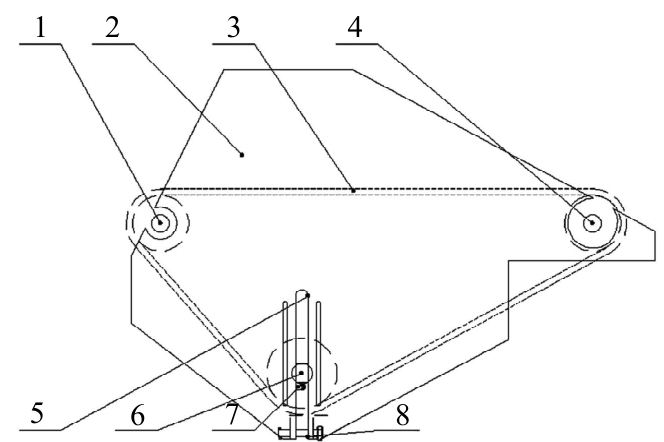

图10

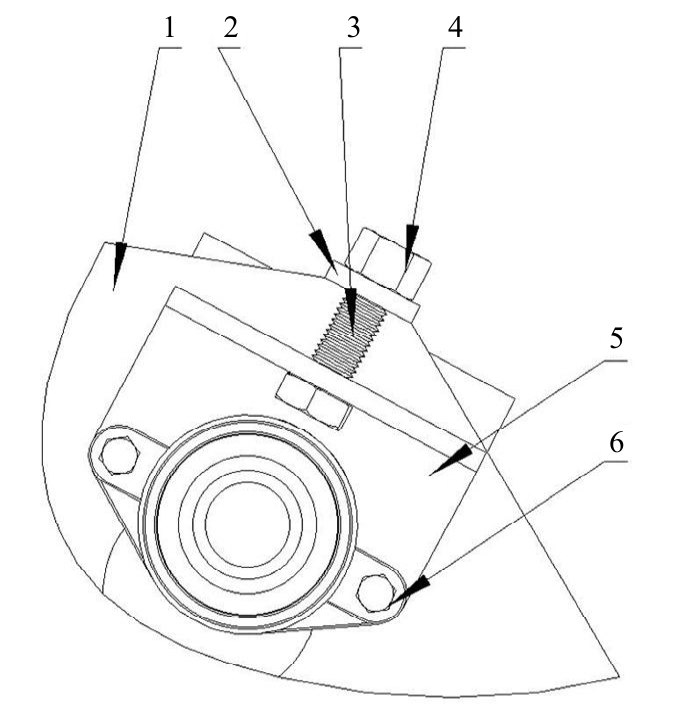

图11

图12

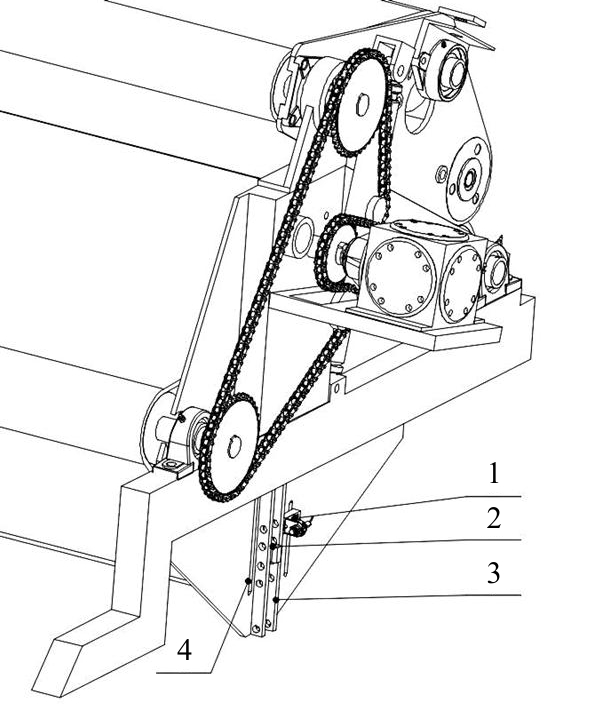

图13

图14

表3

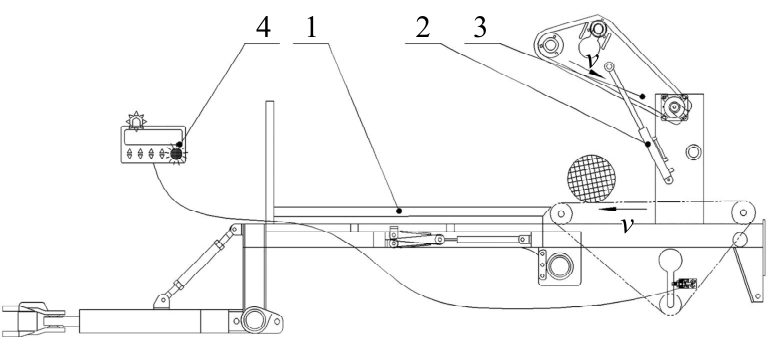

图15

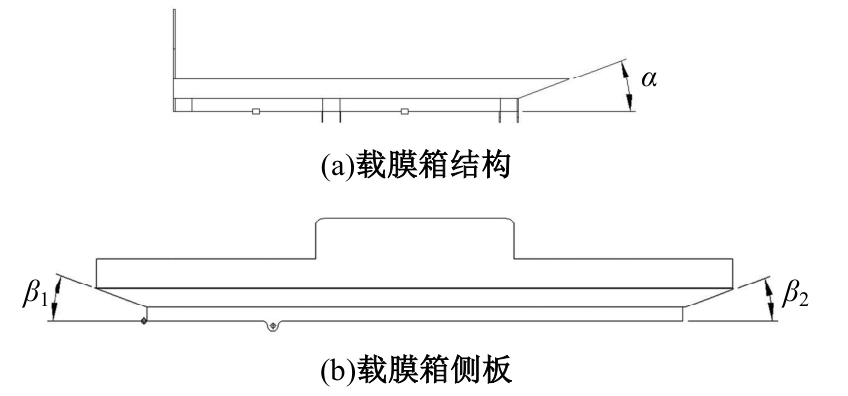

图16

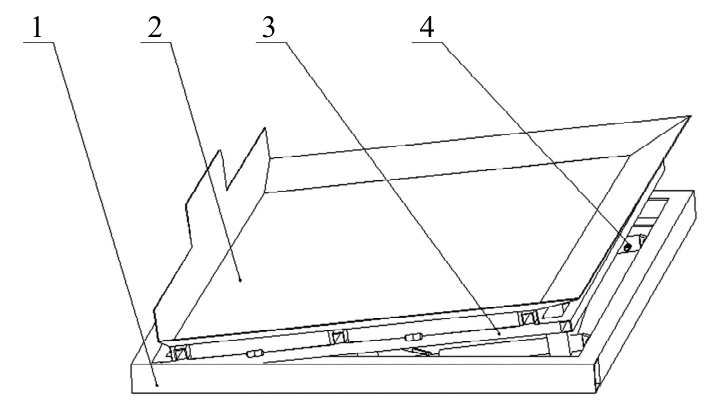

图17

图18

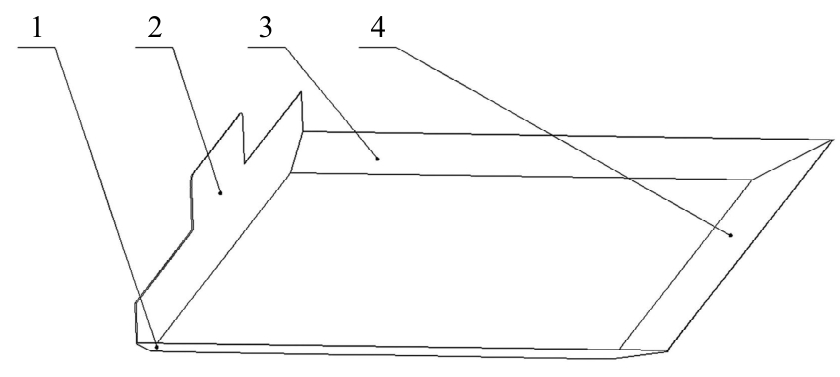

图19

图20

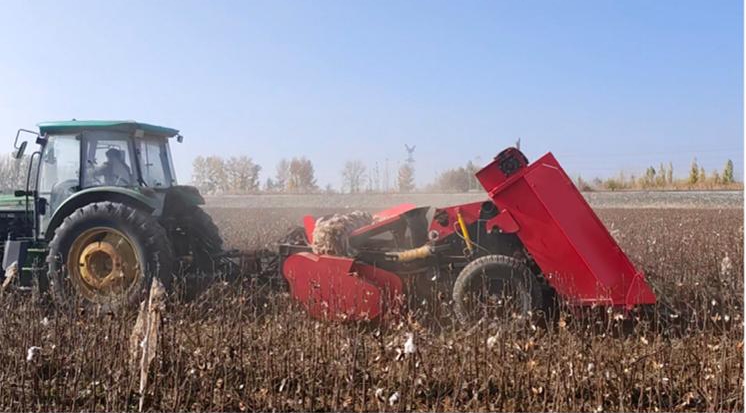

图21

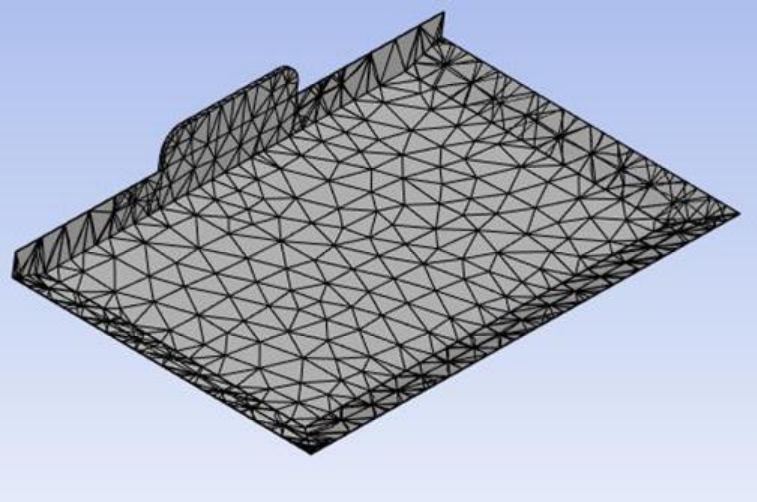

图22

表4

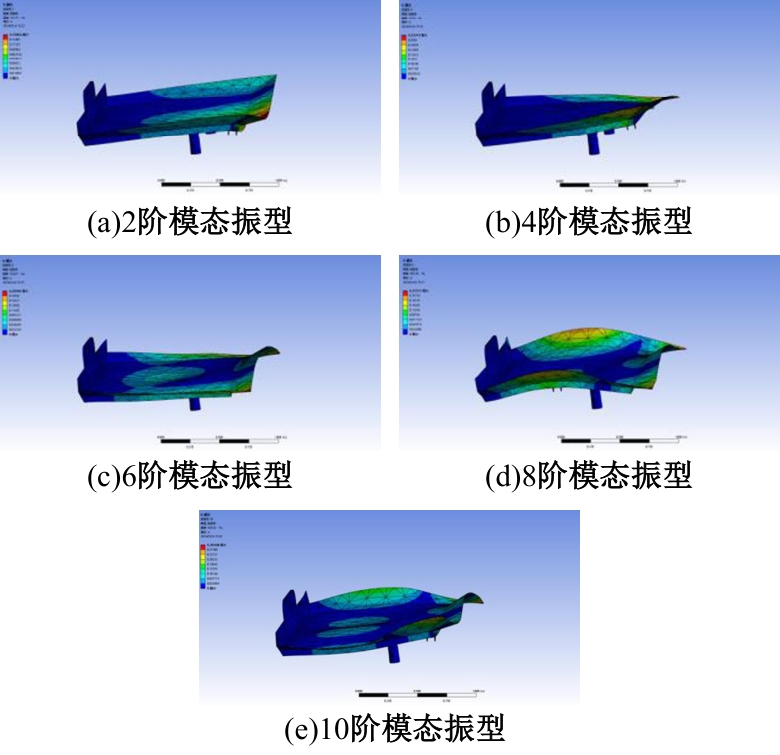

图23

表5

表6

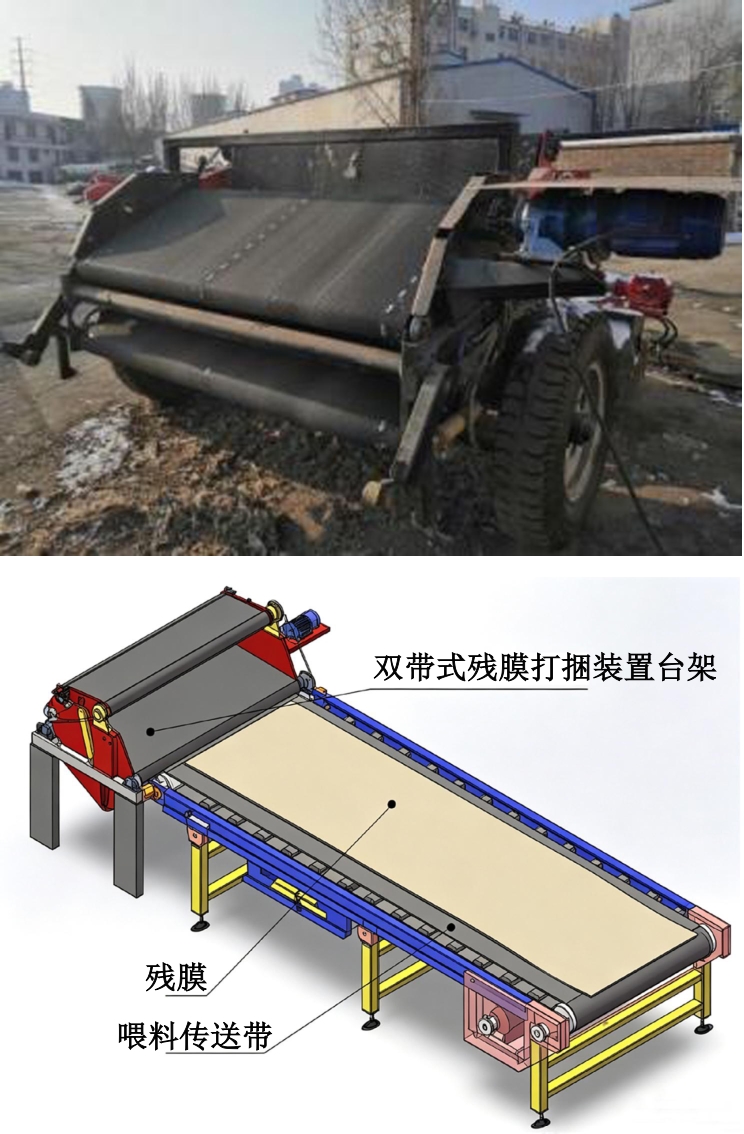

图24

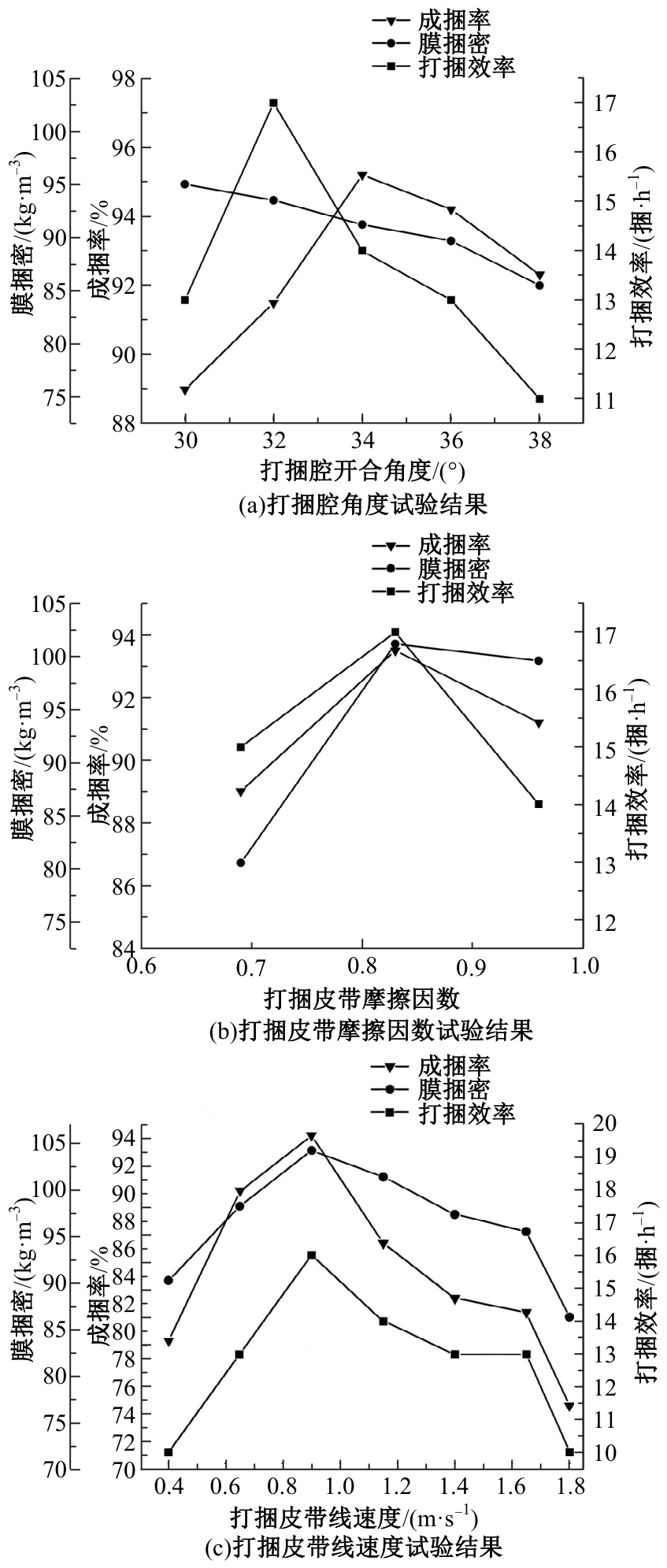

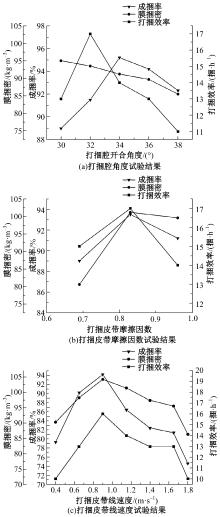

图25

表7

试验因素编码"

水平

打捆腔角度/（°）

打捆带摩擦因数

打捆带线速度

/（m $? s$ ^-1）

-1

0.69

0.8

0.825

1.1

0.96

1.4

表7

表8

表9

方差分析"

变异来源	残膜成捆率 $Y 1$				残膜捆密度 $Y 2$				打捆效率 $Y 3$
变异来源	自由度	均方	$F 1$	$P 1$	自由度	均方	$F 2$	$P 2$	自由度	均方	$F 3$	$P 3$
回归	9	9.02	173.44	0.000 1**	9	54.31	242.34	0.000 1**	9	8.09	53.95	0.000 1**
$X 1$	1	2.16	41.57	0.000 4**	1	36.81	164.25	0.000 1**	1	1.13	7.5	0.02 9*
$X 2$	1	0.54	10.39	0.014 6**	1	3.85	17.18	0.004 3**	1	45.13	300.83	0.000 1**
$X 3$	1	0.34	6.46	0.038 6*	1	386.28	1723.75	0.000 1**	1	18	120	0.000 1**
$X 1 X 2$	1	2.30	44.11	0.000 3**	1	3.74	16.71	0.004 6**	1	0.25	1.67	0.237 7
$X 1 X 3$	1	8.56	164.43	0.000 1**	1	4.64	20.72	0.002 6**	1	4	26.67	0.001 3**
$X 2 X 3$	1	2.74	52.64	0.000 2**	1	0.02	0.0754	0.791 5	1	1	6.67	0.036 4*
$X 12$	1	50.20	964.69	0.000 1**	1	2.57	11.46	0.011 7*	1	0.95	6.33	0.04
$X 22$	1	9.89	190.11	0.000 1**	1	1.31	5.86	0.046 0*	1	0.002 6	0.0175	0.898 4
$X 32$	1	0.70	13.45	0.008 0	1	46.93	209.42	0.000 1**	1	2.21	14.75	0.006 4
残差	7	0.0520			7	0.224 1			7	0.15
失拟	3	0.0822	2.79	0.173 2	3	0.207 9	0.879 7	0.522 9	3	0.083 3	0.416 7	0.751
误差	4	0.0294			4	0.236 3			4	0.2

表9

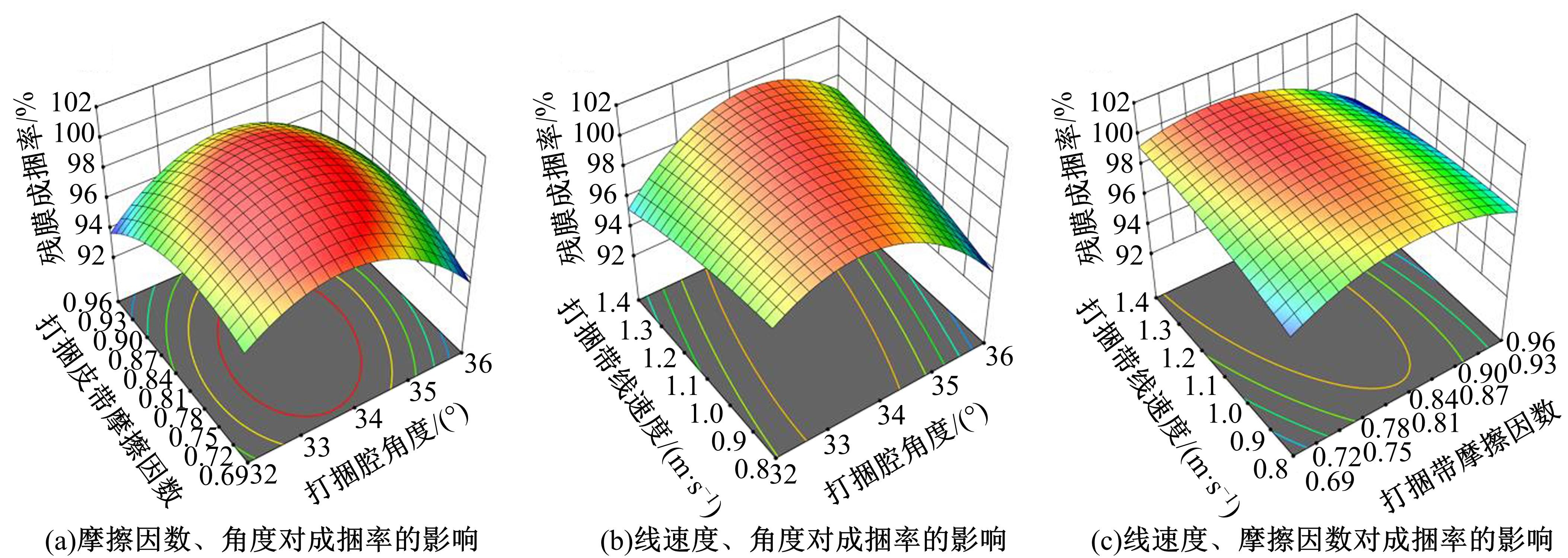

图26

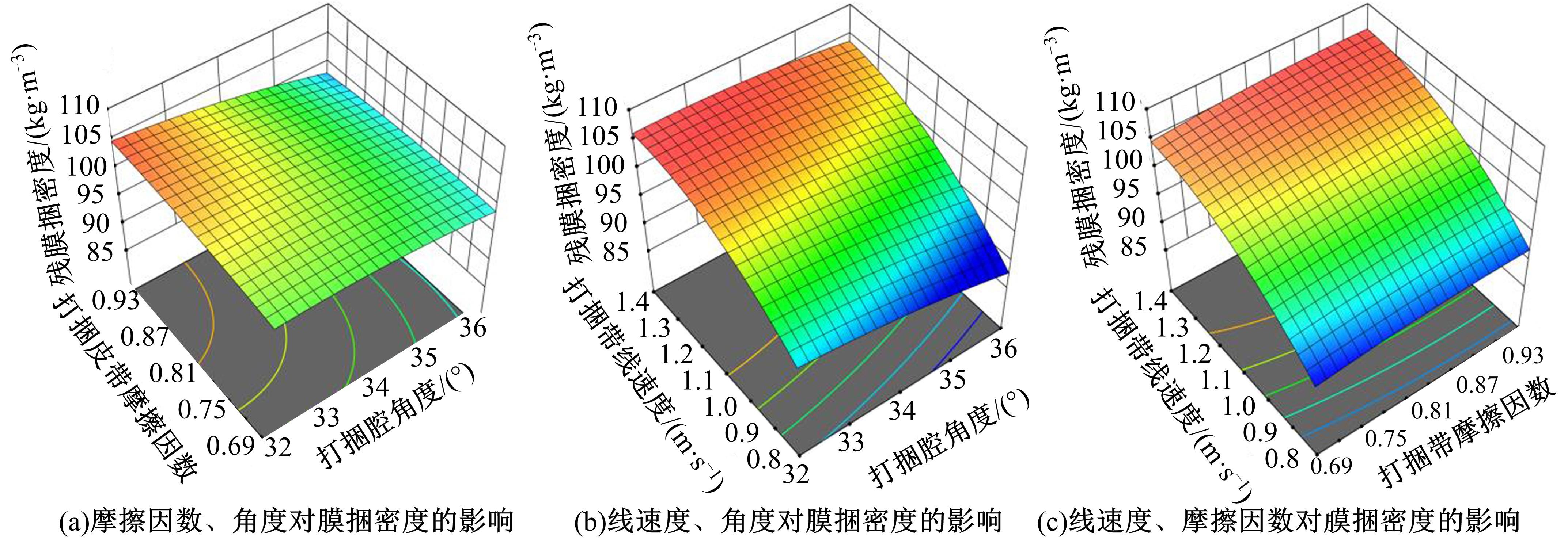

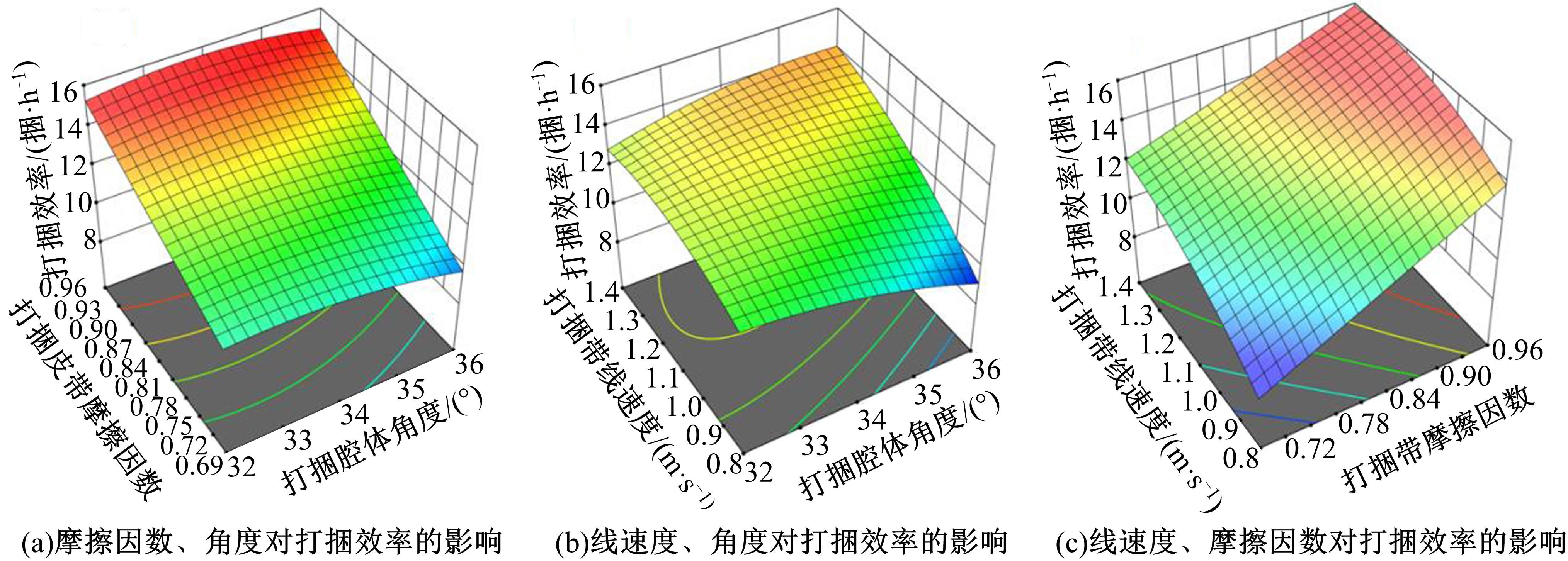

图27

图28

表10

试验结果"

试验序号	残膜成捆率/%	残膜捆密度/ （kg? $m - 3$ ）	打捆效率/ （捆? $h - 1$ ）
平均值	100	106.23	14.67
1	100	104.25	15
2	100	106.53	13
3	100	107.89	16

表10

图29

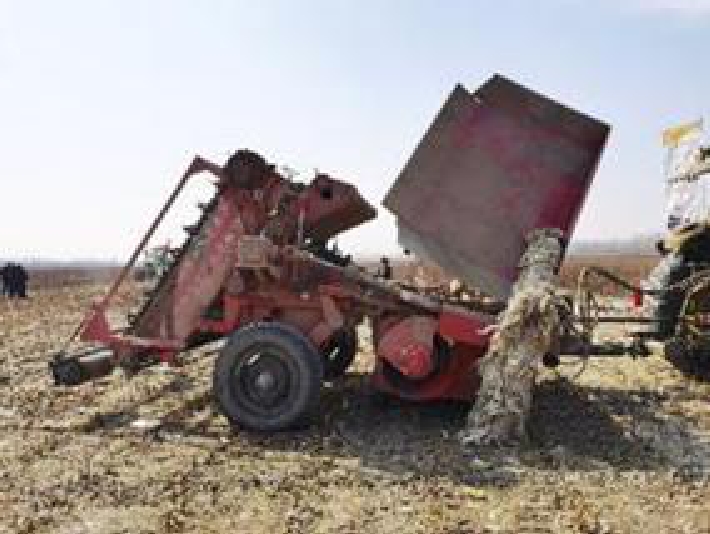

图30

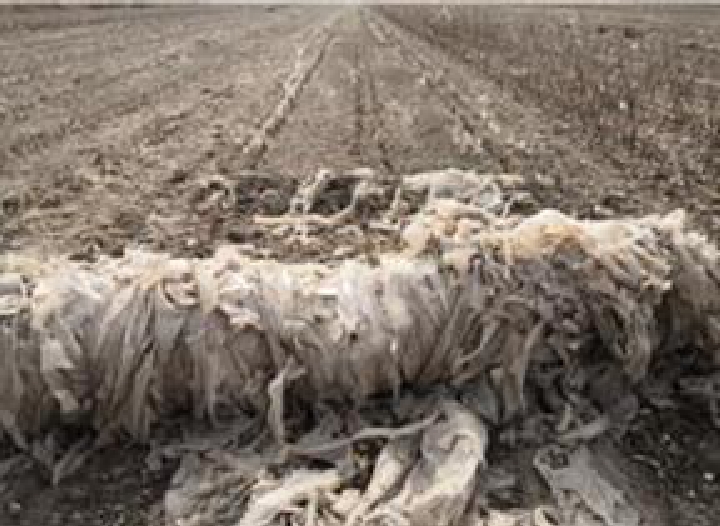

图31

参考文献 37

[1]	曹肆林, 谢建华, 杨豫新,等. 侧排式棉秸秆还田及残地膜回收联合作业机的设计与试验[J]. 吉林大学学报:工学版, 2023, 53(5): 1514-1528.
	Cao Si-lin, Xie Jian-hua, Yang Yu-xin, et al. Design and experiment of side row cotton straw returning and residual film recycling joint operating machine [J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(5): 1514-1528.
[2]	刘勤, 严昌荣, 薛颖昊, 等. 中国地膜覆盖技术应用与发展趋势[M]. 北京: 科学出版社, 2021: 98-105.
[3]	杨崇科, 张炳成, 王新忠, 等. 单辊方刀式机收膜杂圆捆料破碎装置设计与试验[J]. 农业工程学报, 2024, 41(2): 1-12.
	Yang Chong-ke, Zhang Bing-cheng, Wang Xin-zhong, et al. Design and test of single roll square knife machine for crushing film and miscellaneous round bundles[J]. Journal of Agricultural Engineering, 2024, 41(2): 1-12.
[4]	国家统计局农村社会经济调查司. 中国农村统计年鉴[M]. 北京: 中国统计出版社, 2022.
[5]	于永刚, 孙池涛, 程金杰, 等. 残留地膜对粉壤土水盐氮运移与再分布的影响[J]. 排灌机械工程学报, 2024, 42(2): 170-178.
	Yu Yong-gang, Sun Chi-tao, Cheng Jin-jie, et al. Effects of residual plastic film on water, salt and nitrogen transport and redistribution in loam soil[J]. Journal of Irrigation and Drainage Machinery Engineering, 2024, 42(2): 170-178.
[6]	温嘉佳, 陈梓仪, 苏丹, 等. 地膜残留微塑料对土壤性质及微生物的影响研究进展[J]. 山东化工, 2024(3): 95-97, 100.
	Wen Jia-jia, Chen Zi-yi, Su Dan, et al. Research progress on the effects of residual microplastics in plastic film on soil properties and microorganisms[J]. Shandong Chemical Industry, 2024(3): 95-97, 100.
[7]	裴新民, 金晓青. 新疆残膜回收机械化技术推广应用研究[J]. 中国农机化学报, 2014, 35(5): 275-279.
	Pei Xin-min, Jin Xiao-qing. Research on the promotion and application of mechanized technology for residual film recycling in Xinjiang[J]. China Agricultural Machinery Chemistry Journal, 2014, 35(5): 275-279.
[8]	胡灿, 王旭峰, 陈学庚, 等. 新疆农田残膜污染现状及防控策略[J]. 农业工程学报, 2019, 35(24):223-234.
	Hu Can, Wang Xu-feng, Chen Xue-geng, et al. Current situation and prevention and control strategies of residual film pollution in farmland in Xinjiang[J]. Journal of Agricultural Engineering, 2019, 35(24): 223-234.
[9]	周金豹, 谢建华, 曹肆林, 等. 辊轴式残膜打捆装置的设计与试验[J]. 华南农业大学学报, 2024, 45(1):148-158.
	Zhou Jin-bao, Xie Jian-hua, Cao Si-lin, et al. Design and experiment of roller type residual film packaging device[J]. Journal of South China Agricultural University, 2024, 45(1): 148-158.
[10]	刘杰. 卷膜式残膜打捆机的设计与试验[D]. 乌鲁木齐: 新疆农业大学机电工程学院, 2023.
	Liu Jie. Design and testing of a roll film residual film packaging machine[D]. Urumqi:College of Mechanical and Electrical Engineering, Xinjiang Agricultural University, 2023.
[11]	王征, 王吉奎, 唐永飞, 等. 带式残膜揉搓打捆机设计与试验[J]. 农业工程学报, 2020, 36(19): 11-18.
	Wang Zheng, Wang Ji-kui, Tang Yong-fei, et al. Design and experiment of belt type residual film rubbing and packaging machine[J]. Journal of Agricultural Engineering, 2020, 36(19): 11-18.
[12]	张恒, 康建明, 蒋平, 等. CMJD-1500型残膜捡拾打捆机作业参数优化[J]. 农机化研究, 2021(8): 99-105, 112.
	Zhang Heng, Kang Jian-ming, Jiang Ping, et al. Optimization of operating parameters for CMJD-1500 residual film picking and packaging machine[J]. Agricultural Mechanization Research, 2021(8): 99-105, 112.
[13]	Parish R L.An automated machine for removal of plastic mulch[J]. Transactions of the ASAE, 1999, 42(1): 49-51.
[14]	Rocca A R. Plastic Mulch Retriever: US20110000687[P]. USA: US2011000687, 2011-01-06.
[15]	Kimball J. Agricultural implement for recovery of plastic mulch and processing of the same: US10285330 [P]. USA: US10285330,2019-05-14.
[16]	Liu Yan-ping. Integrated plastic mulch layer and planter for growing peanuts[P]. WIPO: WO2017136987, 2017-08-17.
[17]	Khazimov K M, Niyazbayev A K, Shekerbekova Z S, et al. A novel method and device for plastic mulch retriever[J]. Journal of Water & Land Development, 2021, 49: 85-94.
[18]	王学农, 刘杰, 刘旋峰, 等. 无芯卷膜式残膜打捆装置设计与试验[J]. 农业工程学报, 2022, 38(5): 28-35.
	Wang Xue-nong, Liu Jie, Liu Xuan-feng, et al. Design and experiment of coreless roll film residual film packaging device[J]. Journal of Agricultural Engineering, 2022, 38(5): 28-35.
[19]	杨松梅, 陈学庚, 颜利民, 等. 残膜回收机带式卷膜装置设计与试验[J]. 农业机械学报, 2021, 52(2): 135-144.
	Yang Song-mei, Chen Xue-geng, Yan Li-min, et al. Design and experiment of belt type film rolling device for residual film recycling machine[J]. Journal of Agricultural Machinery, 2021, 52(2): 135-144.
[20]	张培坤, 王又沐, 叶昌显, 等. 一种残膜打捆机及打捆方法[P]. 中国: CN109168346A,2022-02-18.
[21]	刘晶.国内打捆机技术进展[J].农业工是程,2023,13(12):27-30.
	Liu Jing. Technical progress of balers in China[J]. Agricultural Engineering, 2023, 13(12):27-30.
[22]	贺占清, 郭志平, 李瑞平, 等. 9YG-1.2型圆捆机捡拾装置参数优化研究[J]. 饲料工业, 2019, 40(15):9-15.
	He Zhan-qing, Guo Zhi-ping, Li Rui-ping, et al. Optimization study on picking device parameters of 9YG-1.2 circular baler[J]. Feed Industry, 2019, 40(15): 9-15.
[23]	张红艳, 王征, 王吉奎. 新型圆捆打包机[P]. 中国:CN210959534U,2020-10-27.
[24]	李敏, 高文亭, 张贝贝. 皮带机关键部件寿命可靠性分析及提升对策研究[J]. 产品可靠性报告, 2023(8): 130-131.
	Li Min, Gao Wen-ting, Zhang Bei-bei. Study on the reliability analysis and improvement strategies of key components of belt conveyor[J]. Product Reliability Report, 2023(8): 130-131.
[25]	贾利晓, 宋联美, 崔琦. 聚合物材料的滑动摩擦特性研究[J]. 润滑与密封, 2013, 38(1): 35-38.
	Jia Li-xiao, Song Lian-mei, Cui Qi. Study on the sliding friction characteristics of polymer materials [J]. Lubrication and Sealing, 2013, 38(1): 35-38.
[26]	李健伟, 肖绍伟, 夏冬, 等. 机采种植模式对不同株型棉花生长及产量的影响[J]. 新疆农业大学学报, 2017, 40(6): 391-396.
	Li Jian-wei, Xiao Shao-wei, Xia Dong, et al. Effects of mechanized harvesting planting mode on the growth and yield of different plant types of cotton[J]. Journal of Xinjiang Agricultural University, 2017, 40(6): 391-396.
[27]	Langer T H, Ebbesen M K, Kordestani A. Experimental analysis of occupational whole-body vibration exposure of agricultural tractor with large square baler[J]. International Journal of Industrial Ergonomics, 2015, 47: 79-83.
[28]	丁发兴, 余志武, 温海林. 高温后Q235钢材力学性能试验研究[J]. 建筑材料学报, 2006, 9(2): 245-249.
	Ding Fa-xing, Yu Zhi-wu, Wen Hai-lin. Experimental study on mechanical properties of Q235 steel after high temperature[J]. Journal of Building Materials, 2006, 9(2): 245-249.
[29]	于文静, 史健勇, 赵金城. Q345钢材动态力学性能研究[J]. 建筑结构, 2011, 41(3): 28-30, 63.
	Yu Wen-jing, Shi Jian-yong, Zhao Jin-cheng. Research on dynamic mechanical properties of Q345 steel[J]. Building Structures, 2011, 41(3): 28-30, 63.
[30]	徐刚, 朱思洪, 聂信天, 等. 国产拖拉机振动系统固有频率研究[J]. 振动与冲击, 2014, 33(15): 157-161.
	Xu Gang, Zhu Si-hong, Nie Xin-tian, et al. Study on the natural frequency of the vibration system of domestic tractors[J]. Vibration and Shock, 2014, 33(15): 157-161.
[31]	汤健,田福庆,佘博,等.基于机械振动的旋转供弹机构故障诊断综述[J].控制工程,2018,25(10):1777-1784
	Tang Jian, Tian Fu-qing, She Bo, et al. Review on fault diagnosis of rotary ammunition feeding mechanism based on mechanical vibration[J]. Control Engineering of China, 2018, 25(10):1777-1784.
[32]	张茂健, 金敬福, 陈奕颖, 等. 轮式拖拉机对称结构的振动特性[J]. 吉林大学学报: 工学版, 2023, 53(7):2136-2142.
	Zhang Mao-jian, Jin Jing-fu, Chen Yi-ying, et al. Vibration characteristics of symmetrical structures of wheeled tractors[J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(7): 2136-2142.
[33]	张涛, 廖敏, 张小军, 等. 轮式拖拉机悬挂农具机组动态纵向稳定性研究[J]. 农机化研究, 2022, 44(5):238-244.
	Zhang Tao, Liao Min, Zhang Xiao-jun, et al. Research on dynamic longitudinal stability of wheeled tractor hanging agricultural tool unit[J]. Agricultural Mechanization Research, 2022, 44(5): 238-244.
[34]	王海基, 王敏, 卢勇涛, 等. 弹齿链耙式残膜回收机链耙装置的设计与试验[J]. 浙江农业学报, 2023, 35(10):2465-2476.
	Wang Hai-ji, Wang Min, Lu Yong-tao, et al. Design and testing of chain rake device for elastic tooth chain scraper residual film recycling machine[J]. Zhejiang Agricultural Journal, 2023, 35(10): 2465-2476.
[35]	. 圆草捆打捆机 [S].
[36]	杜子芳. 抽样技术及其应用[M]. 北京: 清华大学出版社, 2005: 67-85.
[37]	徐向宏, 何明珠. 试验设计与Design-Expert、 SPSS应用[M]. 北京: 科学出版社, 2010: 32-54.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

参数	数值
配套动力/Hp	≥35
整机尺寸/（mm×mm×mm）	4 000×2 800×1 700
膜捆直径（可调）/mm	≤350
膜捆箱装容量（膜捆装箱）/捆	3~5
打捆带幅宽/mm	2 000
残膜成捆率/%	100
工作率捆/h	10~16

编号	摩擦带类型	摩擦角/（°）
1	光带	38
2	草坪纹带	49
3	颗粒纹带	54
4	光带	37
5	草坪纹带	47
6	颗粒纹带	55

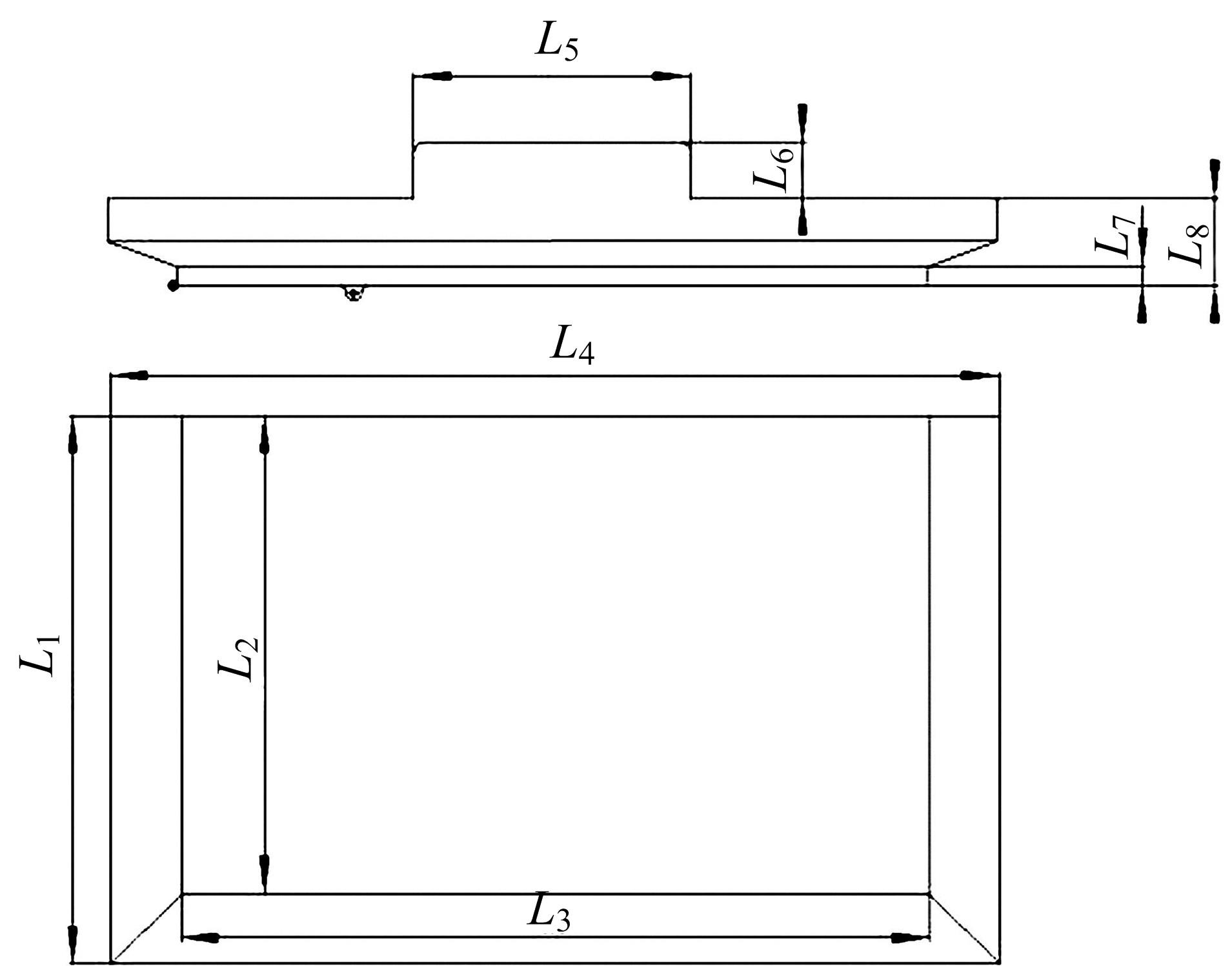

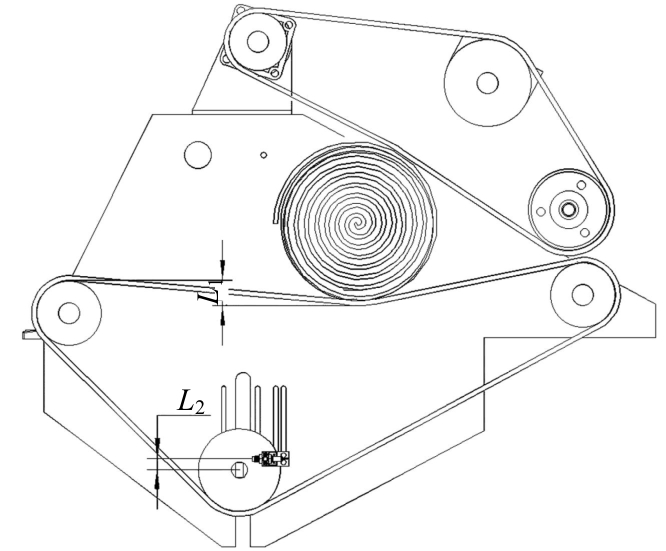

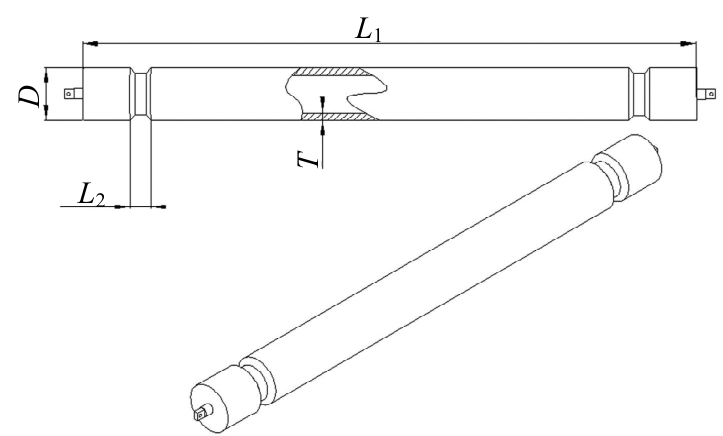

组数	L₁/mm	L₂/mm	k
平均值	292.8	3.3	0.011
1	313.4	4.3	0.014
2	204.4	2.1	0.010
3	345.9	5.2	0.015
4	303.2	2.8	0.010
5	295.4	2.6	0.009
6	294.6	2.5	0.008

阶数	频率/Hz	位移/m	阶数	频率/Hz	位移/m
1	130.49	0.334	6	256.87	0.209
2	161.51	0.148	7	280.09	0.186
3	225.67	0.233	8	305.39	0.215
4	236.60	0.322	9	369.92	0.173
5	253.45	0.413	10	428.62	0.304

参数	数值/描述
作物类型	棉花
土壤坚实度/MPa	0.45
土壤含水率/%	7.98
地膜宽度/mm	2 050
地膜厚度/mm	0.01
铺膜时间/d	185
棉花种植模式（机采棉种植模式）/cm	66+10
