变时宽OCDM-IM通信系统设计及性能分析

doi:10.13229/j.cnki.jdxbgxb.20250031

摘要/Abstract

摘要：

为了提升正交线性调频分复用索引调制（OCDM-IM）系统的隐蔽性，提出了一种变时宽变索引映射方法，构建了VT-OCDM-IM系统。该系统通过同一组伪随机序列选取时宽和索引映射方法，打乱信号周期性，提高系统在检测信号周期性特征场景下的隐蔽性能。仿真和实验结果表明：在变时宽的同时改变系统的子载波数量，特定环境下拥有更高的可靠性，同时能够在保证系统传输速率的优势下提升系统隐蔽性能。

关键词: 通信与信息系统, 隐蔽通信, 正交线性调频分复用, 索引调制, 变时宽

Abstract:

To enhance the covertness of the Orthogonal Chirp Division Multiplexing with Index Modulation （OCDM-IM）， a variable time-width and index mapping scheme is proposed to construct the corresponding VT-OCDM-IM system. By selecting time-width and index mapping methods using the same pseudorandom sequences， the system disrupts signal periodicity and enhances covert performance in scenarios where detecting signal periodicity features is critical. Simulation and experimental results show that altering the number of subcarriers alongside variable time-width improves reliability under certain conditions while enhancing covert performance without compromising the system's transmission rate advantage.

Key words: communication and information systems, covert communication, orthogonal chirp division multiplexing, index modulation, variable time width

中图分类号:

TN914

宁晓燕,邵宇豪,叶帅,王震铎. 变时宽OCDM-IM通信系统设计及性能分析[J]. 吉林大学学报(工学版), 2026, 56(8): 2240-2248.

Xiao-yan NING,Yu-hao SHAO,Shuai YE,Zhen-duo WANG. Variable time width OCDM-IM communication system design and performance analysis[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(8): 2240-2248.

图/表 13

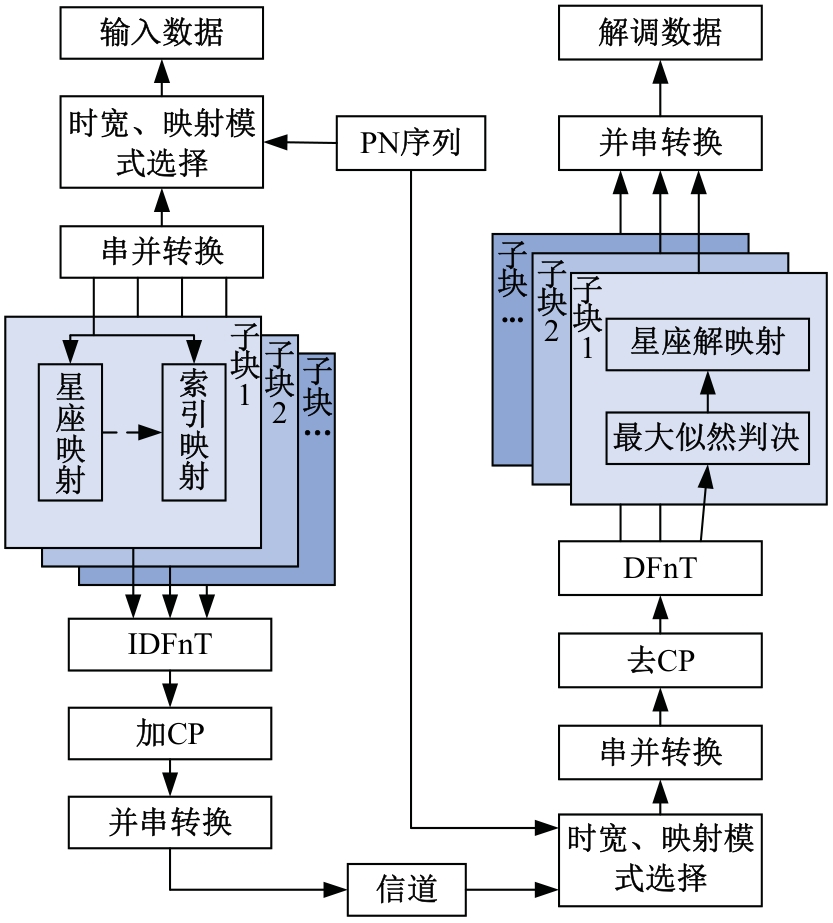

图1

表1

AICs和映射比特"

$I i$	AICs	$Z$	$I g$	$P I$
$I 1$	$1,2$	0	1100	10
$I 2$	$1,3$	1	1010	11
$I 3$	$2,3$	2	0110	-
$I 4$	$1,4$	3	1001	-
$I 5$	$2,4$	4	0101	00
$I 6$	$3,4$	5	0011	01

表1

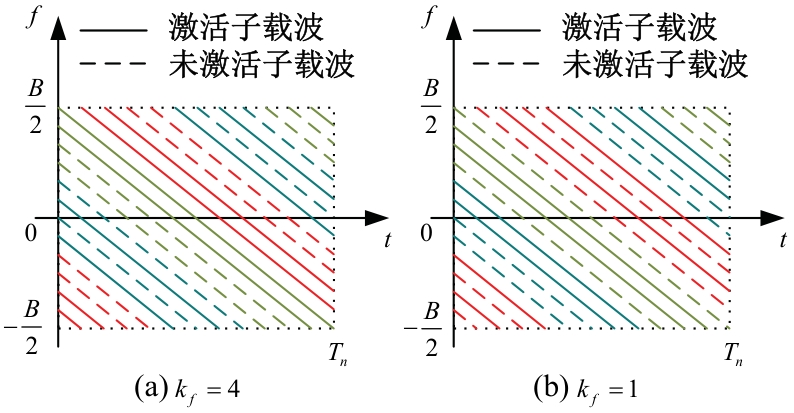

图2

图3

表2

系统参数设置"

方法	基信号	时宽个数	DFT/DFnT 大小	星座映射	激活子载波/ $N$	带宽/kHz	$T$ /s	$T c p / s$	比特速率/（kbit·s^-1）
OFDM-IM	正弦信号	1	256	BPSK	64	6.4	0.04	0.01	3.84
OCDM	Chirp	1	256	BPSK	64/128	6.4	0.04	0.01	1.92/3.84
OCDM-IM	Chirp	1	256	BPSK	64	6.4	0.04	0.01	3.84
VT-OCDM-IM	Chirp	4	128/256/384/512	BPSK	32/64/96/ 128	6.4	0.02/0.04/ 0.06/0.08	0.005/0.01/ 0.015/0.02	3.84

表2

图4

图5

图6

图7

图8

图9

图10

图11

参考文献 22

[1]	Lee H, Kim Y, Seol S, et al. Mimicking multiple whale whistles-based underwater covert communication[J]. IEEE Access, 2022, 10: 43934-43942.
[2]	宁晓燕, 赵东旭, 朱云飞, 等. 基于离散分数阶傅里叶变换的二维跳频通信系统及性能分析[J]. 电子与信息学报, 2023, 45(2): 497-504.
	Ning Xiao-yan, Zhao Dong-xu, Zhu Yun-fei, et al. Two-dimensional frequency hopping communication system and performance analysis based on discrete fractional Fourier transform[J]. Journal of Electronics & Information Technology, 2023, 45(2): 497-504.
[3]	Nguyen T T, Nguyen H H, Barton R, et al. Efficient design of chirp spread spectrum modulation for low-power wide-area networks[J]. IEEE Internet of Things Journal, 2019, 6(6): 9503-9515.
[4]	Azim A W, Bazzi A, Shubair R, et al. Dual-mode chirp spread spectrum modulation[J]. IEEE Wireless Communications Letters, 2022, 11(9): 1995-1999.
[5]	Robson S, Haddad M. A chirp spread spectrum modulation scheme for robust power line communication[J]. IEEE Transactions on Power Delivery, 2022, 37(6): 5299-5309.
[6]	Bernard C, Bouvet P J, Pottier A, et al. Multiuser chirp spread spectrum transmission in an underwater acoustic channel applied to an AUV fleet[J]. Sensors, 2020, 20(5): 20051527.
[7]	李建坡,李美霖,杨涛,等.大规模MIMO-OFDM系统中低复杂度维纳滤波信道估计算法[J].吉林大学学报: 工学版, 2022, 52(1): 211-218.
	Li Jian-po, Li Mei-lin, Yang Tao, et al. Low-complexity Wiener filter channel estimation algorithm in massive MIMO-OFDM system[J]. Journal of Jilin University (Engineering and Technology Edition), 2022, 52(1): 211-218.
[8]	Kim J H, Younis M, Moreira A, et al. A novel OFDM chirp waveform scheme for use of multiple transmitters in SAR[J]. IEEE Geoscience and Remote Sensing Letters, 2013, 10(3): 568-572.
[9]	Ouyang X, Zhao J. Orthogonal chirp division multiplexing[J]. IEEE Transactions on Communications, 2016, 64(9): 3946-3957.
[10]	Lv X, Wang J, Jiang Z, et al. A joint radar-communication system based on OCDM-OFDM scheme[C]∥2018 International Conference on Microwave and Millimeter Wave Technology, Chengdu, China, 2018: 1-3.
[11]	Zhu P, Xu X, Tu X, et al. Anti-multipath orthogonal chirp division multiplexing for underwater acoustic communication[J]. IEEE Access, 2020, 8: 13305-13314.
[12]	Zhu P, Yang G, Chen W, et al. Doppler-resistant orthogonal chirp division multiplexing with multiplex resampling for mobile underwater acoustic communication[J]. IEEE Access, 2022, 10: 55151-55163.
[13]	Bai Y, Bouvet P J. Orthogonal chirp division multiplexing for underwater acoustic communication[J]. Sensors, 2018, 18(11): 18113815.
[14]	Wang X, Jiang Z, Shen X H. Low complexity equalization of orthogonal chirp division multiplexing in doubly-selective channels[J]. Sensors, 2020, 20(11): 20113125.
[15]	Zhang R, Wang Y, Ma X. Channel estimation for OCDM transmissions with carrier frequency offset[J]. IEEE Wireless Communications Letters, 2022, 11(3): 483-487.
[16]	Haif H, Zegrar S E, Arslan H. Novel OCDM transceiver design for doubly-dispersive channels[J]. IEEE Transactions on Vehicular Technology, 2024, 73(8): 11237-11248.
[17]	Jia Z, Zhang R, Chen Z, et al. OCDM with index modulation for autonomous underwater vehicles communication[J]. IEEE Transactions on Intelligent Vehicles, 2025, 10(4): 2765-2780.
[18]	Başar E, Aygölü Ü, Panayirci E, et al. Orthogonal frequency division multiplexing with index modulation[J]. IEEE Transactions on Signal Processing, 2013, 61(22): 5536-5549.
[19]	Yu Y, Wang W, Ouyang X, et al. Discrete Fresnel transform spread OFDM for Coherent Optical Fiber Communication[J]. IEEE Photonics Technology Letters, 2018, 30(1): 91-94.
[20]	Yin Y. The CPDA Detector for the MIMO OCDM system[C]∥2021 IEEE 6th International Conference on Computer and Communication Systems, Chengdu, China, 2021: 1001-1004.
[21]	Omar M S, Ma X. Performance analysis of OCDM for wireless communications[J]. IEEE Transactions on Wireless Communications, 2021, 20(7): 4032-4043.
[22]	崔伟亮, 江桦, 李剑强, 等. 改进的循环谱估计快速算法与性能分析[J]. 电子与信息学报, 2011, 33(7): 1594-1599.
	Cui Wei-liang, Jiang Hua, Li Jian-qiang, et al. Improved fast cyclic spectral estimation algorithm and performance analysis[J]. Journal of Electronics & Information Technology, 2011,33(7):1594-1599.
