密实核与压剪破坏影响下TBM盘形滚刀寿命预测

doi:10.13229/j.cnki.jdxbgxb.20250042

摘要/Abstract

摘要：

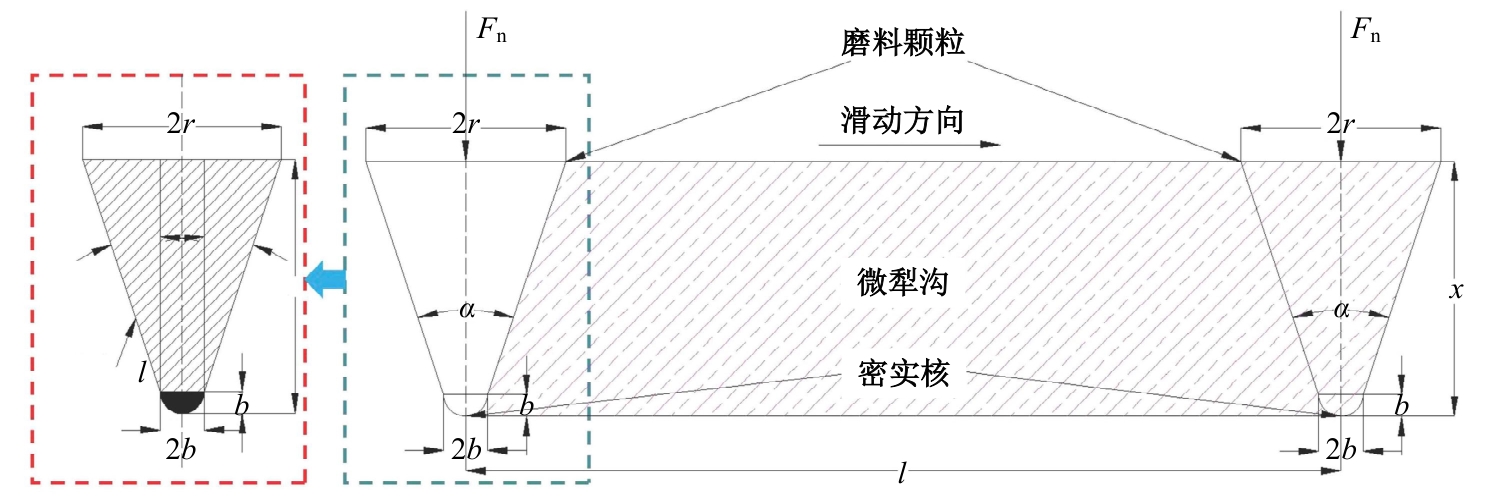

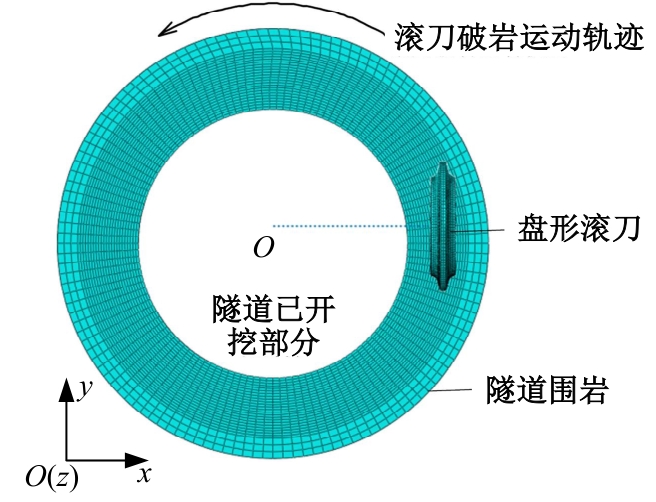

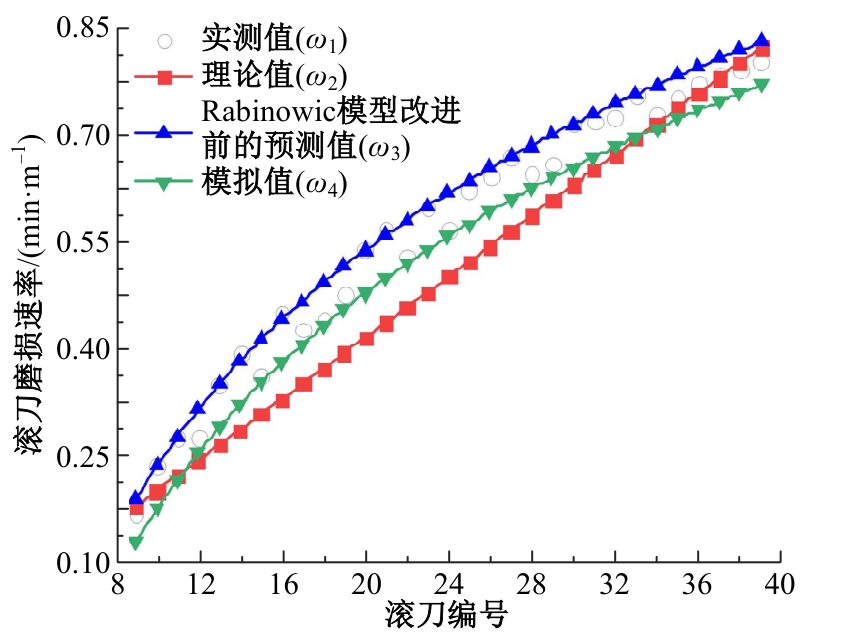

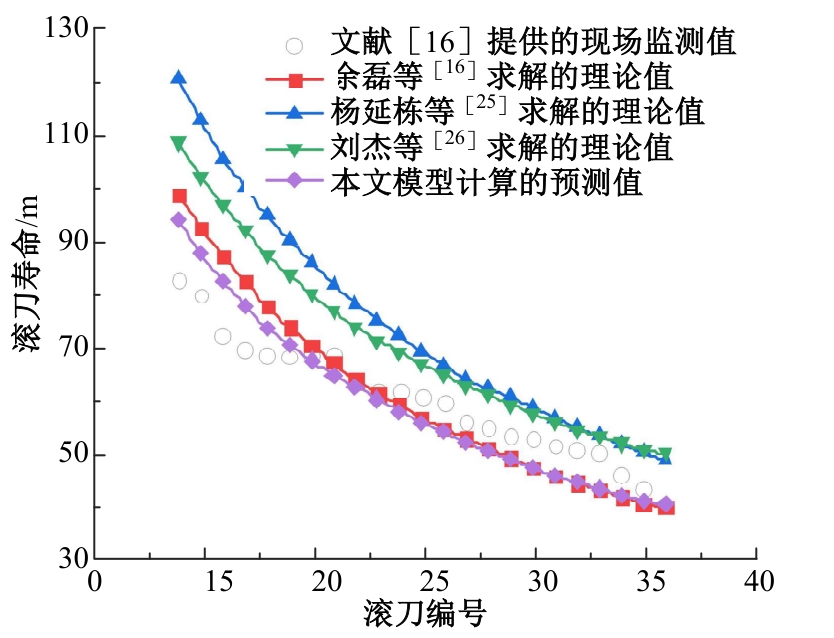

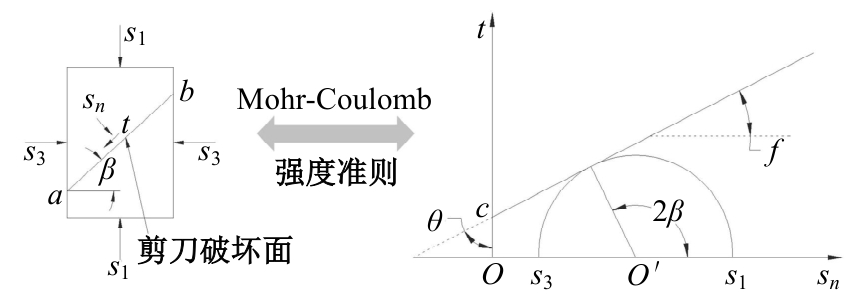

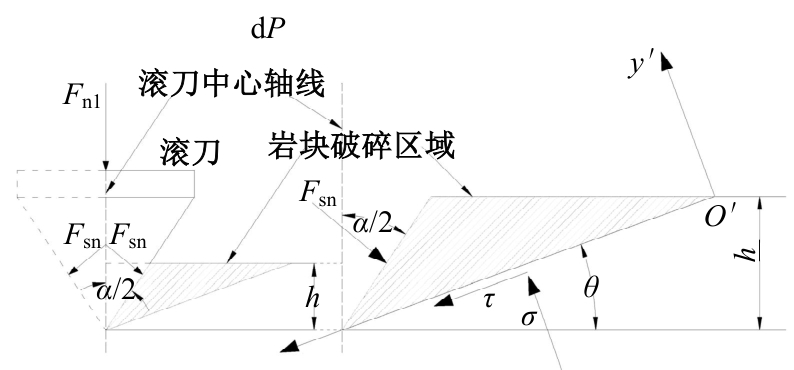

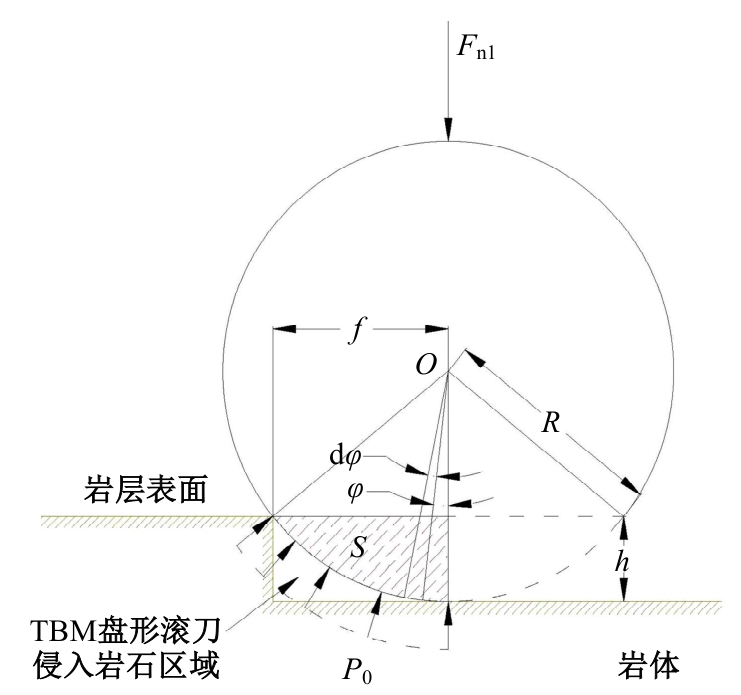

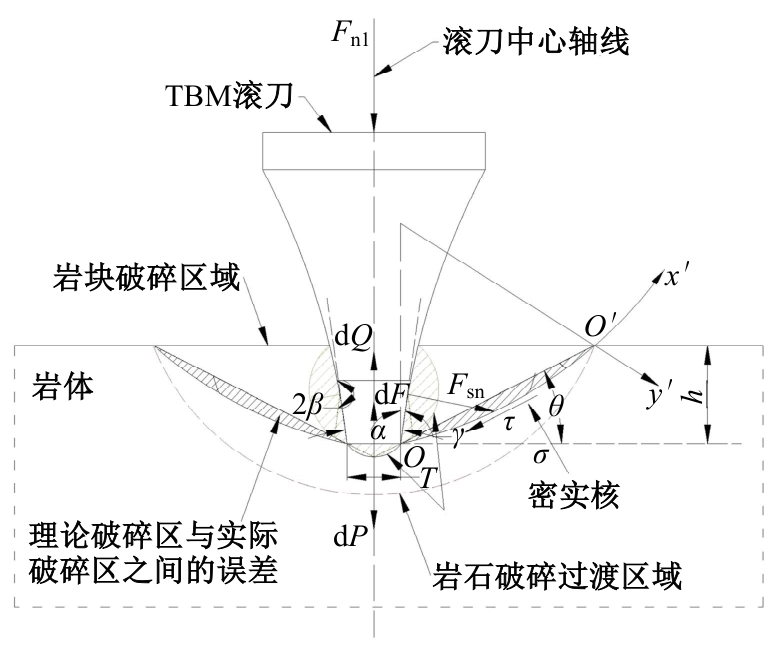

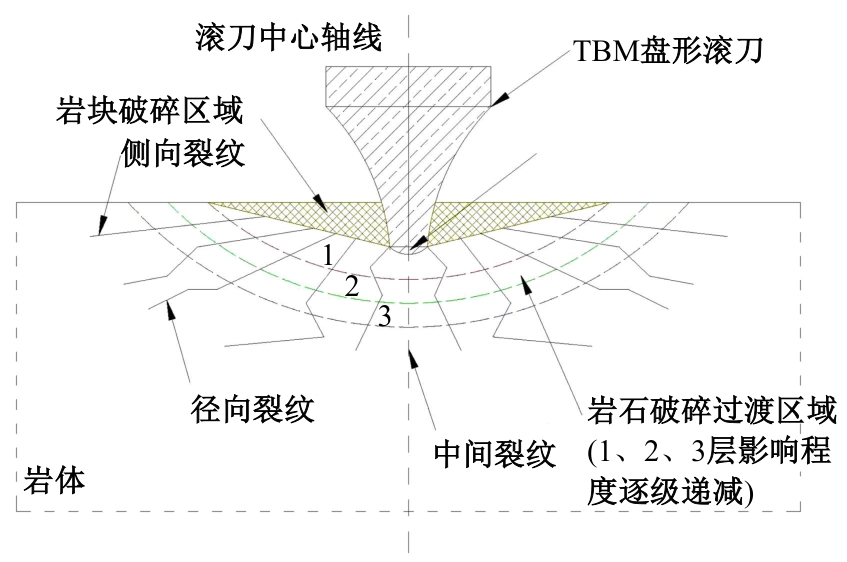

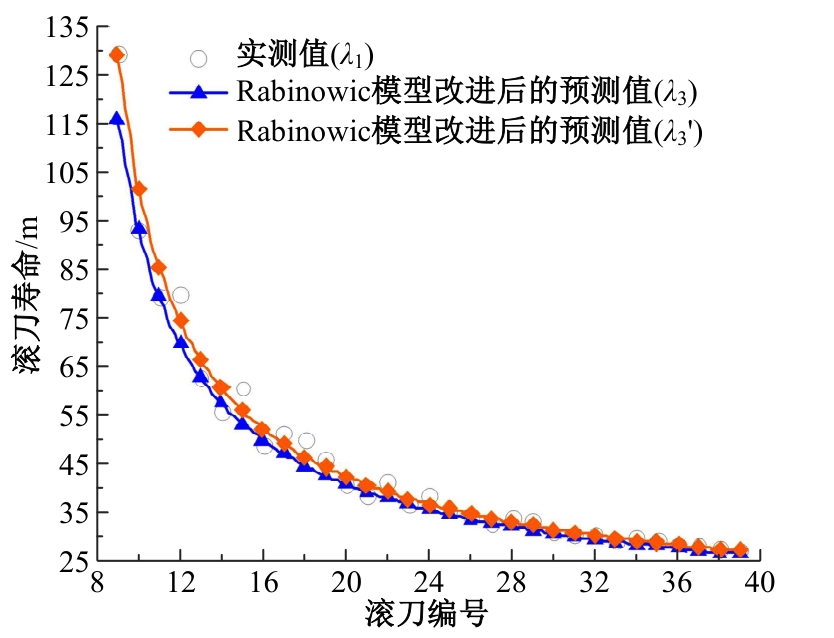

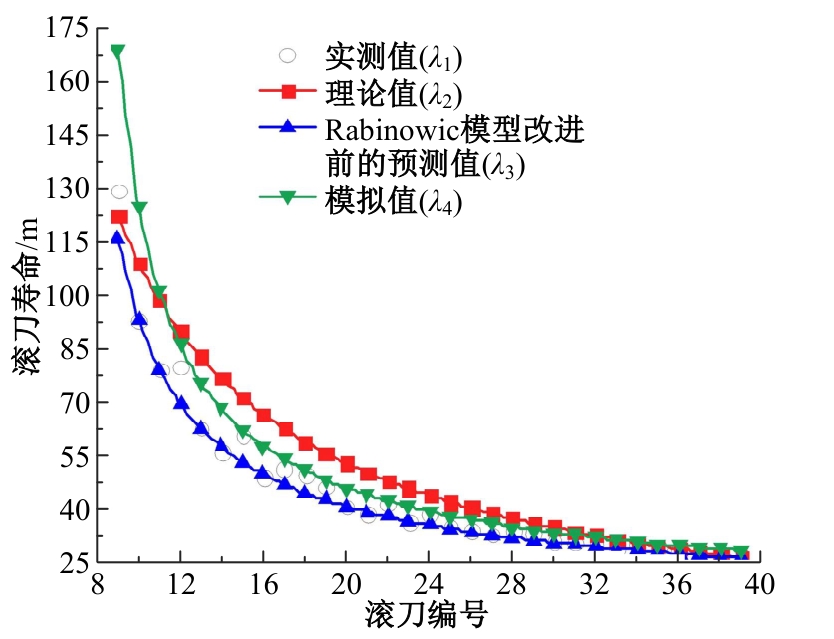

为准确预测全断面隧道掘进机破岩过程中滚刀使用寿命以提升掘进效率及确定换刀时间，本文通过分析盘形滚刀破岩机理，基于剪切和张拉破坏机理，建立了TBM破岩滚刀法向力计算模型，并基于密实核效应改进Rabinowicz磨粒磨损模型，建立了密实核效应和压剪破坏影响下TBM盘形滚刀磨损速率及寿命预测模型，通过与已有方法、数值模拟和现场监测等结果对比分析，验证了本文预测模型的工程适用性。结果表明：本文模型的预测值更接近工程现场的实测值，且相比现有典型模型，在滚刀磨损速率和滚刀寿命的平均预测精度上分别提升9.1%、11.7%，有效表明了TBM滚刀破岩计算时综合考虑密实核效应与压剪破坏模式的必要性，可将滚刀磨损速率和寿命指数作为评价TBM破岩过程中滚刀磨损特性的可靠指标，为TBM隧道及其类似工程现场换刀方案设计和时机选择提供理论指导。

关键词: 全断面隧道掘进机, 破岩, 使用寿命, 盘形滚刀, 密实核效应, 压剪破坏模式

Abstract:

In order to accurately predict the service life of the hob in the rock-breaking process of Tunnel Boring Machine（TBM） to improve the boring efficiency and determine the time of changing the hob， this study analyzed the rock-breaking mechanism of the disk hob and established the calculation model of the normal force of rock-breaking hob of TBM based on the shear and tensile failure mechanism. The Rabinowicz abrasive wear model was improved based on the dense core effect to establish the wear rate and life prediction model of TBM disc cutters considering dense core effect and compression-shear failure mode. The engineering applicability of the prediction model proposed in this study was verified by the comparing the prediction results with the existing theoretical model calculation results， numerical simulation results and on-site monitoring results. The results show that the predicted values of this model are closer to the measured values in the engineering field. Compared with the existing theoretical model， the average prediction accuracies of cutter wear rate and cutter life are improved by 9.1% and 11.7% respectively， which effectively demonstrates the necessity of comprehensively considering the dense core effect and compression-shear failure mode in the calculation of TBM cutters breaking rock. The cutter wear rate and life index can be used as reliable indexes for evaluating the cutter wear characteristics during the rock breaking process of TBM， which can provide theoretical guidance for the design and timing of cutters change program in TBM tunnel and other similar projects.

Key words: tunnel boring machine, rock-breaking, service life, disc cutter, dense core effect, compression-shear failure mode

中图分类号:

U455

王超,邹金锋,李亮,舒丹. 密实核与压剪破坏影响下TBM盘形滚刀寿命预测[J]. 吉林大学学报(工学版), 2026, 56(8): 2162-2176.

Chao WANG,Jin-feng ZOU,Liang LI,Dan SHU. Life prediction of TBM disc cutters considering dense core effect and compression⁃shear failure mode[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(8): 2162-2176.

图/表 25

图1

图2

图3

图4

图5

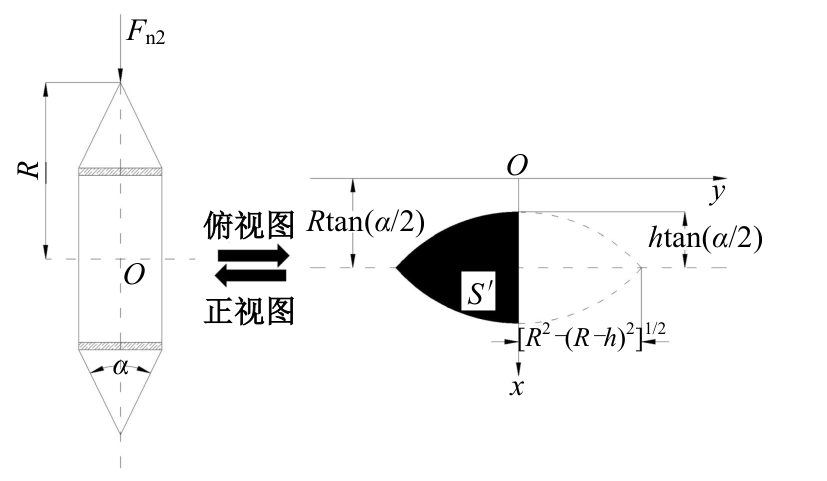

图6

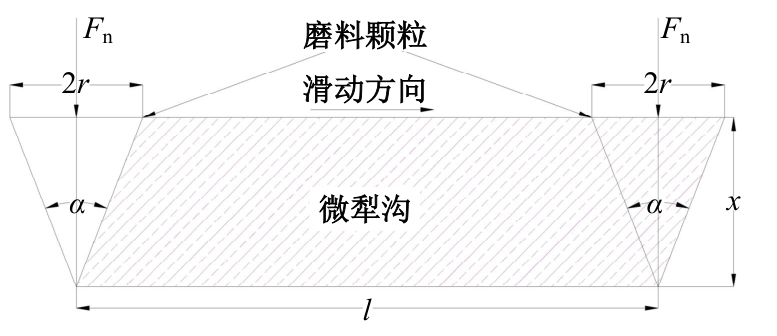

图7

图8

表1

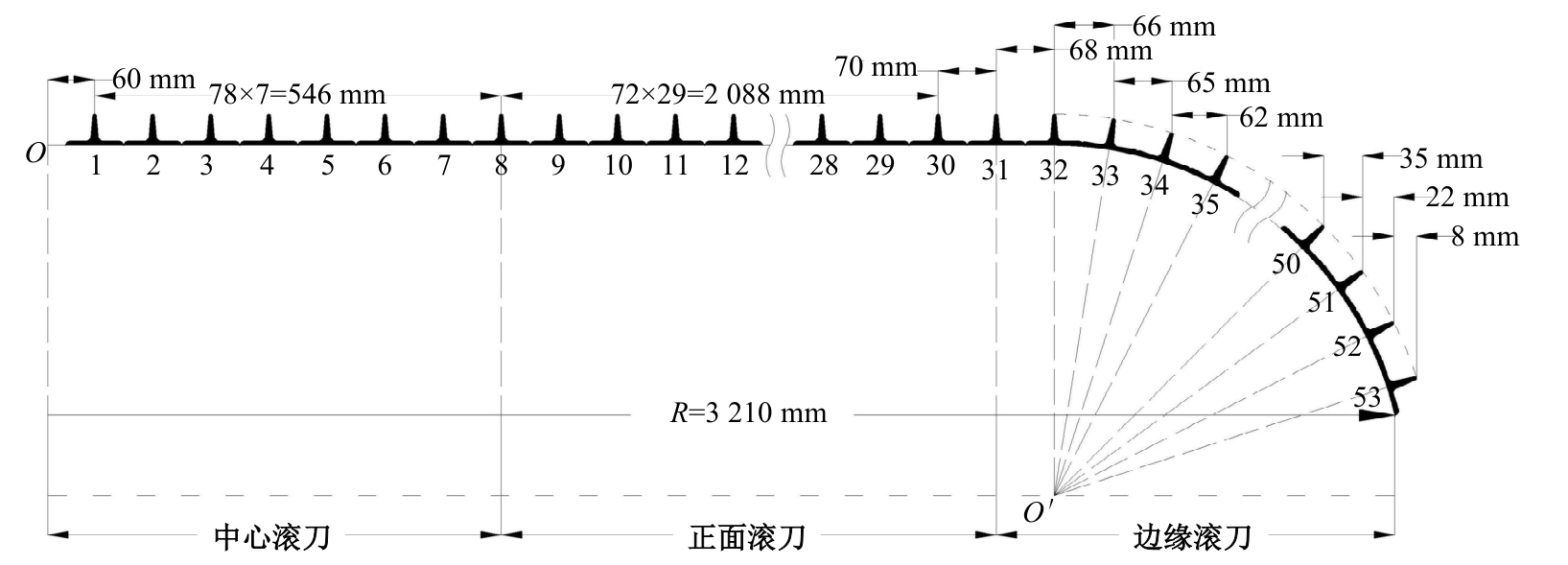

图9

图10

表2

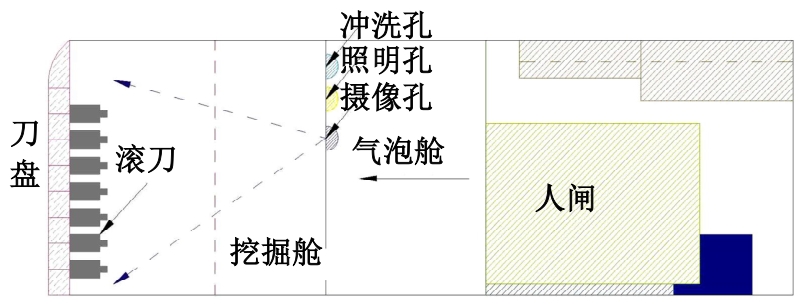

图11

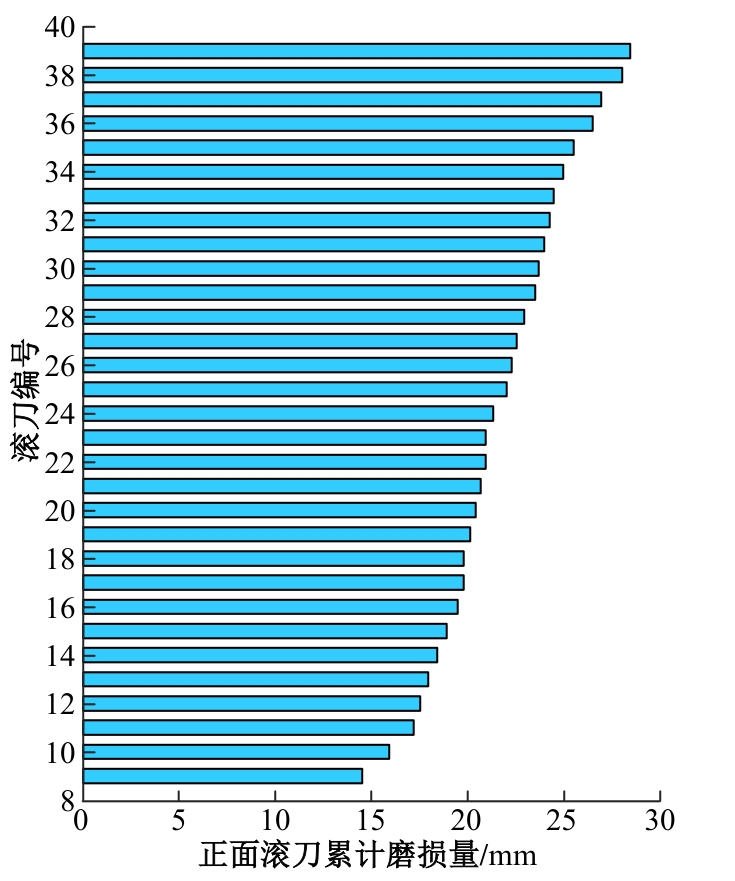

图12

图13

表3

表4

图14

图15

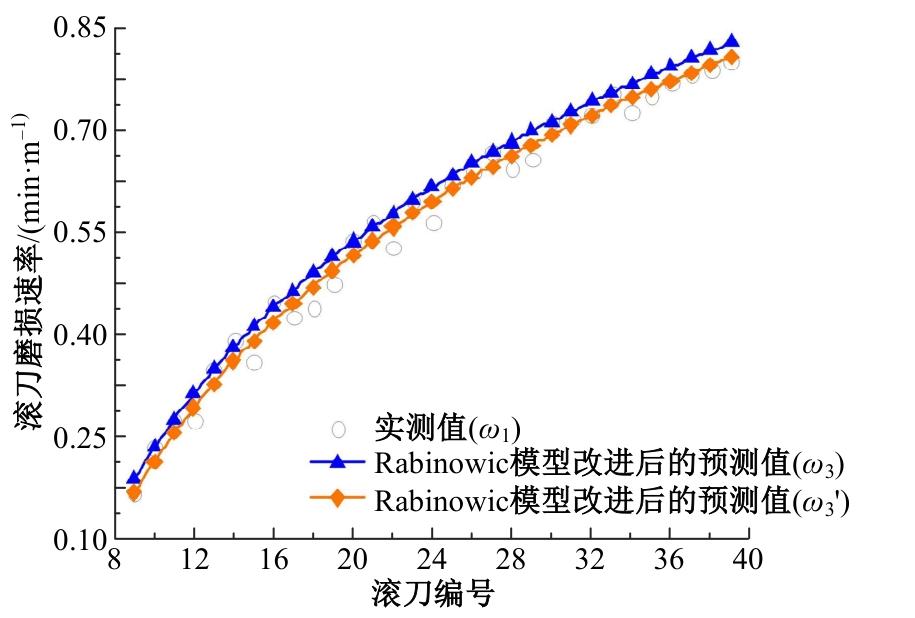

图16

图17

图18

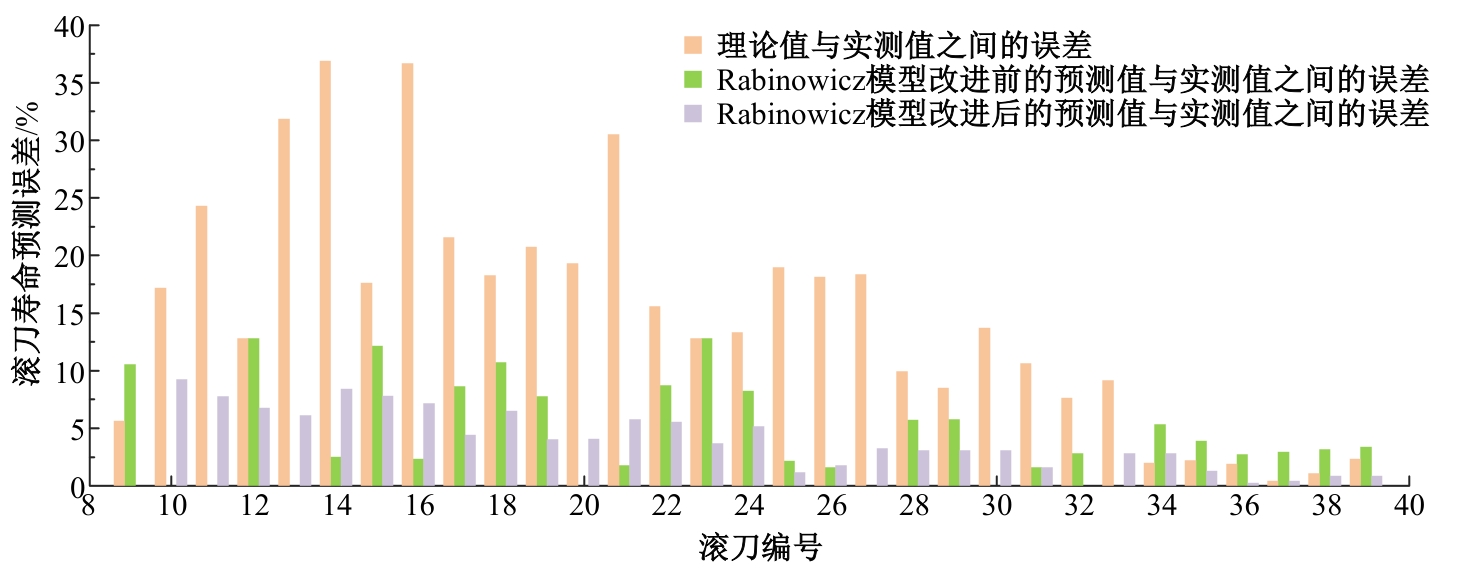

图19

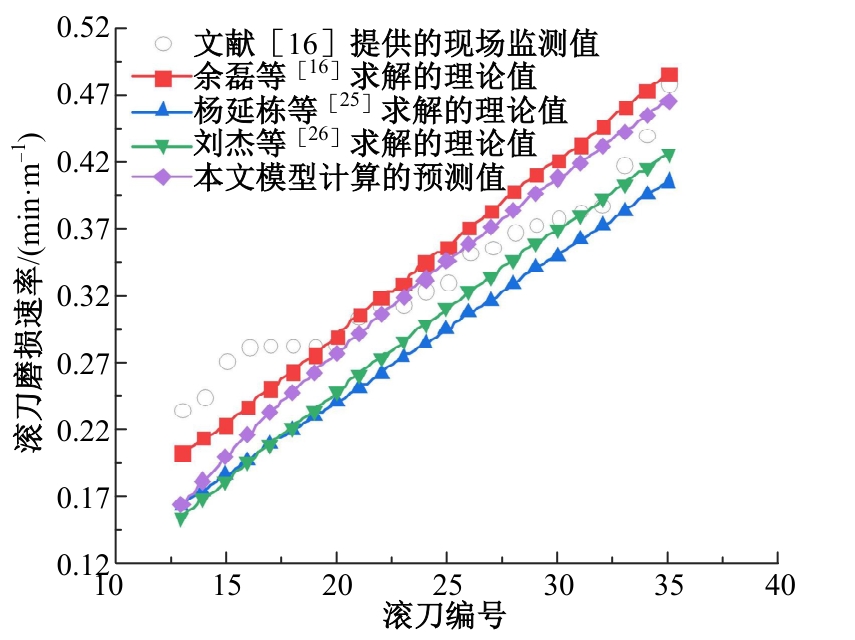

图20

图21

参考文献 26

[1]	孙健, 陈亮, 马洪素, 等. 完整极硬岩TBM施工辅助破岩方法研究现状及展望[J]. 世界核地质科学, 2024, 41(1): 141-163.
	Sun Jian, Chen Liang, Ma Hong-su, et al. Research status and prospect of assisting rock breaking methods for TBM tunnelling in extremely hard rocks[J]. World Nuclear Geoscience, 2024, 41(1): 141-163.
[2]	张蒙祺, 勾斌, 邓雨, 等. 新型TBM螺旋槽滚刀破岩性能及接触行为研究[J]. 机械工程学报, 2023, 59(5): 259-270.
	Zhang Meng-qi, Gou Bin, Deng Yu, et al. Cutting performance and contact behavior of a novel TBM cutter with surface spiral grooves[J]. Journal of Mechanical Engineering, 2023, 59(5): 259-270.
[3]	翟淑芳, 杜红坤, 岳奇超, 等. 基于特征粒径的盘形滚刀破岩最优贯入度分析[J]. 现代隧道技术, 2023, 60(4): 147-152, 162.
	Zhai Shu-fang, Du Hong-kun, Yue Qi-chao, et al. Analysis of the optimal penetration of disc cutter in rock breaking based on characteristic particle size[J]. Modern Tunnelling Technology, 2023, 60(4): 147-152, 162.
[4]	李国龙, 李彪, 蒋林, 等. 基于HHT和IPSO算法优化RBF神经网络的滚刀磨损状态识别方法[J]. 吉林大学学报:工学版, 2020, 50(6): 1998-2009.
	Li Guo-long, Li Biao, Jiang Lin, et al. Hob wear recognition method based on HHT and IPSO-RBF neural network[J]. Journal of Jilin University(Engineering and Technology Edition), 2020, 50(6): 1998-2009.
[5]	曹久磊, 俞缙, 张竹清, 等. 考虑破岩模式的TBM滚刀破岩力计算模型[J]. 煤炭学报, 2023, 48(8): 3300-3311.
	Cao Jiu-lei, Yu Jin, Zhang Zhu-qing, et al. Force calculation model of TBM disc cutter based on rock breaking mode[J]. Journal of China Coal Society, 2023, 48(8): 3300-3311.
[6]	Hu X K, Du C L, Liu S Y, et al. Three-dimensional numerical simulation of rock breaking by the tipped hob cutter based on explicit finite element[J]. IEEE Access, 2019, 7: 86054-86063.
[7]	Li X, Wu J Q, Huo P. Prediction model for the teeth hob cutter of tunnel boring machines in high-content quartzite strata[J]. KSCE Journal of Civil Engineering, 2023, 27(1): 371-383.
[8]	She L, Li Y L, Wang C, et al. Prediction of TBM disc cutter wear based on field parameters regression analysis[J]. Geomechanics and Geoengineering, 2023, 35(6): 647-663.
[9]	王超, 乔世范, 刘红中. TBM破岩过程的滚刀受力计算模型研究[J]. 工程力学, 2021, 38(10): 54-63.
	Wang Chao, Qiao Shi-fan, Liu Hong-zhong. Research on force calculation model of hob in TBM rock breaking progress[J]. Engineering Mechanics, 2021, 38(10): 54-63.
[10]	张斌荣, 管会生, 谭孝锋, 等. 基于MATLAB/Simulink的TBM边滚刀动力学模型及振动分析[J]. 隧道建设:中英文, 2020, 40(6): 833-839.
	Zhang Bin-rong, Guan Hui-sheng, Tan Xiao-feng, et al. Dynamic model and vibration analysis of TBM edge-cutter based on MATLAB/Simulink[J]. Tunnel Construction, 2020, 40(6): 833-839.
[11]	Rostami J. Development of a force estimation model for rock fragmentation with disc cutters through theoretical modeling and physical measurement of crushed zone pressure[D]. Golden:Colorado School of Mines, 1997.
[12]	Bruland A. Hard rock tunnel boring[D]. Trondheim:Norwegian University of Science and Technology, 1998.
[13]	Wang L H, Kang Y L, Zhao X J, et al. Disc cutter wear prediction for a hard rock TBM cutterhead based on energy analysis[J]. Tunnelling and Underground Space Technology, 2015, 50(1): 324-333.
[14]	Yang Y D, Hong K R, Sun Z C, et al. The derivation and validation of TBM disc cutter wear prediction model[J]. Geotechnical and Geological Engineering, 2018, 36(6): 3391-3398.
[15]	Su W L, Li X G, Jin D L, et al. Analysis and prediction of TBM disc cutter wear when tunneling in hard rock strata: a case study of a metro tunnel excavation in Shenzhen, China[J]. Wear, 2020, 446-447(4): No.203190.
[16]	佘磊, 张社荣, 和孙文, 等. 基于密实核理论的TBM盘形滚刀磨损预测模型研究[J]. 岩土工程学报, 2022, 44(5): 970-978.
	She Lei, Zhang She-rong, He Sun-wen, et al. Prediction model for TBM disc cutter wear based on dense core theory[J]. Chinese Journal of Geotechnical Engineering, 2022, 44(5): 970-978.
[17]	Ke C C, Chen C S, Ku C Y, et al. Modeling crack propagation path of anisotropic rocks using boundary element method[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2009, 33(9): 1227-1253.
[18]	Zhang Z H, Aqeel M, Li C, et al. Theoretical prediction of wear of disc cutters in tunnel boring machine and its application[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2019, 11(1): 111-120.
[19]	赵坚, 李海波. 莫尔-库仑和霍克-布朗强度准则用于评估脆性岩石动态强度的适用性[J]. 岩石力学与工程学报, 2003, 22(2): 171-176.
	Zhao Jian, Li Hai-bo. Estimating the dynamic strength of rock using Mohr-Coulomb and Hoek-Brown criteria[J]. Chinese Journal of Rock Mechanics and Engineering, 2003, 22(2): 171-176.
[20]	Rabinowicz E. Friction and Wear of Materials[M]. New York: John Wiley & Sons, 1995.
[21]	赵海鸣, 舒标, 夏毅敏, 等. 基于磨料磨损的TBM滚刀磨损预测研究[J]. 铁道科学与工程学报, 2014, 11(4): 152-158.
	Zhao Hai-ming, Shu Biao, Xia Yi-min, et al. Study of wear prediction for TBM cutter based on abrasive wear model[J]. Journal of Railway Science and Engineering, 2014, 11(8): 152-158.
[22]	Bruland A. Hard rock tunnel boring[D]. Trondheim:Norwegian University of Science and Technology, 1998.
[23]	Ma L, Low S R, Fink J. Effects of steel and tungsten carbide ball indenters on Rockwell hardness measurements[J]. Journal of Testing and Evaluation, 2006, 34(3): 187-199.
[24]	石振明, 刘鎏, 管圣功, 等. 盾构机前舱设备可视化检测系统研究与应用[J]. 公路交通科技, 2019, 36(1): 109-116.
	Shi Zhen-ming, Liu Liu, Guan Sheng-gong, et al. Study on visualized detector of shield machine forecabin equipment and its application[J]. Journal of Highway and Transportation Research and Development, 2019, 36(1): 109-116.
[25]	杨延栋, 陈馈, 李凤远, 等. 盘形滚刀磨损预测模型[J]. 煤炭学报, 2015, 40(6): 1290-1296.
	Yang Yan-dong, Chen Kui, Li Feng-yuan, et al. Wear prediction model of disc cutter[J]. Journal of China Coal Society, 2015, 40(6): 1290-1296.
[26]	刘杰, 邓立营, 倪志华, 等. TBM滚刀磨损量及其使用寿命预测方法[J]. 机械设计, 2024, 41(10): 59-66.
	Liu Jie, Deng Li-ying, Ni Zhi-hua, et al. Method of predicting TBM disc cutter's wear and service life[J]. Journal of Machine Design, 2024, 41(10): 59-66.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

参数	数值	参数	数值
整机功率/kW	1 726.22	中心滚刀数量/把	8
刀盘转速/（r·min^-1）	2.2	正面滚刀数量/把	31
扭矩/（kN·m）	2 500	边缘滚刀数量/把	14

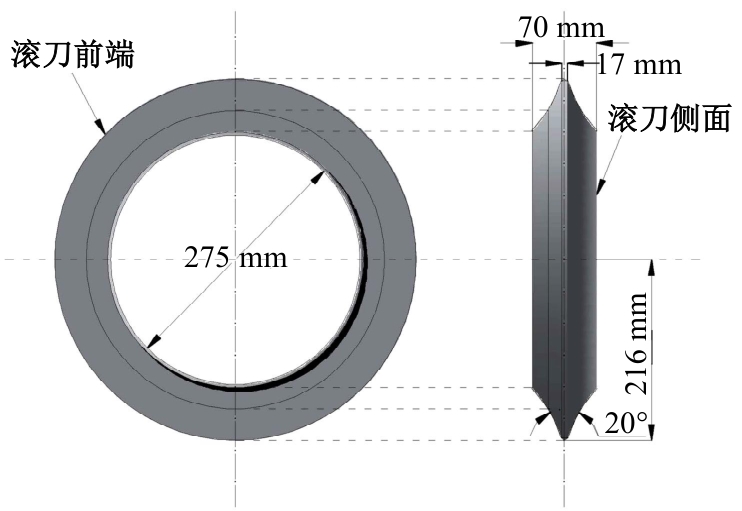

盾构推力/kN	12 000	滚刀直径/mm	432
掘进速度/（mm·min^-1）	15	刀刃宽度/mm	17
刀盘开口率/%	32	滚刀刃角/（°）	20
刀盘压力/MPa	8.0	刀圈硬度/HRC	55
刀盘额定功率/kW	945	推进油缸总推进力/t	4 086
最大贯入度 /mm	≥10	开挖直径/mm	6 420

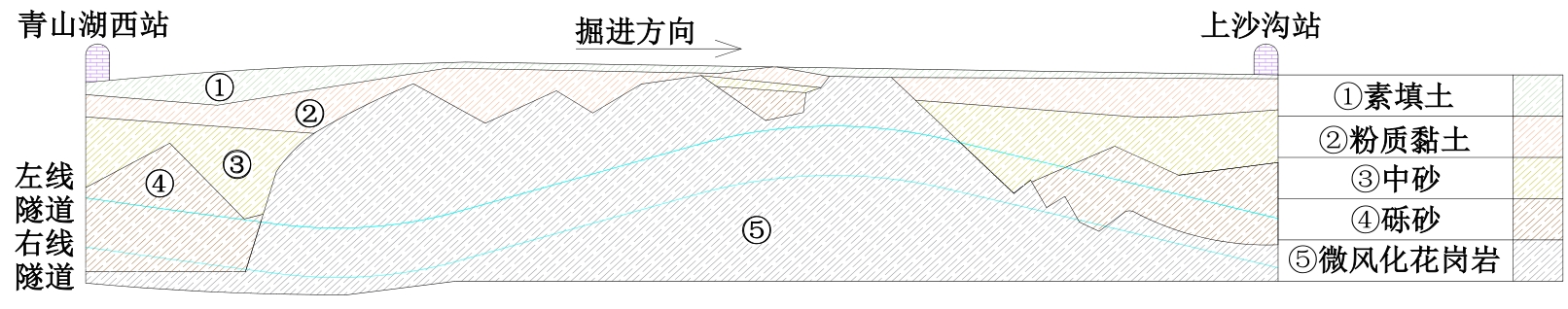

地层	天然重度/（kN·m^-3）	黏聚力/kPa	内摩擦角/（°）	压缩模量/MPa	泊松比
素填土	17.8	2	18	-	-
粉质黏土	17.6	35	26	30	0.32
中砂	18.2	0	36	42	0.22
砾砂	22.5	0	42	56	0.18
微风化花岗岩	26.5	18 300	42.5	100	0.25
