轻型车速度与坡度对排放影响的耦合关系

doi:10.13229/j.cnki.jdxbgxb.20250496

吉林大学学报(工学版) ›› 2026, Vol. 56 ›› Issue (10): 2626-2634.doi: 10.13229/j.cnki.jdxbgxb.20250496

• 交通运输工程·土木工程 • 上一篇

轻型车速度与坡度对排放影响的耦合关系

杨阳^1,²(),侯佳兴^1,²,于谦³()

^1.太原科技大学车辆与交通工程学院，太原 030024
^2.智慧交通山西省实验室，太原 030024
^3.长安大学生态安全屏障区交通网设施管控及循环修复技术交通运输行业重点实验室，西安 710064

收稿日期:2025-06-05 出版日期:2026-10-01 发布日期:2026-10-09
通讯作者: 于谦 E-mail:2020015@tyust.edu.cn;yuqian@chd.edu.cn
作者简介:杨阳（1988-），女，副教授，博士.研究方向：交通环境节能减排.E-mail： 2020015@tyust.edu.cn
基金资助:
山西省回国留学人员科研项目(2024-126);长安大学中央高校基本科研业务费专项项目(300102344501);国家自然科学基金青年科学基金项目(52002032);陕西省自然科学基础研究计划项目(2025JC-YBMS-446)

Coupling effect of speed and road slope on emissions from light-duty vehicles

Yang YANG^1,²(),Jia-xing HOU^1,²,Qian YU³()

^1.School of Vehicle and Transportation Engineering，Taiyuan University of Science and Technology，Taiyuan 030024，China
^2.Smart Transportation Laboratory in Shanxi Province，Taiyuan 030024，China
^3.Key Laboratory of Transportation Industry for Control of Transportation Network Facilities and Recycling Restoration Technology in Ecological Security Barrier Area，Chang' an University，Xi'an 710064，China

Received:2025-06-05 Online:2026-10-01 Published:2026-10-09
Contact: Qian YU E-mail:2020015@tyust.edu.cn;yuqian@chd.edu.cn

摘要/Abstract

摘要：

基于西安市10辆轻型车1年逐秒级车载诊断系统监测数据，结合高分辨率数字高程模型与地理信息系统路径匹配技术提取道路坡度，利用车辆比功率理论与机动车排放模拟器模型估算一氧化碳、碳氢化合物、氮氧化物和颗粒物排放。针对传统模型难以刻画速度与坡度耦合效应的问题，构建了速度-坡度二元多项式回归模型，并采用上下坡分区策略分析排放的非线性特征。研究结果表明：本文模型决定系数均高于0.82，误差指标表现良好。具体来看，上坡条件下各污染物排放随速度与坡度升高显著增加；下坡工况虽整体排放较低，但存在局部峰值。同时，三维拟合曲面显示，碳氢化合物与氮氧化物对工况负载变化更为敏感。该研究实现了速度-坡度-排放关系的高分辨率量化，为城市微观排放精准估算、工况识别及交通减排策略制定提供了理论依据与数据支持。

关键词: 载运工具运用工程, 轻型车排放, 速度?坡度耦合, 二次多项式回归, 车辆比功率

Abstract:

Based on one-year， second-by-second on-board diagnostic（OBD） monitoring data from 10 light-duty vehicles in Xi'an， road slopes were extracted by combining high-resolution digital elevation models（DEMs） with geographic information system（GIS） path-matching techniques. Vehicle-specific power（VSP） theory and the Motor Vehicle Emission Simulator（MOVES） model were employed to estimate emissions of carbon monoxide（CO）， hydrocarbons（HC）， nitrogen oxides（NO _x ）， and particulate matter（PM）. To address the limitations of conventional models in capturing the coupled effects of speed and slope， a bivariate polynomial regression model of speed-slope was developed， and an uphill-downhill partitioning strategy was applied to analyze the nonlinear characteristics of emissions. Results show that the proposed model achieves coefficient of determination（R²） values exceeding 0.82， with favorable error metrics. Specifically， emissions of all pollutants increase significantly with speed and slope under uphill conditions， whereas downhill operations exhibit generally lower emissions but with local peak values. Moreover， three-dimensional response surfaces indicate that HC and NO _x are more sensitive to variations in operating conditions. This study provides a high-resolution quantification of the speed-slope-emission relationship， offering theoretical and empirical support for accurate urban micro-scale emission estimation， driving condition identification， and traffic-related emission reduction strategies.

Key words: vehicle operation engineering, light-duty vehicle emissions, speed-slope coupling, second-order polynomial regression, vehicle specific power

中图分类号:

U491.9

杨阳,侯佳兴,于谦. 轻型车速度与坡度对排放影响的耦合关系[J]. 吉林大学学报(工学版), 2026, 56(10): 2626-2634.

Yang YANG,Jia-xing HOU,Qian YU. Coupling effect of speed and road slope on emissions from light-duty vehicles[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(10): 2626-2634.

图/表 7

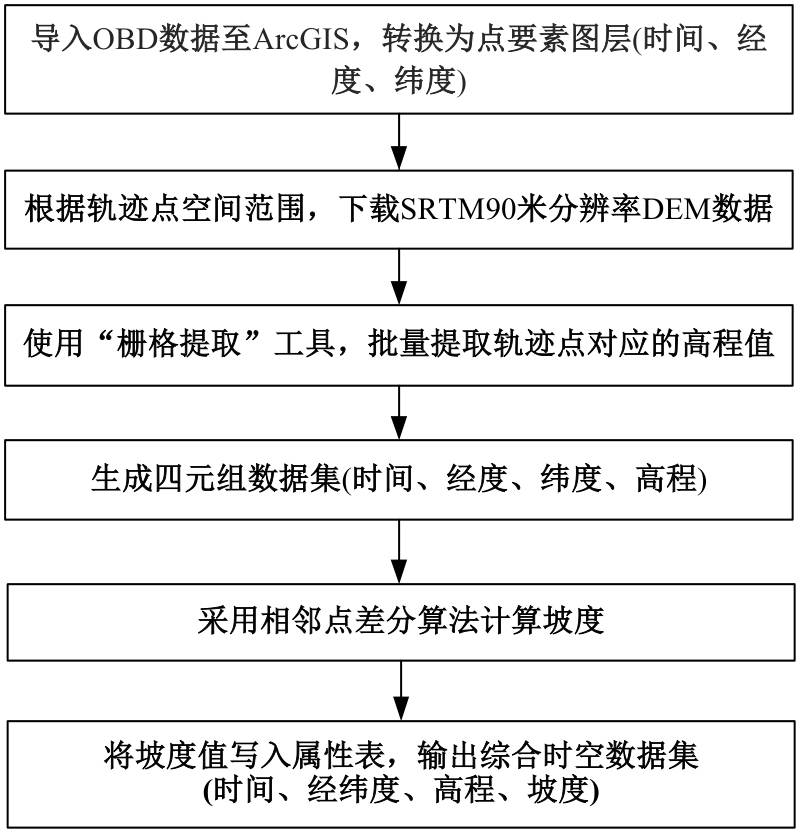

图1

图2

表1

上下坡拟合结果"

坡度	拟合参数污染物	$β 0$	$β 1$	$β 2$	$β 3$	$β 4$	$β 5$
上坡	CO	-8.136 259	0.090 081	-32.679 764	-0.000 503	294.788 948	0.399 979
	HC	-10.674 830	0.072 107	-27.586 534	-0.000 388	270.228 294	0.320 825
	NO _x	-10.962 125	0.083 527	-31.634 116	-0.000 462	312.719 588	0.363 534
	PM	-13.330 739	0.077 097	-27.085 290	-0.000 418	252.867 415	0.333 062
下坡	CO	-8.256 284	0.095 792	21.229 739	-0.000 556	359.042 699	0.028 730
	HC	-10.695 886	0.073 384	20.691 560	-0.000 402	308.620 937	-0.049 474
	NO _x	-11.419 067	0.109 939	25.057 602	-0.000 765	176.803 097	-0.393 384
	PM	-13.396 741	0.080 445	18.380 008	-0.000 450	292.933 563	0.001 800

表1

表2

各污染物的模型预测性能评估指标"

坡度	评估指标污染物	R²	MSE	RMSE	MAE
上坡	CO	0.857 3	0.002 395	0.048 938	0.004 019
	HC	0.872 3	5× $10 - 6$	0.002 210	1.54× $10 - 4$
	NO _x	0.859 8	5× $10 - 6$	0.002 241	1.79× $10 - 4$
	PM	0.868 9	1× $10 - 7$	0.000 181	1.4× $10 - 6$
下坡	CO	0.824 7	0.000 595	0.024 400	0.002 946
	HC	0.854 2	1× $10 - 6$	0.001 000	1.06× $10 - 4$
	NO _x	0.859 1	1× $10 - 6$	0.001 113	1.30× $10 - 4$
	PM	0.843 5	1× $10 - 7$	0.000 086	1× $10 - 5$

表2

表3

K折交叉验证下各污染物预测模型的平均性能评估指标"

坡度	评估指标污染物	R²	MSE	RMSE	MAE
上坡	CO	0.842 8	0.002 395	0.047 853	0.004 019
	HC	0.852 2	5× $10 - 6$	0.002 090	1.54× $10 - 4$
	NO _x	0.845 0	5× $10 - 6$	0.002 184	1.79× $10 - 4$
	PM	0.850 5	1× $10 - 7$	0.000 174	1.4× $10 - 6$
下坡	CO	0.824 7	5.95× $10 - 6$	0.023 839	0.002 946
	HC	0.854 1	1× $10 - 6$	0.000 966	1.06× $10 - 4$
	NO _x	0.827 9	1× $10 - 6$	0.001 095	1.30× $10 - 4$
	PM	0.843 5	1× $10 - 7$	0.000 083	1× $10 - 5$

表3

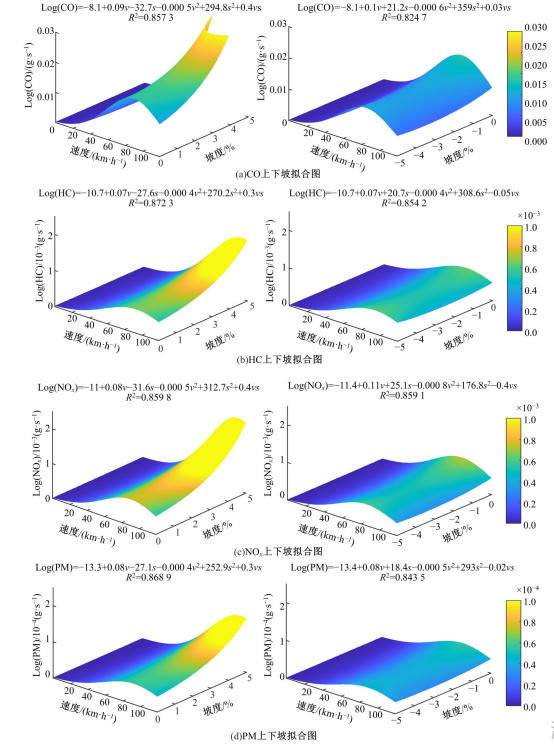

图3

表4

参考文献 24

[1]	Li R, Li L, Wang Q. The impact of energy efficiency on carbon emissions: evidence from the transportation sector in Chinese 30 Provinces[J]. Sustainable Cities and Society, 2022, 82: 103880.
[2]	陈坚, 陈嘉果, 陈琦, 等. 山地城市道路交通碳排放影响因素非线性关系模型[J]. 交通运输系统工程与信息, 2024, 24(5): 237-245.
	Chen Jian, Chen Jia-guo, Chen Qi, et al. Nonlinear relationship model of factors influencing carbon emissions in mountainous urban road transportation[J]. Journal of Transportation Systems Engineering and Information Technology, 2024, 24(5): 237-245.
[3]	吕晨, 张哲, 陈徐梅, 等. 中国分省道路交通二氧化碳排放因子[J]. 中国环境科学, 2021, 41(7): 3122-3130.
	Lv Chen, Zhang Zhe, Chen Xu-mei, et al. Study on CO₂ emissiom factors of road transport in Chinese provinces[J]. China Environmental Science, 2021, 41(7): 3122-3130.
[4]	Li Y, Lü C, Yang N, et al. A study of high temporal-spatial resolution greenhouse gas emissions inventory for on-road vehicles based on traffic speed-flow model: a case of Beijing[J]. Journal of Cleaner Production, 2020, 277: 122419.
[5]	靳秋思, 张远景, 宋国华, 等.基于交通运行指数的速度分布聚类与排放测算[J]. 交通信息与安全, 2016, 34(6): 15-21, 76.
	Jin Qiu-si, Zhang Yuan-jing, Song Guo-hua, et al. A clustering analysis of speed distributions and emission estimation based on traffic performance index[J]. Journal of Transport Information and Safety, 2016, 34(6): 15-21, 76.
[6]	姜壁刚, 何超, 王艳艳, 等. 道路坡度对轻型柴油车二氧化碳排放的影响[J]. 公路交通科技, 2025, 42(2): 207-214.
	Jiang Bi-gang, He Chao, Wang Yan-yan, et al. Influence of road gradient on CO₂ emission from light-duty diesel vehicles[J]. Journal of Highway and Transportation Research and Development, 2025, 42(2): 207-214.
[7]	周涛, 李毅军, 孙琴梅, 等. 大数据驱动下的山地城市道路条件对车辆碳排放影响研究[J]. 交通运输系统工程与信息, 2023, 23(5): 172-183.
	Zhou Tao, Li Yi-jun, Sun Qin-mei, et al. Impact of mountain urban roads on vehicle carbon emissions driven by big data[J]. Journal of Transportation Systems Engineering and Information Technology, 2023, 23(5): 172-183.
[8]	Wang Y, Feng X, Zhao H, et al. Experimental study of CO₂ and pollutant emission at various altitudes: Inconsistent results and reason analysis[J]. Fuel, 2022, 307: 121801.
[9]	Dong Y, Xu J, Gu C. Modelling carbon emissions of diesel trucks on longitudinal slope sections in China[J]. Plos One, 2020, 15(6): e0234789.
[10]	Sentoff K M, Aultman-Hall L, Holmén B A. Implications of driving style and road grade for accurate vehicle activity data and emissions estimates[J]. Transportation Research Part D: Transport and Environment, 2015, 35: 175-188.
[11]	Liu H, Rodgers M O, Guensler R. Impact of road grade on vehicle speed-acceleration distribution, emissions and dispersion modeling on freeways[J]. Transportation Research Part D: Transport and Environment, 2019, 69: 107-122.
[12]	孙振华, 许金良, 徐贵龙, 等. 基于MOVES的上坡路段载重车碳排放规律研究[J]. 公路, 2021, 66(3): 328-336.
	Sun Zhen-hua, Xu Jin-liang, Xu Gui-long, et al. Research on carbon emission law of truck on uphill section based on MOVES[J]. Highway, 2021, 66(3): 328-336.
[13]	郑春燕, 张海, 郭栋, 等. 城市道路坡度和车速对机动车排放的影响[J]. 河南科技大学学报: 自然科学版, 2019, 40(2): 35-39, 44,6.
	Zheng Chun-yan, Zhang Hai, Guo Dong, et al. Effects of urban road slope and vehicle speed on vehicle emissions[J]. Journal of Henan University of Science and Technology(Natural Science), 2019, 40(2): 35-39, 44, 6.
[14]	. 机动车运行安全技术条件 [S]. 北京:中国标准出版社,2017.
[15]	Ilyas Ihab F, Chu Xu. Data Cleaning[M]. London: Macmillan, 2019.
[16]	周启鸣, 刘学军. 数字地形分析[M]. 北京: 科学出版社, 2006.
[17]	environment protection agency US.MOVES2014a software design reference manual[EB/OL]. [2025-06-01]. .
[18]	environment protection agency US. Exhaust emission rates for light-duty on-road vehicles in MOVES2014[EB/OL]. [2025-06-01]. .
[19]	陈兴辉, 刘皓冰, 胡兴华. 考虑混动车NO _x 排放工况影响的交叉口信号配时优化模型[J]. 吉林大学学报: 工学版, 2026, 56(8): 2137-2149.
	Chen Xing-hui, Liu Hao-bing, Hu Xing-hua. Intersection signal timing optimization model considering influence of hybrid vehicles NO _x emission conditions[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(8): 2137-2149.
[20]	Jimenez-Palacios J L. Understanding and quantifying motor vehicle emissions with vehicle specific power and TILDAS remote sensing[D]. Cambridge: Massachusetts Institute of Technology, 1998.
[21]	Sentoff K M, Aultman-Hall L, Holmén B A. Implications of driving style and road grade for accurate vehicle activity data and emissions estimates[J]. Transportation Research Part D: Transport and Environment, 2015, 35: 175-188.
[22]	姚荣涵, 龙梦, 赵胜川. 基于正交试验的信号交叉口机动车排放影响因素分析[J]. 北京工业大学学报, 2020, 46(3): 300-310.
	Yao Rong-han, Long Meng, Zhao Sheng-chuan. Influencing factor analysis of vehicle emissions at signalized intersection based on oethogonal experiments[J]. Journal of Beijing University of Technology, 2020, 46(3): 300-310.
[23]	王江锋, 贺丹, 罗冬宇, 等. 基于交互信息融合网络的车辆行驶风险预测模型[J]. 吉林大学学报: 工学版, 2026, 56(8): 2177-2190.
	Wang Jiang-feng, He Dan, Luo Dong-yu, et al. Vehicle traveling risk prediction based on interactive information fusion network[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(8): 2177-2190.
[24]	Arlot S, Celisse A. A survey of cross-validation procedures for model selection[J]. Statistics Surveys, 2010, 4: 40-79.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

污染物	运行工况	峰值排放量/（g·s^-1）	峰值速度/ （km·h^-1）	峰值坡度/%
CO	上坡	0.029 57	77.58	5
CO	下坡	0.015 8	80	接近0
HC	上坡	0.001 7	113.95	5
HC	下坡	0.000 64	92.13	接近0
NO _x	上坡	0.002 1	109.1	5
NO _x	下坡	0.000 74	87.28	接近0
PM	上坡	0.000 15	111.53	5
PM	下坡	0.000 06	89.71	接近0
