多支点测力平台维间耦合误差建模与精度分配

doi:10.13229/j.cnki.jdxbgxb.20231260

摘要/Abstract

摘要：

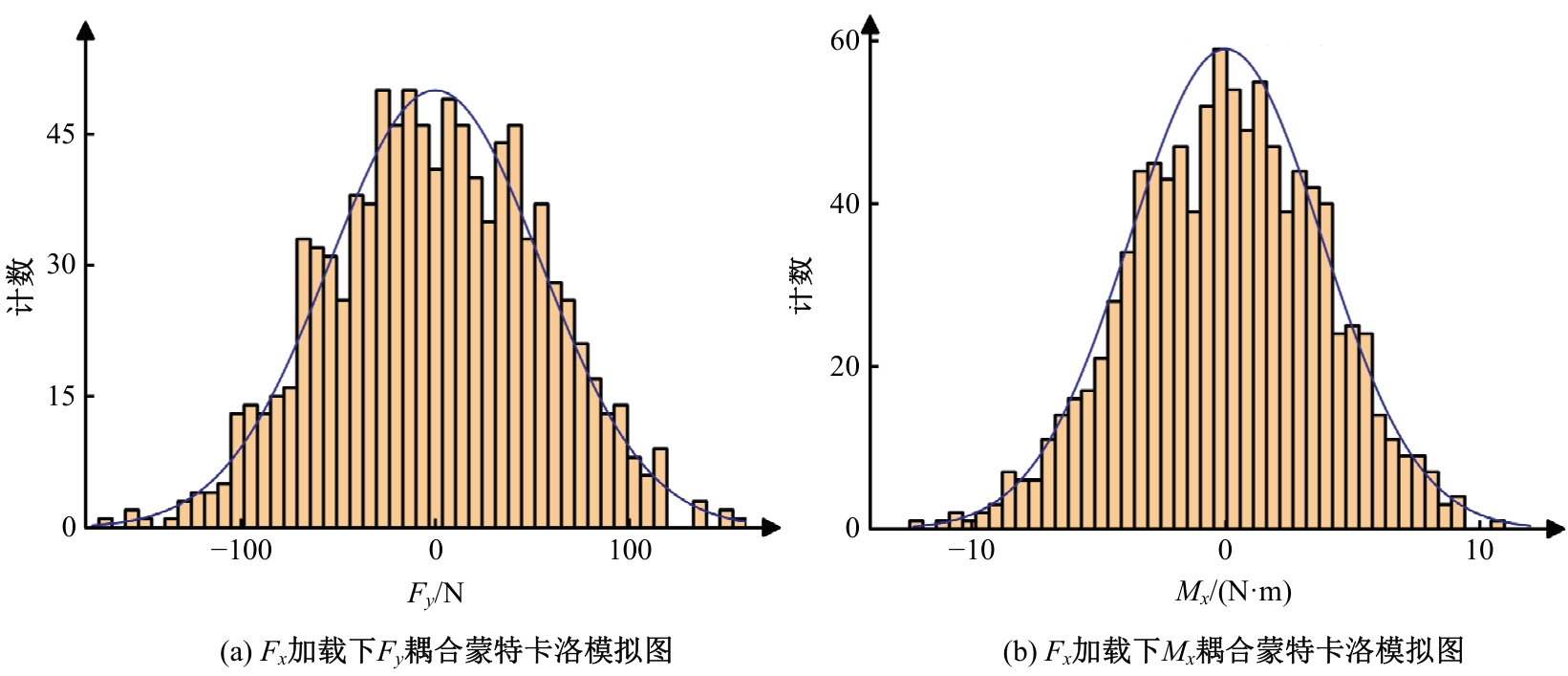

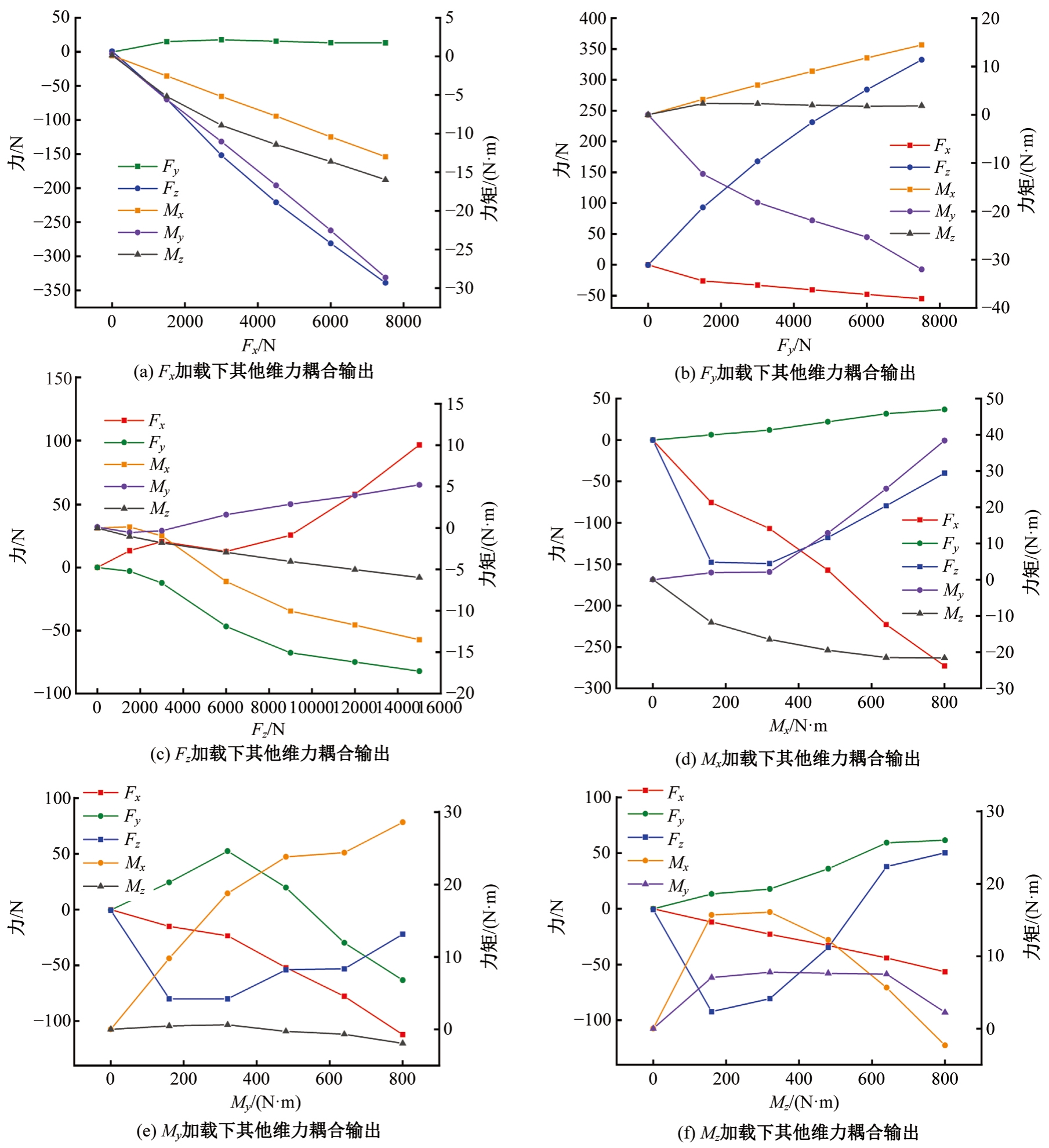

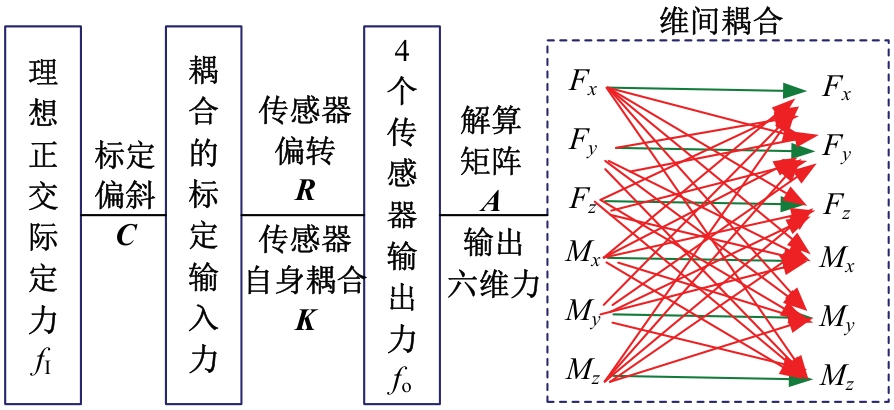

针对多传感器布置的测力平台耦合误差成因不明、难以削减的问题，以压电式六维测力平台为研究对象，从传感器耦合、装配误差、标定装置全环节分析耦合成因。基于测量原理，建立包含34个影响因素的维间耦合模型，采用敏感性算法筛选并量化各因素影响程度，以耦合误差≤5%量程为目标进行精度容差分配。采样仿真结果表明，分配后各项耦合误差的99%置信上限均满足要求。实验表明，满足容差下平台力输出耦合误差≤3.64%量程，力矩输出耦合误差≤4.80%量程，验证了精度范围的有效性和在耦合误差控制上的实用性。

关键词: 精密仪器及机械, 维间耦合, 测量误差, 大量程六维力, 敏感性分析

Abstract:

In response to the causes of unclear and difficult reduction of coupling errors in force measurement platforms arranged with multiple sensors， this article takes the piezoelectric six axis force measurement platform as the research object， analyzes the coupling causes from the entire process of sensor coupling， assembly error and calibration device. Based on measurement principles， establish an inter dimensional coupling model containing 34 influencing factors， use sensitivity algorithms to screen and quantify the degree of influence of each factor， and accuracy tolerance allocate is performed with a coupling error ≤ 5% of the range as the target. The sampling simulation shows that the 99% confidence upper limit of each coupling error after allocation meets the requirements. Experiment shows that the coupling error of platform force output is ≤ 3.64% of the range under tolerance， and the coupling error of torque output is ≤ 4.80% of the range， which verify the effectiveness of the accuracy range and their applicability in coupling error control.

Key words: precision instrument and machinery, inter-dimensional coupling, measurement error, large range six-axis force, sensitivity analysis

中图分类号:

TH823

张军,王郁赫,姜楠,蔡佳乐,滕玄德,张鹏. 多支点测力平台维间耦合误差建模与精度分配[J]. 吉林大学学报(工学版), 2025, 55(8): 2501-2510.

Jun ZHANG,Yu-he WANG,Nan JIANG,Jia-le CAI,Xuan-de TENG,Peng ZHANG. Modeling and accuracy allocation of inter-dimensional coupling errors in multi pivot force measurement platforms[J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(8): 2501-2510.

图/表 16

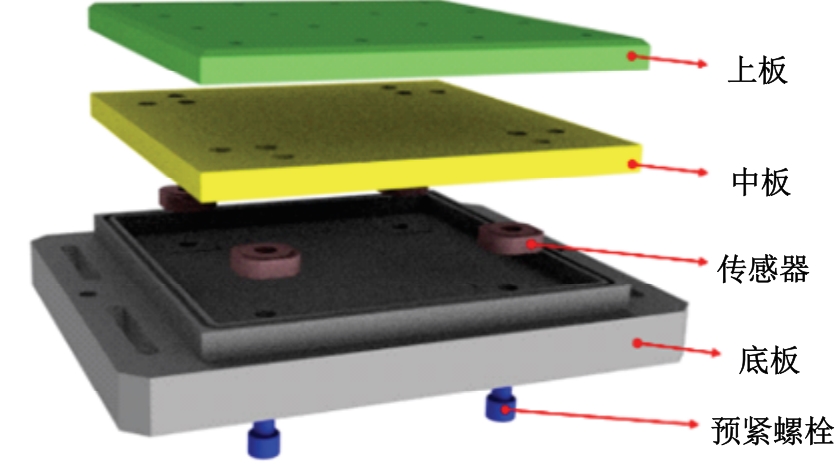

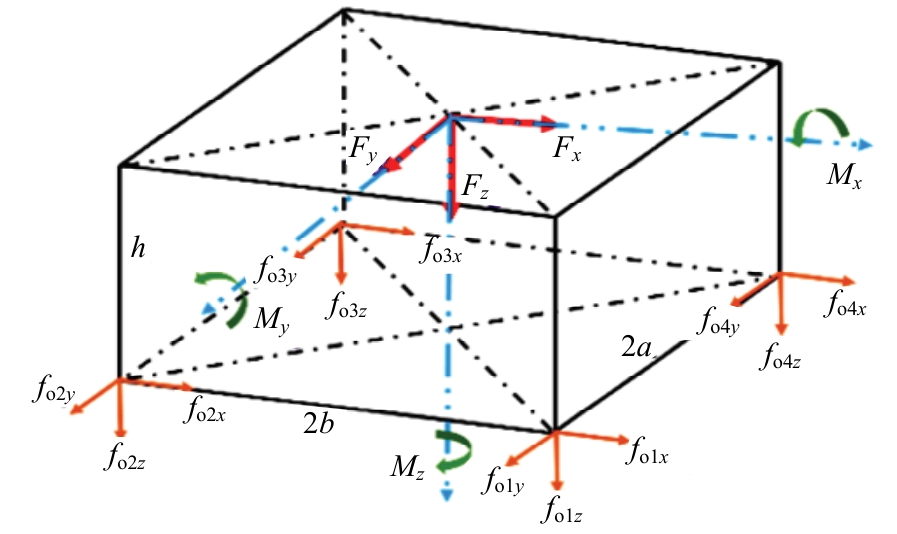

图1

图2

图3

表1

因素正态分布表"

误差因素项	$σ$ /rad
r₁， r₂， r₃， r₄	0.005 8
$θ x y$ ， $θ x z$ ， $θ y x$ ， $θ y z$ ， $θ z x$ ， $θ z y$	0.011 6
k_xy_1~4， k_xz_1~4， k_yx_1~4， k_yz_1~4， k_zx_1~4， k_zy_1~4	0.016 7

表1

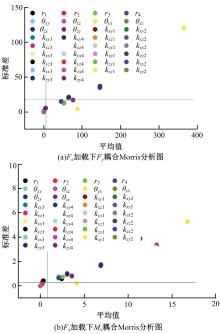

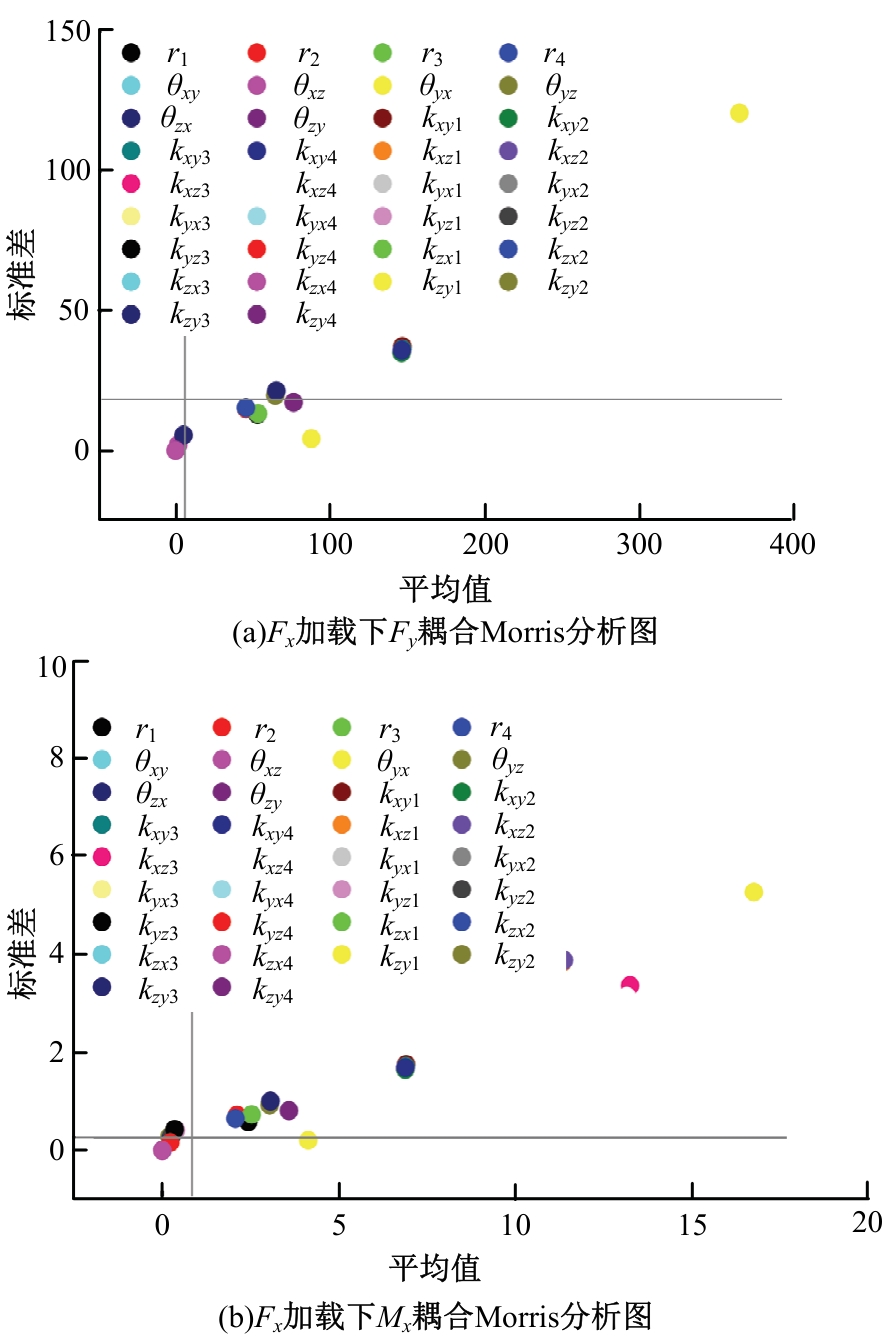

图4

表2

Fx 作用下耦合因素筛选结果"

耦合方向	影响因素
F_y	r_1~4， $θ y x$ ， k_xy_1~4， k_zy_1~4
F_z	$θ z x$ ， k_xz_1~4
M_x	r_1~4， $θ y x$ ， k_xy_1~4， k_xz_1~4， k_zy_1~4
M_y	k_xz_1~4， k_zx_1~4
M_z	r_1~4， $θ y z$ ， k_xy_1~4，k_zx_1~4，k_zy_1~4

表2

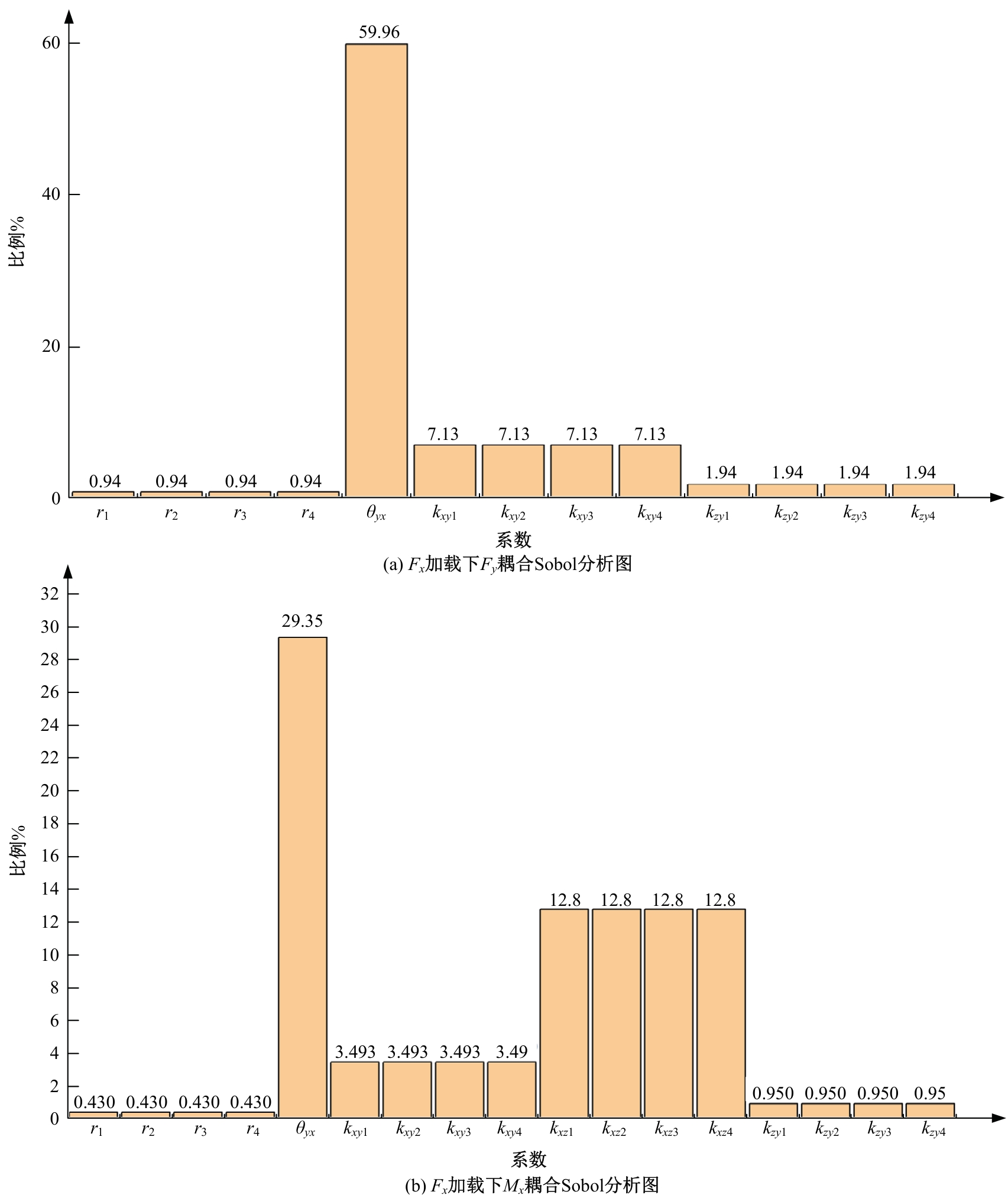

图5

表3

Fx 作用下Fy 耦合因素半带宽分配"

耦合因素	数值	耦合因素	数值
r₁	0.007 9	k_xy₃	0.015 6
r₂	0.007 9	k_xy₄	0.015 6
r₃	0.007 9	k_zy₁	0.012 5
r₄	0.007 9	k_zy₂	0.012 5
$θ y x$	0.020 0	k_zy₃	0.012 5
k_xy₁	0.015 6	k_zy₄	0.012 5
k_xy₂	0.015 6

表3

表4

Fx 作用下Mx 耦合因素半带宽分配"

耦合因素	数值	耦合因素	数值
r₁	0.011 7	k_xz₁	0.029 2
r₂	0.011 7	k_xz₂	0.029 2
r₃	0.011 7	k_xz₃	0.029 2
r₄	0.011 7	k_xz₄	0.029 2
$θ y x$	0.030 2	k_zy₁	0.019 0
k_xy₁	0.023 6	k_zy₂	0.049 4
k_xy₂	0.023 6	k_zy₃	0.019 0
k_xy₃	0.023 6	k_zy₄	0.049 4
k_xy₄	0.023 6

表4

图6

表5

表6

图7

表7

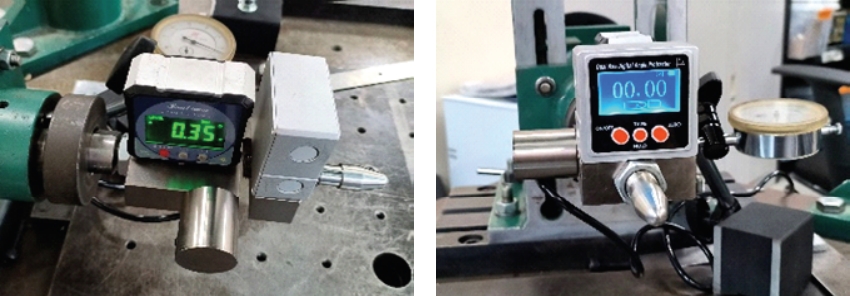

装置角度误差测量结果"

项目	$θ x y$	$θ x z$	$θ y x$	$θ y z$	$θ z x$	$θ z y$
F_x /F_y /F_z	0.017 2	0	-0.020 6	-0.014 0	0.008 7	0.006 1
M_x	-0.003 4	—	—	—	—	0.014 8
M_y /M_z	—	—	-0.003 4	0.014 8	—	—

表7

图8

图9

参考文献 24

[1]	王云灏, 孙铭会, 辛毅, 等. 基于压电薄膜传感器的机器人触觉识别系统[J]. 浙江大学学报: 工学版,2022, 56(4): 702-710.
	Wang Yun-hao, Sun Ming-hui, Xin Yi, et al. Robot tactile recognition system based on piezoelectric film sensor[J]. Journal of Zhejiang University (Engineering Science), 2022, 56(4): 702-710.
[2]	丁旭, 冯传奇, 薛文鹏, 等. 航空发动机全机推力试车台测力方法与校准技术[J]. 航空动力学报, 2023, 1: 1-7.
	Ding Xu, Feng Chuan-qi, Xue Wen-peng, et al. Force measurement method and calibration technology of aeroengine whole thrust test bed[J]. Journal of Aerospace Power, 2023, 1: 1-7.
[3]	任宗金, 李洋, 徐田国, 等. 组合支撑方式下气动多维力多点测量研究[J]. 中国机械工程,2022, 33(2): 170-175.
	Ren Zong-jin, Li Yang, Xu Tian-guo, et al. Research on multi-point measurement of pneumatic multi-dimensional forces under combined support mode[J]. China Mechanical Engineering, 2022, 33(2): 170-175.
[4]	李俊烨, 刘洋, 卢慧, 等. 基于分子动力学的磨粒微切削单晶铁数值分析[J]. 吉林大学学报: 工学版,2019, 49(5): 1567-1574.
	Li Jun-ye, Liu Yang, Lu Hui, et al. Numerical analysis of single crystal Fe with abrasive grain micro-cutting based on molecular dynamics[J]. Journal of Jilin University (Engineering and Technology Edition), 2019, 49(5): 1567-1574.
[5]	Wu Z W, Sun Y J, Ni F L, et al. Design and simulation of an accelerometer allocation scheme for six-dimensional acceleration sensor[C]∥2019 IEEE International Conference on Robotics and Biomimetics. Dali:IEEE, 2019: 2408-2413.
[6]	张军, 王郁赫, 任宗金, 等.压电力传感器中晶轴偏转产生的维间耦合研究[J].压电与声光, 2023, 45(4): 614-618.
	Zhang Jun, Wang Yu-he, Ren Zong-jin, et al. Study on inter-dimensional coupling arising from crystal axis deflection in piezoelectric force sensors[J]. Piezoelectrics＆Acoustooptics, 2023,45(4): 614-618.
[7]	孙世政, 于竞童, 韩宇, 等. 基于SSA-ELM的双层十字梁结构光纤布拉格光栅传感器三维力解耦[J].光学精密工程, 2022, 30(3): 274-285.
	Sun Shi-zheng, Yu Jing-tong, Han Yu, al at. FBG sensor of double-layer cross beam structure based on SSA-ELM three-dimensional force decoupling[J]. Optical Precision Engineering, 2022, 30(3): 274-285.
[8]	韩康, 陈立恒, 李行, 等. 高灵敏度大量程六维力传感器设计[J]. 仪器仪表学报, 2019, 40(9): 61-69.
	Han Kang, Chen Li-heng, Li Hang, al at. Design of a six-axis force sensor with large rang and high sensitivity[J]. Chinese Journal of Scientific Instrument, 2019, 40(9): 61-69.
[9]	陈望隆, 杨述焱, 胡权, 等. 面向运动力学测量的无线六维力传感器[J]. 仪器仪表学报, 2019, 40(4): 129-136.
	Chen Wang-long, Yang Shu-yan, Hu Quan, et al. Wireless six-dimensional force sensor for motion mechanics measurement[J]. Chinese Journal of Scientific Instrument, 2019, 40(4): 129-136.
[10]	张海霞, 崔建伟, 陈丹凤, 等. 一种结构解耦的新型应变式三维力传感器研究[J]. 传感技术学报, 2014, 27(2): 162-167.
	Zhang Hai-xia, Cui Jian-wei, Chen Dan-feng, et al. Study on a new type of adopted structure for three dimensions strain gauge force sensor[J]. Chinese Journal of Sensors and Actuators, 2014, 27(2): 162-167.
[11]	宋逸, 段晋军, 相立峰, 等. 一种低耦合高精度六维力传感器设计及应用[J]. 南京航空航天大学学报, 2022, 54(3): 473-480.
	Song Yi, Duan Jin-jun, Xiang Li-feng, et al. Design and application of high-precision loosely coupled six-axis force sensor[J]. Journal of Nanjing University of Aeronautics＆Astronautics, 2022, 54(3): 473-480.
[12]	宫海彬, 苏建, 徐观, 等.多传感器并联式三维测力平台及标定[J]. 吉林大学学报: 工学版, 2013, 43(6): 1517-1522.
	Gong Hai-bin, Su Jian, Xu Guan, et al. Design and calibration of multi-sensor parallel 3D force measurement platform[J]. Journal of Jilin University (Engineering and Technology Edition), 2013,43(6):1517-1522.
[13]	付立悦, 宋爱国. 六维力传感器静态标定系统误差分析[J]. 计量学报, 2019, 40(2): 295-299.
	Fu Li-yue, Song Ai-guo. Error analysis of six-axis force/torque sensor's static calibration system [J]. Acta Metrologica Sinica, 2019, 40(2): 295-299.
[14]	张军, 王郁赫, 任宗金, 等. 考虑角度偏差的压电三维力传感器标定[J]. 光学精密工程, 2023, 31(17):2546-2554.
	Zhang Jun, Wang Yu-he, Ren Zong-jin, et al. Calibration of piezoelectric three-dimensional force sensor considering angle deviation[J]. Optical Precision Engineering, 2023, 31(17): 2546-2554.
[15]	赵鹏, 王桂从, 李映君, 等. 组合式自解耦压电薄膜三维力传感器研制[J].西安交通大学学报, 2023, 57(3): 139-149.
	Zhao Peng, Wang Gui-cong, Li Ying-jun, et al. Development of combined self-decoupling piezoelectric thin film three-dimensional force sensor[J]. Journal of Xi'an Jiaotong University, 2023,57(3):139-149.
[16]	宋明丹, 冯浩, 李正鹏, 等.基于Morris和EFAST的CERES-Wheat模型敏感性分析[J]. 农业机械学报, 2014, 45(10): 124-131.
	Song Ming-dan, Feng Hao, Li Zheng-peng, et al. Global sensitivity analyses of DSSAT-CERES-Wheat model using Morris and EFAST methods[J]. Transactions of the Chinese Society for Agricultural Machinery, 2014, 45(10): 124-131.
[17]	Morris M D. Factorial sampling plans for preliminary computational experiments[J]. Technometrics,1991,33(2): 161-174.
[18]	Sobol I M. Global sensitivity indices for the investigation of nonlinear mathematical models[J].Institute for Mathematical Modelling, 2007, 19(11): 43-52.
[19]	宋健, 佘湖清, 李超, 等. 基于Sobol灵敏度分析的火箭弹自力弹射多目标约束优化[J]. 推进技术, 2022, 43(12): 45-53.
	Song Jian, She Hu-qing, Li Chao, et al. Multi-object constraint optimization of rocked self-ejection based on Sobol sensitivity analysis[J]. Journal of Propulsion Technology, 2022, 43(12): 45-53.
[20]	章子玲, 胡雄, 亓寅, 等. 基于向量投影响应面的数控机床几何误差分配方法[J]. 吉林大学学报: 工学版, 2022, 52(2): 384-391.
	Zhang Zi-ling, Hu Xiong, Qi Yin, et al. An approach for err allocation of machine tool based on vector projection response surface method[J]. Journal of Jilin University (Engineering and Technology Edition), 2022, 52(2): 384-391.
[21]	李国龙, 陶小会, 徐凯, 等. 数控机床转台位置相关几何误差的快速测量与辨识[J]. 吉林大学学报: 工学版, 2021, 51(2): 458-467.
	Li Guo-long, Tao Xiao-hui, Xu Kai, et al. Rapid measurement and identification of position dependent geometric errors of CNC machine tool turntable[J].Journal of Jilin University (Engineering and Technology Edition), 2021, 51(2): 458-467.
[22]	Dong Z, Hu W, Xue D. New production cost-tolerance models for tolerance synthesis[J]. ASME International in Journal of Engineering for Industry, 1994, 116(2):199-206.
[23]	王青, 余小光, 乔明杰, 等. 基于序列二次规划算法的定位器坐标快速标定方法[J]. 浙江大学学报: 工学版, 2017, 51(2): 319-327.
	Wang Qing, Yu Xiao-guang, Qiao Ming-jie, et al. Rapid calibration based on SQP algorithm for coordinate frame of localizers[J]. Journal of Zhejiang University (Engineering Science), 2017, 51(2): 319-327.
[24]	李嘉, 李华聪, 王万成, 等. 燃油离心泵多目标优化设计及仿真分析[J]. 推进技术,2021, 42(3): 666-674.
	Li Jia, Li Hua-cong, Wang Wan-cheng, et al. Multi-objective optimization design and simulation for fuel centrifugal pump[J]. Journal of Propulsion Technology, 2021, 42(3): 666-674.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

项目	F_x 耦合输出	F_y 耦合输出	F_z 耦合输出	M_x 耦合输出	M_y 耦合输出	M_z 耦合输出
F_x 加载	—	［-136.79，139.02］	［-222.41，215.41］	［-9.33，9.49］	［-7.69.7.18］	［-7.41，6.56］
F_y 加载	［-136.97，141.55］	—	［-215.35.231.32］	［-7.37，7.58］	［-9.66，10.19］	［-7.31，6.76］
F_z 加载	［-182.68，199.72］	［-192.10，194.09］	—	［-8.91，9.06］	［-8.59，9.39］	［-8.78，9.08］
M_x 加载	［-42.01，40.72］	［-43.63，41.72］	［-0.79，0.75］	—	［-1.97，1.92］	［-11.30，10.48］
M_y 加载	［-39.99，41.91］	［-41.55，44.15］	［-0.73，0.79］	［-1.93，1.96］	—	［-10.32，10.93］
M_z 加载	［-32.02，33.56］	［-40.00，34.31］	［-67.47，68.52］	［-11.87，12.68］	［-13.06，12.64］	—

编号	k_yx	k_zx	k_zy	k_xy	k_xz	k_yz
1	0.010 4	-0.000 4	-0.004 5	0.012 6	-0.014 7	0.019 2
2	0.014 9	-0.004 3	0.001 9	-0.009 3	-0.018 2	-0.011 6
3	-0.008 1	-0.003 2	0.002 0	0.010 4	0.011 2	0.014 7
4	0.002 7	0.003 5	0.002 6	-0.006 4	0.014 1	0.005 4
