工程地质聚合物复合材料与普通混凝土粘结界面抗剪性能试验

doi:10.13229/j.cnki.jdxbgxb.20241376

摘要/Abstract

摘要：

为了开展工程地质聚合物复合材料（EGC）加固增强既有混凝土构件的应用研究，以混凝土为基体、以EGC为覆盖层，设定二者粘结界面为凿削与刻槽两种形式、且每种形式设定了不同参数水平，完成了EGC与混凝土粘结界面的直剪性能试验研究。根据试验数据可以看出：随着界面粗糙度的增加，界面抗剪强度也在增加，虽然在受剪极限状态下，粘结界面均因抗剪强度较低而发生EGC受剪破坏，但不同界面呈现出不同破坏形式。此外，研究结果显示：试件的荷载-位移曲线有一定相似，均存在上升曲线和下降曲线，界面粗糙度较高的试件达到极限荷载后，下降曲线更为平缓。基于试验结果，利用非线性拟合的方法建立了EGC与既有NC界面抗剪强度计算公式，与试验结果吻合良好。依据试验剪切荷载-位移曲线和纤维增强混凝土抗剪韧性评价方法对NC-EGC粘结试件开展了剪切韧性评价，结果显示：其峰值荷载前韧性可达C60混凝土对照组的139%、234%，表现出EGC具有良好的增韧能力。

关键词: 结构工程, 工程地质聚合物复合材料, 抗剪强度, 刻槽界面, 凿削界面

Abstract:

To investigate the application of engineering geopolymer composites （EGC） in strengthening existing concrete components， a study was conducted using concrete as the substrate and EGC as the overlay. Two types of bonding interface treatments， chiseling and grooving， were employed， with various parameter levels specified for each treatment. Direct shear tests were performed to evaluate the bonding interface performance between EGC and concrete. According to the experimental data， it can be observed that as the interface roughness increases， the interface shear strength also increases. Although all bonded interfaces ultimately fail in EGC shear failure under ultimate shear states， different interface configurations exhibit distinct failure modes. The study further revealed that the load-displacement curves of the specimens exhibited similarities， characterized by ascending and descending segments. Specimens with higher interface roughness displayed a gentler descending curve after reaching the ultimate load. Using the experimental data， a nonlinear fitting method was employed to develop a shear strength calculation formula for the NC-EGC interface， which aligned well with the experimental results. Furthermore， the shear toughness of the NC-EGC bonding specimens was assessed through shear load-displacement curve analysis and a toughness evaluation approach tailored for fiber-reinforced concrete. The results showed that the toughness prior to the peak load was 139% and 234% of the C60 concrete control group， demonstrating the outstanding toughening ability of EGC.

Key words: structural engineering, engineering geopolymer composites, shear strength, grooved interface, chiseled interface

中图分类号:

TU388

程东辉,王霄,李科,王丽. 工程地质聚合物复合材料与普通混凝土粘结界面抗剪性能试验[J]. 吉林大学学报(工学版), 2026, 56(7): 1882-1893.

Dong-hui CHENG,Xiao WANG,Ke LI,Li WANG. Experiment investigation of interface shear properties between engineering geopolymer composites and concrete[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(7): 1882-1893.

图/表 19

表1

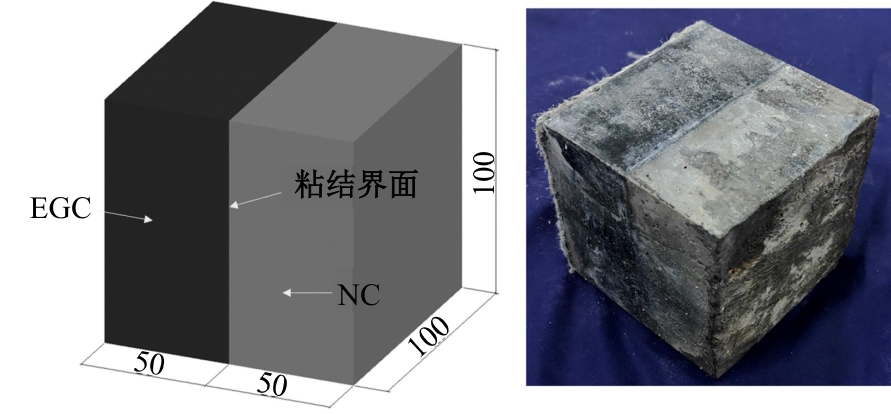

图1

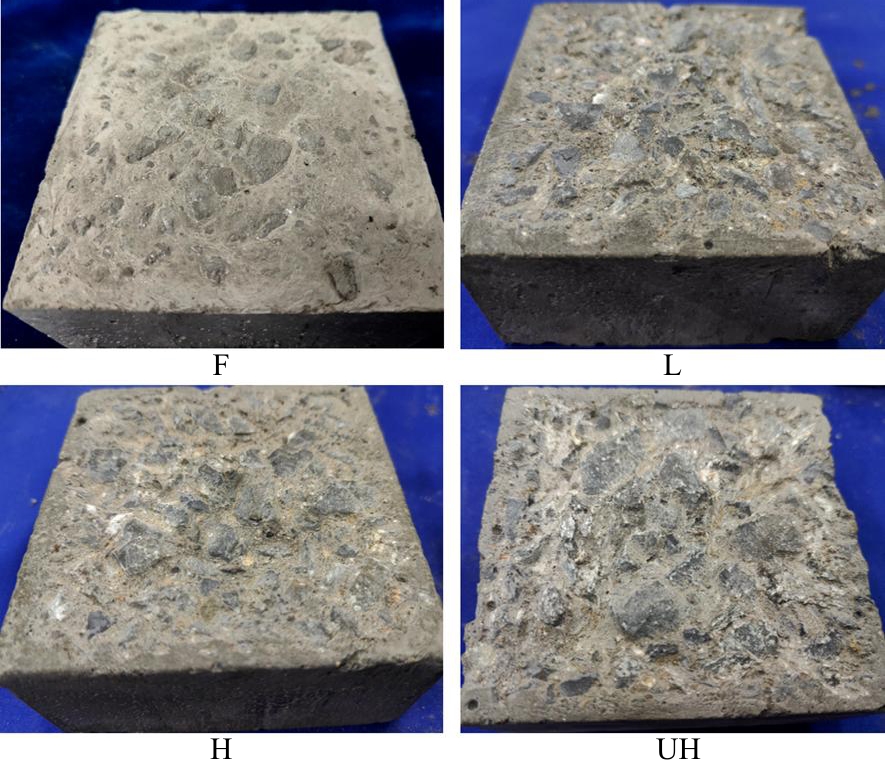

图2

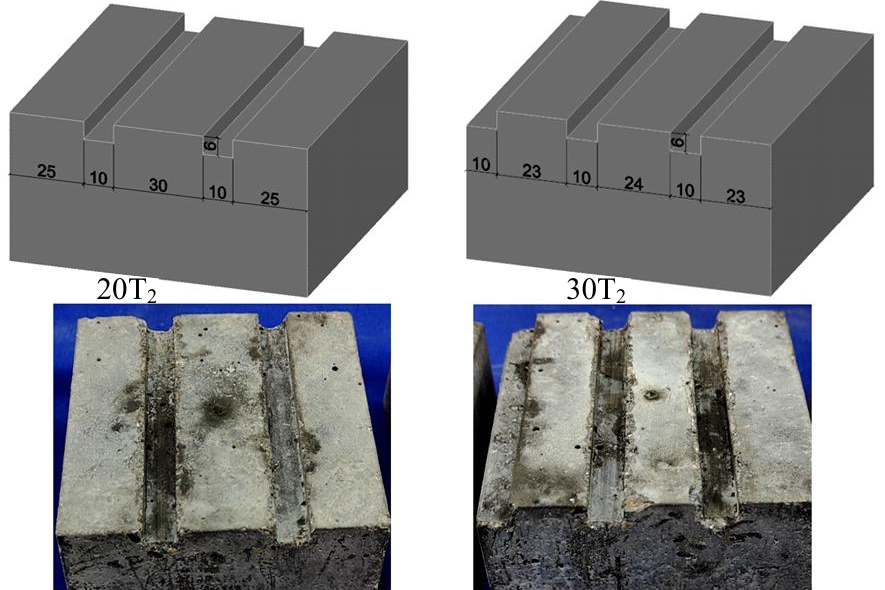

图3

表2

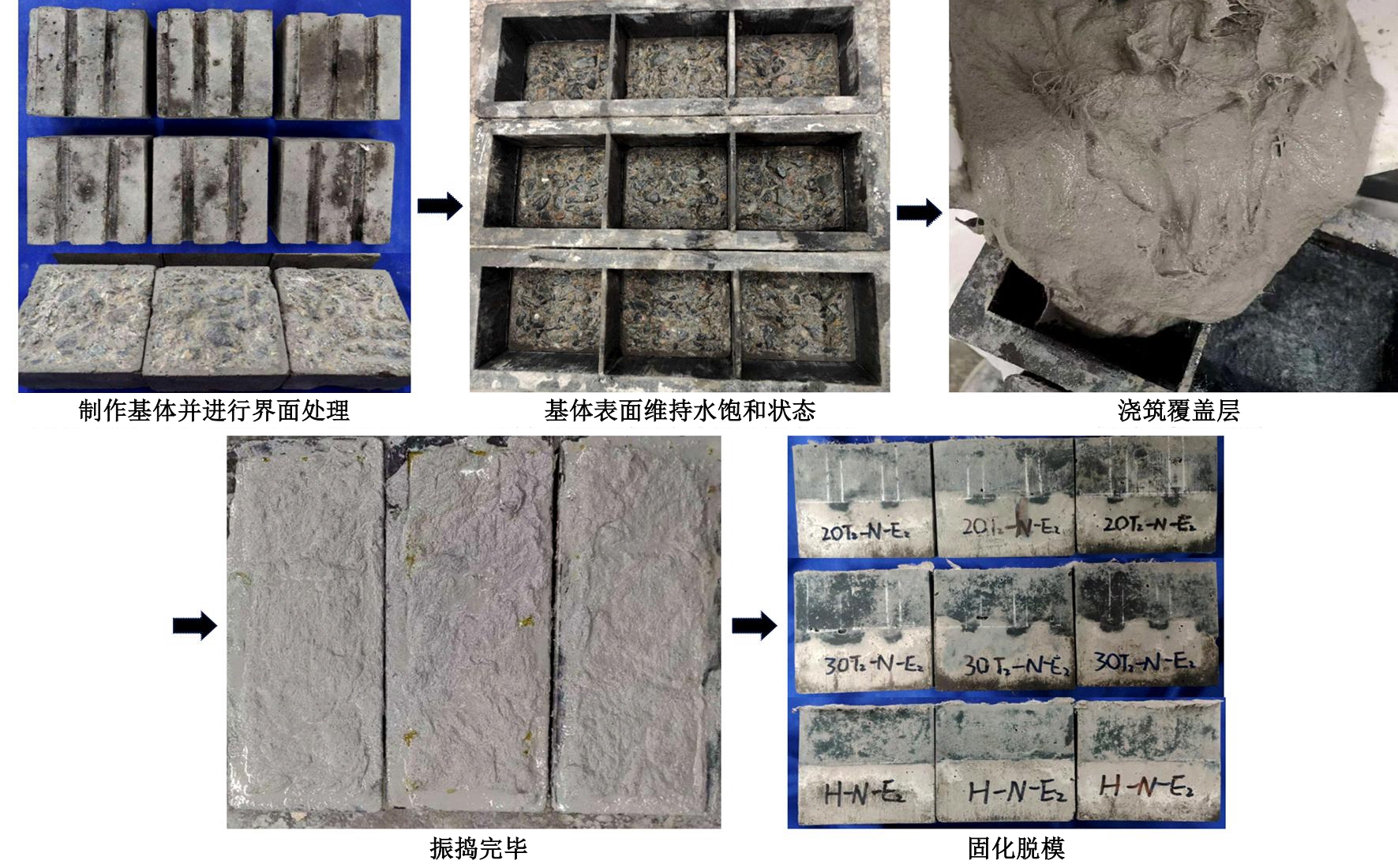

图4

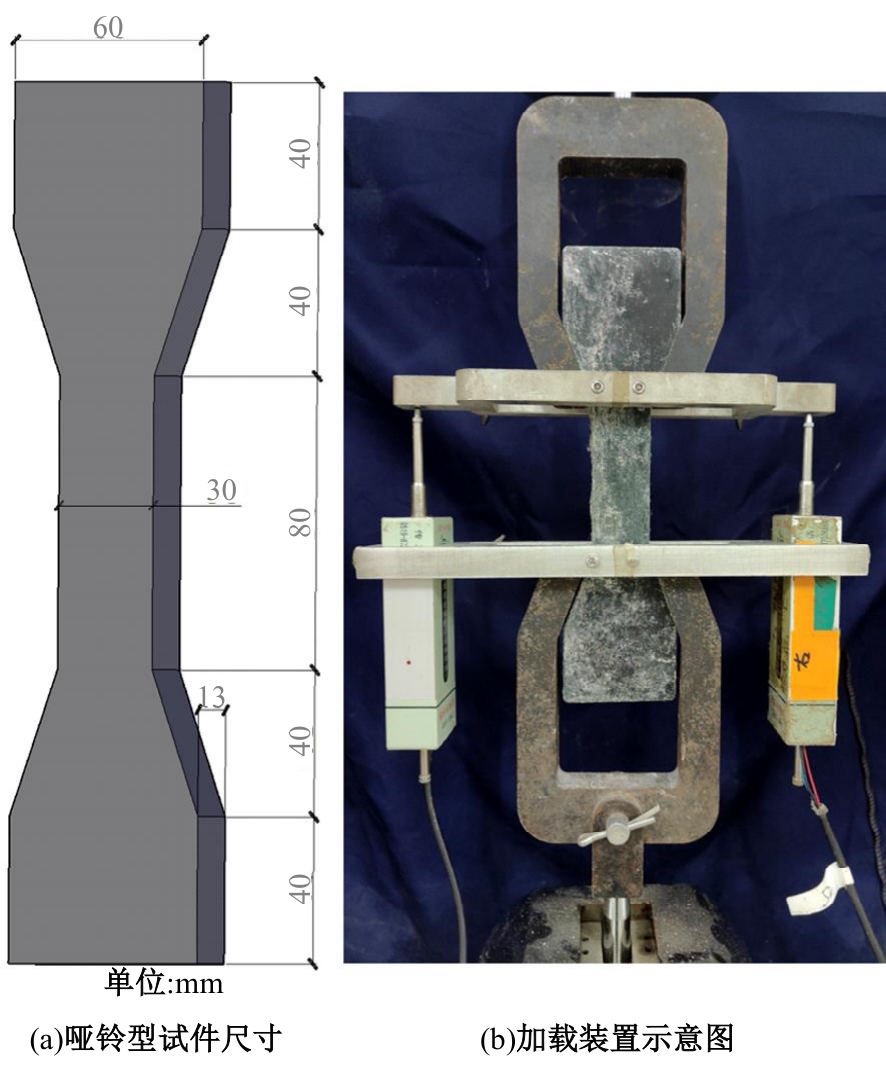

图5

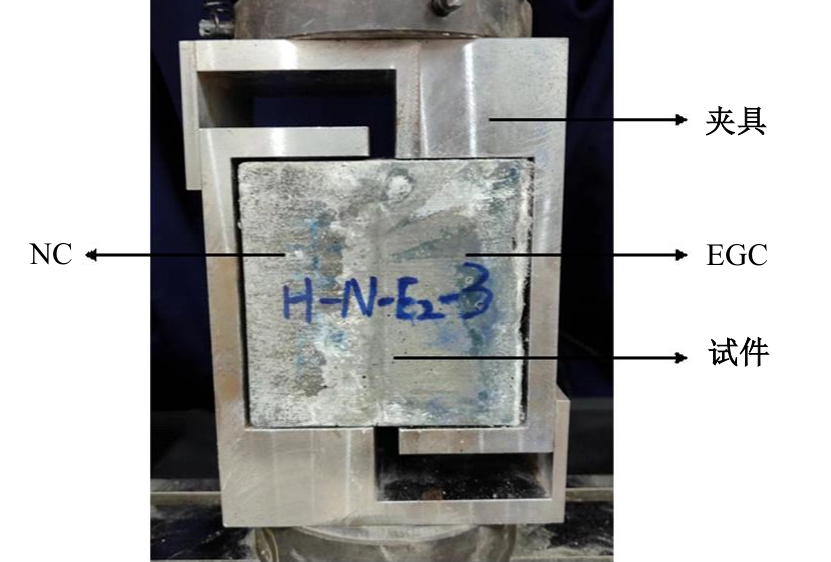

图6

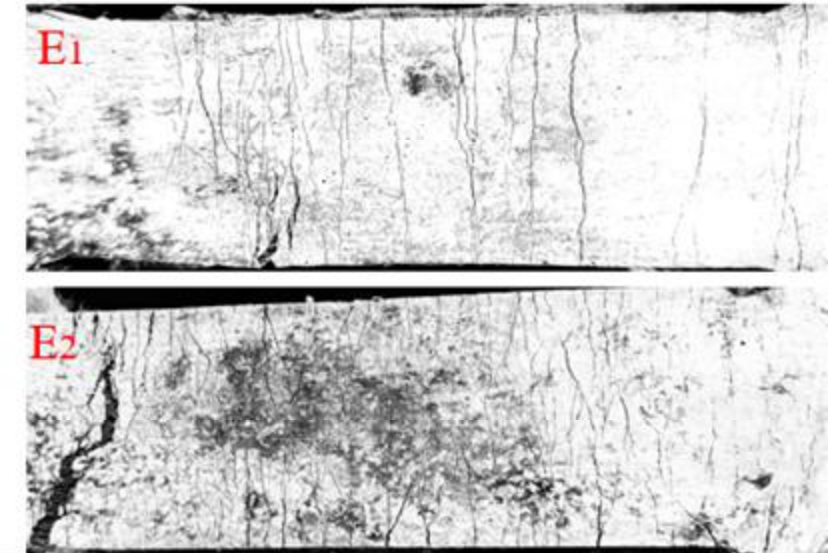

图7

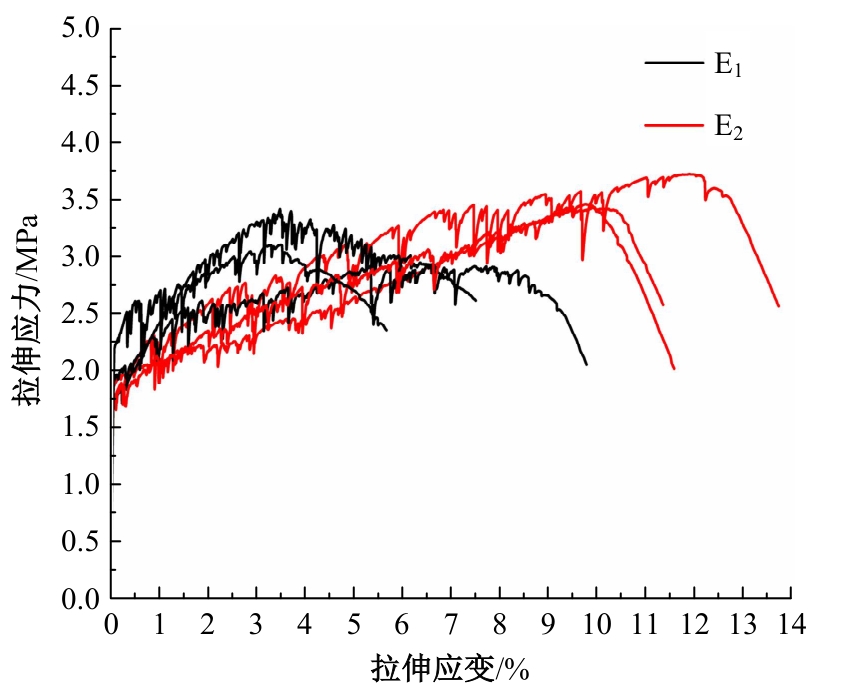

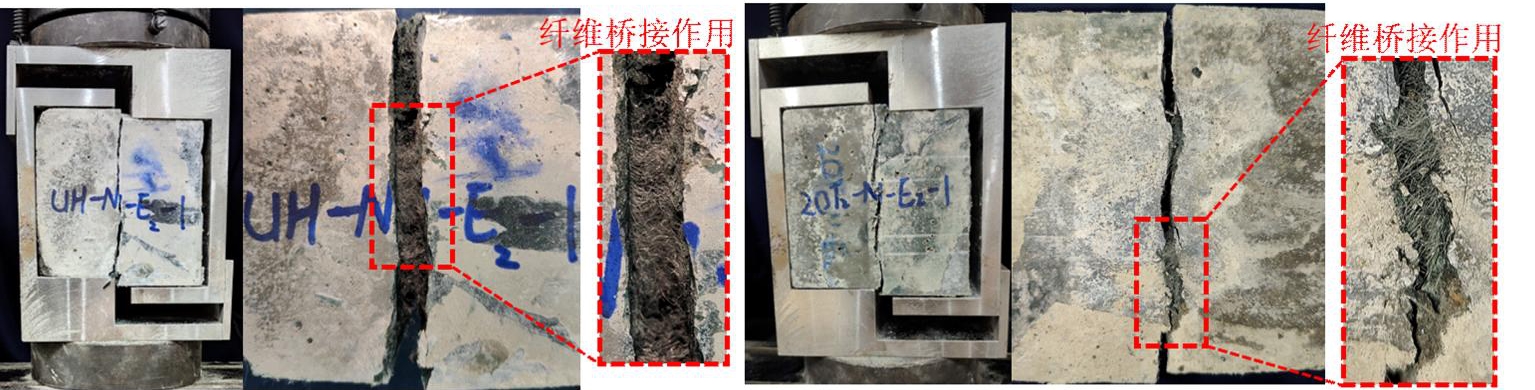

图8

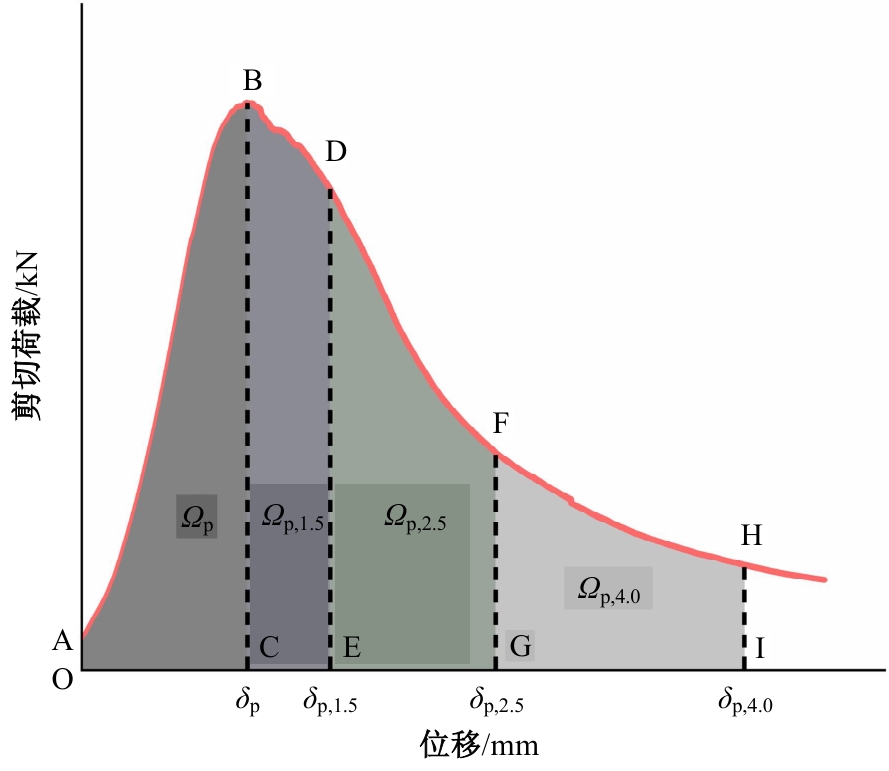

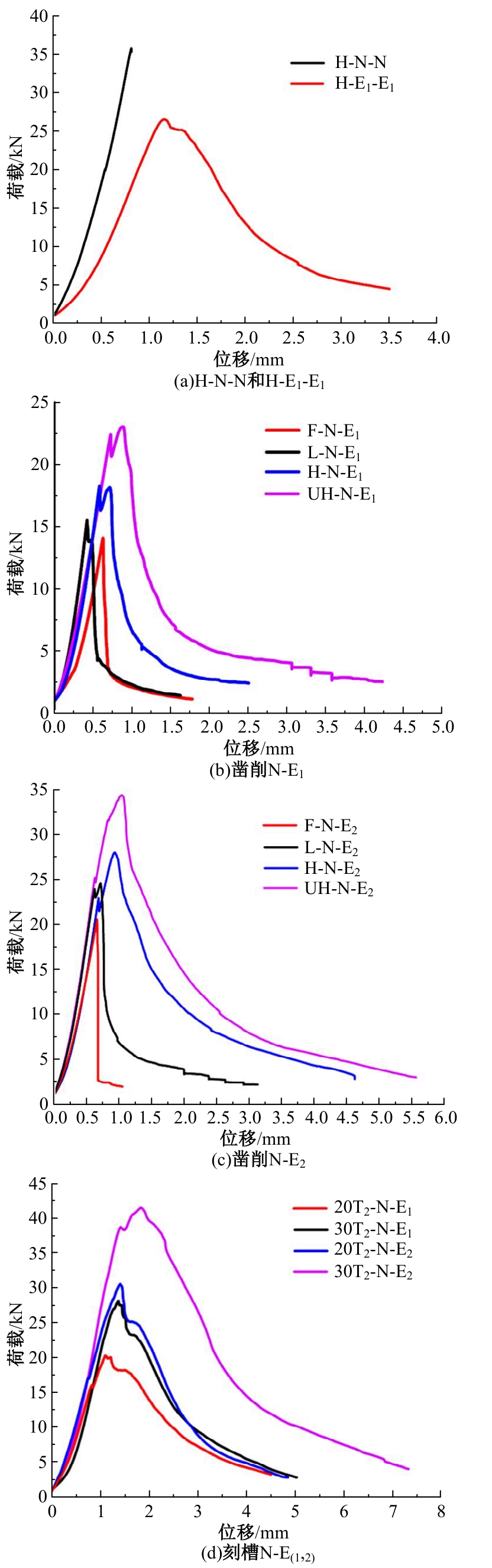

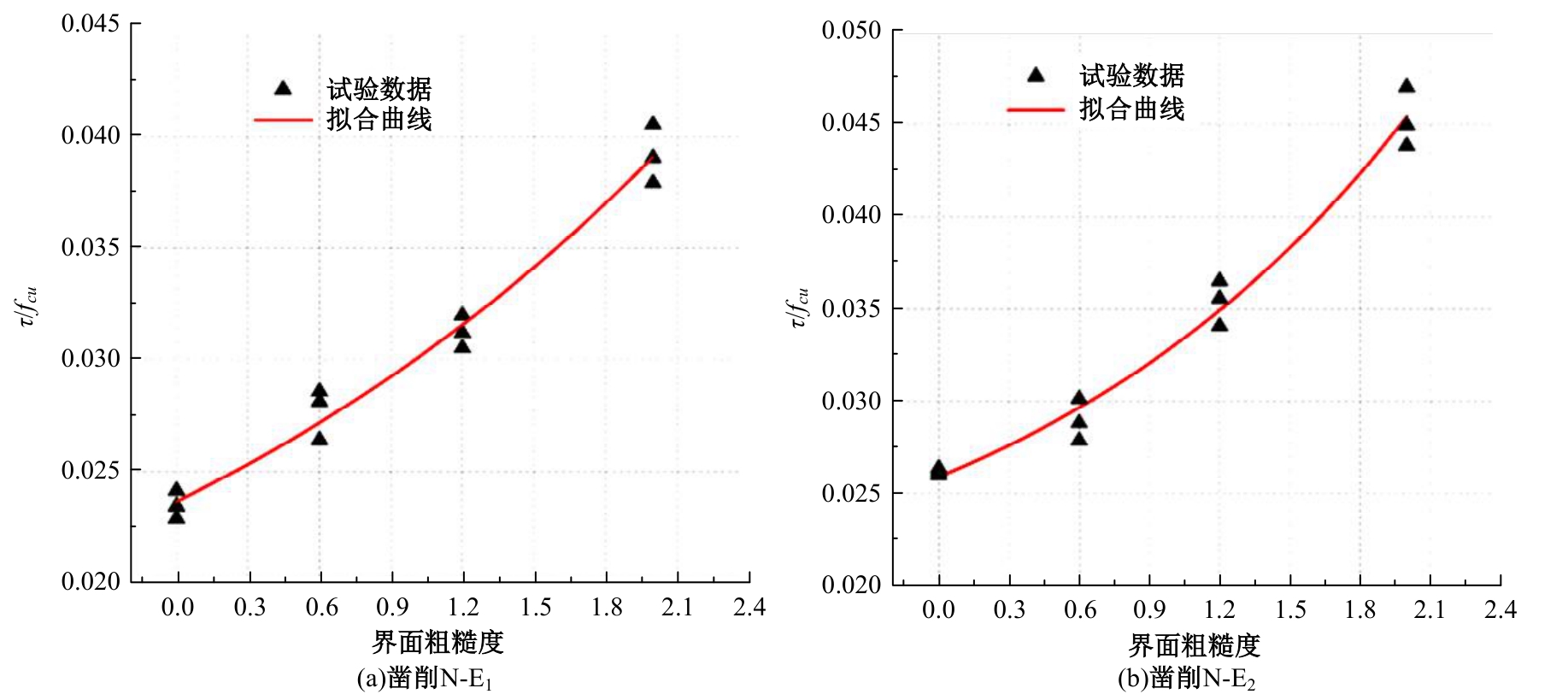

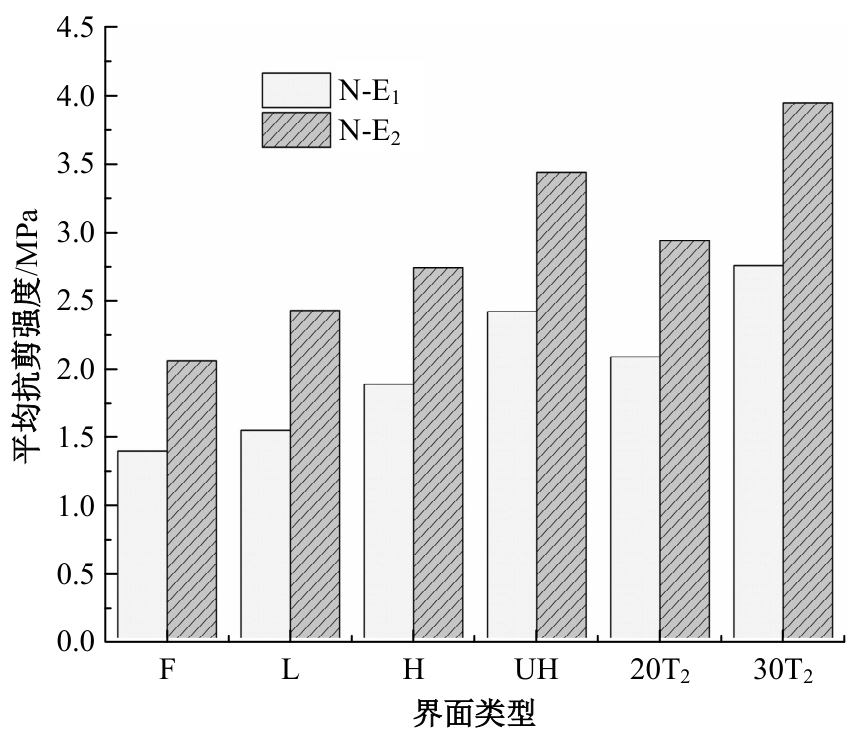

图9

表3

试件界面抗剪强度及界面滑移"

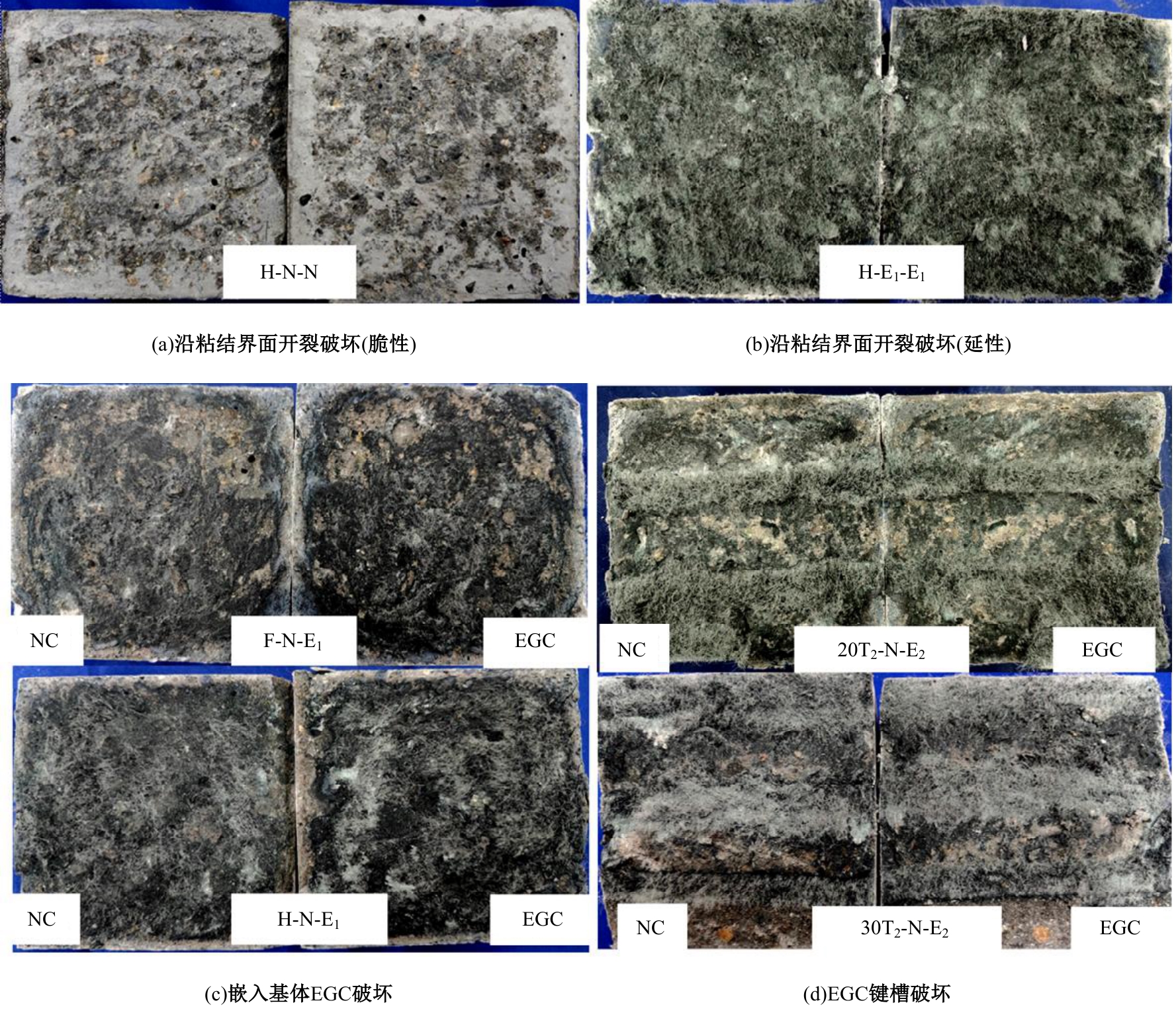

试件	剪切破坏形式	抗剪极限承载力/kN	抗剪强度 $τ p$ /MPa	与H?N?N抗剪强度比值/%	平均峰值滑移 $s p$ /mm
