温度⁃地震耦合作用下高速铁路桥上无砟轨道动力性能

doi:10.13229/j.cnki.jdxbgxb.20250387

摘要/Abstract

摘要：

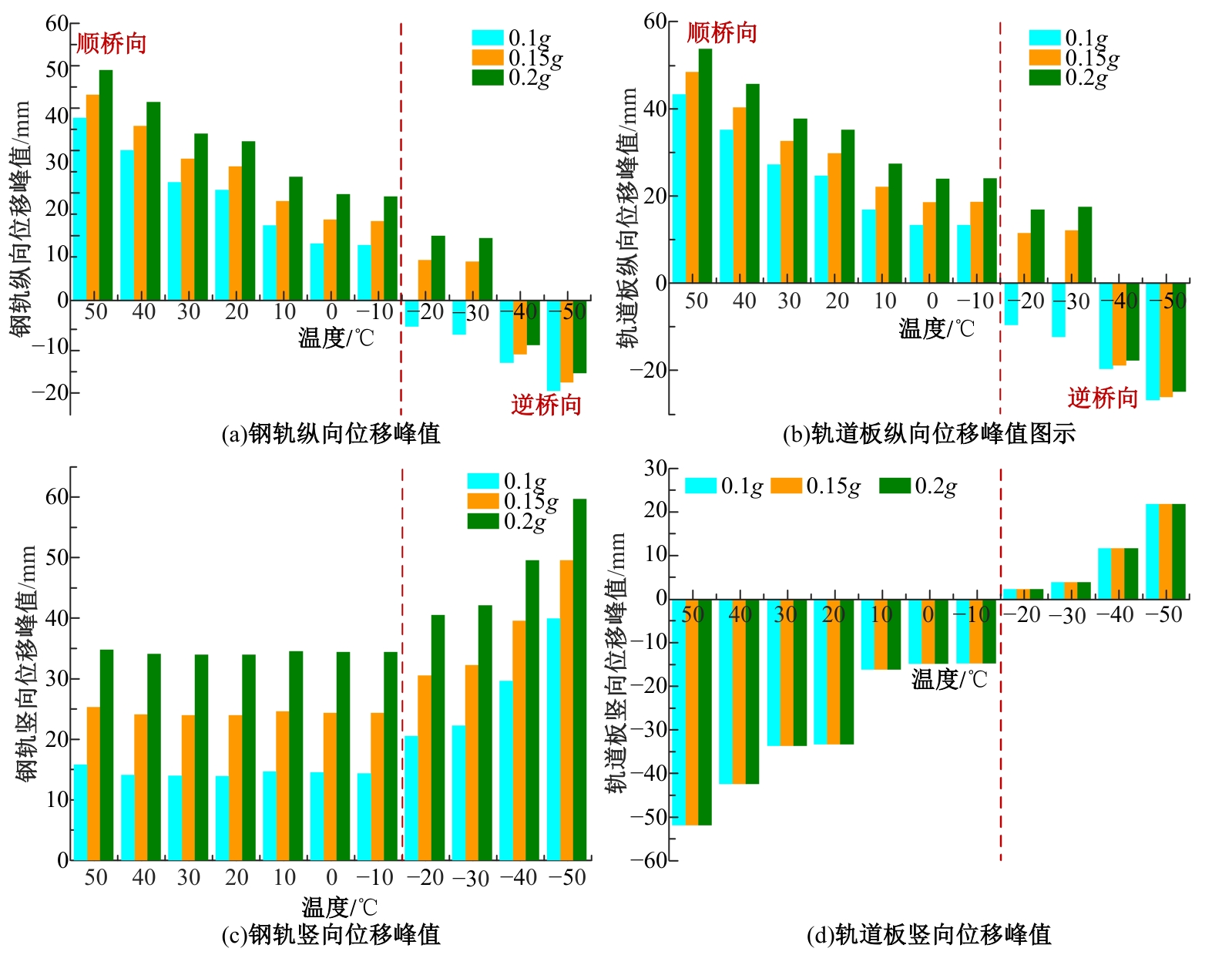

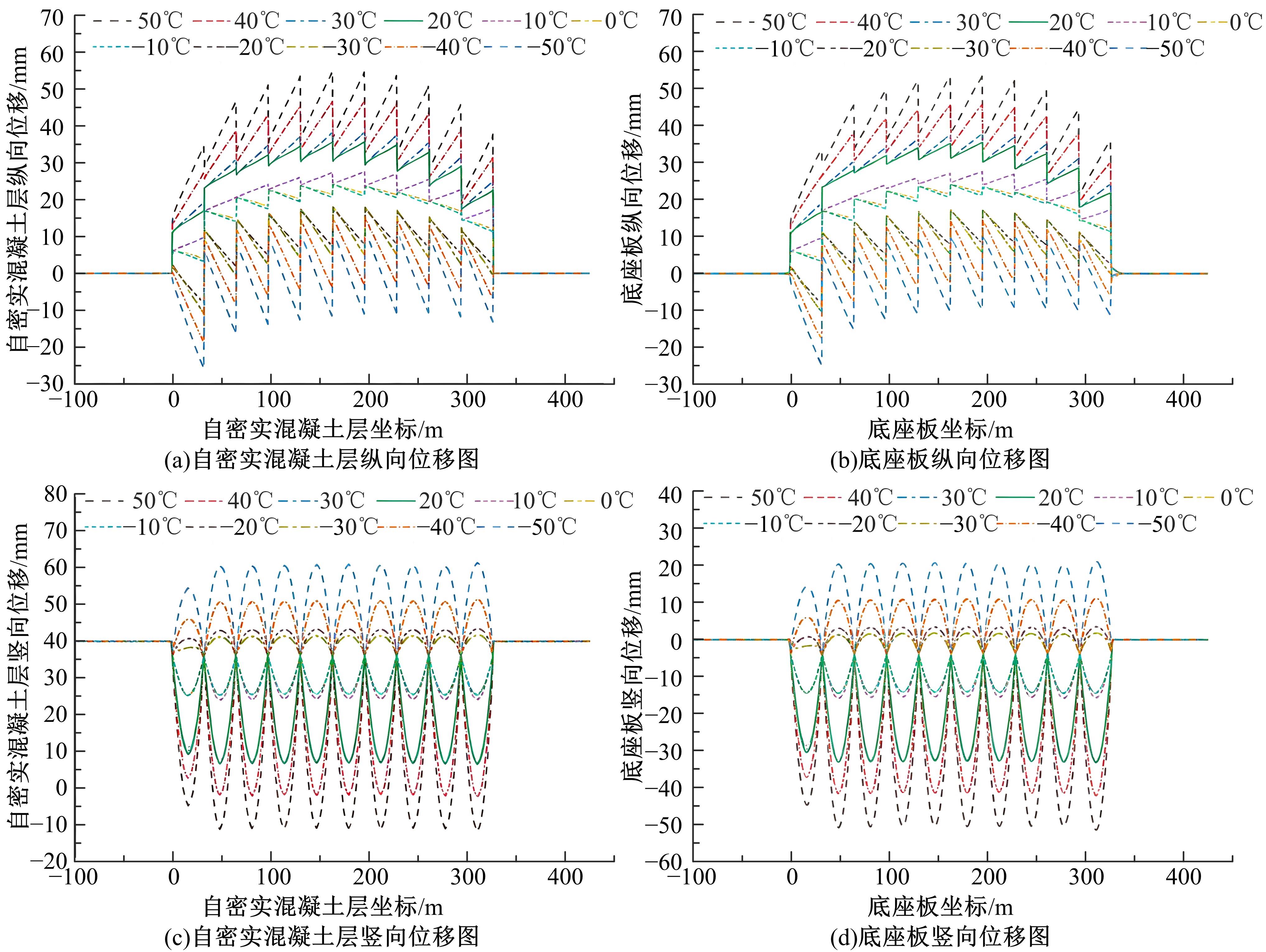

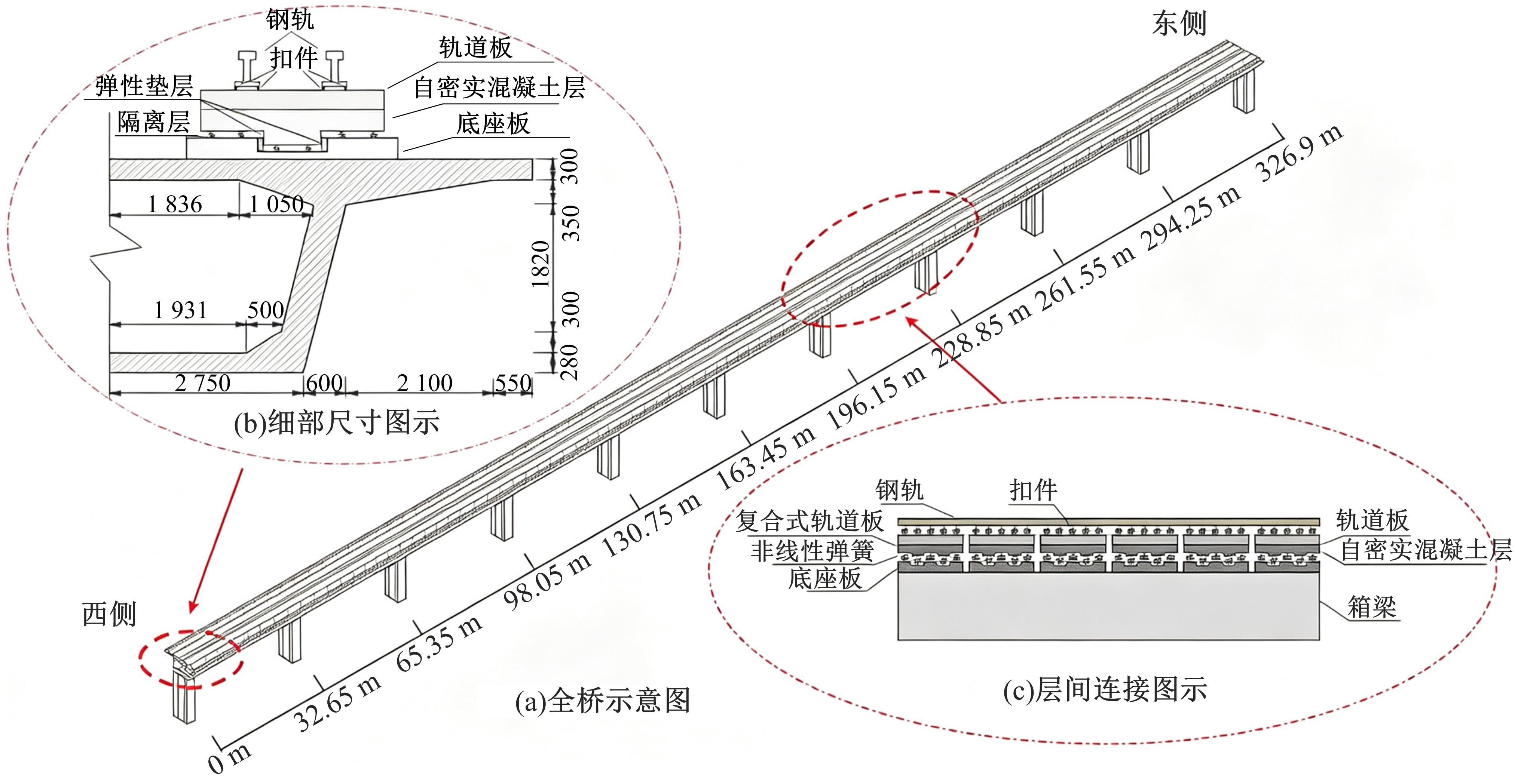

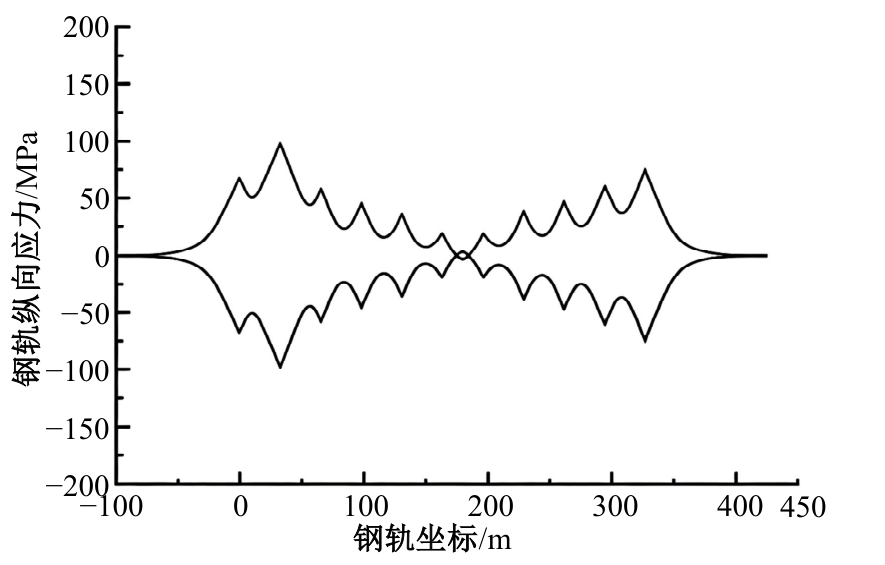

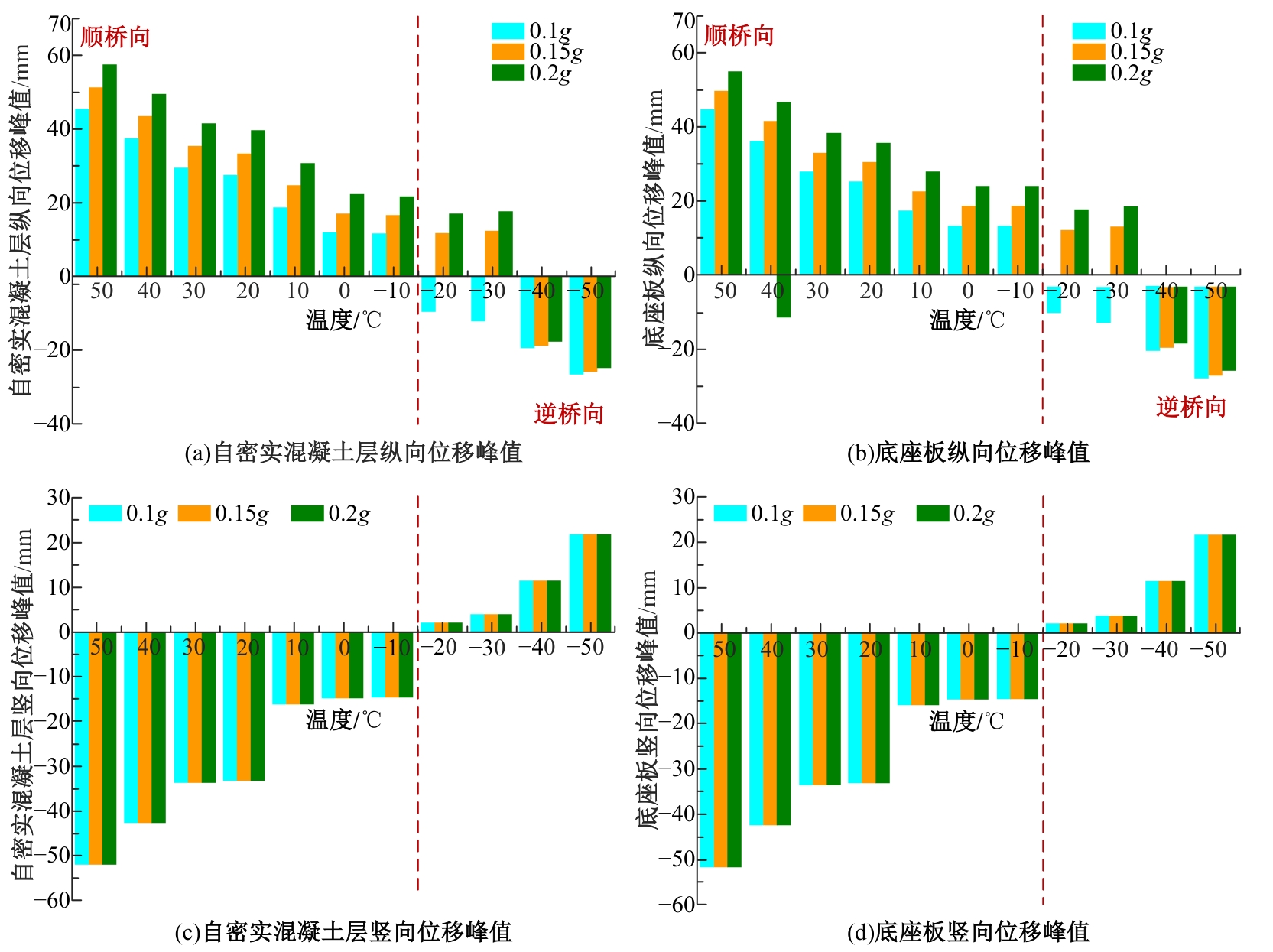

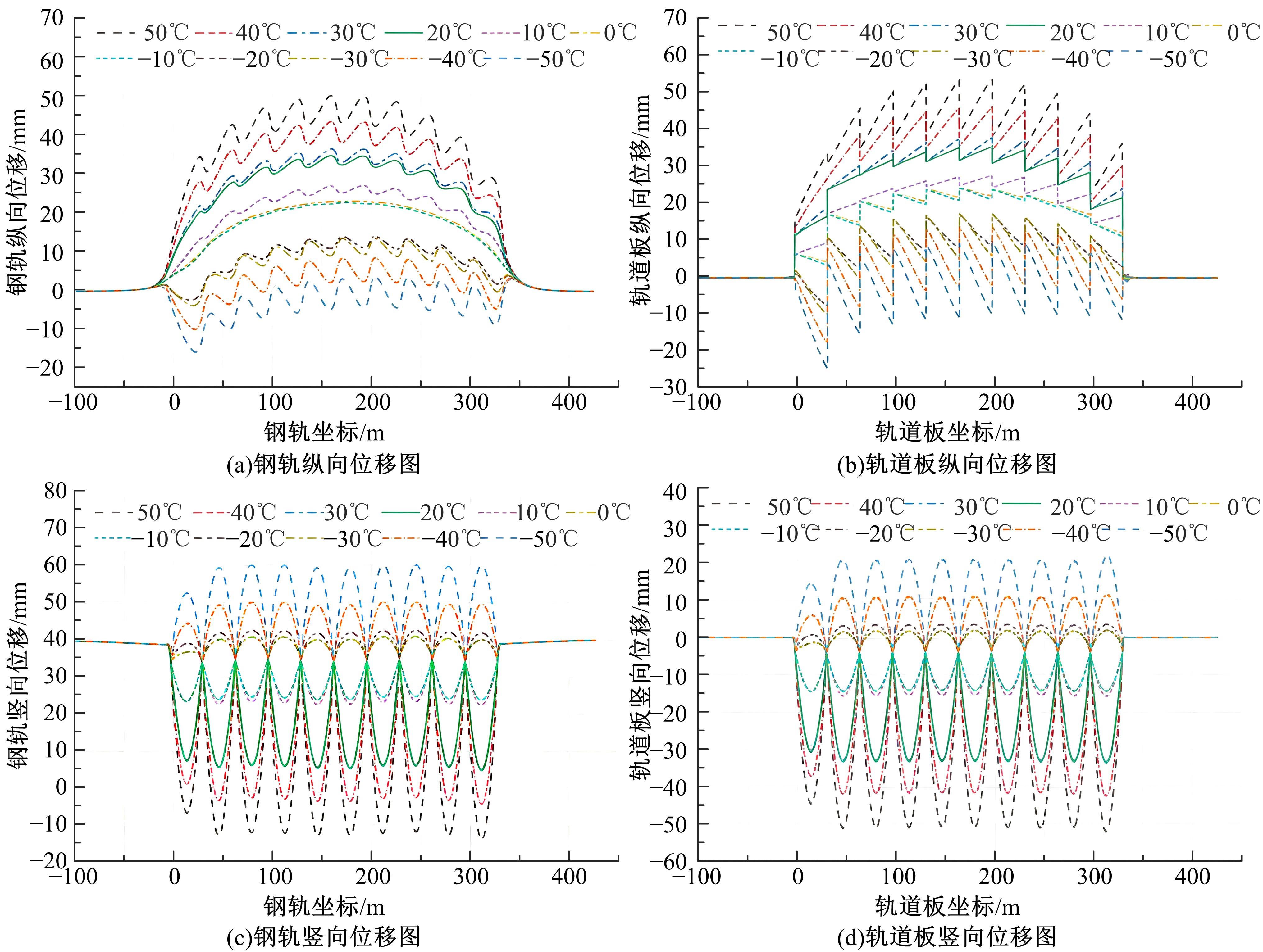

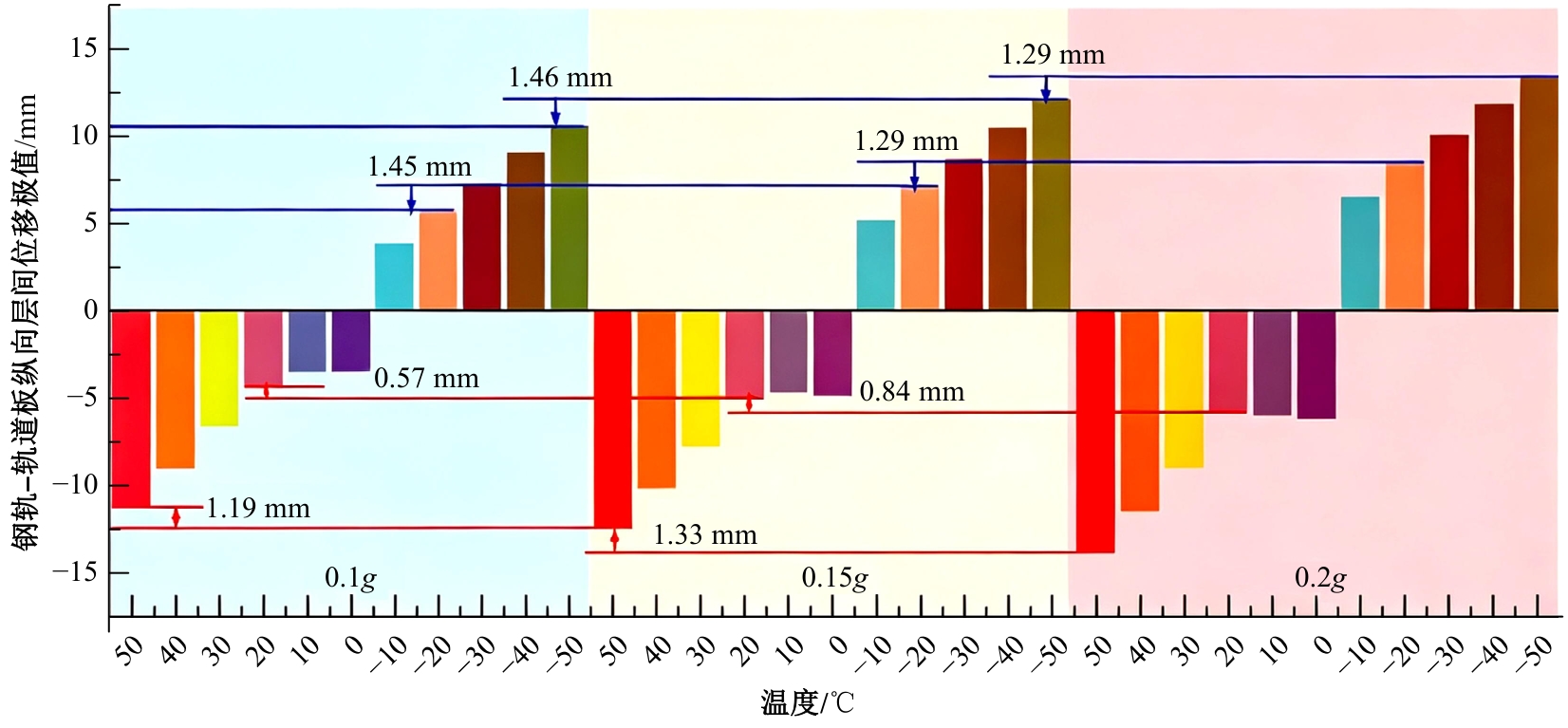

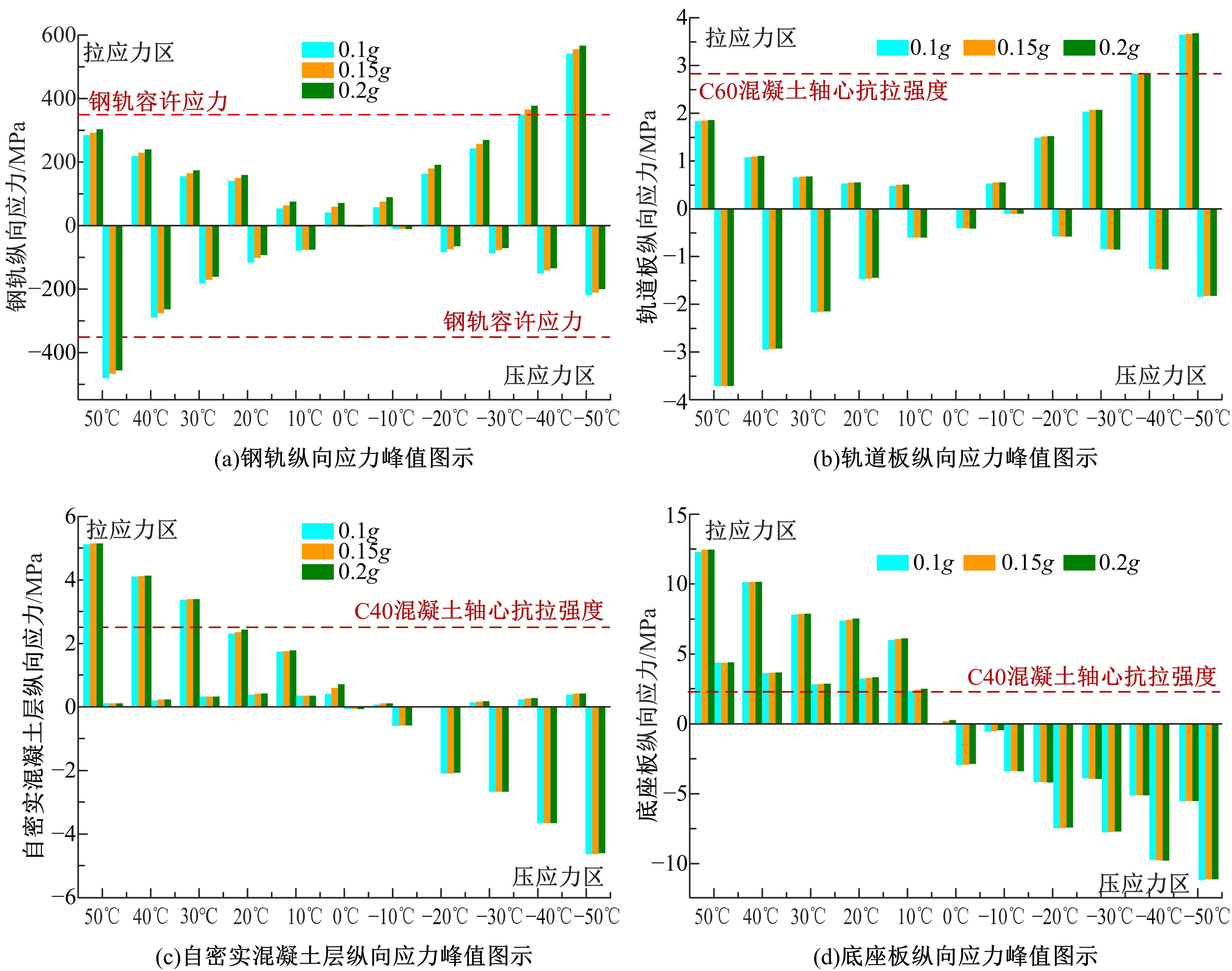

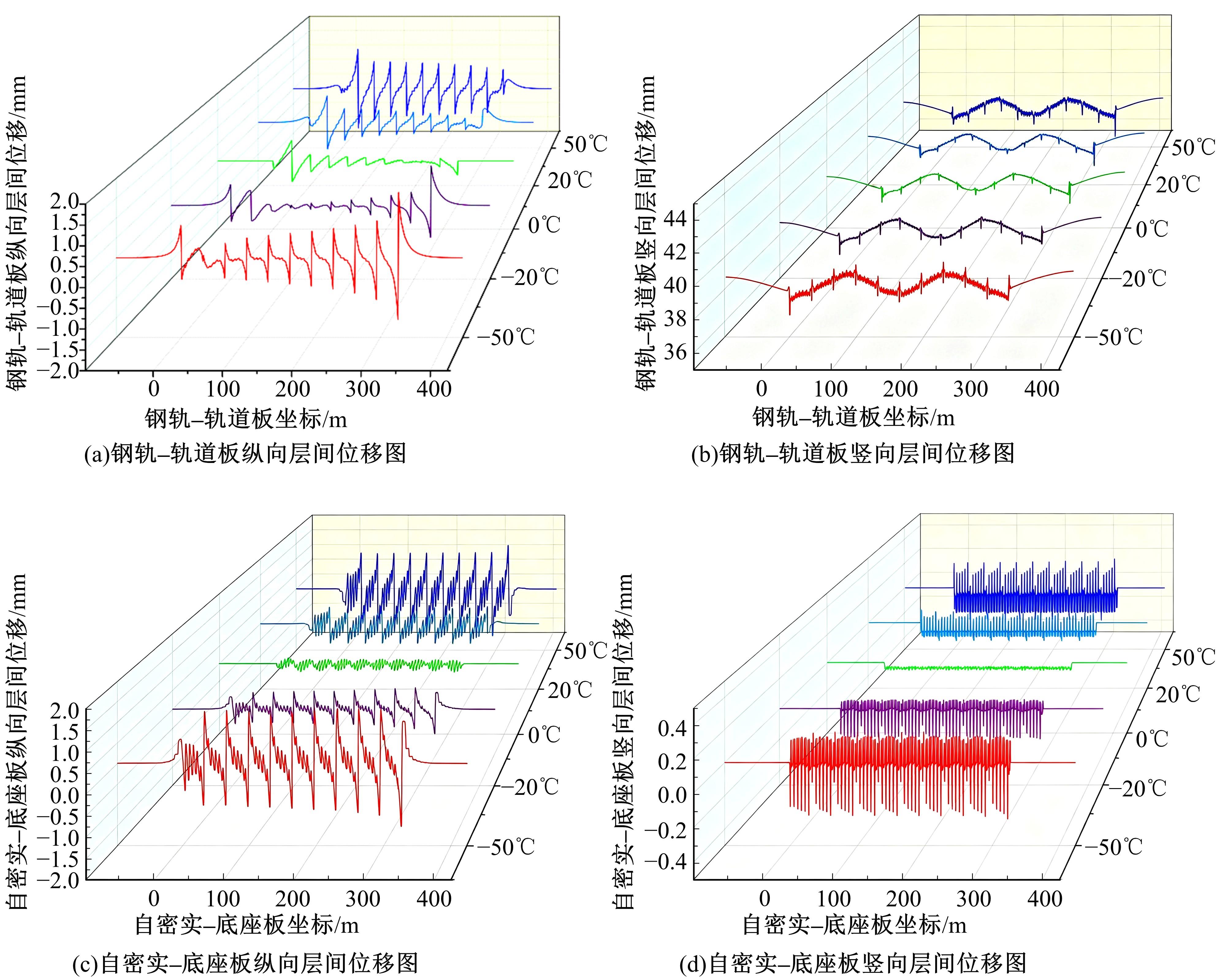

为探究我国西北大温差地区高速铁路多跨简支梁桥上无砟轨道的地震响应特性，以某10跨CRTS Ⅲ型板式无砟轨道简支梁桥为研究对象，建立线桥一体化有限元模型，采用动力时程分析法系统研究环境温度-地震耦合作用下桥上无砟轨道各部件及其层间连接的地震响应规律。研究结果表明：①在地震强度PGA≤0.2g（g=9.81 m/s2）且温度-30~40 ℃工况下，钢轨纵向应力始终处于安全范围，且相同地震作用下低温环境对钢轨纵向应力的影响显著高于高温环境；②相较于小震作用，结构位移响应对环境温度变化更为敏感，其中高温环境会显著增大各结构纵向位移，而低温环境则使钢轨竖向位移增幅更为明显；③在温度与地震耦合场下，钢轨与轨道板层间纵向变形极值均出现在边跨，但随温度变化呈现显著空间差异：低温（-50 ℃）时第一跨变形较常温增大131.83%，而高温（50 ℃）时第十跨变形增幅达137.54%；④在中小震作用下，-20 ℃环境温度时轨道结构表现出最优抗震性能，各响应参数均维持在较低水平。

关键词: 西北大温差地区, 高速铁路简支梁桥, CRTS Ⅲ型板式无砟轨道, 线桥耦合振动, 温度?地震耦合作用, 地震响应分析

Abstract:

To investigate the seismic response characteristics of ballastless tracks on multi-span simply supported bridges in high-speed railways located in large-temperature-difference regions of Northwest China， this study takes a 10-span simply supported bridge with CRTS Ⅲ slab ballastless track as the research object. An integrated track-bridge finite element model is established， and dynamic time-history analysis is employed to systematically examine the seismic response patterns of track components and interlayer connections under coupled environmental temperature and seismic effects. The results indicate that： ① Under seismic conditions with PGA≤0.2g（g=9.81 m/s2） and temperatures ranging from -30℃ to 40℃， the longitudinal stress of the rail remains within a safe range， with low-temperature conditions exerting a more pronounced influence than high temperatures under the same seismic intensity. ② Compared to minor earthquakes， structural displacement responses are more sensitive to temperature variations—high temperatures significantly increase longitudinal displacements， while low temperatures lead to a more notable rise in rail vertical displacements. ③ Under coupled temperature-seismic effects， the peak longitudinal deformation between the rail and track slab occurs at the end spans， yet exhibits significant spatial variation with temperature： at -50 ℃， deformation in the first span increases by 131.83% compared to normal temperature， whereas at 50 ℃， the tenth span experiences a 137.54% increase. ④ Under minor-to-moderate earthquakes， the track structure demonstrates optimal seismic performance at -20 ℃， with all response parameters maintained at relatively low levels.

Key words: northwest large temperature difference region, high-speed railway simply supported girder bridge, CRTS Ⅲ type slab ballast track, wire-bridge coupled vibration, temperature-seismic coupling, seismic response analysis

中图分类号:

刘尊稳,牟金龙,陈兴冲,韩国庆,李欣婧,宋宏. 温度⁃地震耦合作用下高速铁路桥上无砟轨道动力性能[J]. 吉林大学学报(工学版), 2026, 56(10): 2635-2647.

Zun-wen LIU,Jin-long MOU,Xing-chong CHEN,Guo-qing HAN,Xin-jing LI,Hong SONG. Seismic-thermal coupling effects on dynamic behavior of high-speed railway ballastless track on bridges[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(10): 2635-2647.

图/表 14

图1

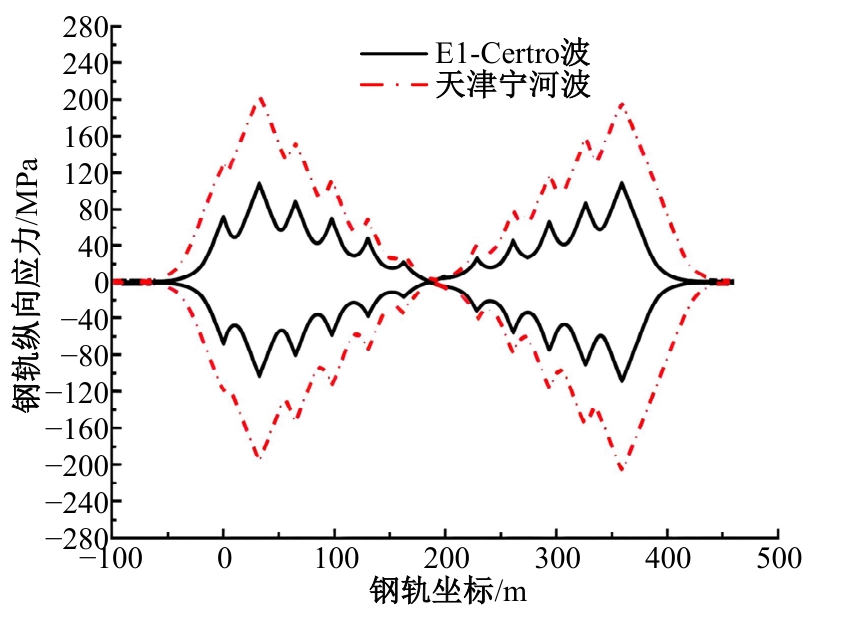

图2

图3

图4

表1

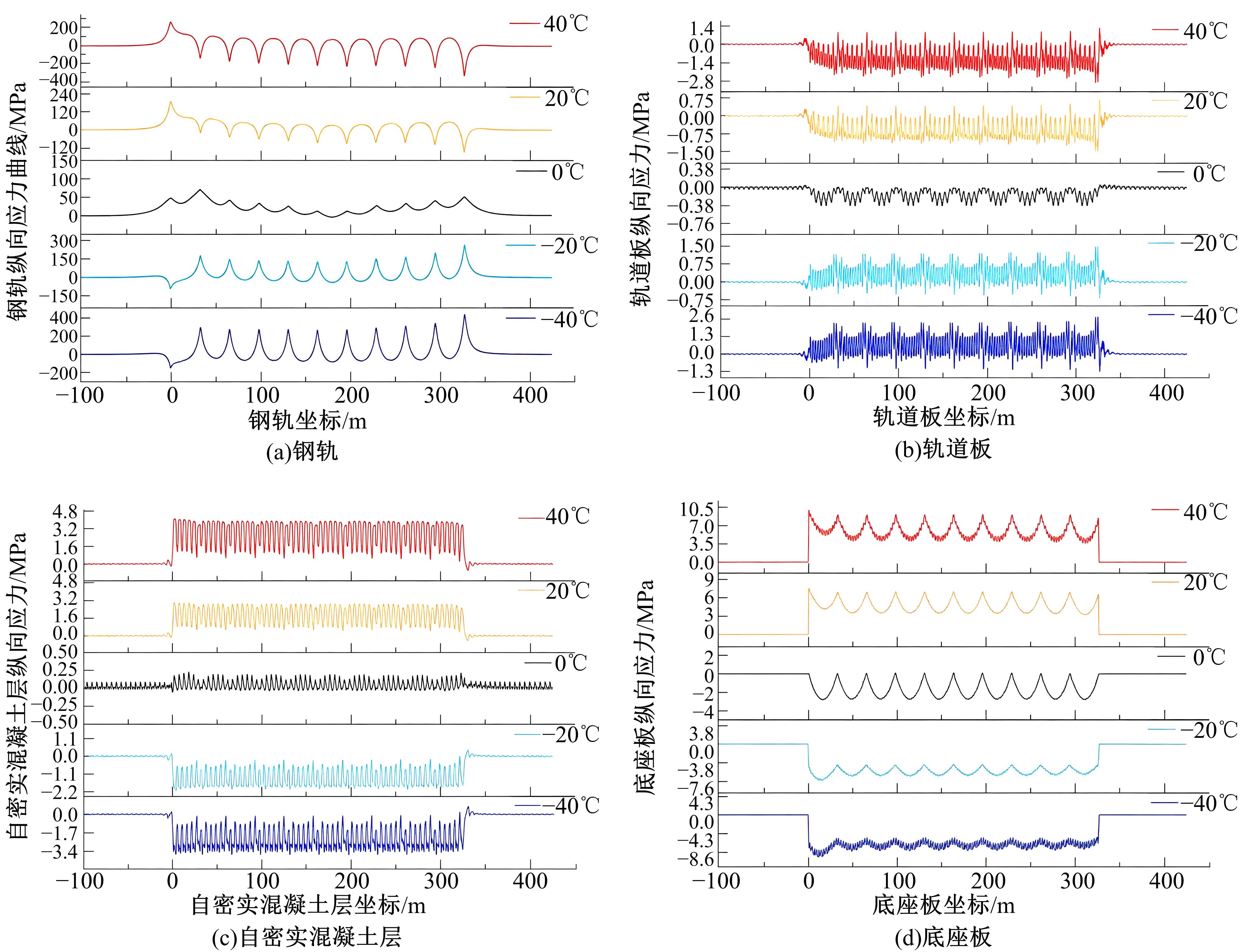

图5

图6

图7

图8

图9

图10

图11

图12

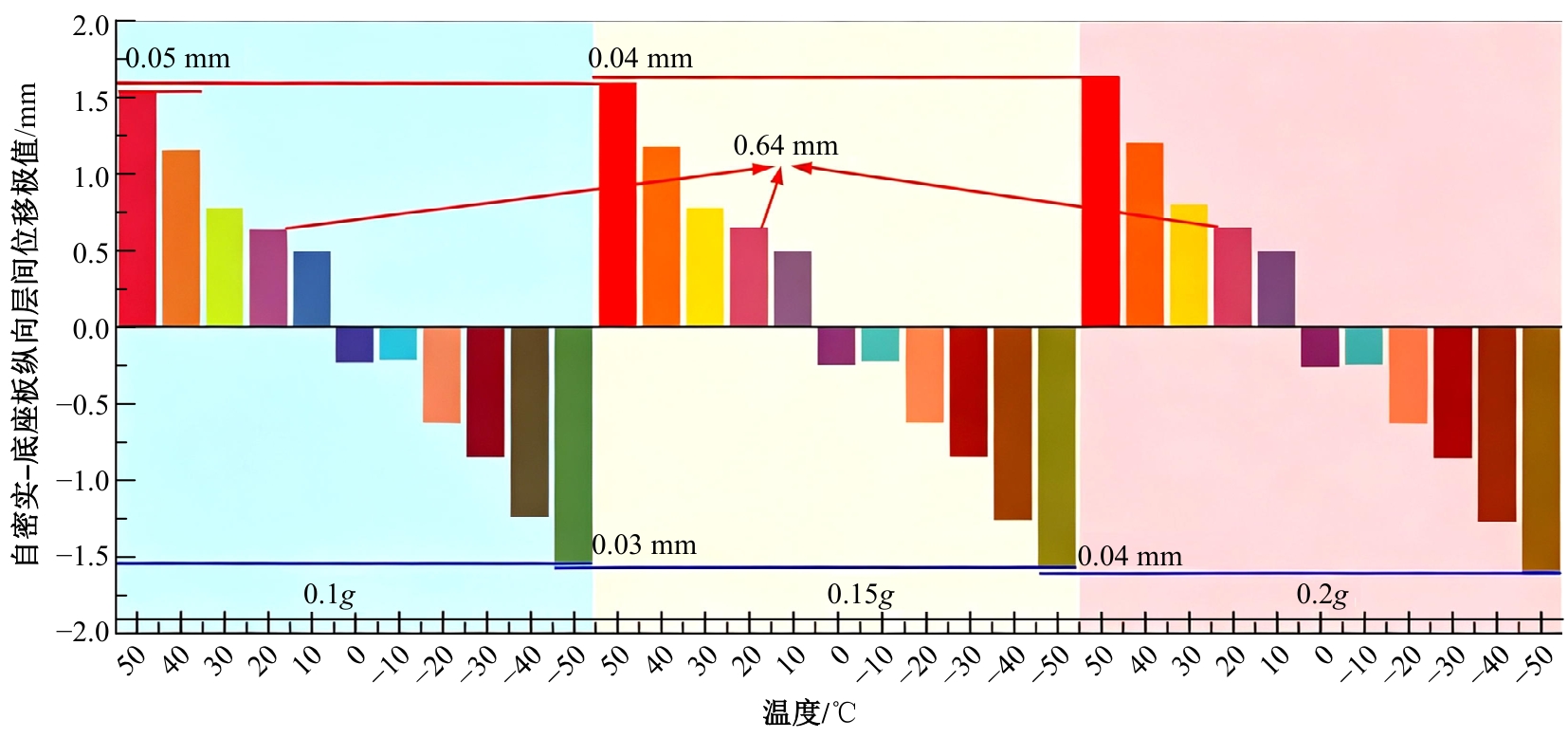

图13

参考文献 27

[1]	Cao J, Liu C X, Wang Y, et al. Accessibility impacts of China's high-speed rail network[J]. Journal of Transport Geography, 2013, 28(1): 12-21.
[2]	国巍, 王阳, 葛苍瑜, 等. 近断层地震动下高速铁路多跨简支梁桥震致破坏特征[J]. 振动与冲击, 2020,39(17): 210-218.
	Guo Wei, Wang Yang, Ge Cang-yu, et al. Seismic damage characteristics of multi-span simply supported girder bridges of high-speed railroads under near-fault ground shaking[J]. Vibration and Shock, 2020, 39(17):210-218.
[3]	Wang J, Zou X, Yan X, et al. Integrated analysis model for the seismic responses of cable-stayed bridges near active faults[J]. Journal of Earthquake and Tsunami, 2015, 9(1):2-10.
[4]	吴春利, 李魁, 顾正伟, 等. 基于能量的中小跨径桥梁地震易损性分析[J/OL]. [2025-12-24]. .
[5]	虞庐松, 王力, 杜新龙, 等. 寒区环境温度对板式橡胶支座连续梁桥地震易损性影响研究[J]. 地震工程学报, 2024, 46(1): 105-114.
	Yu Lu-song, Wang Li, Du Xin-long, et al. Study on the effect of ambient temperature on seismic susceptibility of continuous beam bridges with plate rubber bearings in cold regions[J]. Journal of Earthquake Engineering, 2024, 46(1): 105-114.
[6]	陈波, 郑瑾, 王建平. 桥梁结构温度效应研究进展[J]. 武汉理工大学学报, 2010, 32(24): 79-83.
	Chen Bo, Zheng Jin, Wang Jian-ping. Progress of research on temperature effect of bridge structure[J]. Journal of Wuhan University of Technology, 2010, 32(24): 79-83.
[7]	Du Wei, Ren Juan-juan, Liu Wen-gao, et al. Adhesion performance tests and analysis of interface damage for CRTS Ⅲ prefabricated slab tracks[J]. Construction and Building Materials, 2023, 408(3): 1-9.
[8]	Cao Y. Temperature effects on cable stayed bridge using health monitoring system: a case study[J]. Structural Health Monitoring, 2011, 10(5): 523-537.
[9]	勾红叶, 陈子豪, 刘畅, 等. 基于实测数据的高海拔大日温差地区拱上组合梁桥-无砟轨道体系温度场研究[J]. 铁道学报, 2024, 46(2): 159-170.
	Gou Hong-ye, Chen Zi-hao, Liu Chang, et al. Temperature field study of combined girder bridge-ballastless track system over arch in high altitude area with large daily temperature difference based on measured data[J]. Journal of Railway, 2024, 46(2): 159-170.
[10]	刘勇, 苏海霆, 戴公连. 基于气象条件的客运专线简支箱梁日照温度场研究[J]. 铁道学报, 2019, 41(2): 154-159.
	Liu Yong, Su Hai-ting, Dai Gong-lian. Research on sunshine temperature field of simply supported box girder for passenger dedicated line based on meteorological conditions[J]. Journal of Railway, 2019, 41(2):154-159.
[11]	元强, 刘文涛, 饶惠明, 等. 涂覆反射隔热涂料对高铁桥梁高墩日照温度效应的影响[J]. 铁道学报,2019, 41(7): 95-101.
	Yuan Qiang, Liu Wen-tao, Rao Hui-ming, et al. Influence of applying reflective thermal insulation coating on the temperature effect of sunshine on high piers of high-speed railway bridges[J]. Journal of Railway, 2019, 41(7): 95-101.
[12]	甘霖, 郭恩栋, 吴厚礼, 等. 不同频谱特性地震动对高速铁路桥梁-轨道震后残余变形影响分析[J]. 地震研究, 2024, 47(1): 27-36.
	Gan Lin, Guo En-dong, Wu Hou-li, et al. Analysis of the effects of ground shaking with different spectral characteristics on the post-seismic residual deformation of bridge-track of high-speed railroad[J]. Seismic Research, 2024, 47(1): 27-36.
[13]	娄平, 宫凯伦, 赵晨. 地震作用下CRTS Ⅲ型板式无砟轨道行车安全性[J]. 铁道科学与工程学报, 2020, 17(1): 1-7.
	Lou Ping, Gong Kai-lun, Zhao Chen. Safety of CRTS type Ⅲ slab ballasted track under earthquake[J]. Journal of Railway Science and Engineering,2020, 17(1): 1-7.
[14]	Xiang Y, Luo Y, Zhu Z, et al. Estimating the response of steel structures subjected to vertical seismic excitation: Idealized model and inelastic displacement ratio[J]. Engineering Structures, 2017, 148(10):225-238.
[15]	Mylona V E, Sextos G A, Mylonakis E G. Rotational seismic excitation effects on CIDH pile-supported bridge piers[J]. Engineering Structures, 2017, 138(5): 181-194.
[16]	刘尊稳, 梁刚毅, 陈兴冲, 等. 高烈度地震区高铁多跨简支梁桥纵向倒塌模式研究[J]. 振动工程学报, 2025, 38(3): 579-586.
	Liu Zun-wen, Liang Gang-yi, Chen Xing-chong, et al. Study on the longitudinal collapse mode of multi-span simply supported girder bridges of high speed railroads in high intensity seismic zones[J]. Journal of Vibration Engineering,2025, 38(3):579-586.
[17]	董俊, 曾永平, 冷丹. 九度地震区高速铁路简支梁合理减隔震体系分析[J]. 哈尔滨工业大学学报, 2023, 55(11): 115-124, 134.
	Dong Jun, Zeng Yong-ping, Leng Dan. Analysis of reasonable seismic isolation system for simply supported beams of high-speed railroads in nine-degree seismic zone[J]. Journal of Harbin Institute of Technology, 2023, 55(11): 115-124, 134.
[18]	刘正楠, 陈兴冲, 张维科, 等. 具备有序牺牲机制的混合配筋铁路自复位桥墩力学行为[J]. 吉林大学学报: 工学版, 2026, 56(7): 1926-1936.
	Liu Zheng-nan, Chen Xing-chong, Zhang Wei-ke, et al. Mechanical behavior of self-resetting piers for hybrid reinforced railroads with ordered sacrificial mechanism[J]. Journal of Jilin University(Engineering and Technology Edition), 2026,56(7):1926-1936.
[19]	Guo J, Zhong J, Dang X, et al. Seismic responses of a cable-stayed bridge with consideration of uniform temperature load[J]. Applied Sciences,2016,6(12):2-11.
[20]	Wang L, Yu L, Du X, et al. Seismic response of a PC continuous box girder bridge under extreme ambient temperature[J]. Sustainability,2023,15(20): 1-9.
[21]	何文福, 周莉蓓, 许浩, 等. LRB支座疲劳温度力学试验及隔震结构地震响应影响分析[J]. 振动工程学报, 2019, 32(2): 314-323.
	He Wen-fu, Zhou Li-bei, Xu Hao, et al. Fatigue temperature mechanics test of LRB bearing and analysis of the effect of seismic response of seismic isolation structure[J]. Journal of Vibration Engineering,2019, 32(2): 314-323.
[22]	张展宏, 石岩, 秦洪果. 考虑LRB环境温度效应及铅芯发热的隔震斜交桥近断层地震反应分析[J]. 振动与冲击, 2022, 41(14): 172-180.
	Zhang Zhan-hong, Shi Yan, Qin Hong-guo. Analysis of near-fault seismic response of seismically isolated diagonal bridge considering LRB ambient temperature effect and lead core heating[J]. Vibration and Shock, 2022, 41(14): 172-180.
[23]	程志远, 胡紫东, 李黎, 等. 考虑温度影响的LRB隔震建筑地震响应分析[J]. 地震工程学报, 2020, 42(1): 38-43.
	Cheng Zhi-yuan, Hu Zi-dong, Li Li,et al. Seismic response analysis of LRB-isolated buildings considering temperature effects[J]. Journal of Earthquake Engineering, 2020, 42(1): 38-43.
[24]	张鹏飞, 蔡科, 雷晓燕, 等. 地震作用下桥上CRTS Ⅲ型板式无砟轨道纵向动力响应分析[J]. 北京交通大学学报, 2023, 47(1): 45-53.
	Zhang Peng-fei, Cai Ke, Lei Xiao-yan, et al. Longitudinal dynamic response analysis of CRTS III slab ballastless track on bridge under seismic action[J]. Journal of Beijing Jiaotong University, 2023, 47(1): 45-53.
[25]	铁路无缝线路设计规范 [S]. 北京:中国铁道出版社,2013.
[26]	戴公连, 温学桧, 苏海霆. 寒冷季节桥上无砟轨道横竖向温度梯度研究[J]. 华中科技大学学报: 自然科学版, 2015, 43(7): 1-5.
	Dai Gong-lian, Wen Xue-hui, Su Hai-ting. Research on horizontal and vertical temperature gradient of ballasted track on bridge in cold season[J]. Journal of Huazhong University of Science and Technology(Natural Science Edition), 2015, 43(7): 1-5.
[27]	铁路桥涵混凝土结构设计规范 .[S]. 北京: 中国铁道出版社, 2017.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

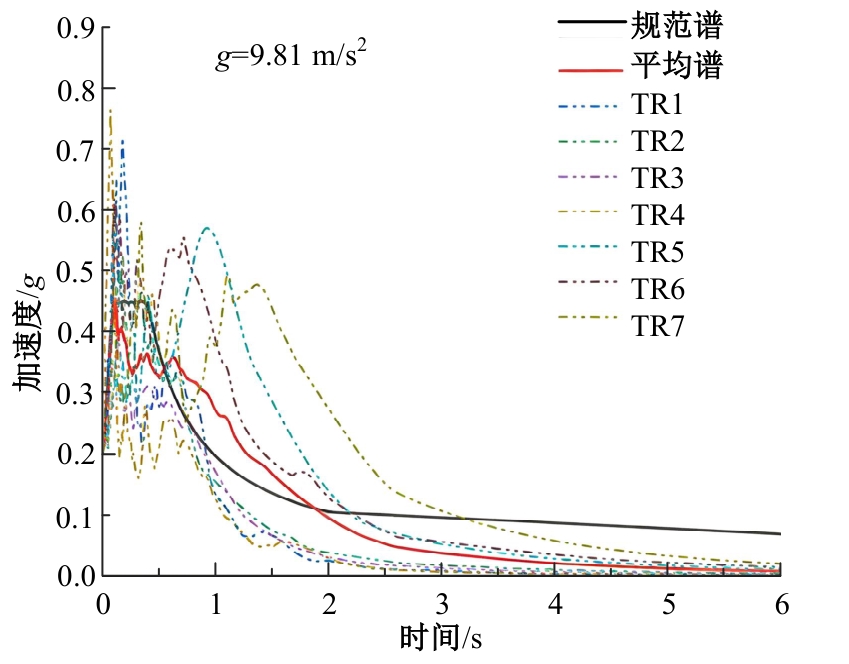

本文编号	地震记录名称	记录时间	测站
TR1	Hector Mine	1999.10.16	Snow Creek
TR2	Hector Mine	1999.10.16	Twentynine Palms
TR3	Chi?Chi Taiwan?03	1999.9.20	HWA020
TR4	Chi?Chi Taiwan?03	1999.9.20	TTN040
TR5	Chi?Chi Taiwan?03	1999.9.20	TTN051
TR6	Irpinia Italy?02	1980.11.23	Rionero In Vulture
TR7	Loma Prieta	1989.10.18	Hollister?SGO Vault
