实际道路工况下“油改气”双燃料出租车的排放特征

doi:10.13229/j.cnki.jdxbgxb20210499

吉林大学学报(工学版) ›› 2023, Vol. 53 ›› Issue (1): 94-104.doi: 10.13229/j.cnki.jdxbgxb20210499

实际道路工况下“油改气”双燃料出租车的排放特征

王计广^1,^2,³(),桂华侨^1,²,杨志文³,曲大为⁴(),余同柱^1,²,毛洪钧⁵

^1.中国科学院合肥物质科学研究院安徽光学精密机械研究所，合肥 230031
^2.中国科学技术大学研究生院科学岛分院，合肥 230026
^3.中国汽车技术研究中心有限公司，天津 300300
^4.吉林大学汽车工程学院，长春 130022
^5.南开大学环境科学与工程学院，天津 300071

收稿日期:2021-06-03 出版日期:2023-01-01 发布日期:2023-07-23
通讯作者: 曲大为 E-mail:wangjiguang@catarc.ac.cn;qudawei@jlu.edu.cn
作者简介:王计广（1986-），男，博士研究生，高级工程师. 研究方向：机动车污染防治技术与排放清单模型. E-mail： wangjiguang@catarc.ac.cn
基金资助:
国家自然科学基金项目(42005108);安徽省优秀青年科技基金项目(1808085J19)

Emission characteristics of "oil⁃to⁃gas" dual fuel taxis under actual road conditions

Ji-guang WANG^1,^2,³(),Hua-qiao GUI^1,²,Zhi-wen YANG³,Da-wei QU⁴(),Tong-zhu YU^1,²,Hong-jun MAO⁵

^1.Anhui Institute of Optics and Fine Mechanics，Hefei Institutes of Physical Science，Chinese Academy of Sciences，Hefei 230031，China
^2.Science Island Branch of Graduate School，University of Science and Technology of China，Hefei 230026，China
^3.China Automotive Technology & Research Center Co. ，Ltd. ，Tianjin 300300，China
^4.College of Automotive Engineering，Jilin University，Changchun 130022，China
^5.Department of Environmental Science and Engineering，Nankai University，Tianjin 300071，China

Received:2021-06-03 Online:2023-01-01 Published:2023-07-23
Contact: Da-wei QU E-mail:wangjiguang@catarc.ac.cn;qudawei@jlu.edu.cn

摘要/Abstract

摘要：

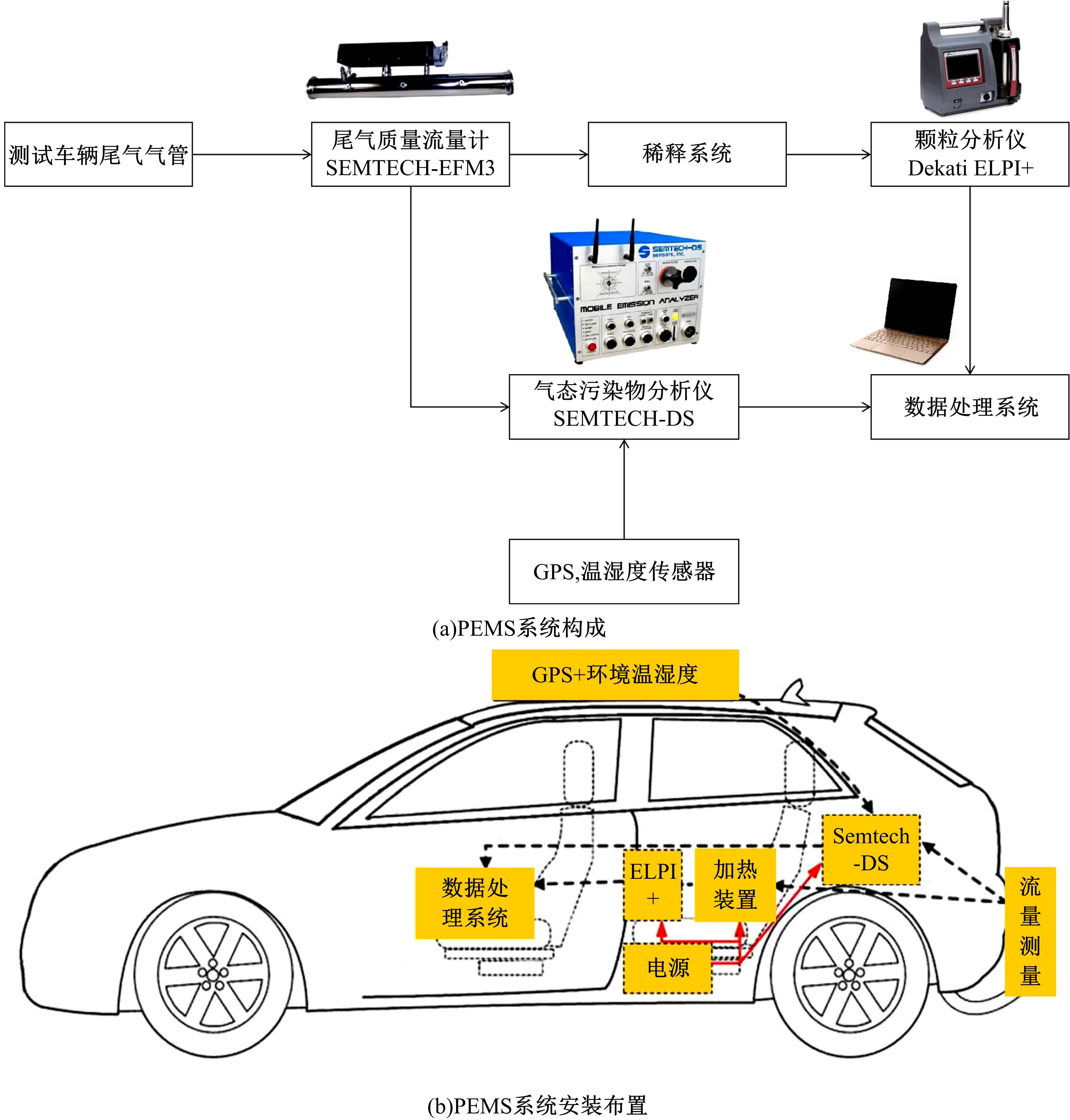

为研究和评估传统汽油出租车开展“油改气”对排放的影响，在唐山市选择2辆典型的国Ⅳ和国Ⅴ阶段“油改气”双燃料出租车作为测试车辆，利用车载排放测试系统（PEMS）SEMTECH-DS和ELPI开展实际道路气态污染物（CO、CO₂、NO _x ）和颗粒物数量（PN）排放测试，研究分析“油改气”双燃料出租车在不同道路类型和速度工况下污染物排放特征及差异。结果表明：相比汽油燃料，以天然气为燃料时2辆测试车辆CO、CO₂和PN综合排放因子分别降低31.0%~88.6%、19.8%~23.8%和 79.3%~85.7%，而NO _x 综合平均排放因子分别提高4.4和1.7倍。其中CO₂、PN以及国Ⅳ测试车辆CO在不同道路类型/速度区间的排放因子均明显降低，而国Ⅴ测试车辆CO除在市区道路/低速区间（车速<50 km/h）排放因子降低外，在郊区和车速>50 km/h中高速度区间内却相对升高。“油改气”双燃料有效降低各粒径段PN排放，在粒径9 nm处PN峰值浓度下降了79.7%~82.5%。在两种燃料条件下，测试车辆粒径小于23 nm的PN排放占总PN排放的71.6%~96.9%，且国Ⅴ显著高于国Ⅳ、天然气燃料高于汽油燃料。

关键词: 实际道路, 油改气双燃料, 出租车, 车载排放测试系统, 颗粒物, 气态污染物

Abstract:

In order to study and evaluate the impact of "oil-to-gas" in traditional gasoline taxis on emissions， two typical China Ⅳ and China Ⅴ "oil-to-gas" dual-fuel taxis were selected as test vehicles in Tangshan City， the actual road gaseous pollutants （CO， CO₂， NO _x ） and particulate matter （PN） emission were tested by PEMS （SEMTECH-DS and ELPI）， and the emission characteristics and differences of "oil-to-gas" dual-fuel taxis under different road types and speed conditions. The results show that compared with gasoline fuel， the CO， CO₂ and PN emission factors of two test vehicles fueled by CNG were reduced by 31.0%~88.6%， 19.8%~23.8% and 79.3%~85.7% respectively， while NO _x emission factors were increased by 4.4 and 1.7 times respectively. Meanwhile， the CO₂， PN， and China Ⅳ test vehicle CO emission factors in different road types/speed ranges were significantly reduced， while China Ⅴ test vehicles CO emission factors were reduced except for urban roads/low-speed ranges （vehicle speeds <50 km/h）， it was relatively higher in the suburbs and in the middle and high speed range where the vehicle speed higher than 50 km/h. The "oil-to-gas" dual fuel effectively reduced the PN emission in each particle size section， and the peak PN concentration at the particle size 9 nm was reduced by 79.7% to 82.5%. Under the two fuel conditions， the PN emissions of test vehicles with a particle size of less than 23 nm accounted for 71.6%~96.9% of the total PN emissions， and the China V was significantly higher than the China Ⅳ， and the natural gas fuel was higher than the gasoline fuel.

Key words: actual road, “oil-to-gas” dual-fuel, taxi, portable environmental measuring system（PEMS）, particulate matter, gaseous emissions

中图分类号:

U467.1

王计广,桂华侨,杨志文,曲大为,余同柱,毛洪钧. 实际道路工况下“油改气”双燃料出租车的排放特征[J]. 吉林大学学报(工学版), 2023, 53(1): 94-104.

Ji-guang WANG,Hua-qiao GUI,Zhi-wen YANG,Da-wei QU,Tong-zhu YU,Hong-jun MAO. Emission characteristics of "oil⁃to⁃gas" dual fuel taxis under actual road conditions[J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(1): 94-104.

图/表 9

表 1

图1

图2

表2

图 3

表 3

图 4

图5

图6

参考文献 36

1	卢亚灵,周佳,程曦,等. 京津冀地区黄标车政策的总量减排效益评估[J]. 环境科学, 2018,39(6):2566-2575.
	Lu Ya-ling, Zhou Jia, Cheng Xi, et al. Emission reduction benefits when eliminating yellow-label vehicles in the jing-jin-ji region[J]. Environmental Science, 2018,39(6):2566-2575.
2	Li L Y, Xie S D, Zeng L M, et al. Characteristics of volatile organic compounds and their role in ground-level ozone formation in the Beijing-Tianjin-Hebei region, China[J]. Atmospheric Environment, 2015, 113: 247-254.
3	Zhang Qing-yu, Wei Yu-mei, Tian Wei-li, et a1. GIS based emission inventories of urban scale: a case study of Hangzhou, China[J]. Atmospheric Environment, 2008,42:5150-5165.
4	He L, Hu J, Yang L, et al. Real-world gaseous emissions of high-mileage taxi fleets in China[J]. Science of The Total Environment, 2019, 659: 267-274.
5	王计广, 桂华侨, 陈金潮, 等. 唐山市机动车排放清单与减排经济效益研究[J]. 中国环境科学, 2021,41(11): 5114-5124.
	Wang Ji-guang, Gui Hua-qiao, Chen Jin-chao, et a1. Vehicle emission inventory and economic benefits of emission reduction in Tangshan[J]. China Environmental Science, 2021,41(11): 5114-5124.
6	习近平. 习近平在第七十五届联合国大会一般性辩论上的讲话[N/OL].[2020-09-22]. .
7	Lv L, Ge Y, Ji Z, et al. Regulated emission characteristics of in-use LNG and diesel semi-trailer towing vehicles under real driving conditions using PEMS[J]. Journal of Environmental Sciences (China), 2020, 88: 155-164.
8	国务院. 新能源汽车产业发展规划(2021—2035年)[N/OL].[2020-11-02]. .
9	Dimopoulos E P, Schreiber D, Schröter K. Characterization of the emission of particles larger than 10 nm in the exhaust of modern gasoline and CNG light duty vehicles[J]. Fuel, 2021, 291: No.120074.
10	Kontses A, Triantafyllopoulos G, Ntziachristos L, et al. Particle number (PN) emissions from gasoline, diesel, LPG, CNG and hybrid-electric light-duty vehicles under real-world driving conditions[J]. Atmospheric Environment, 2020, 222: No.117126.
11	Huang X, Wang Y, Xing Z, et al. Emission factors of air pollutants from CNG-gasoline bi-fuel vehicles: Part II. CO, HC and NO _x [J]. Science of the Total Environment, 2016, 565: 698-705.
12	Wang Y, Xing Z, Xu H, et al. Emission factors of air pollutants from CNG-gasoline bi-fuel vehicles: Part I. Black carbon[J]. Science of the Total Environment, 2016, 572: 1161-1165.
13	He L, Hu J, Yang L, et al. Real-world gaseous emissions of high-mileage taxi fleets in China[J]. Science of the Total Environment, 2019, 659: 267-274.
14	Yao Z, Cao X, Shen X, et al. On-road emission characteristics of CNG-fueled bi-fuel taxis[J]. Atmospheric Environment, 2014, 94: 198-204.
15	Ristovski Z, Morawska L, Ayoko G A, et al. Emissions from a vehicle fitted to operate on either petrol or compressed natural gas[J]. Science of the Total Environment, 2004, 323: 179-194.
16	解淑霞,胡京南,鲍晓峰,等.天然气-汽油双燃料车实际道路排放特征研究[J]. 环境科学学报,2011,11(31):2347-2353.
	Xie Shu-xia, Hu Jing-nan, Bao Xiao-feng, et al. Real-world emission characteristics of natural gas-gasoline bi-fuel vehicles[J]. Acta Scientiae Circumstantiae, 2011,11(31):2347-2353.
17	王爱娟,葛蕴珊,谭建伟,等. 北京市出租车实际道路行驶特征与排放特性的关系研究[J].北京理工大学学报, 2020, 8(30):891-905.
	Wang Ai-juan, Ge Yun-shan, Tan Jian-wei, et al. Study on relationships between on-road driving characters and emission characteristics of taxies in Beijing[J]. Transactions of Beijing Institute of Technology, 2020, 8(30):891-905.
18	Giechaskiel B, Maricq M, Ntziachristos L, et al. Review of motor vehicle particulate emissions sampling and measurement: from smoke and filter mass to particle number[J]. Journal of Aerosol Science, 2014, 67: 48-86.
19	HT-ELPI+. High Temperature ELPI®+[EB/OL].[2020-11-12]. .
20	刘双喜, 陈杰峰, 李孟良, 等. ELPI在重型车车载PM测试中的应用研究[J]. 汽车工程, 2007, 29(7):582-585.
	Liu Shuang-xi, Chen Jie-feng, Li Meng-liang, et al. A study on the application of electrica low pressure impactor to the on-board measurement of particulate matter in heavy duty vehicle[J]. Automotive Engineering, 2007, 29(7):582-585.
21	Kwon S, Park Y, Park J, et al. Characteristics of on-road NO _x emissions from Euro 6 light-duty diesel vehicles using a portable emissions measurement system[J]. Science of the Total Environment, 2017, 576:70-77.
22	Weiss M, Bonnel P, Hummel R, et al. On-road emissions of light-duty vehicles in Europe[J]. Environmental Science and Technology, 2011, 45(19): 8575-8581.
23	Samaras C, Tsokolis D, Toffolo S, et al. Limits of applicability of COPERT model to short links and congested conditions[C]∥The 20th International Transport and Air Pollution Conference, Bangkok, Thailand, 2014.
24	O'Driscoll R, Apsimon H M, Oxley T, et al. A portable emissions measurement system (PEMS) study of NO _x and primary NO₂ emissions from Euro 6 diesel passenger cars and comparison with COPERT emission factors[J]. Atmospheric Environment, 2016, 145: 81-91.
25	张毅. 基于VSP的城市主干路机动车尾气排放研究[D]. 长春:吉林大学交通学院, 2007.
	Zhang Yi. The research of vehicle's emissions on urban main road based on VSP[D]. Changchun: College of Transportation, Jilin University, 2007.
26	. 中国汽车行驶工况第1部分:轻型汽车 [S].
27	. 轻型汽车污染物排放限值及测量方法(中国第六阶段) [S].
28	. 轻型汽车污染物排放限值及测量方法(中国第五阶段) [S].
29	Dimaratos A, Toumasatos Z, Triantafyllopoulos G, et al. Real-world gaseous and particle emissions of a bi-fuel gasoline/CNG Euro 6 passenger car[J]. Transportation Research Part D: Transport and Environment, 2020, 82: No.102307.
30	Rašić D, Rodman S, Seljak Oprešnik T, et al. RDE-based assessment of a factory bi-fuel CNG/gasoline light-duty vehicle[J]. Atmospheric Environment, 2017, 167: 523-541.
31	Bielaczyc P, Woodburn J, Szczotka A. An assessment of regulated emissions and CO₂ emissions from a European light-duty CNG-fueled vehicle in the context of Euro 6 emissions regulations[J]. Applied Energy, 2014, 117: 134-141.
32	Takeshita T. Assessing the co-benefits of CO₂ mitigation on air pollutants emissions from road vehicles[J]. Applied Energy, 2012, 97: 225-237.
33	Rab S. A technical review of compressed natural gas as an alternative fuel for internal combustion engines[J]. American Journal of Engineering and Applied Sciences, 2008,1(4): 302-311.
34	Karavalakis G, Durbin T D, Villela M, et al. Air pollutant emissions of light-duty vehicles operating on various natural gas compositions[J]. Journal of Natural Gas Science and Engineering, 2012, 4: 8-16.
35	Ristovski Z D, Morawska L, Hitchins J, et al. Particle emissions from compressed natural gas engines[J]. Journal of Aerosol Science, 2000, 31(4): 403-413.
36	Khan M I, Yasmin T, Shakoor A. Technical overview of compressed natural gas (CNG) as a transportation fuel[J]. Renewable and Sustainable Energy Reviews, 2015, 51: 785-797.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

参数	No.1	No.2
车辆品牌	北京现代
燃料类型	汽油/CNG双燃料（油改气）
发动机技术	自然吸气+多点电喷+CVVT
基准/总质量t	1.29/1.66	1.32/1.65
发动机最大功率/kW	90.2	82
排量/L	1.6	1.6
排放控制技术	TWC	TWC
排放标准	国Ⅴ	国Ⅳ
生产制造日期	2017.04	2012.12
注册登记日期	2017.06	2013.03
已行驶里程/km	127 978	723 303
挡位	6挡手动	5挡手动

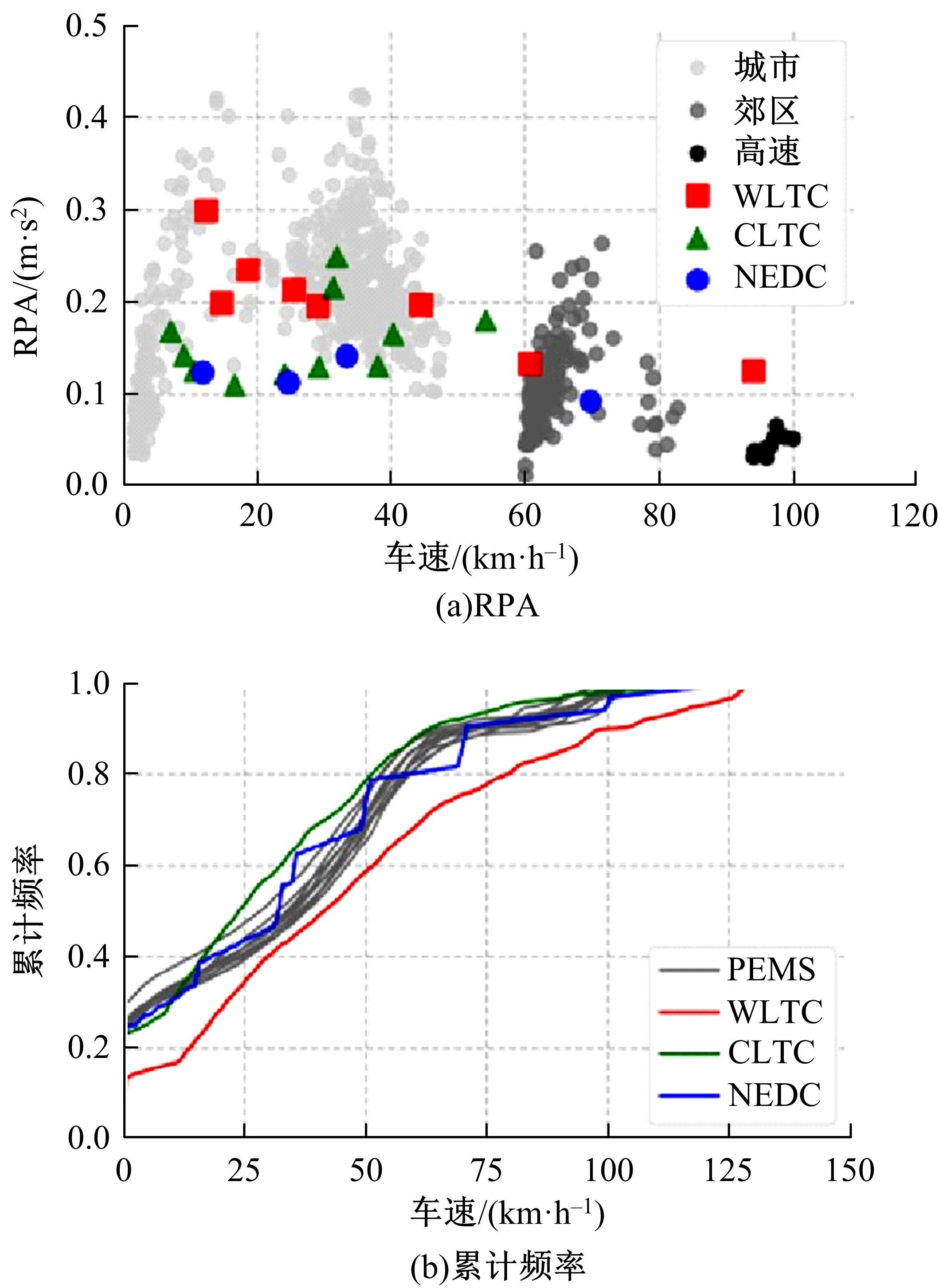

道路 /工况类型	速度 /（km·h^-1）	RPA /（m·s^-2）	停车次数 /km	工况比例/%
道路 /工况类型	速度 /（km·h^-1）	RPA /（m·s^-2）	停车次数 /km	加速	匀速	减速	怠速
市区	24.5±1.0	0.201±0.014	1.39±0.09	33.1±1.9	13.3±1.6	23.3±0.9	30.2±2.5
郊区	71.1±2.1	0.096±0.027	—	29.9±8.8	49.1±13.2	21.0±4.7	0
高速	96.6±1.7	0.044±0.011	—	6.6±5.1	84.5±9.9	9.0±5.1	0
综合	33.6±1.7	0.150±0.009	0.85±0.04	31.2±1.9	21.2±1.4	22.2±1.0	25.4±1.9
NEDC	33.6	0.111	1.2	23.2	37.6	16.6	22.6
WLTC	46.6	0.152	0.4	30.6	27.8	29	12.6
CLTC	29	0.166	0.8	28.8	22.7	26.4	22.1

排放标准	道路类型	燃料种类	NO _x / （g·km^-1）	CO₂/ （g·km^-1）	CO/ （g·km^-1）	PN/ km
国Ⅴ	市区	CNG	0.10±0.01	220±4	0.3±0.11	1.2E+10
	市区	汽油	0.08±0.03	276±33	1.12±0.19	4.4E+12
	郊区	CNG	0.10±0.01	108±1	1.15±0.2	9.8E+11
	郊区	汽油	0.04±0.01	149±13	0.63±0.52	1.3E+13
	高速	CNG	0.09±0.01	118±3	1.58±0.21	4.2E+13
	高速	汽油	0.05±0.02	159±2	1.45±0.51	2.1E+14
	综合	CNG	0.10±0.01	173±4	0.78±0.05	9.1E+12
	综合	汽油	0.06±0.02	227±16	1.13±0.09	4.4E+13
国Ⅳ	市区	CNG	1.69±0.1	206±3	2.37±0.19	4.3E+11
	市区	汽油	0.30±0.07	249±10	18.98±1.98	1.0E+13
	郊区	CNG	1.35±0.2	114±6	1.36±0.12	3.2E+12
	郊区	汽油	0.25±0.07	141±9	14.06±3.14	4.0E+13
	高速	CNG	1.47±0.14	114±4	1.1±0.28	1.9E+13
	高速	汽油	0.33±0.02	146±5	12.41±4.87	1.0E+14
	综合	CNG	1.57±0.11	170±2	1.95±0.13	5.0E+12
	综合	汽油	0.29±0.06	212±6	17.14±1.98	3.5E+13
