考虑通信延时的智能汽车非线性路径跟踪控制

doi:10.13229/j.cnki.jdxbgxb.20241003

摘要/Abstract

摘要：

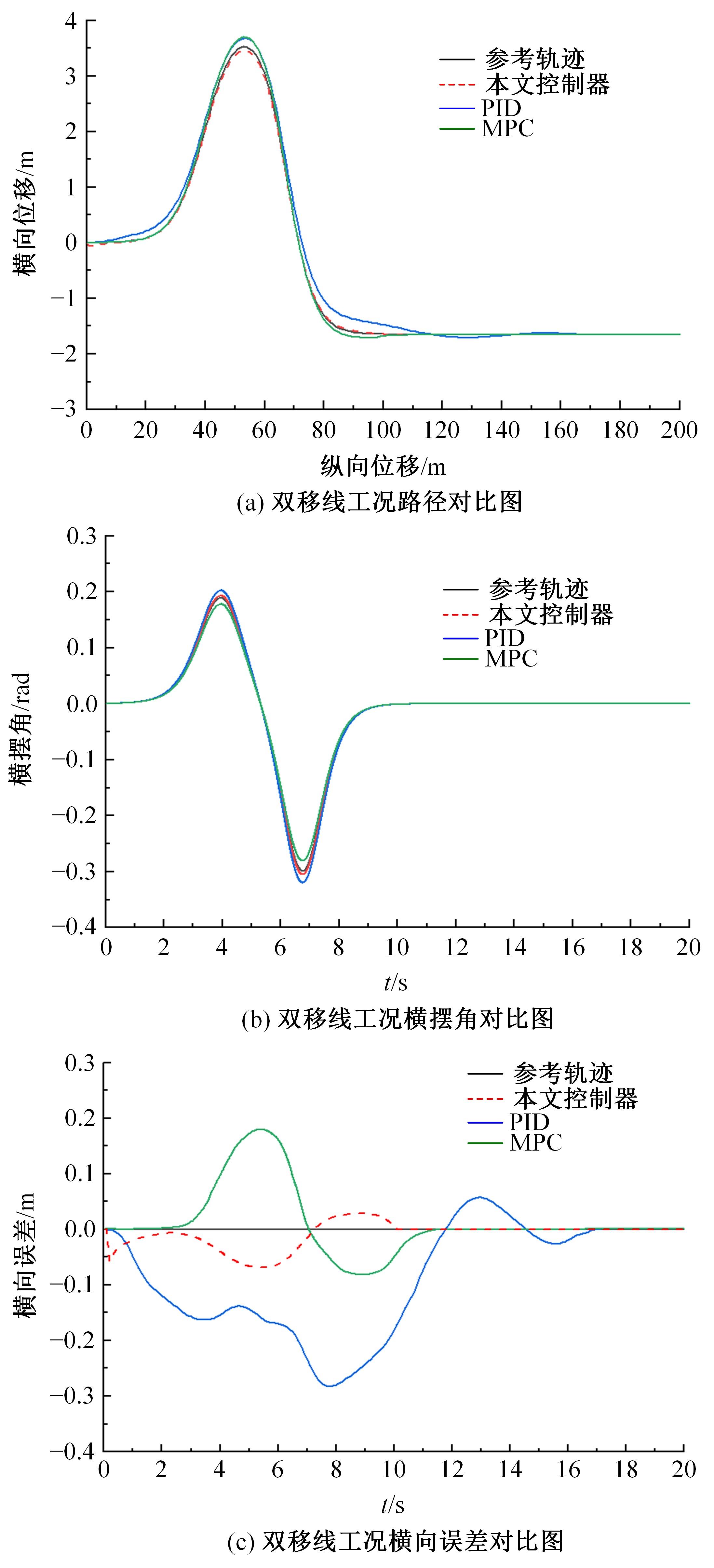

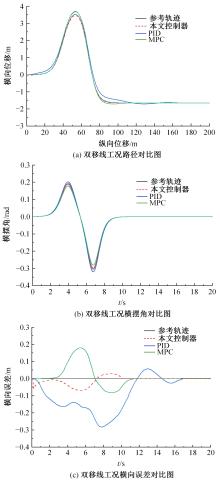

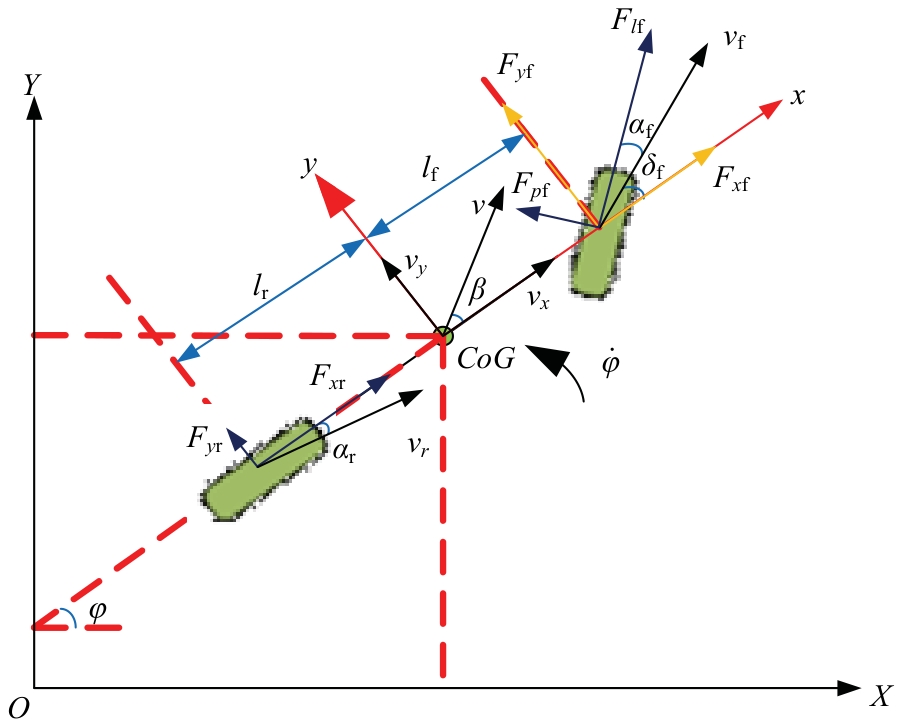

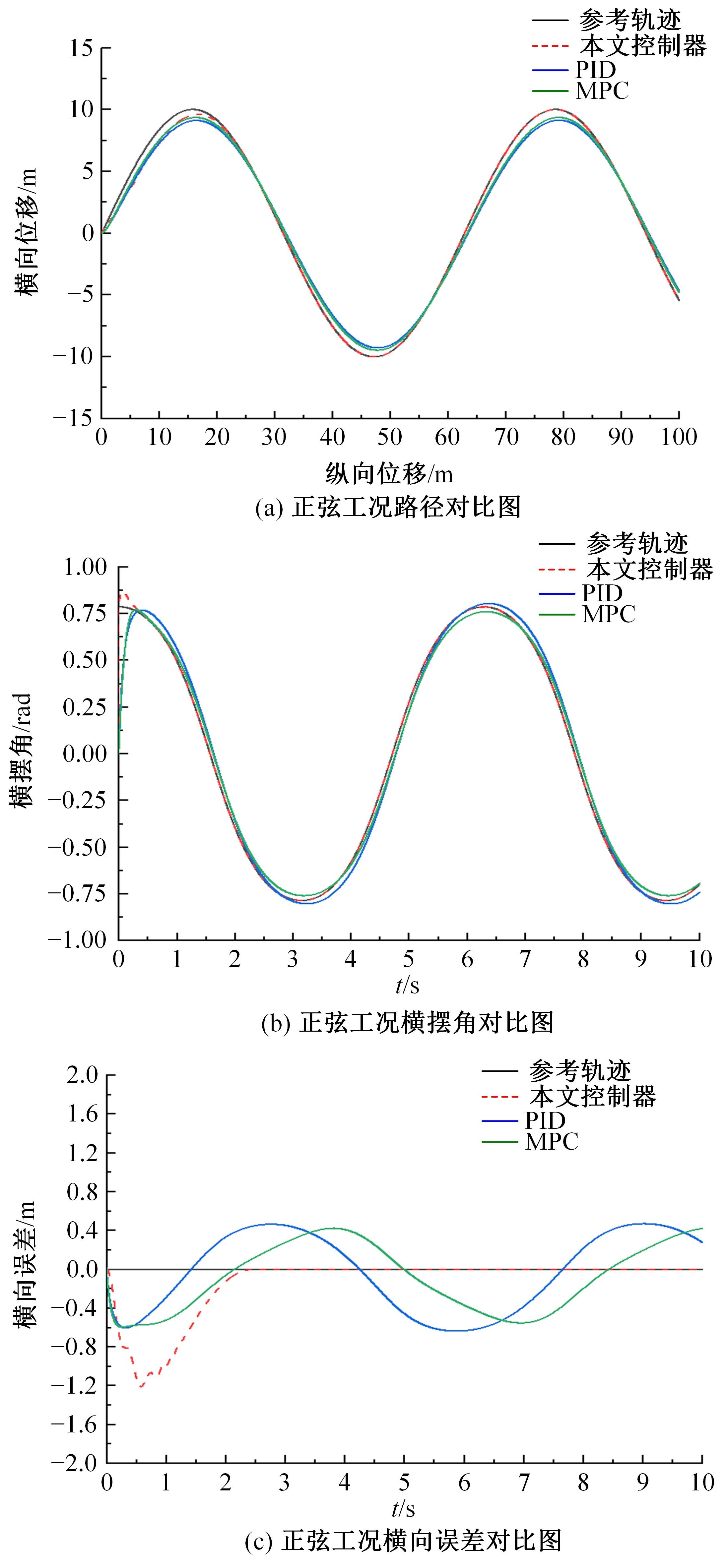

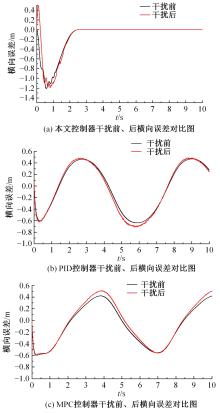

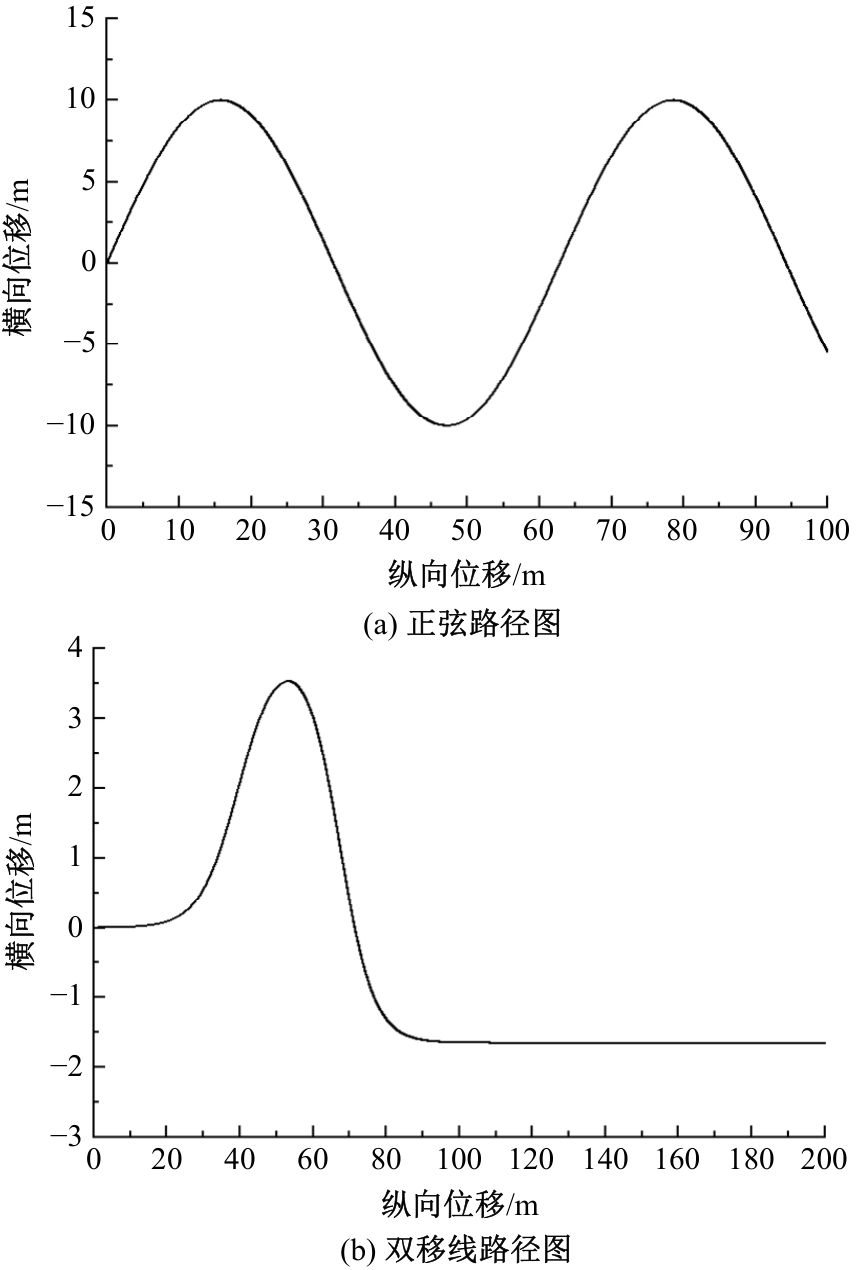

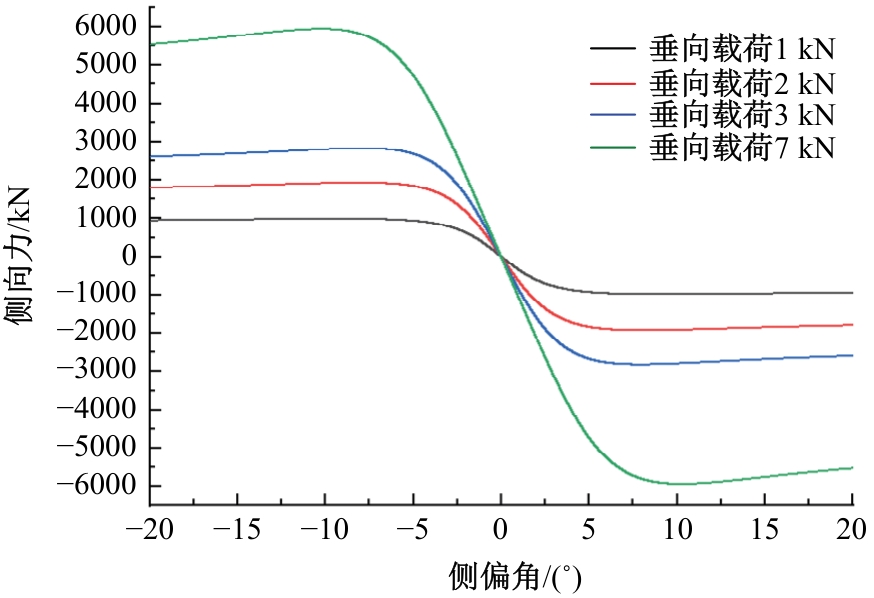

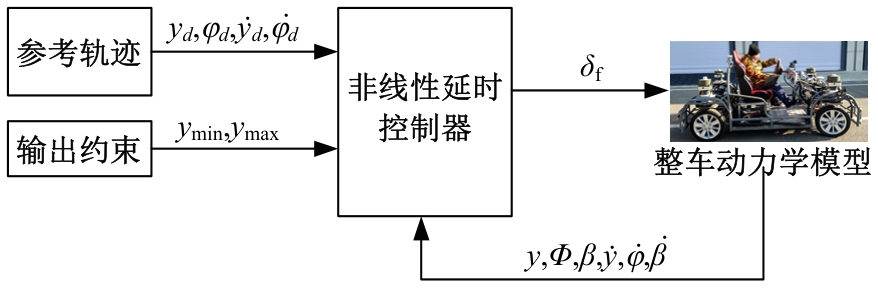

针对路径跟踪中控制器与执行器之间的通信延时、车辆系统的强非线性以及控制器的输出约束的问题，本文以智能汽车为研究对象，提出了一种考虑通信延时的非线性路径跟踪控制器，以提高汽车路径跟踪性能。首先，建立二自由度车辆模型，利用“魔术公式”建立轮胎模型，建立具有通信延时的非线性路径跟踪模型；其次，根据控制器输出约束，利用反步调节函数，设计了非线性鲁棒控制器，满足系统性能指标和鲁棒性要求；最后，分别在正弦工况与双移线工况下，通过MATLAB/Simulink进行仿真验证路径跟踪性能。结果表明：本文提出的控制器的路径跟踪在正弦工况下横向误差的均方根值较PID方法及MPC方法分别降低0.061 9和0.010 1，双移线工况下分别降低0.097 2和0.034 7；当引入干扰时，本文控制器鲁棒性优于PID及MPC。

关键词: 车辆工程, 智能汽车, 路径跟踪, 非线性系统, 通信延时

Abstract:

Aiming at the problems of communication delay between controller and actuator in path tracking， strong nonlinearity of the vehicle system， and output constraints of the controller， this paper proposes a nonlinear path tracking controller considering communication delay to improve the performance of vehicle path tracking by taking an electric vehicle as the research object. Firstly， a two-degree-of-freedom vehicle model is established， a tire model is established by using the "magic formula"， and a nonlinear path tracking model with communication delay is established； Secondly， according to the output constraints of the controller， a nonlinear robust controller is designed by using the backstepping adjustment function to meet the system performance indexes and robustness requirements； Finally， the path tracking performance is verified by simulation through MATLAB/Simulink under sinusoidal and double-shifted line conditions， respectively. The results show that： The root mean square （RMS） value of the lateral error of the path tracking of the controller proposed in this paper is reduced by 0.061 9 and 0.010 1 for sinusoidal condition and 0.097 2 and 0.034 7 for double-shift condition compared to the PID and MPC methods， respectively. The robustness of the controller in this paper is better than that of the PID and MPC methods when disturbances are introduced.

Key words: avehicle engineering, intelligent vehicle, path tracking, nonlinear system, time-delay

中图分类号:

U461.6

付尧,战椿水,刘科. 考虑通信延时的智能汽车非线性路径跟踪控制[J]. 吉林大学学报(工学版), 2026, 56(3): 851-859.

Yao FU,Chun-shui ZHAN,Ke LIU. Nonlinear path tracking control for intelligent vehicles considering communication delays[J]. Journal of Jilin University(Engineering and Technology Edition), 2026, 56(3): 851-859.

图/表 13

图1

表1

“魔术公式”参数值"

参数	数值
$a 0$	1.413
$a 1$	-23.008
$a 2$	1 010
$a 3$	1 071
$a 4$	1.790
$a 5$	0.199
$a 6$	0
$a 7$	-0.371
$a 8$	0.701
$a 9 ～ a 12$	0

表1

图2

图3

表2

车辆参数"

参数	符号	数值
质心到前轴距离/m	$l f$	1.464
质心到后轴距离/m	$l r$	1.672
整车整备质量/kg	$m$	1 528
整车绕z轴转动惯量/（kg·m²）	$I z$	4 178

表2

图4

表3

控制器参数值"

参数	数值
$λ 0$	0.899
$T$	2.5
$ξ 0$	0.8
$b 1$	10
$b 2$	-0.97
$b 3$	5
$c 1$	100（正弦）、20（双移线）
$c 2$	10

表3

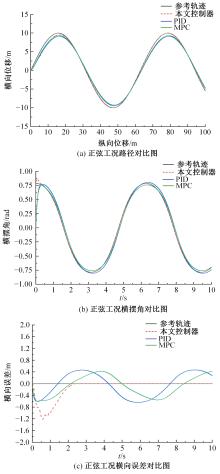

图5

图6

表4

表5

控制器干扰量"

参数	数值
$φ ˙$	$± r a n d 10 % φ ˙$
$β ˙$	$± r a n d 10 % β ˙$
$v y$	$± r a n d 10 % v y$
$β$	$± r a n d 10 % β$

表5

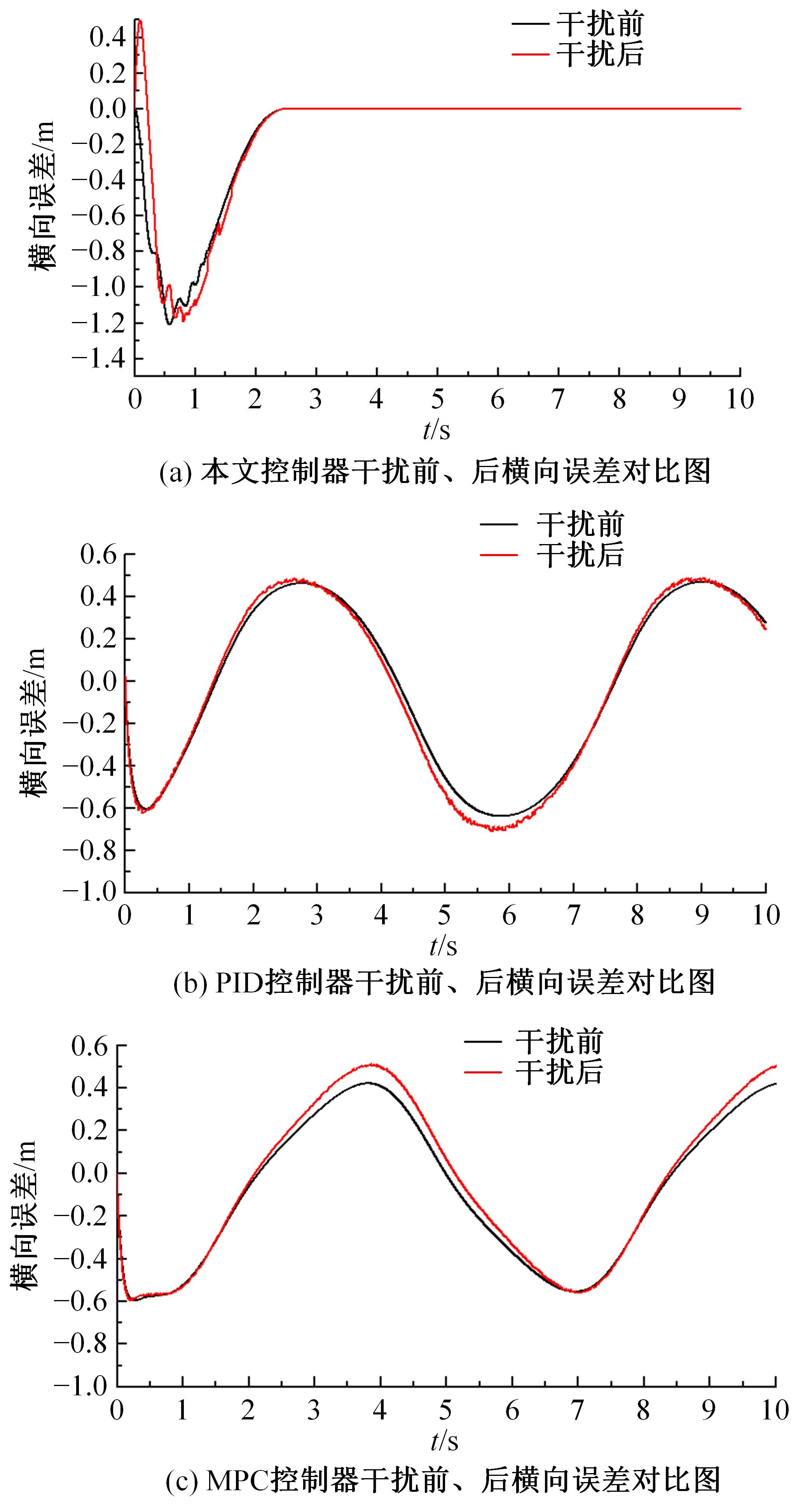

图7

表6

参考文献 21

[1]	Lei Y L, Wen G Z, Fu Y, et al. Trajectory-following of a 4WID-4WIS vehicle via feedforward-backstepping sliding-mode control[J]. P I Mech Eng D-J Aut, 2022, 236(2/3): 322-333.
[2]	谢宪毅, 王禹涵, 金立生, 等. 基于改变控制时域时间步长的智能车轨迹跟踪控制[J]. 吉林大学学报: 工学版, 2024, 54(3): 620-630.
	Xie Xian-yi, Wang Yu-han, Jin Li-sheng, Intelligent vehicle trajectory tracking control based on adjusting step size of control horizon[J]. Journal of Jilin University (Engineering and Technology Edition), 2024, 54(3): 620-630.
[3]	常胜, 刘宏飞, 邹乃威. 汽车变曲率路径循迹H_∞回路成形鲁棒控制[J]. 吉林大学学报:工学版, 2024, 54(8): 2141-2148.
	Chang Sheng, Liu Hong-fei, Zou Nai-wei. H∞ loop shaping robust control of vehicle tracking on variable curvature curve[J]. Journal of Jilin University (Engineering and Technology Edition), 2024, 54(8): 2141-2148.
[4]	靳欣宇, 张军, 刘元盛, 等. 基于Stanley算法的自适应最优预瞄模型研究[J]. 计算机工程, 2018, 44(7): 42-46.
	Jin Xin-yu, Zhang Jun, Liu Yuan-sheng. Research on adaptive optimal pre-scanning model based on Stanley's algorithm[J]. Computer Engineering, 2018, 44(7): 42-46.
[5]	Melkou L, Rezoug A, Hamerlain M. PID-Terminal sliding mode control of aircraft UAV[C]∥Proceedings of the 8th UKSim-AMSS European Modelling Symposium on Computer Modelling and Simulation, New York, The United States, 2014: 21-23.
[6]	Zhai L, Wang C P, Hou Y H, et al. MPC-based integrated control of trajectory tracking and handling stability for intelligent driving vehicle driven by four hub motor[J]. IEEE Trans Veh Technol, 2022, 71(3): 2668-2680.
[7]	Pang H, Liu M H, Hu C, et al. Practical nonlinear model predictive controller design for trajectory tracking of unmanned vehicles[J]. Electronics, 2022, 11(7): 18-25.
[8]	Zhang J X, Xu K D, Wang Q G. Prescribed performance tracking control of time-delay nonlinear systems with output constraints[J]. IEEE-CAA J Automatica Sin, 2024, 11(7): 1557-1565.
[9]	Zhang Z Q, Xu B, Tan C, et al. Adaptive control of uncertain nonlinear time-delay systems with external disturbance[J]. IEEE Trans Syst Man Cybern-Syst, 2022, 52(2): 1288-1295.
[10]	Sun W W, Wu Y, Lv X Y. Adaptive neural network control for full-state constrained robotic manipulator with actuator saturation and time-varying delays[J]. IEEE Trans Neural Netw Learn Syst, 2022, 33(8): 3331-3342.
[11]	Peng C, Yue D, Tian Y C. New approach on robust delay-dependent h_∞ control for uncertain t-s fuzzy systems with interval time-varying delay[J]. IEEE Trans Fuzzy Syst, 2009, 17(4): 890-900.
[12]	Tang H Y, Wang Q Y, Feng X Y. Robust stochastic control for high-speed trains with nonlinearity, parametric uncertainty, and multiple time-varying delays[J]. IEEE Trans Intell Transp Syst, 2018, 19(4): 1027-1037.
[13]	Jiao X H, Shen T L. Adaptive feedback control of nonlinear time-delay systems: The LaSalle-Razumikhin-based approach[J]. IEEE Trans Autom Control, 2005, 50(11): 1909-1913.
[14]	Wang T C, Luo X X, Li W Q. Razumikhin-type approach on state feedback of stochastic high-order nonlinear systems with time-varying delay[J]. Int J Robust Nonlinear Control, 2017, 27(16): 3124-3134.
[15]	Sachan K, Padhi R. Barrier lyapunov function based output-constrained control of nonlinear euler-lagrange systems[C]∥Proceedings of the 15th International Conference on Control, Automation, Robotics and Vision. Singapore, Singapore, 2018: 18-33.
[16]	Song M S, Zhang F, Huang B X, et al. Anti-disturbance control for tethered aircraft system with deferred output constraints[J]. IEEE-CAA J Automatica Sin, 2023, 10(2): 474-485.
[17]	Zhao K, Wen C Y, Song Y D, et al. Adaptive uniform performance control of strict-feedback nonlinear systems with time-varying control gain[J]. IEEE-CAA J Automatica Sin, 2023, 10(2): 451-461.
[18]	Mayne D Q. Model predictive control: recent developments and future promise[J]. Automatica, 2014, 50(12): 2967-2986.
[19]	Biegler L T. A perspective on nonlinear model predictive control[J]. Korean Journal of Chemical Engineering, 2021, 38(7): 1317-1332.
[20]	Alavilli A, Nguyen K, Schoedel S, et al. TinyMPC: model-predictive control on resource-constrained microcontrollers[C]∥IEEE International Conference on Robotics and Automation, Yokohama, Japan, 2023: 1-7.
[21]	郑香美, 高兴旺, 赵志忠. 基于"魔术公式"的轮胎动力学仿真分析[J]. 机械与电子, 2012(9): 16-20.
	Zheng Xiang-mei, Gao Xing-wang, Zhao Zhi-zhong. Simulation analysis of tire dynamics based on the "magic formula"[J]. Machinery and Electronics, 2012(9): 16-20.

相关文章 15

[1]	赵洪乾,李海岩,张城铭,崔世海,贺丽娟,吕文乐. 面向智能安全的中国50^th百分位男性体征行人数字模型开发及应用[J]. 吉林大学学报(工学版), 2026, 56(3): 779-792.
[2]	李军,杨飞帆,龚胜,周科宇. 基于视觉的轻量化路面异常检测算法[J]. 吉林大学学报(工学版), 2026, 56(2): 488-496.
[3]	张向文,王子豪. 电动汽车制动模式切换过程电液协调控制策略[J]. 吉林大学学报(工学版), 2026, 56(1): 31-43.
[4]	高镇海,鲍明喜,赵睿,唐明弘,高菲. 基于目标锚点驱动的多模态轨迹预测方法[J]. 吉林大学学报(工学版), 2026, 56(1): 21-30.
[5]	兰巍,周政,王冠宇,王伟,张苗苗. 基于机器学习的汽车设计智能拟合方法[J]. 吉林大学学报(工学版), 2025, 55(9): 2858-2863.
[6]	霍震,金立生,华强,贺阳. 基于边缘特征引导的智能汽车语义分割方法[J]. 吉林大学学报(工学版), 2025, 55(9): 3032-3041.
[7]	李寿涛,贾湘怡,朱军,郭洪艳,于丁力. 基于Level-K的智能驾驶汽车无信控交叉路口决策方法[J]. 吉林大学学报(工学版), 2025, 55(9): 3069-3078.
[8]	孙天骏,杨惠喆,蔡荣贵,冯嘉仪,冉锐,刘斌. 面向纯电动汽车自适应巡航系统的人性化起停控制策略[J]. 吉林大学学报(工学版), 2025, 55(9): 2847-2857.
[9]	朱冰,孟鹏翔,刘斌,韩嘉懿,赵健,陈志成,宋东鉴,陶晓文. 基于交通环境信息的虚拟车道线拟合方法[J]. 吉林大学学报(工学版), 2025, 55(9): 2935-2945.
[10]	赵俊武,曲婷,胡云峰. 基于自适应采样的智能车辆轨迹规划方法[J]. 吉林大学学报(工学版), 2025, 55(8): 2802-2816.
[11]	于贵申,陈鑫,唐悦,赵春晖,牛艾佳,柴辉,那景新. 激光表面处理对铝-铝粘接接头剪切强度的影响[J]. 吉林大学学报(工学版), 2025, 55(8): 2555-2569.
[12]	高金武,孙少龙,王舜尧,高炳钊. 基于电机转矩补偿的增程器转速波动抑制策略[J]. 吉林大学学报(工学版), 2025, 55(8): 2475-2486.
[13]	贾美霞,胡建军,肖凤. 基于多软件联合的车用电机变工况多物理场仿真方法[J]. 吉林大学学报(工学版), 2025, 55(6): 1862-1872.
[14]	宋学伟,于泽平,肖阳,王德平,袁泉,李欣卓,郑迦文. 锂离子电池老化后性能变化研究进展[J]. 吉林大学学报(工学版), 2025, 55(6): 1817-1833.
[15]	肖纯,易子淳,周炳寅,张少睿. 基于改进鸽群优化算法的燃料电池汽车模糊能量管理策略[J]. 吉林大学学报(工学版), 2025, 55(6): 1873-1882.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

项目	本文控制器	PID	MPC
增长率/%	2.030 0	5.383 0	3.521 0
干扰前	0.344 9	0.406 8	0.355 0
干扰后	0.351 9	0.428 7	0.367 5
