基于时空动态约束图反馈的交通流预测

doi:10.13229/j.cnki.jdxbgxb.20240640

Abstract

Abstract:

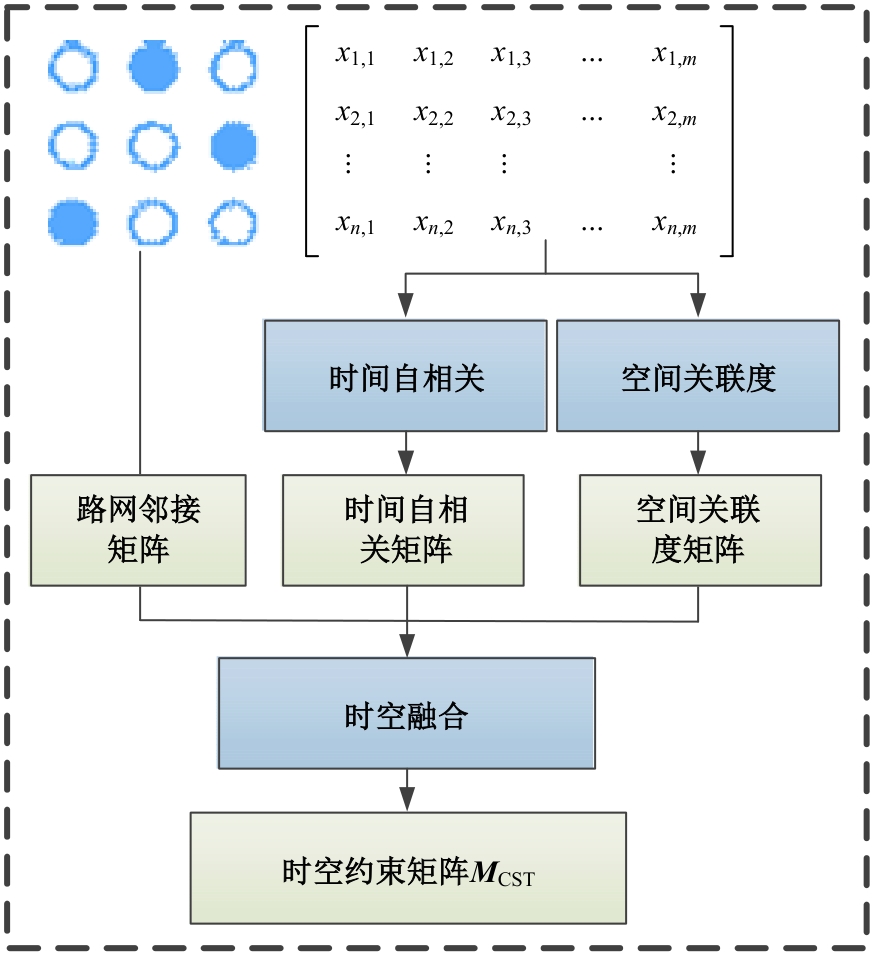

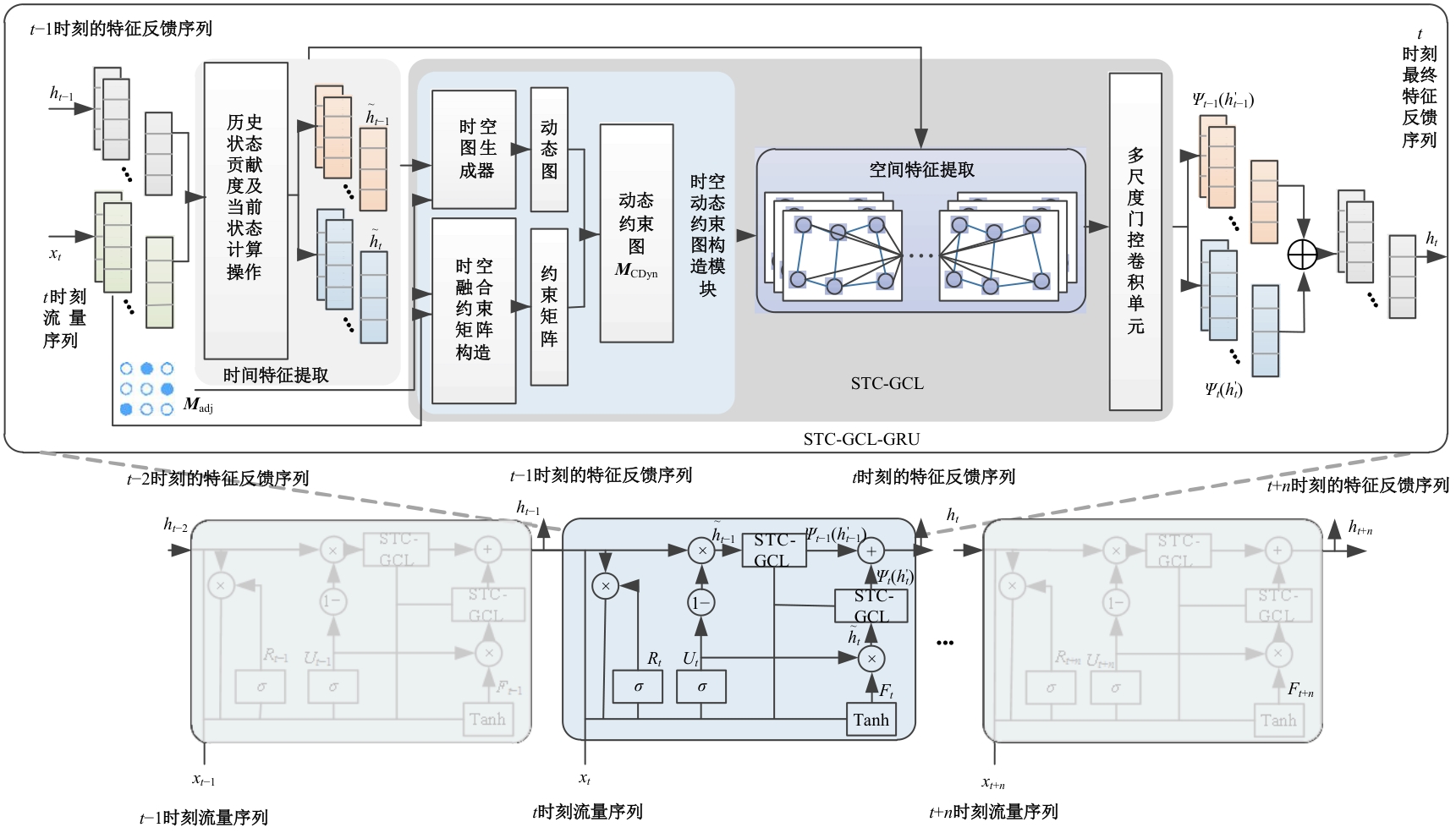

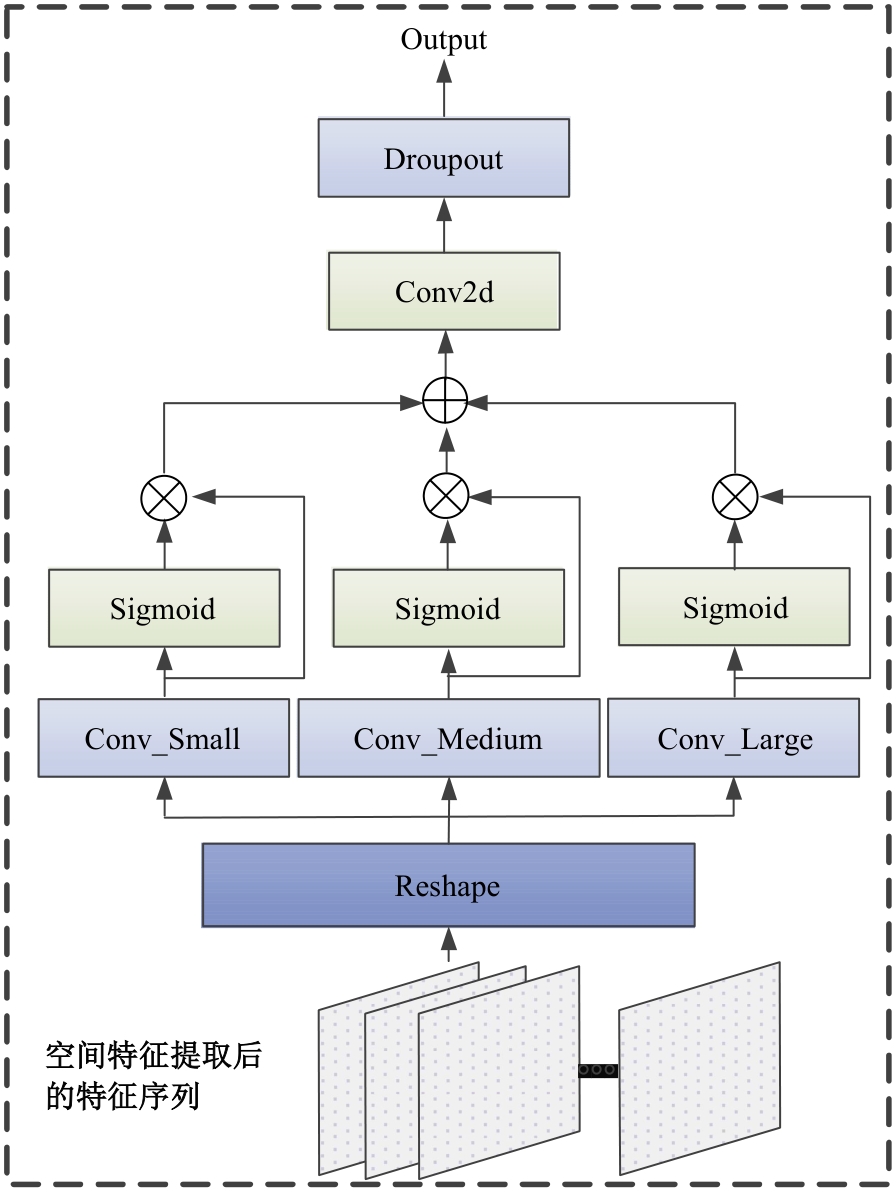

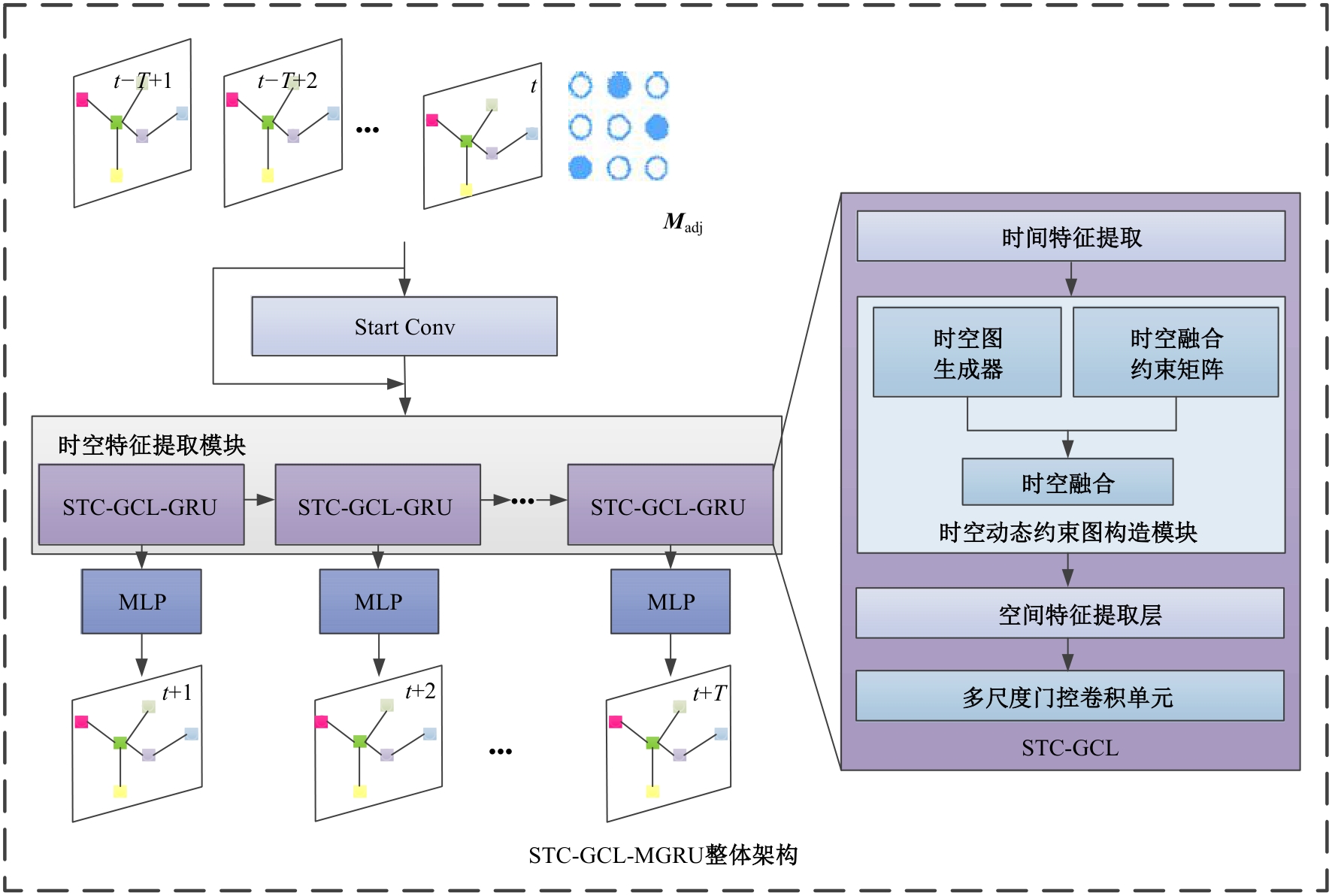

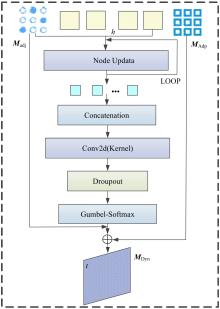

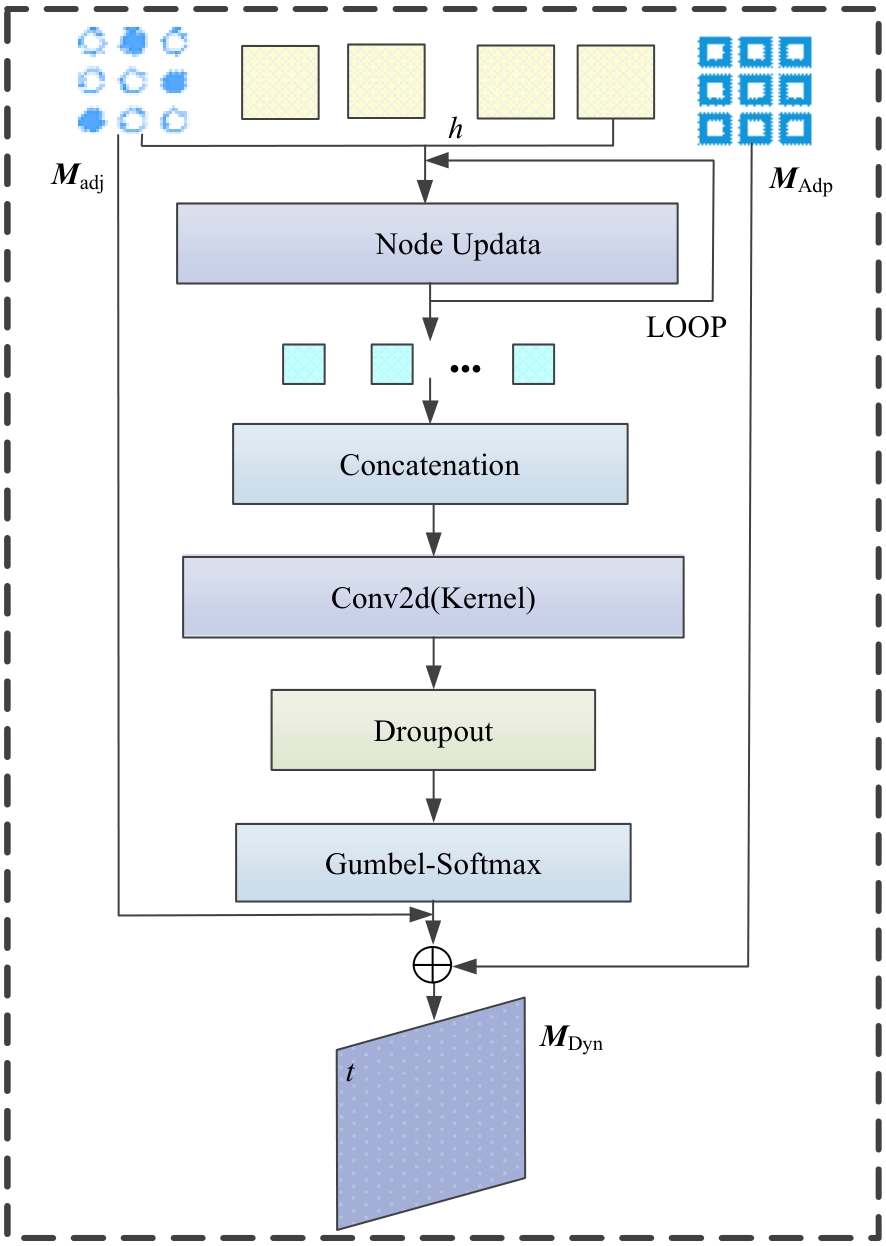

Aiming at the problem of insufficient consideration of the time-varying characteristics of hidden spatial associations of road network nodes in the existing traffic flow prediction studies， this paper proposes a traffic flow prediction model based on the feedback of spatio-temporal dynamic constraint graph. First， the temporal features are extracted by GRU， generates a dynamic constraint graph characterising the neighbourhood relationship of the road network at the current moment by using a spatio-temporal graph generator and a spatio-temporal fusion constraint matrix within the STC-GCL component， and then realises spatial feature extraction by using a multilayer graph structure convolution operation. Second， the multi-scale gated convolution unit is used to dynamically adjust the information flow of important features to complete the fine screening of key features. Finally， the consistent extraction of spatio-temporal features is achieved by embedding STC-GCL into GRU. The experiments are tested on the public datasets of high-speed road network PeMSD4， PeMSD8， and Chengdu-DDT， and the results show that compared with the current mainstream spatio-temporal prediction methods for traffic flow FGI， the MAE of the proposed model in this paper reduced by 2.69%， 1.88%， and 0.92% in the three datasets， respectively.

Key words: traffic flow prediction, spatio-temporal nature, dynamic nature, graph convolutional neural network

CLC Number:

U491.1

Yue HOU,Xin ZHANG,Yue WU. Traffic flow prediction based on spatio-temporal dynamic constraint graph feedback[J].Journal of Jilin University(Engineering and Technology Edition), 2026, 56(1): 183-198.

Figures/Tables 22

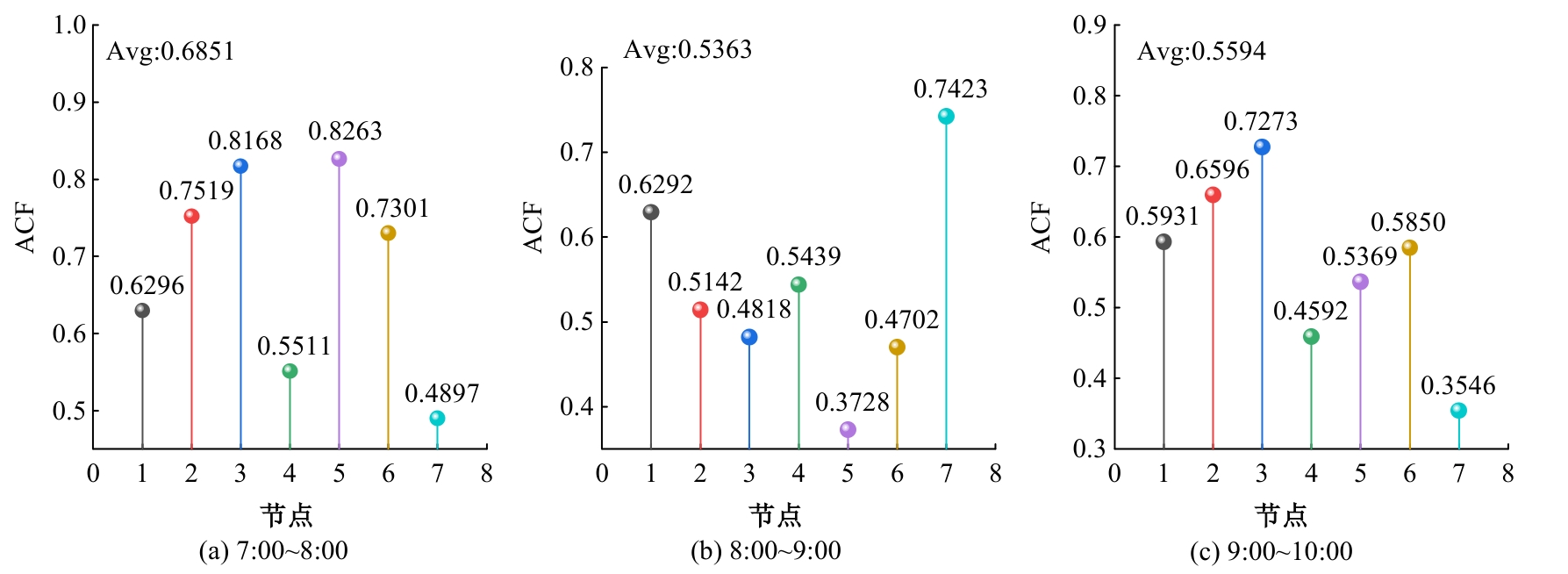

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

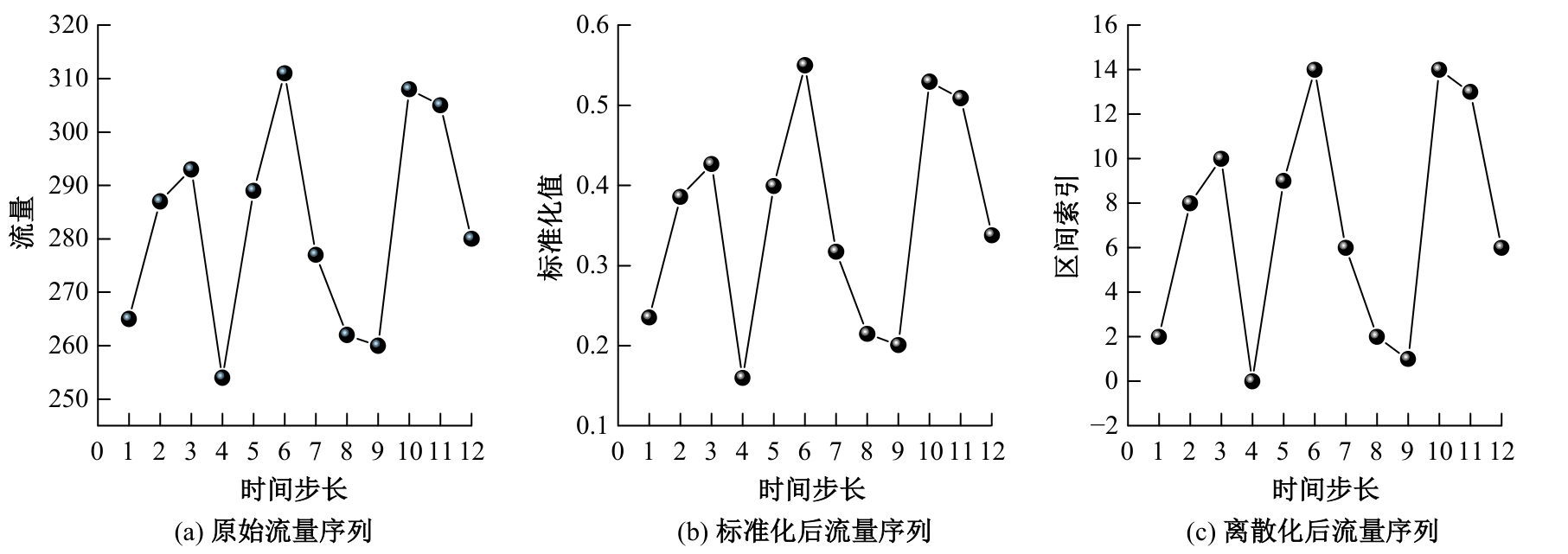

Fig.6

Fig.7

Fig.8

Table 1

Table 2

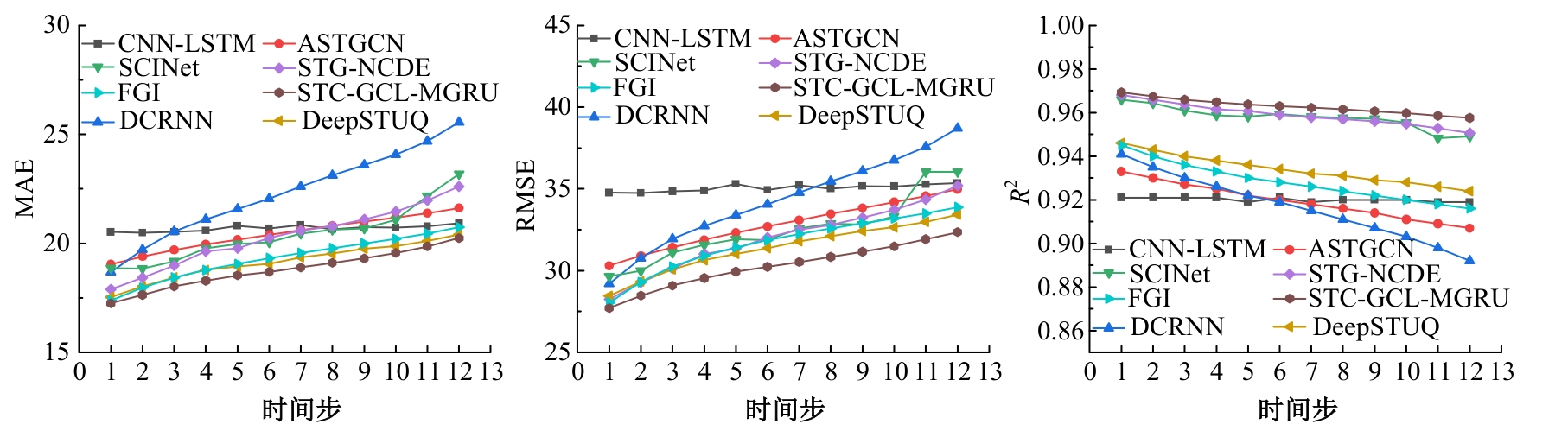

Fig.9

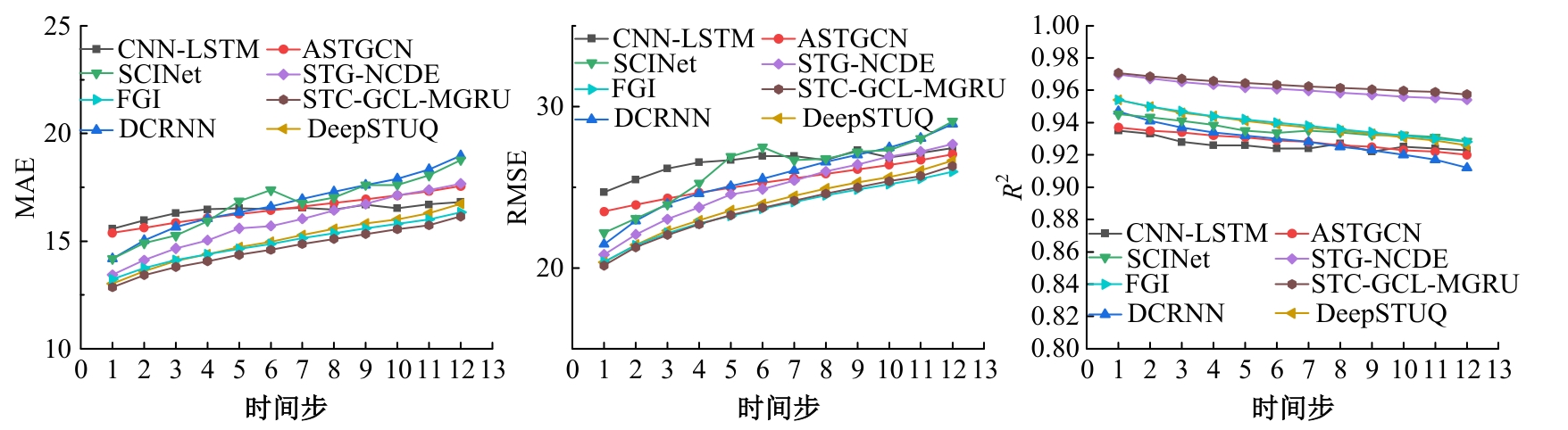

Fig.10

Fig.11

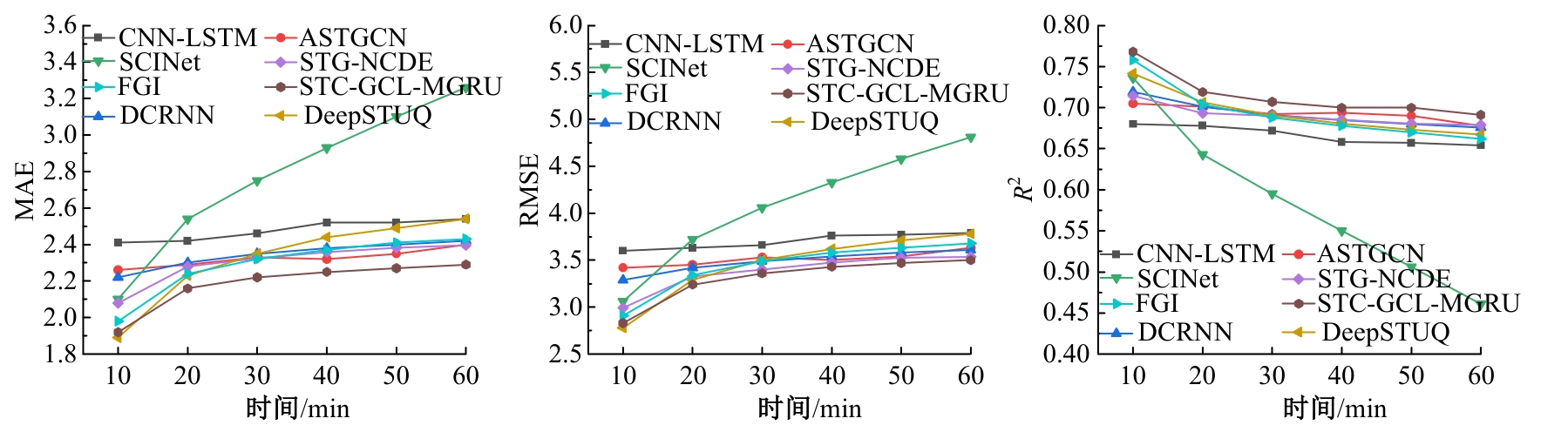

Fig.12

Table 3

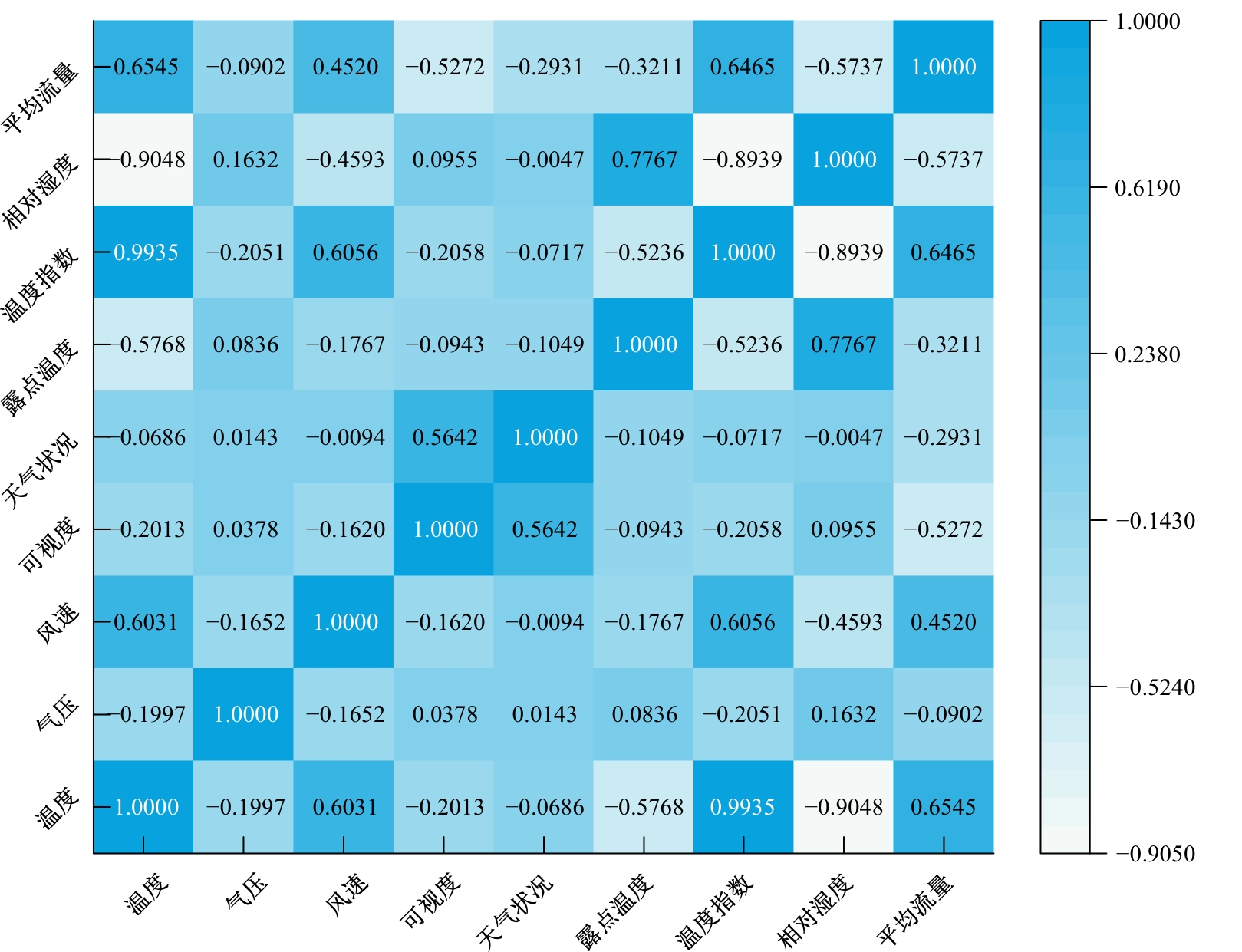

Fig.13

Table 4

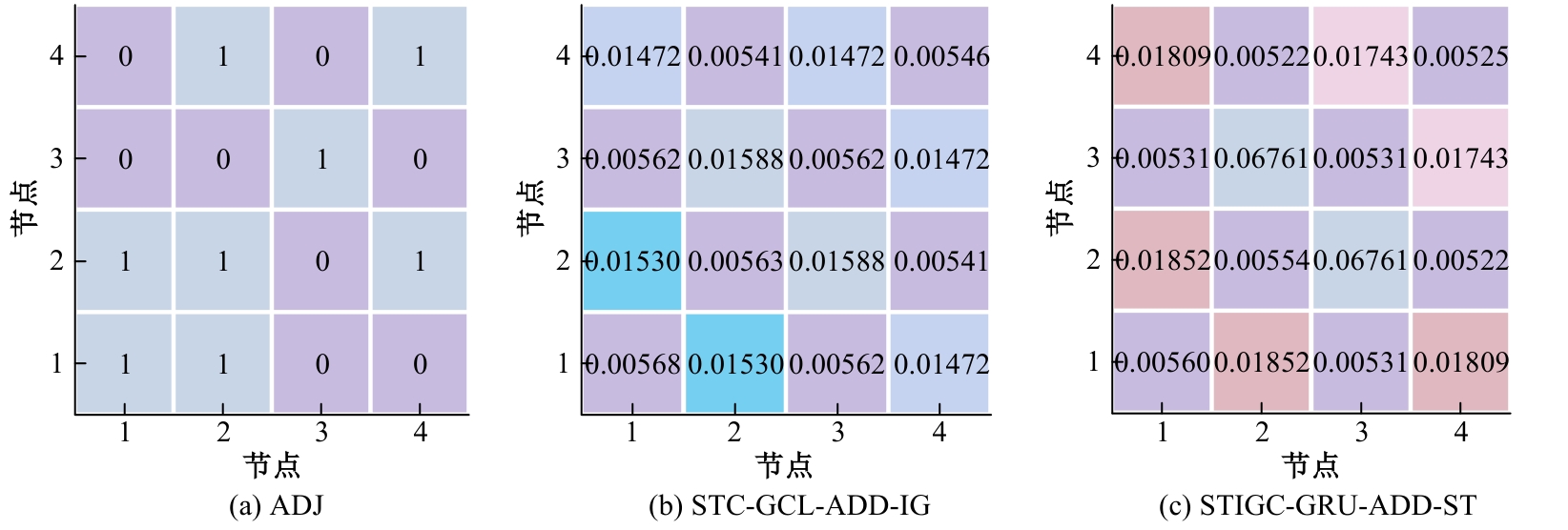

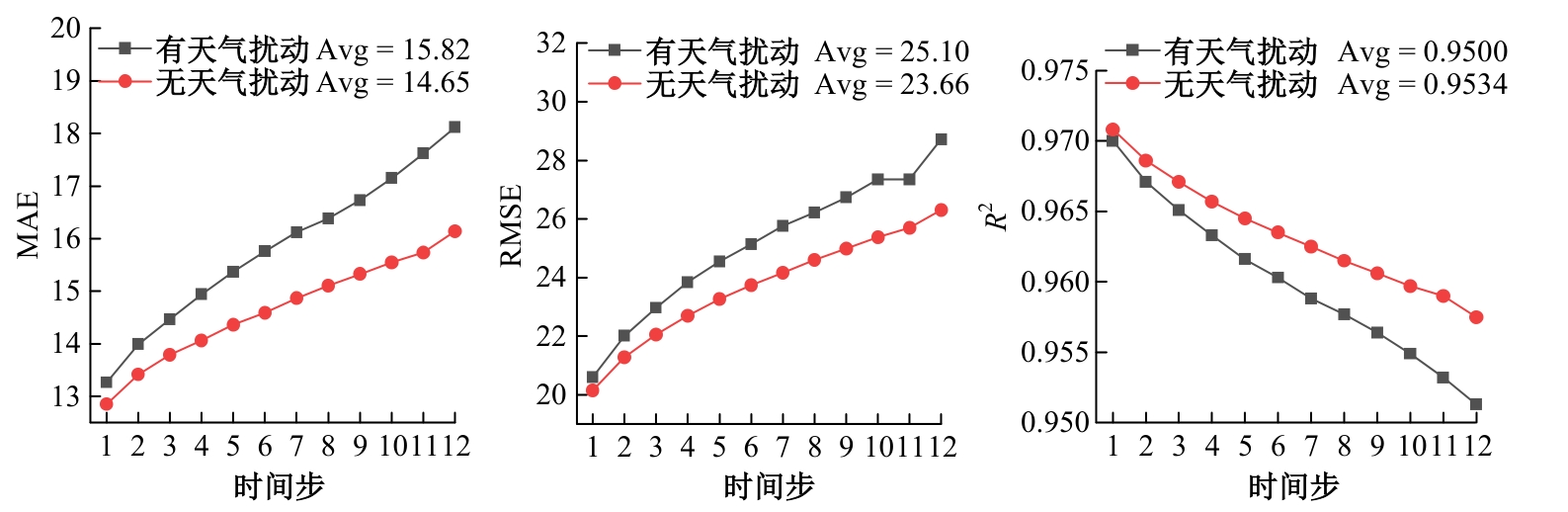

Fig.14

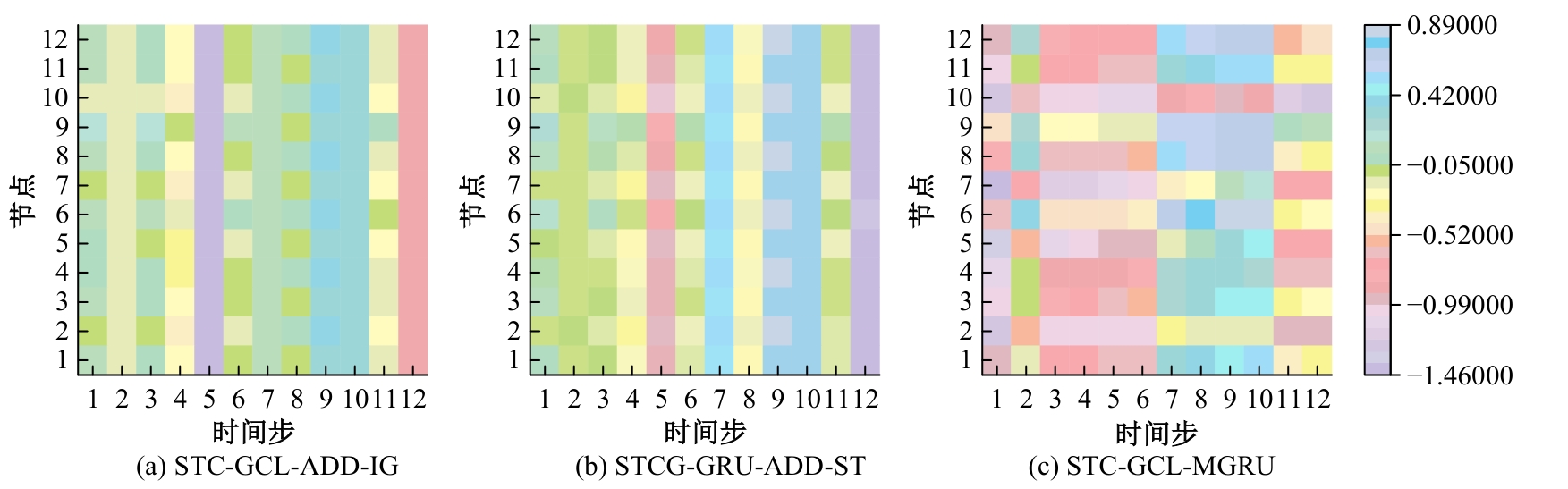

Fig.15

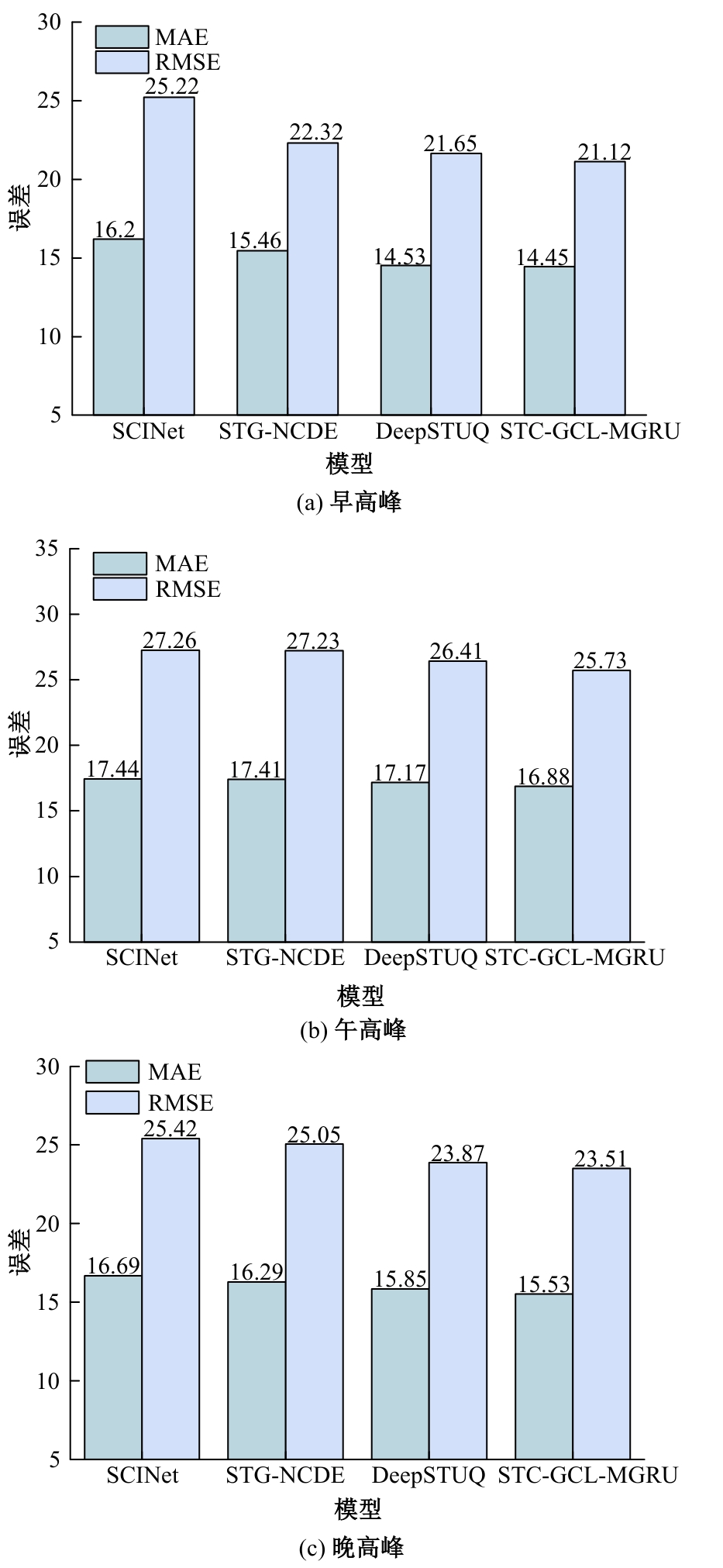

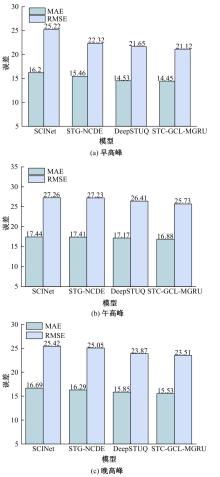

Fig.6

Table 5

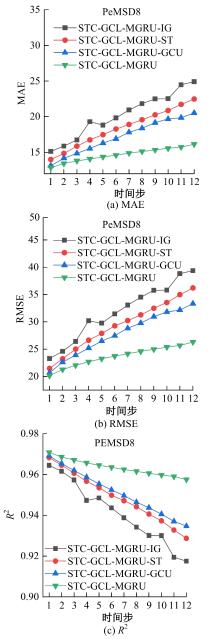

Fig.17

References 27

[1]	Dimitrakopoulos G, Demestichas P. Intelligent transportation systems[J].IEEE Vehicular Technology Magazine, 2010, 5(1): 77-84.
[2]	Sun Y J, Zhang G H, Yin H H. Passenger flow prediction of subway transfer stations based on nonparametric regression model[J]. Discrete Dynamicsin Nature and Society, 2014, 2014: No. 397154.
[3]	Kumar S V, Vanajakshi L. Short-term traffic flow prediction using seasonal ARIMA model with limited input data[J]. European Transport Research Review, 2015, 7: 1-9.
[4]	Tong J C, Gu X, Zhang M, et al. Traffic flow prediction based on improved SVR for VANET[C]∥The 4th International Conference on Advanced Electronic Materials, Computers and Software Engineering (AEMCSE), Piscataway, USA, 2021: 402-405.
[5]	谷远利, 张源, 芮小平, 等. 基于免疫算法优化LSSVM的短时交通流预测[J]. 吉林大学学报: 工学版, 2019, 49(6): 1852-1857.
	Gu Yuan-li, Zhang Yuan, Rui Xiao-ping,et al.Short⁃term traffic flow prediction based on LSS-VMoptimized by immune algorithm[J]. Journal of Jilin University(Engineering and Technology Edition), 2019, 49(6): 1852-1857.
[6]	Zaremba W, Sutskever I, Vinyals O. Recurrent neural network regularization[J/OL].[2014-12-22]. .
[7]	Zhang T P, Ding W L, Xing M D. Attention-based dynamic graph convolutional recurrent neural network for traffic flow prediction in highway transportation[J/OL].[2023-12-12]. .
[8]	Graves A. Long short-term memory[J]. Supervised Sequence Labelling with Recurrent Neural Networks, 2012, 385: 37-45.
[9]	曹洁, 苏广, 张红, 等. CapsNet融合D-BiLSTM的区域复杂路网交通速度预测[J]. 吉林大学学报: 工学版,2024,54(9):2531-2539.
	Cao Jie, Su Guang, Zhang Hong, et al. Traffic speed prediction for complex regional road networks based on CapsNet and D-BiLSTM fusion[J]. Journal of Jilin University(Engineering and Technology Edition),2024,54(9):2531-2539 .
[10]	Fu R, Zhang Z, Li L. Using LSTM and GRU neural network methods for traffic flow prediction[C]∥The 31st Youth Academic Annual Conference of Chinese Association of Automation(YAC), Piscataway, USA, 2016: 324-328.
[11]	李桃迎, 王婷, 张羽琪. 考虑多特征的高速公路交通流预测模型[J]. 交通运输系统工程与信息, 2021, 21(3): 101-111.
	Li Tao-ying, Wang Ting, Zhang Yu-qi. Highway traffic flow prediction model with multi-features[J]. Journal of Transportation Systems Engineering and Information Technology, 2021, 21(3): 101-111.
[12]	Ma X L, Dai Z, He Z B, et al. Learning traffic as images: a deep convolutional neural network for large-scale transportation network speed prediction[J]. Sensors, 2017, 17(4): No.818.
[13]	Wu S F. Spatiotemporal dynamic forecasting and analysis of regional traffic flow in urban road networks using deep learning convolutional neural network[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(2): 1607-1615.
[14]	Bruna J, Zaremba W, Szlam A, et al. Spectral n-etworks and locally connected networks on graphs[J/OL].[2013-12-20]. .
[15]	Li Y B, Zhao W, Fan H L. A spatiotemporal graph neural network approach for traffic flow prediction[J]. Mathematics, 2022, 10(10):No. 1754.
[16]	Kipf T N, Welling M. Semi-supervised classification with graph convolutional networks[J/OL].[2016-12-20]. .
[17]	井佩光, 田雨豆, 汪少初, 等. 动态扩散图卷积交通流量预测算法[J]. 吉林大学学报: 工学版, 2024, 54(6): 1582-1592.
	Jing Pei-guang, Tian Yu-dou, Wang Shao-chu,et al.Traffic flow prediction algorithm based on dynamic diffusion graph convolution[J]. Journal of Jilin University(Engineering and Technology Edition), 2024, 54(6): 1582-1592.
[18]	Zhu C F, Yu C X, Huo J Y. Research on spatio-temporal network prediction model of parallel-series traffic flow based on transformer and GCAT[J]. Physica A: Statistical Mechanics and its Applications, 2023, 610: No.128414.
[19]	Zhao L, Song Y J, Zhang C, et al. T-GCN: A temporal graph convolutional network for traffic prediction[J]. IEEE Transactions on Intelligent Transportation Systems, 2019, 21(9): 3848-3858.
[20]	Bai L, Yao L N, Li C, et al. Adaptive graph convolutional recurrent network for traffic forecasting[J]. Advances in Neural Information Processing Systems, 2020, 33: 17804-17815.
[21]	Liu A Y, Zhang Y Y. Spatial-temporal interactive dynamic graph convolution network for traffic forecasting[J/OL].[2022-12-20]. .
[22]	Ju X, Xie X S, Yu Y F, Spatial-temporal dynamic fusion graph convolutional network for traffic forecasting[C]//The 5th International Academic Exchange Conference on Science and Technology Innovation (IAECST), Piscataway, USA, 2023: 709-713.
[23]	Cao C, Bao Y, Shi Q, et al. Dynamic spatiotemporal correlation graph convolutional network for traffic speed prediction[J]. Symmetry, 2024, 16(3):No.308.
[24]	Liu M H, Zeng A L, Xu Z, et al. Time series is a special sequence: forecasting with sample convolution and interaction[J/OL].[2021-12-20]. .
[25]	Choi J, Choi H, Hwang J, et al. Graph neural controlled differential equations for traffic forecastting[C]∥Proceedings of the AAAI Conference on Artificial Intelligence, 2022, 36(6): 6367-6374.
[26]	Qian W Z, Zhang D L, Zhao Y, et al. Uncertainty quantification for traffic forecasting: A unified approach[C]∥IEEE 39th International Conference on Data Engineering(ICDE), Piscataway, USA, 2023: 992-1004.
[27]	Hou Y, Zhang D, Li D, et al. Regional traffic flow combination prediction model considering virtual space of the road network[J]. Physica A: Statistical Mechanics and its Applications, 2024, 637: No.129598.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

数据集	地区	节点	日期	长度
PeMSD4	旧金山湾区	307	2018年1~2月	16 992
PeMSD8	圣贝纳迪诺区	170	2016年7~8月	17 856
成都-滴滴	成都	524	2018年1~4月	17 280

模型	PeMSD4			PeMSD8			成都-滴滴
模型	MAE	RMSE	R²	MAE	RMSE	R²	MAE	RMSE	R²
CNN-LSTM	20.69	35.05	0.920 1	16.41	26.63	0.926 4	2.32	3.51	0.693 3
ASTGCN	20.44	32.81	0.919 3	16.49	25.36	0.928 5	2.34	3.49	0.692 0
DCRNN	22.28	34.29	0.916 6	16.74	25.63	0.928 8	2.78	4.09	0.581 8
SCINet	20.41	32.48	0.960 0	16.69	26.15	0.938 0	2.25	3.45	0.690 5
STG-NCDE	20.29	31.99	0.960 0	15.82	24.89	0.960 8	2.32	3.44	0.693 2
DeepSTUQ	19.15	31.36	0.933 9	15.04	23.97	0.938 8	2.29	3.44	0.693 3
FGI	19.31	31.68	0.928 2	14.93	23.64	0.939 6	2.18	3.31	0.714 2
STC-GCL-MGRU	18.79	30.28	0.962 8	14.65	23.69	0.963 4	2.16	3.27	0.731 3

模型	5 min			30 min			60 min
模型	MAE	RMSE	R²	MAE	RMSE	R²	MAE	RMSE	R²
SCINet	14.49	22.17	0.940 1	18.12	28.32	0.926 5	19.81	31.14	0.910 4
STG-NCDE	14.22	21.79	0.948 0	17.38	27.44	0.928 7	19.27	30.36	0.912 3
DeepSTUQ	13.54	20.99	0.948 6	16.12	25.46	0.930 0	18.41	28.91	0.917 0
STC-GCL-MGRU	13.26	20.62	0.960 3	15.75	15.14	0.950 3	18.11	28.71	0.941 3

模型	PeMSD8
模型	MAE	RMSE	R²
GRU-GCL	23.09	33.29	0.950 0
STC-GCL-ADD-IG	17.64	28.39	0.961 4
STC-GCL-ADD-ST	17.19	27.79	0.963 1
STC-GCL-MGRU	14.65	23.69	0.963 4

模型	PeMSD8
模型	MAE	RMSE	R²
STC-GCL-MGRU-IG	20.23	31.93	0.951 0
STC-GCL-MGRU-ST	18.41	29.36	0.958 7
STC-GCL-MGRU-GCU	17.19	27.79	0.963 1
STC-GCL-MGRU	14.65	23.69	0.963 4
