果园自走式弥雾喷雾机设计与仿真分析

doi:10.13229/j.cnki.jdxbgxb.20240140

摘要/Abstract

摘要：

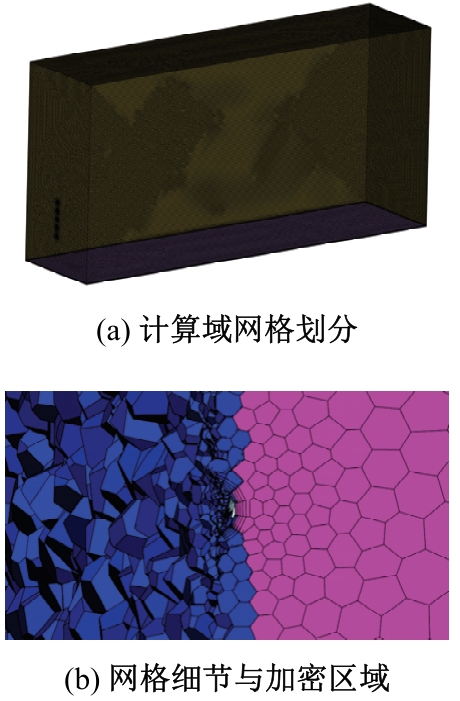

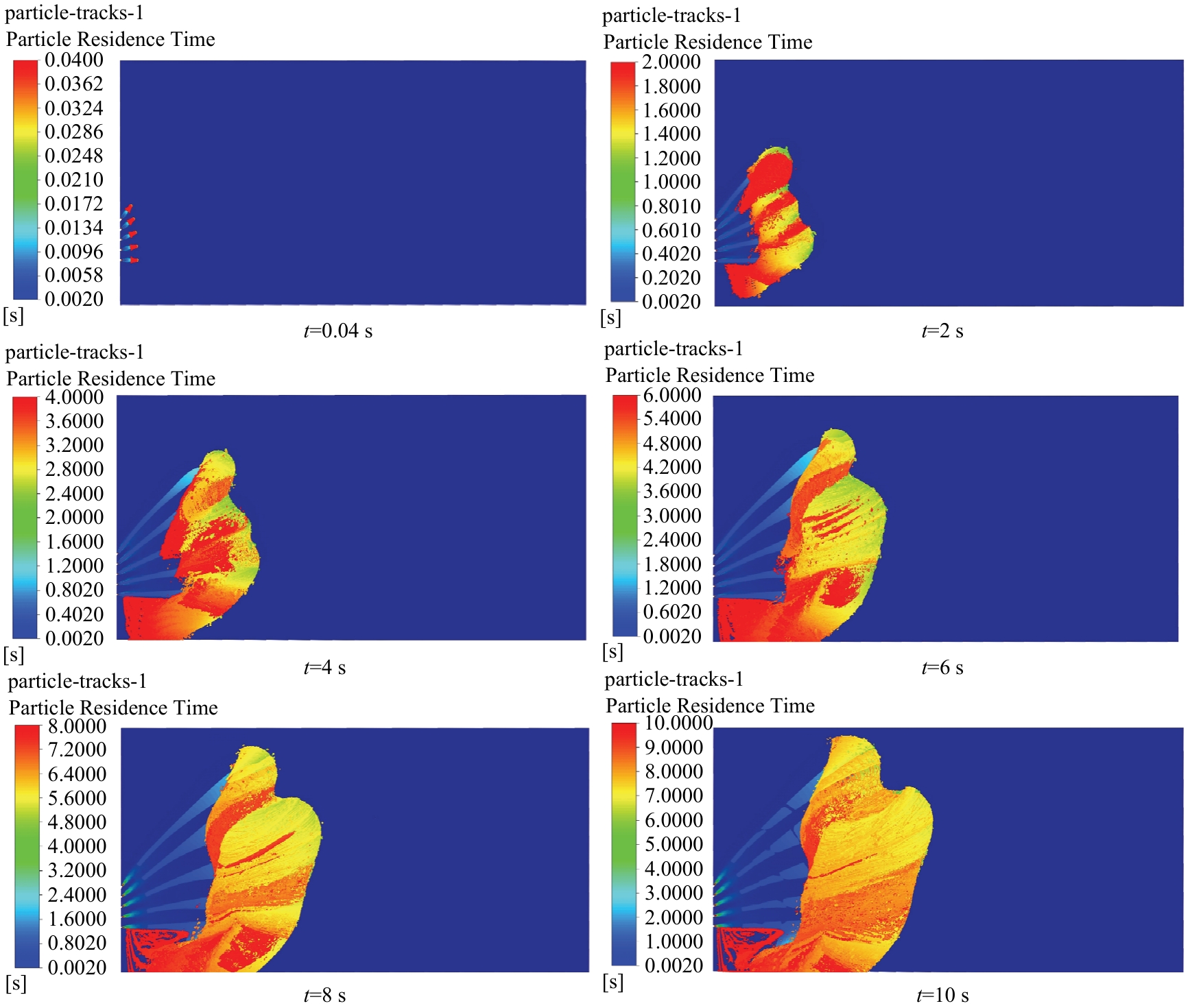

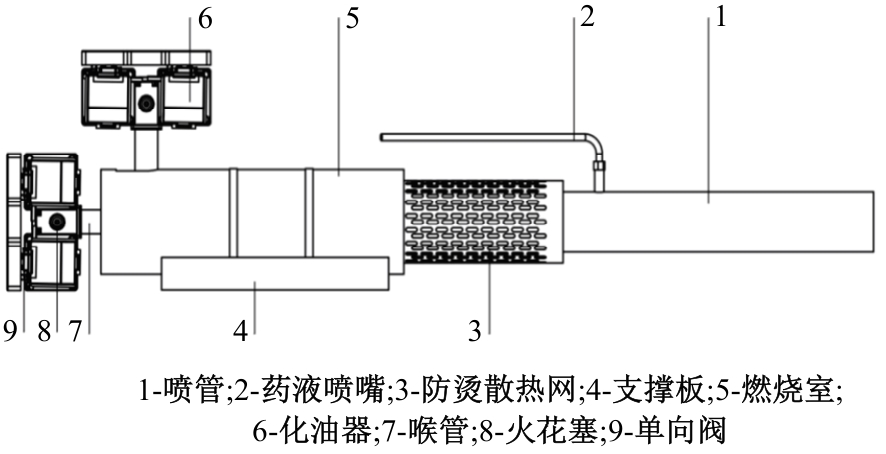

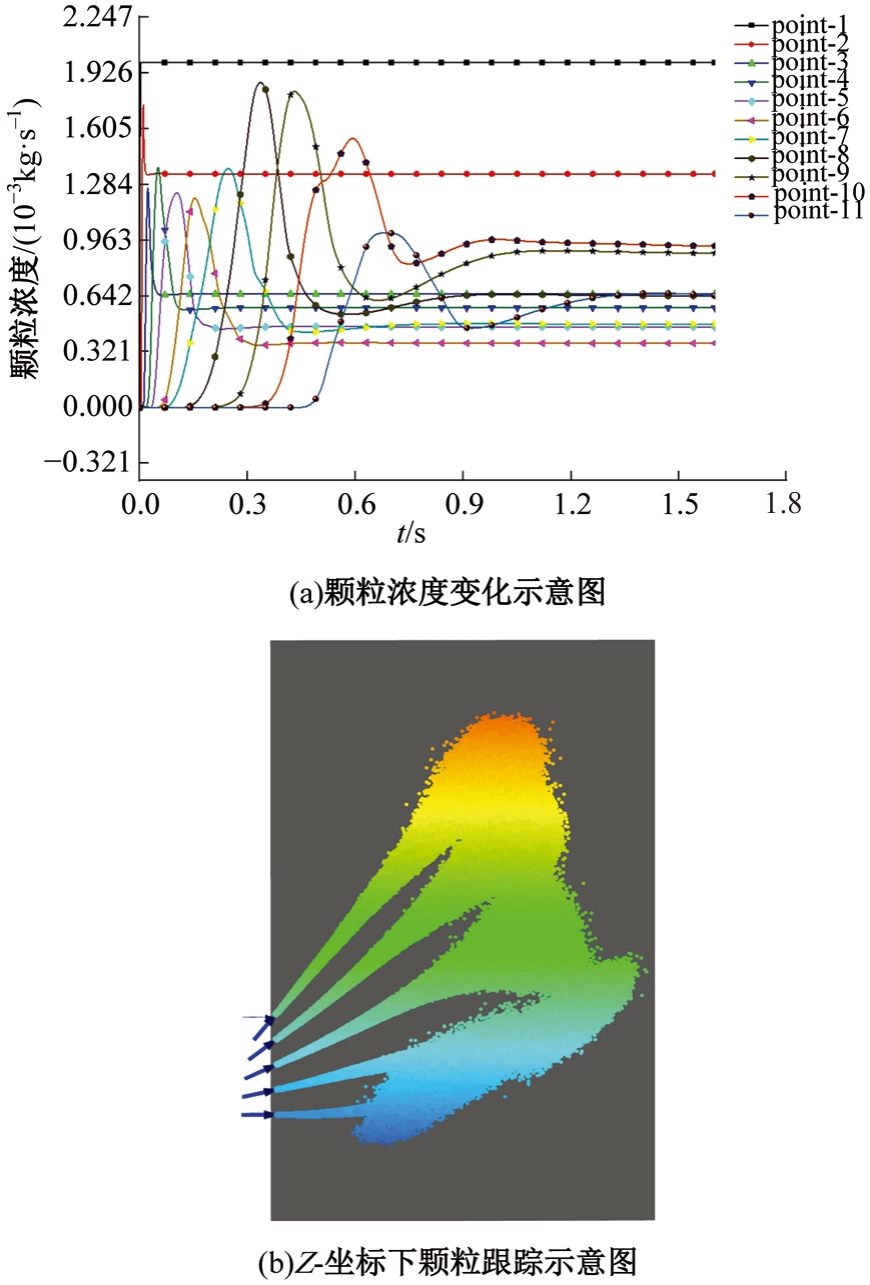

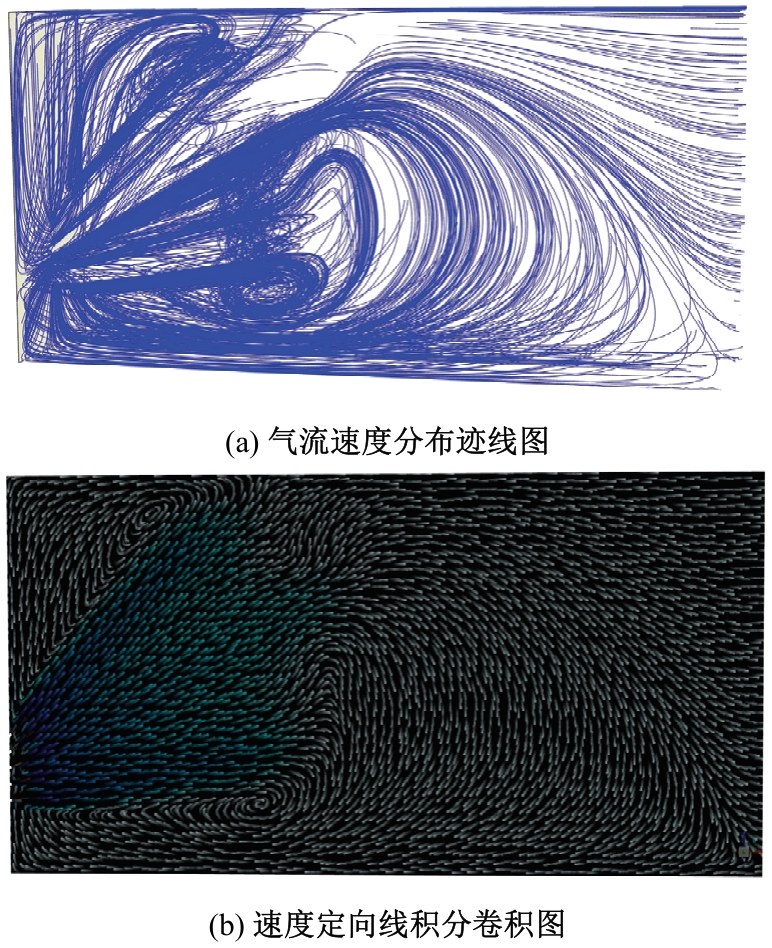

为解决低矮密植果园操作受限、传统大型施药设备入园困难、作业效率低和药液浪费严重等问题，设计研发了一款果园自走式弥雾喷雾机。该机具采用脉冲喷雾形式，通过高速气流提高喷雾的穿透性，增加冠层覆盖率，减少飘移，完成喷雾机整体结构和行走系统、喷雾系统、弥雾装置等关键部件设计，确定相邻两个弥雾装置喷口的垂直间距为420 mm，夹角为13°。利用ANSYS-Fluent软件建立喷雾系统的三维流场模型，采用 Realizable k-ε和DPM颗粒模型，仿真分析了喷雾速度变化、颗粒浓度变化和流场分布。对喷雾机作业过程进行现场试验，对比仿真结果，喷雾速度相对误差为5.75%，喷雾距离相对误差为7.52%，喷雾高度相对误差为6.84%。研究结果可为果园喷雾机的结构优化提供理论支撑。

关键词: 农业工程, 喷雾机, 脉冲式, 流场仿真, 湍流模型

Abstract:

A self-propelled orchard mist spray was designed and developed to solve the problems of limited operation in low and dense orchards， difficulty in entering traditional large-scale spraying equipment， low operating efficiency and serious waste of liquid medicine. The machine adopts the form of pulse spray， improves the penetration of spray through high-speed air flow， increases canopy coverage， reduces drift， completes the design of the overall structure of the spray machine and key components such as the walking system， spray system， and fog dispersion device， and determines that the vertical spacing between the nozzles of two adjacent fog dispersion devices is 420 mm， and the included angle is 13°. The three-dimensional flow field model of spray system is established by using ANSYS Fluent software， and the Realizable k-ε And DPM particle model， the change of spray velocity， particle concentration and flow field distribution were simulated and analyzed. The field test was carried out on the operation process of the spray machine. Compared with the simulation results， the relative error of spray speed was 5.75%， the relative error of spray distance was 7.52%， and the relative error of spray height was 6.84%. The research results can provide theoretical support for the structural optimization of orchard spray.

Key words: agricultural engineering, spray machine, pulse type, flow field simulation, turbulence model

中图分类号:

S491

邬圣贤,张克平,王久鑫. 果园自走式弥雾喷雾机设计与仿真分析[J]. 吉林大学学报(工学版), 2025, 55(11): 3762-3773.

Sheng-xian WU,Ke-ping ZHANG,Jiu-xin WANG. Design and simulation analysis of orchard self-propelled mist sprayer[J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(11): 3762-3773.

图/表 15

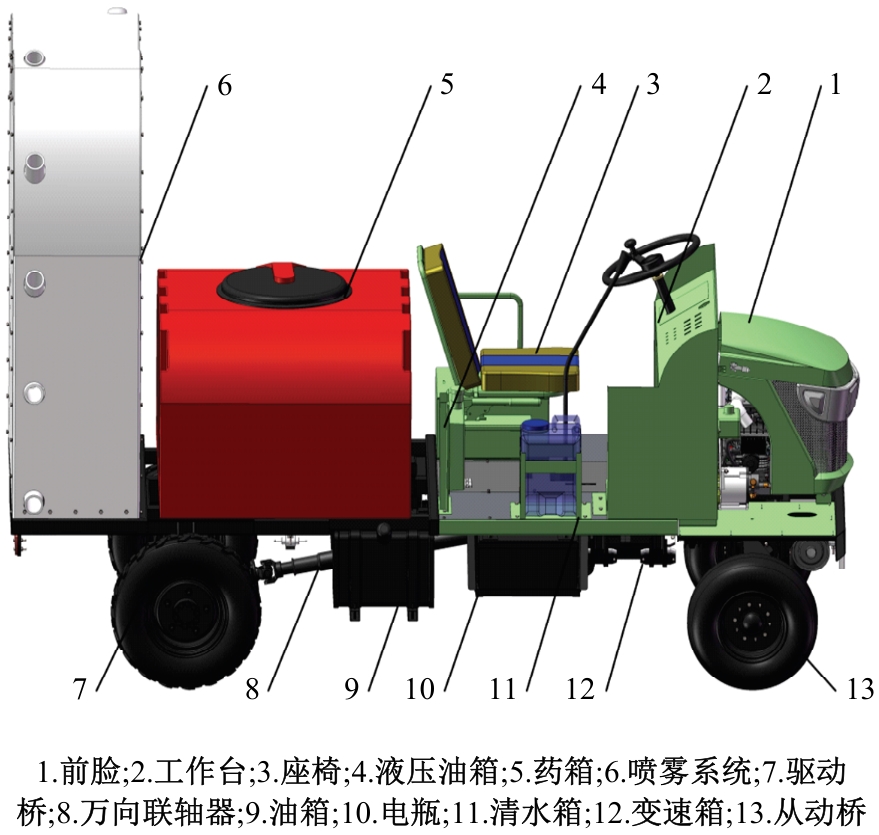

图1

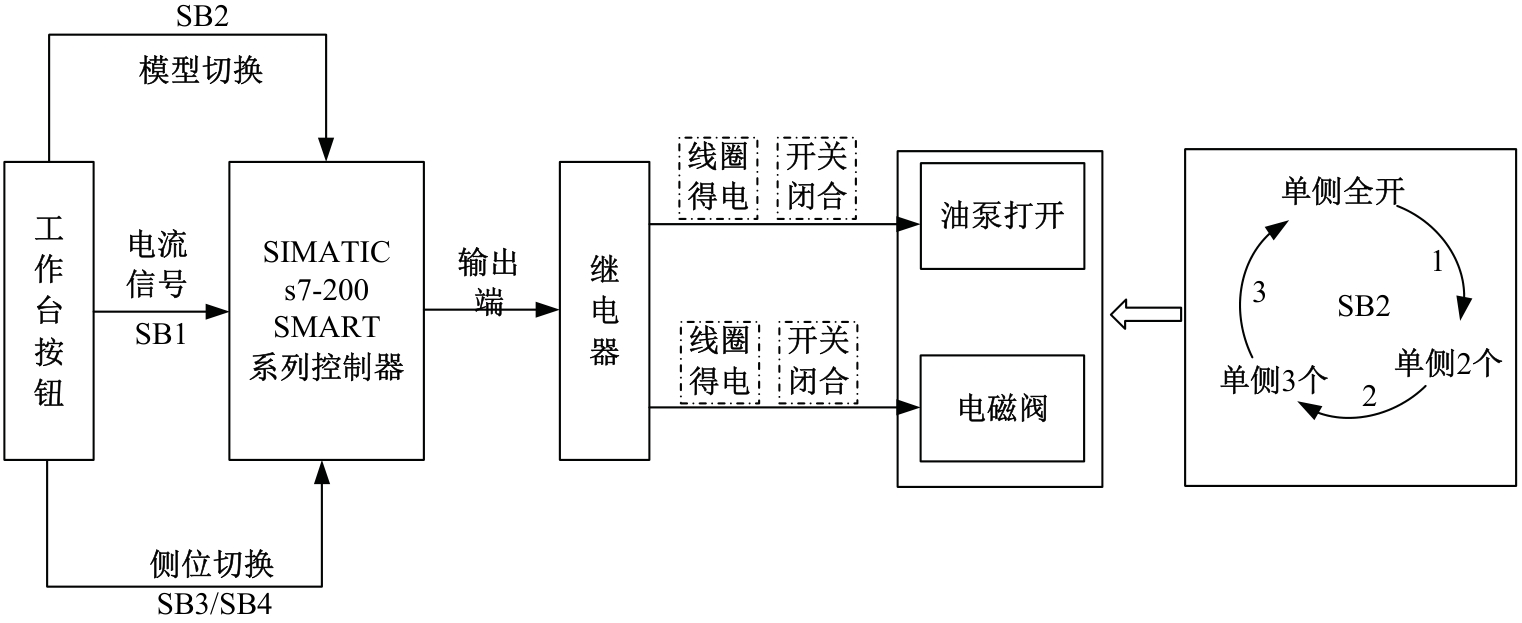

图2

表1

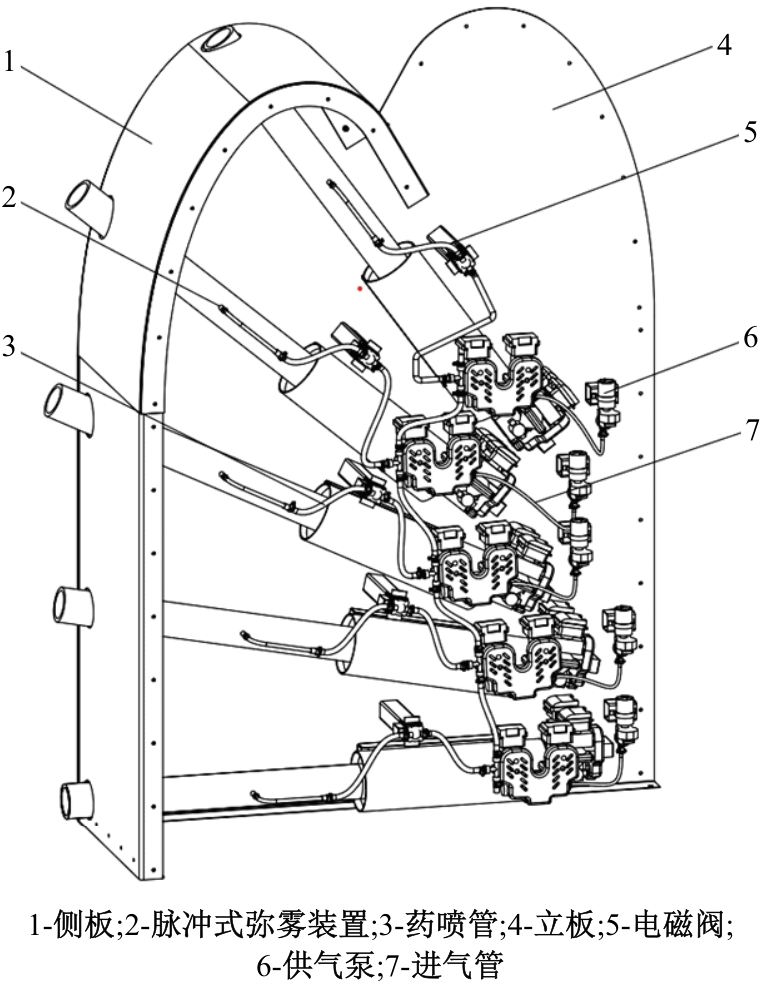

图3

图4

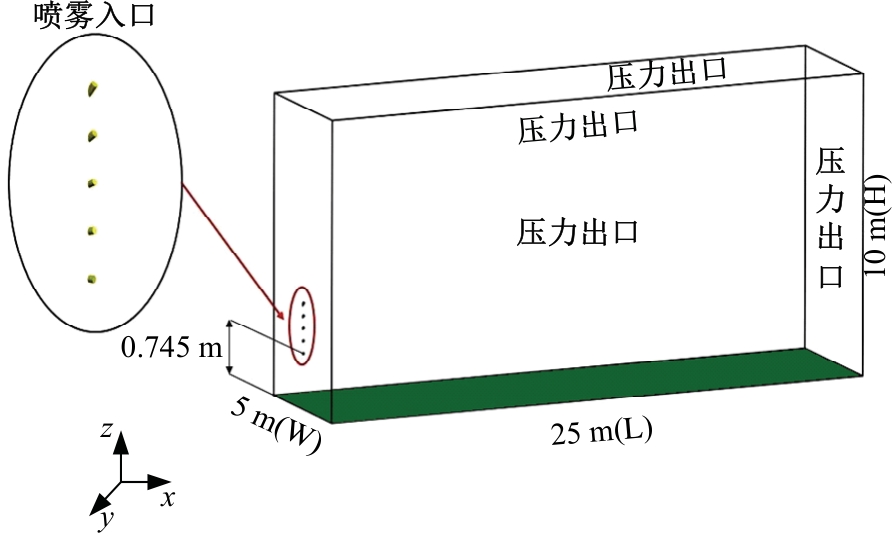

图5

图6

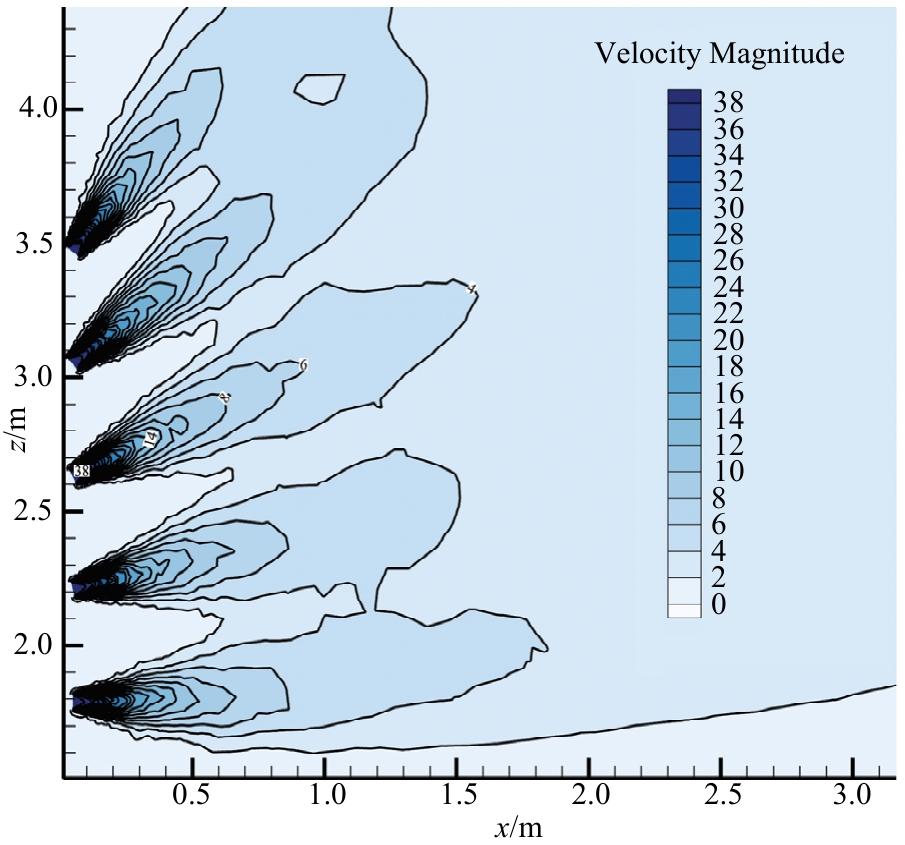

图7

图8

图9

图10

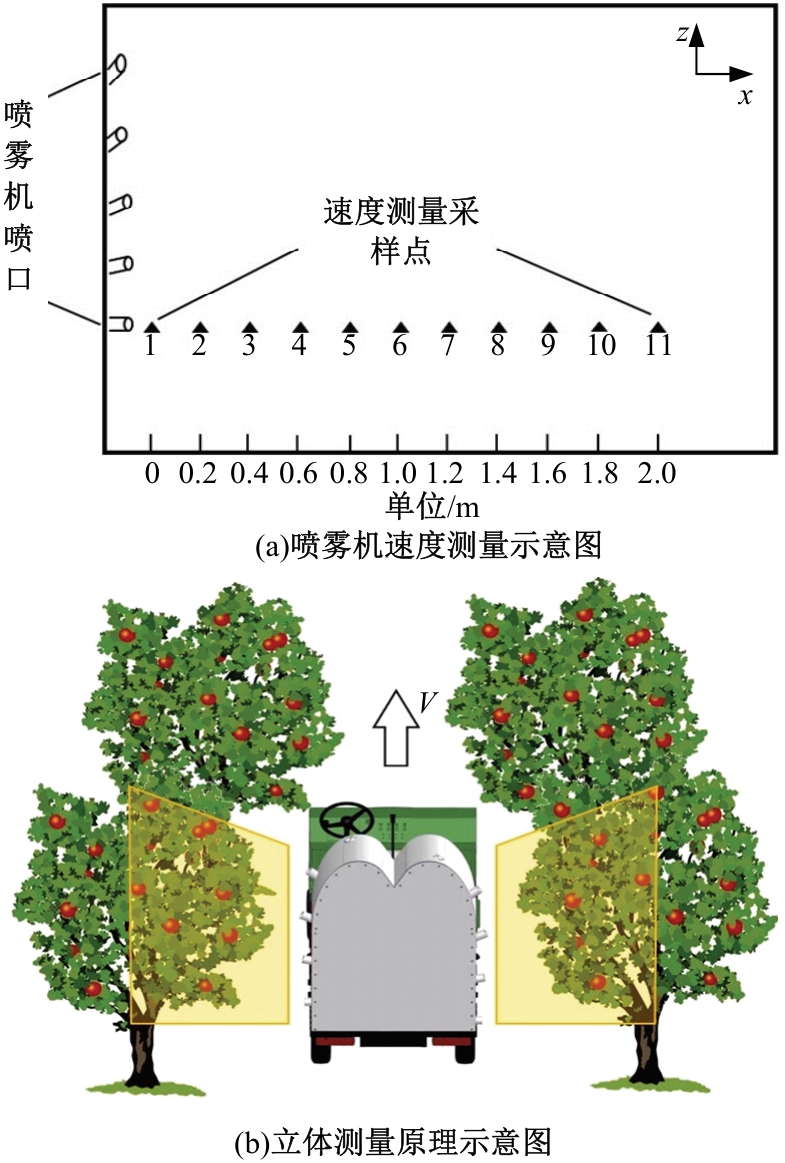

图11

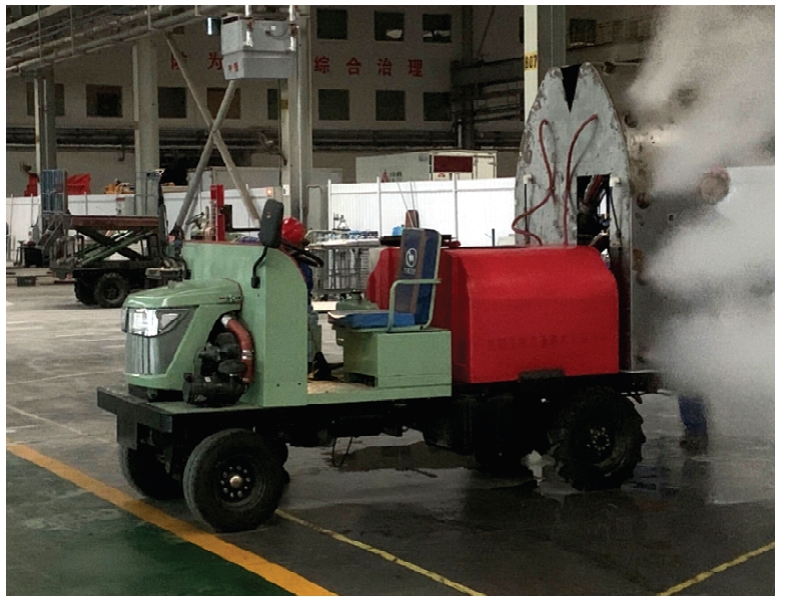

图12

表2

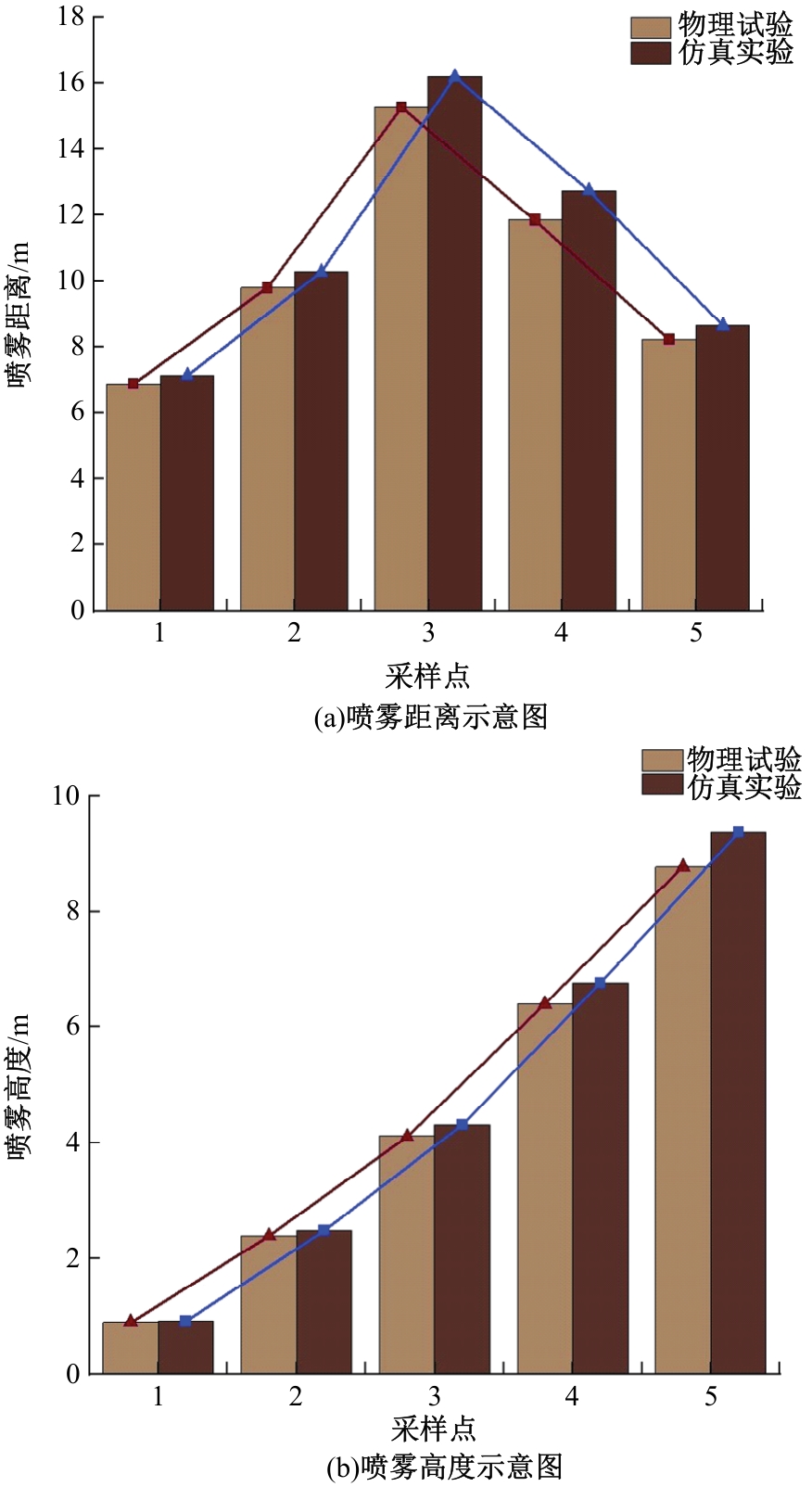

图13

参考文献 31

[1]	苏丽旭, 刘莉滋. 我国果园植保机械的现状与发展趋势 [J]. 农业装备技术, 2022, 48 (4): 4-8.
	Su Li-xu, Liu Li-zi. The current situation and development trends of orchard plant protection machinery in China[J]. Agricultural Equipment & Technology, 2022, 48 (4): 4-8.
[2]	赵映, 肖宏儒, 梅松, 等. 我国果园机械化生产现状与发展策略[J]. 中国农业大学学报, 2017, 22 (6): 116-127.
	Zhao Ying, Xiao Hong-ru, Mei Song, et al. Current status and development strategies of orchard mechanization production in China[J]. Journal of China Agricultural University, 2017, 22 (6): 116-127.
[3]	卢营蓬, 易文裕, 庹洪章, 等. 果园喷雾机械现状及发展趋势[J]. 中国农机化学报, 2018, 39 (1): 36-41.
	Lu Ying-peng, Yi Wen-yu, Hong-zhang Tuo, et al. Present state and trends of orchard sprayer[J]. Journal of Chinese Agricultural Mechanization, 2018, 39 (1): 36-41.
[4]	刘晓慧, 袁亮亮, 石鑫, 等. 植保施药机械喷雾雾滴飘移研究进展[J]. 农药学学报, 2022, 24 (2): 232-247.
	Liu Xiao-hui, Yuan Liang-liang, Shi Xin, et al. Research progress on spray drift of droplets of plant protection machainery[J]. Chinese Journal of Pesticide Science, 2022, 24 (2): 232-247.
[5]	郑永军, 陈炳太, 吕昊暾, 等. 中国果园植保机械化技术与装备研究进展[J]. 农业工程学报, 2020, 36(20): 110-124.
	Zheng Yong-jun, Chen Bing-tai, Hao-tun Lyu, et al. Research progress of orchard plant protection mechanization technology and equipment in China[J]. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(20): 110-124.
[6]	李建平, 边永亮, 杨欣, 等. 果园多风机风送喷雾机作业参数优化与试验[J]. 吉林大学学报: 工学版, 2022, 52(10): 2474-2485.
	Li Jian-ping, Bian Yong-liang, Yang Xin, et al. Operational parameter optimization and testing of an air-assisted multi-fan orchard sprayer[J]. Journal of Jilin University (Engineering and Technology Edition), 2022, 52 (10): 2474-2485.
[7]	宋淑然,阮耀灿,洪添胜,等.宽喷幅风送式喷雾机扩幅喷筒优化设计及试验[J].农业工程学报, 2013, 29(18): 34-42.
	Song Shu-ran, Ruan Yao-can, Hong Tian-sheng, et al. Optimal design and test on expanding duct of wide-swath air-blastsprayer[J]. Transactions of the Chinese Society of Agricultural Engineering, 2013, 29(18): 34-42.
[8]	徐奕蒙, 朱晓文, 刘志杰, 等. 基于计算流体动力学的风送式喷雾机风送系统流场模拟及结构优化[J]. 浙江大学学报: 农业与生命科学版, 2018, 44 (4): 451-458.
	Xu Yi-meng, Zhu Xiao-wen, Liu Zhi-jie, et al. Field simulation and structure optimization of the air conveying system in air assisted sprayer based on computer fluid dynamics[J]. Journal of Zhejiang University (Agric & Life Sci), 2018, 44(4): 451-458.
[9]	Endalew M A, Hertog M, Gebrehiwot G M, et al. Modelling airflow within model plant canopies using an integrated approach[J]. Computers and Electronics in Agriculture, 2008, 66 (1): 9-24.
[10]	Endalew M A, Debaer C, Rutten N, et al. Modelling pesticide flow and deposition from air-assisted orchard spraying in orchards: a new integrated CFD approach[J]. Agricultural and Forest Meteorology, 2010, 150 (10): 1383-1392.
[11]	Duga A, Ruysen K, Dekeyser D, et al. CFD based analysis of the effect of wind on orchard spraying[J]. Chemical Engineering Transactions, 2015, 44: 289-294.
[12]	Duga T A, Delele A M, Ruysen K, et al. Development and validation of a 3D CFD model of drift and its application to air-assisted orchard sprayers[J]. Biosystems Engineering, 2016, 154: 62-75.
[13]	Hong S, Zhao L, Zhu H. SAAS, a computer program for estimating pesticide spray efficiency and drift of air-assisted pesticide applications[J]. Computers and Electronics in Agriculture, 2018, 155: 58-68.
[14]	Hong S, Zhao L, Zhu H. CFD simulation of pesticide spray from air-assisted sprayers in an apple orchard: tree deposition and off-target losses[J]. Atmospheric Environment, 2018, 175: 109-119.
[15]	樊桂菊, 牛成强, 张震明, 等. 多气流协同式果园V形防飘喷雾装置设计与试验[J]. 农业机械学报, 2022, 53 (3): 138-147.
	Fan Gui-ju, Niu Cheng-qiang, Zhang Zhen-ming, et al. Design and experiment of v-shaped orchard anti-drift spray device with multi-airflow cooperation[J]. Transactions of the Chinese Society for Agricultural Machinery, 2022, 53 (3): 138-147.
[16]	Vijay A, Justas J, Ethan K, et al. Dependence of pressure, combustion and frequency characteristics on valved pulsejet combustor geometries[J]. Flow, Turbulence and Combustion, 2018, 100 (3): 829-848.
[17]	Meng X, Jong D W, Kudra T. A state-of-the-art review of pulse combustion: principles, modeling, applications and R&D issues[J]. Renewable and Sustainable Energy Reviews, 2016, 55: 73-114.
[18]	蒋雪松, 周杰, 许林云, 等. 脉冲式烟雾水雾机工作频率影响因素研究[J]. 农业机械学报, 2019, 50 (11): 85-91.
	Jiang Xue-song, Zhou Jie, Xu Lin-yun, et al. Influence factors of working frequency of pulsed smoker/fogger[J]. Transactions of the Chinese Society for Agricultural Machinery, 2019, 50 (11): 85-91.
[19]	汪东, 陈青, 许林云, 等. 脉冲式烟雾水雾机热力雾化水剂农药效果分析[J]. 农业机械学报, 2020, 51 (11): 113-122.
	Wang Dong, Chen Qing, Xu Lin-yun, et al. Analysis on atomization effect of thermal atomization pesticidefor pulsed smoker/fogger[J]. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51 (11): 113-122.
[20]	王景旭, 祁力钧, 夏前锦. 靶标周围流场对风送喷雾雾滴沉积影响的CFD模拟及验证[J]. 农业工程学报, 2015, 31 (11): 46-53.
	Wang Jing-xu, Qi Li-jun, Xia Qian-jin. CFD simulation and validation of trajectory and deposition behavior of droplets around target affected by air flow field in greenhouse[J]. Transactions of the Chinese Society of Agricultural Engineering, 2015, 31 (11): 46-53.
[21]	刘立超, 孙可可, 张千伟, 等. 玉米植保无人机热雾喷施系统设计与雾滴分布特性试验[J]. 农业机械学报, 2022, 53 (12): 80-88.
	Liu Li-chao, Sun Ke-ke, Zhang Qian-wei, et al. Thermal spray system design and droplet distribution characteristics test of maize plant protection UAV[J]. Transactions of the Chinese Society for Agricultural Machinery, 2022, 53 (12): 80-88.
[22]	郭江鹏, 王鹏飞, 李昕昊, 等. 果园多风道喷雾机送风系统设计优化与试验 [J]. 智慧农业: 中英文, 2022, 4 (3): 75-85.
	Guo Jiang-peng, Wang Peng-fei, Li Xin-hao, et al. Design optimization and test of air supply system for multi-duct sprayer[J]. Smart Agriculture, 2022, 4 (3): 75-85.
[23]	姜红花, 牛成强, 刘理民, 等. 果园多风管风送喷雾机风量调控系统设计与试验 [J]. 农业机械学报, 2020, 51 (S2): 298-307.
	Jiang Hong-hua, Niu Cheng-qiang, Liu Li-min, et al. Design and experiment of air volume control system of orchard multi-pipe air sprayer[J]. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51 (S2): 298-307.
[24]	王韦韦, 谢进杰, 陈黎卿, 等. 3YZ-80A型履带自走式玉米行间喷雾机设计与试验[J]. 农业机械学报, 2021, 52 (9): 106-114.
	Wang Wei-wei, Xie Jin-jie, Chen Li-qing, et al. Design and experiment of 3YZ-80A crawler self-propelled corn interrow sprayer[J]. Transactions of the Chinese Society for Agricultural Machinery, 2021, 52(9): 106-114.
[25]	潘四普, 周宏平, 蒋雪松, 等. 油门开度对Helmholtz型脉动燃烧器温升特性影响的模拟与验证[J]. 农业工程学报, 2018, 34(8): 70-77.
	Pan Si-pu, Zhou Hong-ping, Jiang Xue-song, et al. Simulation and verification of effect of throttle opening on temperature rise characteristic of Helmholtz pulsating burner[J]. Transactions of the Chinese Society of Agricultural Engineering, 2018, 34 (8): 70-77.
[26]	刘秀娟, 张慧春. 不同雾化方式喷雾场的数值分析与试验验证[J]. 排灌机械工程学报, 2023, 41(9): 959-965.
	Liu Xiu-juan, Zhang Hui-chun. Numerical analysis and test verification of spray field of different atomization nozzle modes[J]. Journal of Drainage and Irrigation Machinery Engineering, 2023, 41(9): 959-965.
[27]	翟长远, 张燕妮, 窦汉杰, 等. 果园风送喷雾机出风口风场CFD建模与试验[J]. 智慧农业: 中英文, 2021, 3(3): 70-81.
	Zhai Chang-yuan, Zhang Yan-ni, Dou Han-jie, et al. CFD modeling and experiment of airflow at the air outlet of orchard air-assisted sprayer[J]. Smart Agriculture, 2021, 3(3): 70-81.
[28]	李绍波, 张阔, 王佳, 等. 基于CFD的风送喷雾装置风筒参数优化[J]. 中国农业科技导报, 2023, 25 (12): 93-102.
	Li Shao-bo, Zhang Kuo, Wang Jia, et al. Optimization of air duct parameters of air supply spray device based on CFD[J]. Journal of Agricultural Science and Technology, 2023, 25 (12): 93-102.
[29]	李雪, 陆岱鹏, 王士林, 等. 固定管道式常温烟雾系统雾滴沉积仿真与试验[J]. 农业机械学报, 2020, 51(S2): 261-267.
	Li Xue, Lu Dai-peng, Wang Shi-lin, et al. Simulation and test on droplet distribution and deposition of fixed pipe cold fogging system in greenhouse[J]. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51 (S2): 261-267.
[30]	陈志. 农业机械设计手册[M]. 北京: 中国农业科学技术出版社, 2007.
[31]	杨欣, 刘玉肖, 王阳, 等. 果园多风管喷雾机风送系统CFD仿真与试验[J]. 吉林大学学报: 工学版, 2024, 54(9): 2723-2732.
	Yang Xin, Liu Yu-xiao, Wang Yang, et al. CFD simulation and test of wind delivery system of multi-duct sprayer in orchard[J]. Journal of Jilin University (Engineering and Technology Edition), 2024, 54(9): 2723-2732.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

参数		数值/形式
结构形式		自走式（前置后驱）
车身	（长×宽×高）/mm×mm×mm	3 300×1 280×1 270
喷雾系统	（长×宽×高）/mm×mm×mm	500×1 265×1 720
整机重量/kg		1 860
作业速度/（m·s^-1）		3~8
药箱容积/ L		880
喷雾水平射程/m		≥8
喷雾垂直射程/m		3~12（自测）
作业模式		脉冲式弥雾装置
弥雾装置数量		10
单个弥雾装置耗水量/（L·h^-1）		60
单个弥雾装置耗油量/（L·h^-1）		3.6
配套动力/Hp		30
工作频率/Hz		1 800

采样点	现场试验/（m·s^-1）	仿真实验/（m·s^-1）	相对误差/%
1	37.30	38.13	2.23
2	21.32	21.98	3.10
3	10.48	10.90	4.01
4	7.23	7.58	4.84
5	5.57	5.88	5.57
6	4.21	4.44	5.46
7	3.65	3.86	5.75
8	3.41	3.57	4.69
9	2.90	3.04	4.83
10	2.65	2.79	5.28
11	2.34	2.42	3.42
