吉林大学学报(工学版) ›› 2026, Vol. 56 ›› Issue (3): 670-680.doi: 10.13229/j.cnki.jdxbgxb.20240807

• 材料科学与工程 • 上一篇

热处理温度对激光沉积修复TA15高温疲劳性能的影响

丛家慧1,2(),朱旭阳1,2,周松1,3(),高首龙1,2,刘卓1,2

  1. 1.沈阳航空航天大学 机电工程学院，沈阳 110136
    2.飞行器快速试制技术研究教育部重点实验室，沈阳 110136
    3.沈阳飞机设计研究所，沈阳 110035
  • 收稿日期:2024-07-18 出版日期:2026-03-01 发布日期:2026-03-31
  • 通讯作者: 周松 E-mail:congjiahui2011@163.com;zhousong23@163.com
  • 作者简介:丛家慧（1980-），女，副教授，博士. 研究方向：航空材料表面强化. E-mail： congjiahui2011@163.com
  • 基金资助:
    国家自然科学基金项目(52105157);中国博士后科学基金项目(2023MD734242);辽宁省教育厅重点攻关项目(JYTZD2023007)

Effect of heat treatment temperature on high temperature fatigue properties of TA15 repaired by laser deposition

Jia-hui CONG1,2(),Xu-yang ZHU1,2,Song ZHOU1,3(),Shou-long GAO1,2,Zhuo LIU1,2

  1. 1.School of Mechanical and Electrical Engineering，Shenyang Aerospace University，Shenyang 110136，China
    2.Key Laboratory of Rapid Development & Manufacturing Technology for Aircraft（Shenyang Aerospace University），Ministry of Education，Shenyang 110136，China
    3.Shenyang Aircraft Design and Research Institute，Shenyang 110135，China
  • Received:2024-07-18 Online:2026-03-01 Published:2026-03-31
  • Contact: Song ZHOU E-mail:congjiahui2011@163.com;zhousong23@163.com

RICH HTML

 1

PDF (PC)

28

摘要：

本文研究了TA15钛合金激光沉积修复件经不同温度热处理后，在500 ℃服役条件下不同应力的高温疲劳性能，分析了其组织演变对疲劳寿命的影响。结果表明：热处理为900 ℃与950 ℃时，母材初生α相含量减少，次生α生长变粗，热影响区组织由过渡组织向网篮组织转变。当热处理温度达到1 000 ℃时，α相转变为高温β相，再结晶形成极细的β晶粒。3种热处理温度下1 000 ℃试样的高温疲劳寿命最长，高应力下900 ℃试样与1 000 ℃试样的高温疲劳寿命相差不大，950 ℃试样高温疲劳寿命在高、低应力下均短于其他两组。根据断口分析，1 000 ℃试样疲劳裂纹主要为穿过α相扩展，消耗大量能量，造成其高温疲劳寿命相比其他两种热处理温度更长。

关键词: TA15钛合金, 激光沉积修复, 热处理, 显微组织, 高温疲劳性能

Abstract:

This paper investigates the high-temperature fatigue performance of TA15 titanium alloy laser-deposited repairs under different stress levels at 500 ℃ after heat treatment at various temperatures， analyzing the impact of microstructural evolution on fatigue life. The results show that when heat-treated at 900 ℃and 950 ℃， the content of the primary α phase in the base material decreases， the secondary α phase coarsens， and the microstructure in the heat-affected zone transitions from a transitional structure to a basket-weave structure. When the heat treatment temperature reaches 1 000 ℃， the α phase transforms into the high-temperature β phase， and recrystallization results in the formation of extremely fine β grains. Among the three heat treatment temperatures， the specimen treated at 1 000 ℃ exhibited the longest high-temperature fatigue life. Under high stress， the fatigue life of the specimens treated at 900 ℃ and 1 000 ℃ was comparable， while the specimen treated at 950 ℃ showed shorter high-temperature fatigue life under both high and low stress conditions compared to the other two groups. Fractographic analysis indicated that in the 1 000 ℃ specimen， fatigue cracks predominantly propagated through the α phase， consuming significant energy， which contributed to its longer high-temperature fatigue life compared to the other two heat treatment conditions.

Key words: TA15 titanium alloy, laser deposition repair, heat treatment, microstructure, high temperature fatigue property

中图分类号:

  • TG405

表1

TA15球形粉末化学成分"

成分含量成分含量
Al6.62Si0.02
V2.13C0.01
Zr2.10N0.01
Mo1.67H0.003
O0.11Ti余量
Fe0.04

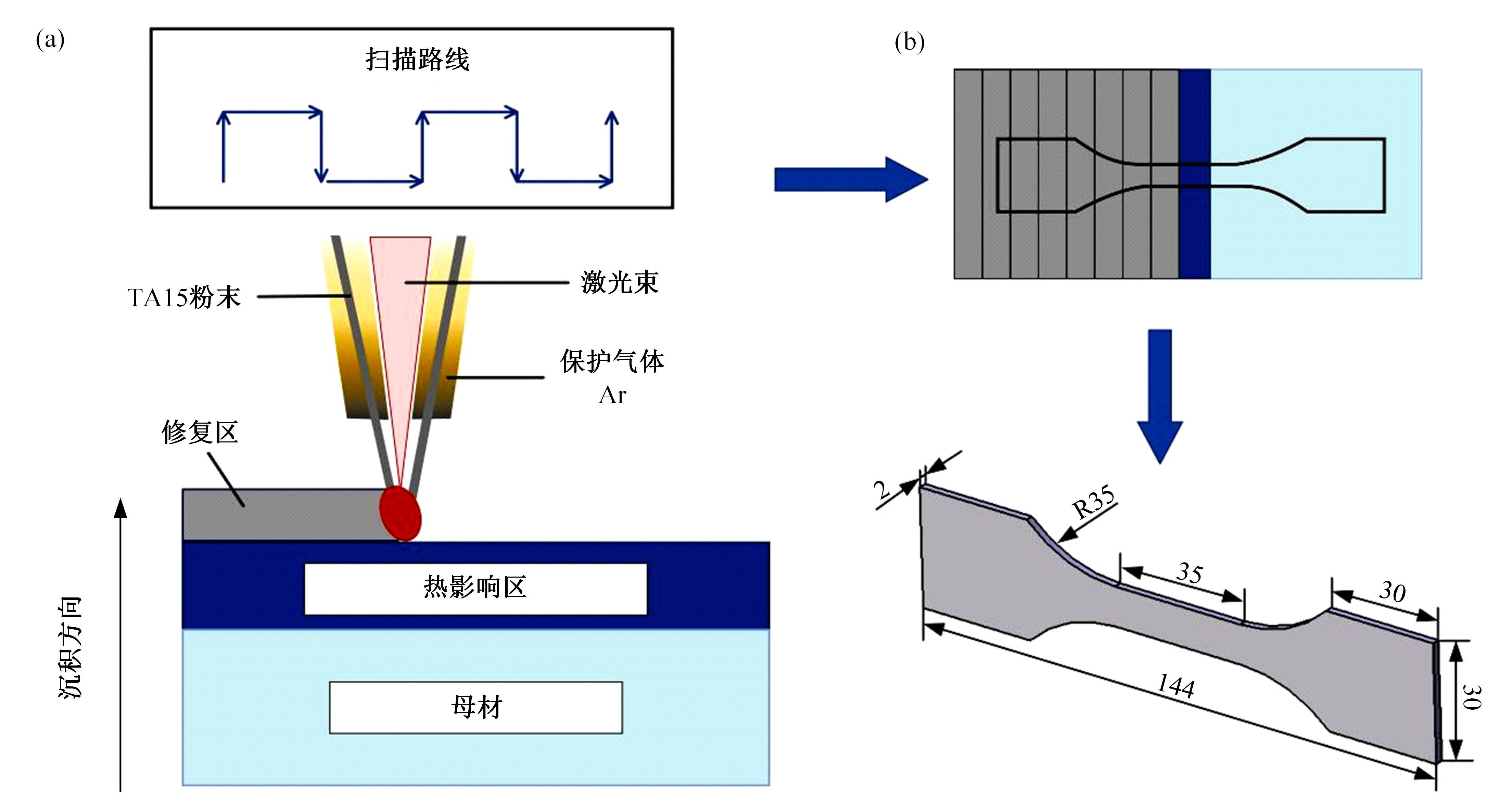

图1

沉积修复加工示意图"

图2

不同温度热处理后的金相组织"

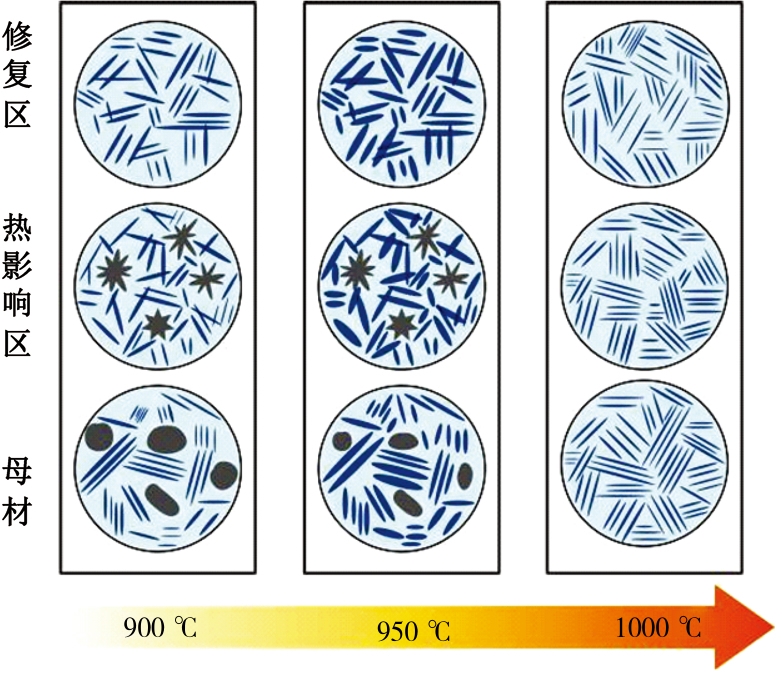

图3

不同温度热处理后的金相转变图"

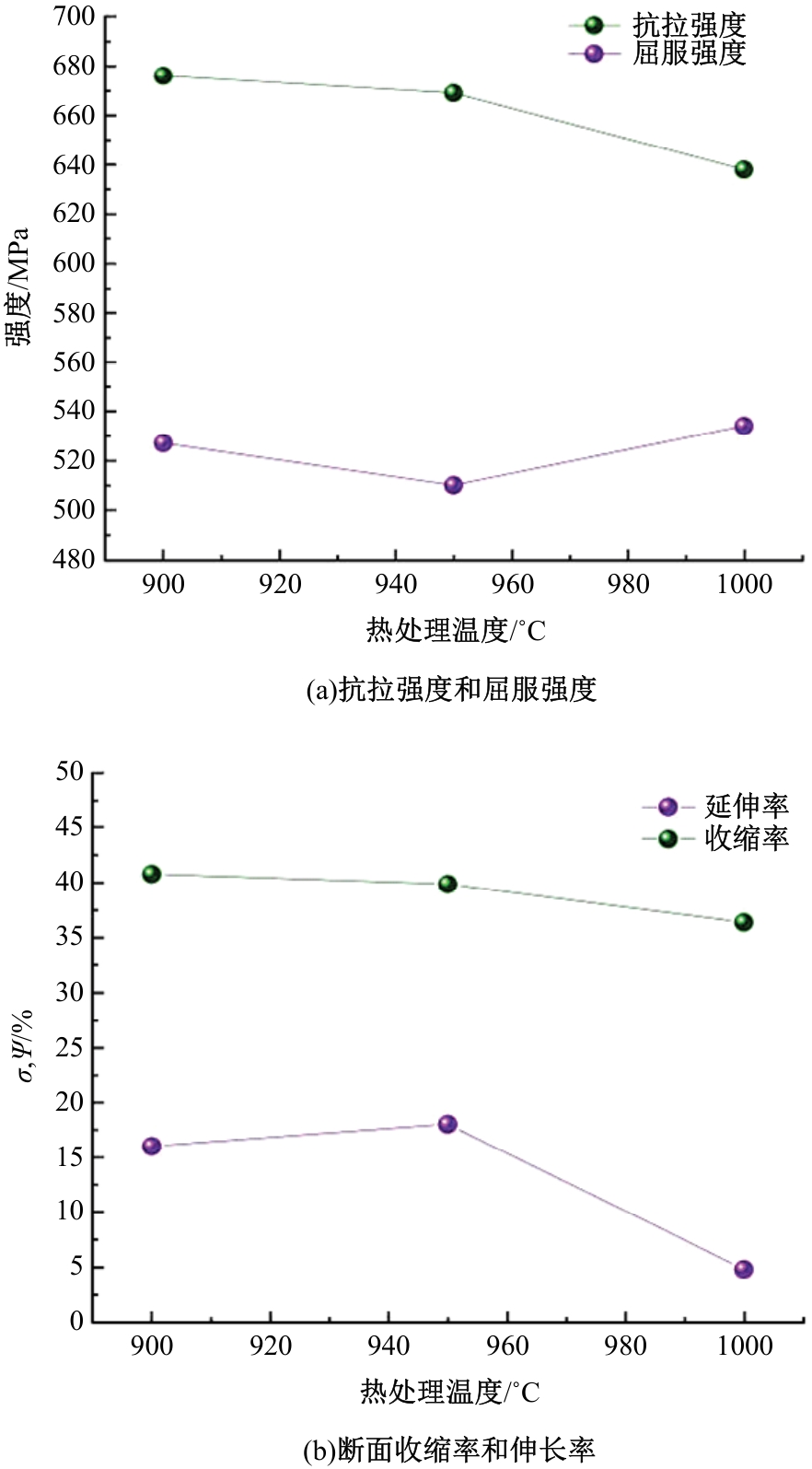

图4

不同热处理温度下的拉伸性能"

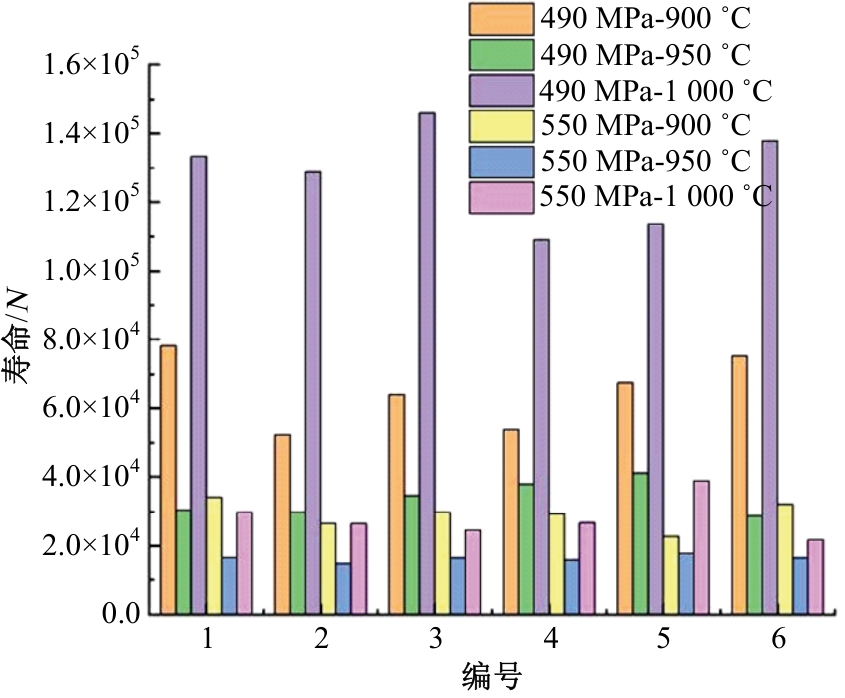

图5

高、低应力高温疲劳寿命对比柱状图"

表2

490 MPa应力下的高温疲劳寿命统计参数"

试样类型对数寿命平均值/xˉ标准差/S子样变异系数/Cv中值疲劳寿命/N50试样个数/n
900 ℃4.809 0590.072 4420.015 06364 4266
950 ℃4.524 4020.062 4520.013 80333 4516
1 000 ℃5.105 1960.049 1830.009 634127 4086

表3

550 MPa应力下的高温疲劳寿命统计参数"

试样类型对数寿命平均值/xˉ标准差/S子样变异系数/Cv中值疲劳寿命/N50试样个数/n
900 ℃4.460 2250.063 2470.014 18028 8556
950 ℃4.213 4280.025 5610.006 06616 3476
1 000 ℃4.440 0900.085 6270.019 28527 5486

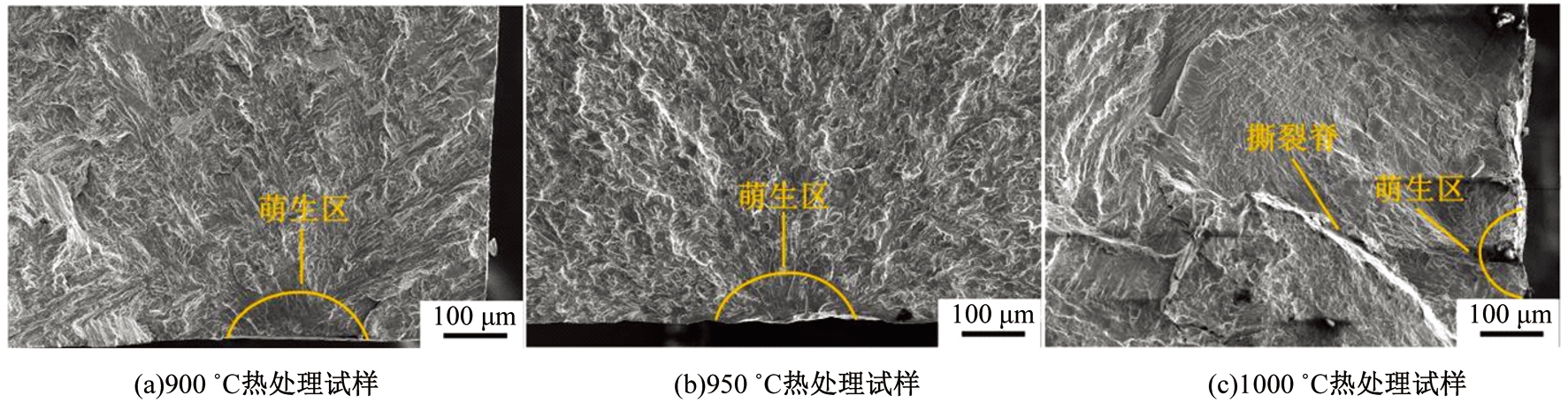

图6

高应力高温疲劳断口萌生区"

图7

低应力高温疲劳断口萌生区"

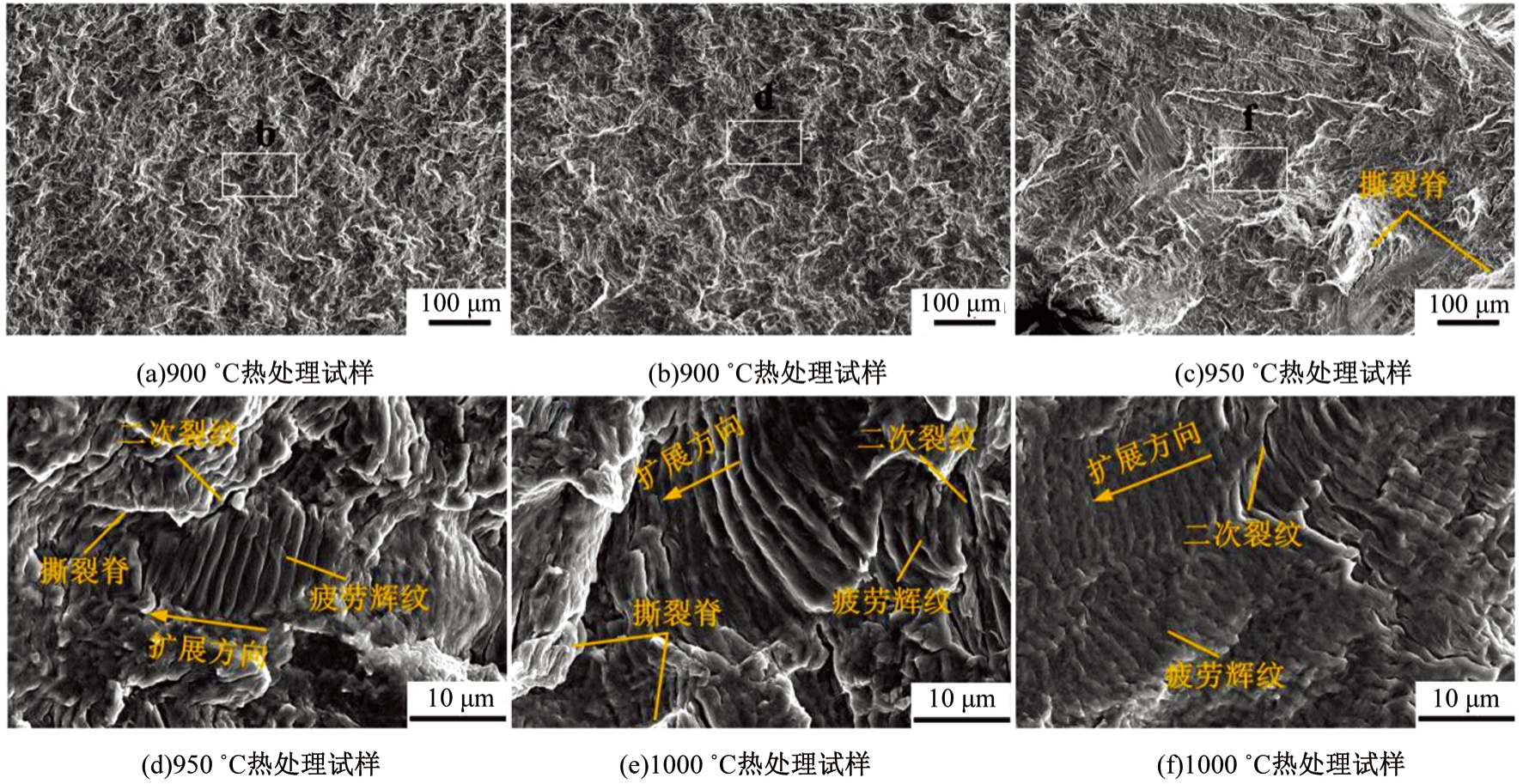

图8

高应力高温疲劳断口的扩展区"

图9

低应力高温疲劳断口的扩展区"

图10

高应力高温疲劳断口瞬断区"

图11

低应力高温疲劳断口瞬断区"

图12

断口萌生区附近金相组织"

[1] Li J, Xu Y Q, Xiao W L,et al.Development of Ti-Al-Ta-Nb-(Re) near-α high temperature titanium alloy: microstructure, thermal stability and mechanical properties[J].Journal of Materials Science & Technology, 2022, 109(14): 1-11.
[2] Qin H Z, Maierdan A, Li N, et al.Dynamic response of Ti-6Al-2Zr-1Mo-1V alloy manufactured by laser powder-bed fusion[J]. Materials, 2024, 17(13): 3361-3361.
[3] Chen G, Peng Y B, Zheng G, et al. Polysynthetic twinned TiAl single crystals for high-temperature applications[J]. Nature Materials, 2016, 15(8): 876-881.
[4] Zhong W, Yu K, Shi J P, et al.High-temperature oxidation behavior of TA15 aerospace titanium alloy at 500 ℃ and 800 ℃[J].Journal of Materials Research and Technology, 2024, 30: 3355-3366.
[5] Aprilia A, Naien W, Wei Z. Repair and restoration of engineering components by laser directed energy deposition[J]. Materials Today: Proceedings, 2022, 70: 206-211.
[6] Grum J, Slabe J. A comparison of tool-repair methods using CO2 laser surfacing and arc surfacing[J].Applied Surface Science, 2003, 208: 424-431.
[7] Graf B, Ammer S, Gumenyuk A, et al. Design of experiments for laser metal deposition in maintenance, repair and overhaul applications[J].Procedia CIRP, 2013, 11: 245-248.
[8] Graf B, Gumenyuk A, Rethmeier M. Laser metal deposition as repair technology for stainless steel and titanium alloys[J].Physics Procedia, 2012, 39: 376-381.
[9] Dong E J, Chang T Y, Zhao L J, et al. Laser metal deposition of AlSi10Mg for aeroengine casing repair: microhardness, wear and corrosion behavior[J].Materials Today Communications, 2024, 38: 108412.
[10] Zhou S, Yu H Y, An J L, et al.Study on fatigue crack growth behavior of the TA15 titanium alloy repaired by laser deposition[J]. Engineering Failure Analysis, 2024, 161: 108276.
[11] He S T, Zeng W D, Jia R C, et al.The mechanical response and failure mechanism of a near α titanium alloy under high-strain-rate compression at different temperatures[J]. Materials Science & Engineering A, 2021, 814: 140749.
[12] Zhang Y X, Zhang H Q, Xue J L, et al. Microstructure transformed by heat treatment to improve fatigue property of laser solid formed Ti6Al4V titanium alloy[J]. Materials Science & Engineering A, 2023, 865: 144363.
[13] 陈宇强, 贺梓泯, 潘素平, 等. Ti-55511合金显微组织对其高温疲劳行为的影响[J]. 中国有色金属学报,2023, 33(3): 767-780.
Chen Yu-qiang, He Zi-min, Pan Su-ping, et al. Effect of microstructure on fatigue behavior of Ti-55511 alloy at high temperature[J]. Chinese Journal of Colored Metals, 2023, 33(3): 767-780.
[14] Li G, Guo Y Y, Rui S S, et al. High-temperature fatigue behavior of TC17 titanium alloy and influence of surface oxidation[J]. International Journal of Fatigue, 2023, 176: 107896.
[15] Chi J X, Cai J Y, Zhang H P, et al.Titanium alloy components fabrication by laser depositing TA15 powders on TC17 forged plate: microstructure and mechanical properties[J]. Material Science & Engineering A, 2021, 818: 141382.
[16] 张旺峰, 王玉会, 李艳, 等. TA15钛合金的相变、组织与拉伸性能[J].中国有色金属学报, 2010, 20(): 523-527.
Zhang Wang-feng, Wang Yu-hui, Li Yan, et al. Phase transformation, microstructure and tensile properties of TA15 titanium alloy[J]. The Chinese Journal of Nonferrous Metals,2010, 20(Sup.1): 523-527.
[17] Zhang S, Zhang Y, Qi J, et al. Effect of heat treatment on the microstructure and mechanical properties of additive manufactured Ti-6.5Al-2Zr-1Mo-1V alloy [J]. Materials, 2022, 16(1): 1601160.
[18] 石晓辉. 网篮组织TC18钛合金损伤容限性能及高周疲劳强度研究[D]. 西安: 西北工业大学材料学院, 2016.
Shi Xiao-hui. Study on damage tolerance and high cycle fatigue strength of TC18 titanium alloy in basket structure [D].Xi'an: School of Materials, Northwestern Polytechnical University, 2016.
[19] Huang S, Sun B B, Guo S Q. Microstructure and property evaluation of TA15 titanium alloy fabricated by selective laser melting after heat treatment[J]. Optics and Laser Technology, 2021, 144: 107422.
[20] 曾立英, 杨冠军, 赵永庆, 等.Ti-600合金的高周疲劳性能研究[J]. 稀有金属材料与工程, 2011, 40(7): 1202-1205.
Zeng Li-ying, Yang Guan-jun, Zhao Yong-qing, et al. High cycle fatigue properties of Ti-600 alloy [J]. Rare Metal Materials and Engineering, 2011, 40(7):1202-1205.
