Reliability of truck braking on downhill sections of highways based on stopping sight distance

Hang ZHANG1(),Yu-hao XIONG1,Neng-chao LYU2

  1. 1.School of Transportation and Logistics Engineering，Wuhan University of Technology，Wuhan 430063，China
    2.Intelligent Transportation Systems Research Center，Wuhan University of Technology，Wuhan 430063，China
  • Received:2024-07-10 Online:2026-02-01 Published:2026-03-17

RICH HTML

 0

PDF (PC)

13

Abstract:

In order to further improve the safety of truck braking process， the reliability of truck stopping sight distance on downhill section of highway is studied. A four-stage stopping sight distance model considering the ABS is constructed. The reliability theory is introduced to analyze the reliability of truck stopping sight distance on the downhill section of the highway by using Monte Carlo method， and the suggested value of truck stopping sight distance is given. Furthermore， the rationality of the model is verified by engineering examples and TruckSim simulation. The results show that there is a positive correlation between the probability of stopping sight distance failure and the accident rate； the error of the calculated value of the reliability model is smaller than the standardized value， and the results are more conservative. It shows that the research results have certain practical significance for reducing road safety risks.

Key words: highway engineering, reliability theory, stopping sight distance, truck, highway, TruckSim

CLC Number:

  • U412.3

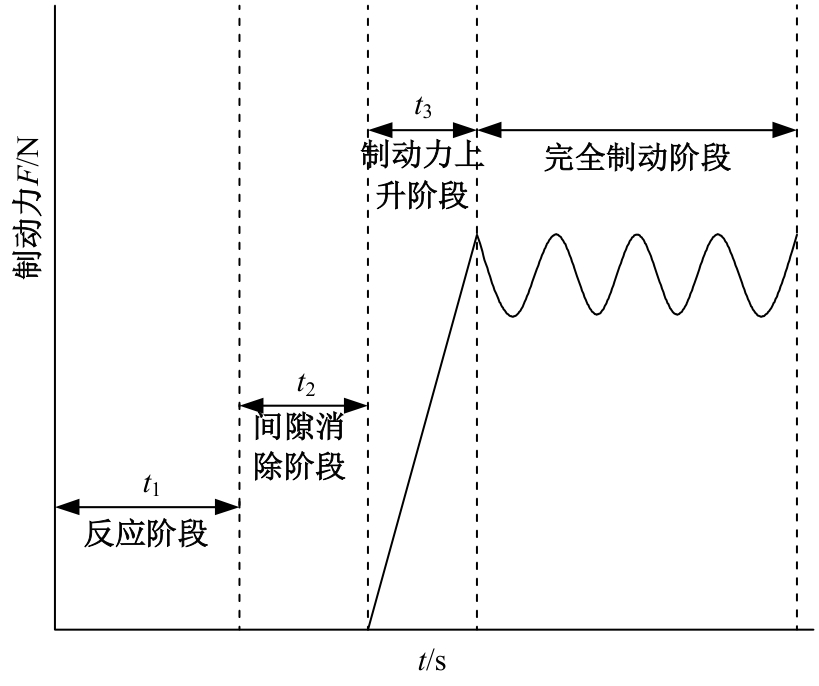

Fig 1

Four-stage model of parking sight distance under the influence of the ABS"

Table 1

Specified value of stopping dight distance for trucks on downhill sections"

纵坡坡度/%设计速度/（km·h-1）
12010080
0245180125
3265190130
4273195132
5200136
6139

Table 2

Related parameters of truck speed on downhill section of a highway in central China"

设计速度/ （km·h-1）

样本

数

正态参数/（km·h-1）logistic参数
平均值标准差位置参数尺度参数
8078563.6116.19763.6113.417
10094280.7657.12480.7653.928
12093897.5258.21197.5254.527

Table 3

Relationship of friction index to skid resistance、coefficient of friction and pavement condition"

摩擦指数抗滑性能实际摩擦因数对应路面状况
1级优异0.75~0.96常温、干燥、无杂质
1级良好0.65~0.75干燥、无积水
1级正常0.56~0.64潮湿、少量积水
2级稍差0.51~0.55积水、低温
3级较差0.41~0.50积水伴浮雪、霜
4级很差0.31~0.40积雪
5级极差0.18~0.30结冰

Table 4

Reliability for different security levels"

项目结构安全等级
一级二级三级
公路等级高速公路一级公路二级公路
目标可靠度/%959085

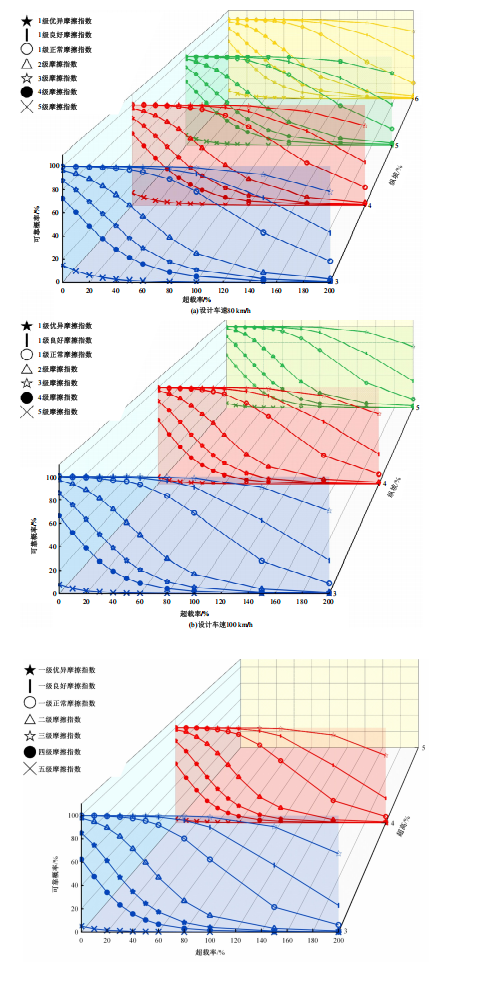

Fig.2

Reliable probability curve of stopping sight distance for trucks on downhill sections under different design speeds"

Table 5

Suggested value of stopping sight distance for trucks with design speed v= 80 km/h"

路面摩擦

指数

道路纵坡/%
3456
1级130132136139
2级157159161163
3级179182187192
4级201207213220
5级354385425473

Table 6

Suggested value of stopping sight distance for trucks with design speed v=100 km/h"

路面摩擦

指数

道路纵坡/%
345
1级190195200
2级232237240
3级271278285
4级308320333
5级622698790

Table 7

Suggested value of stopping sight distance for trucks with design speed v=120 km/h"

路面摩擦

指数

道路纵坡/%
34
1级265273
2级327333
3级390401
4级455478
5级1 0721 232

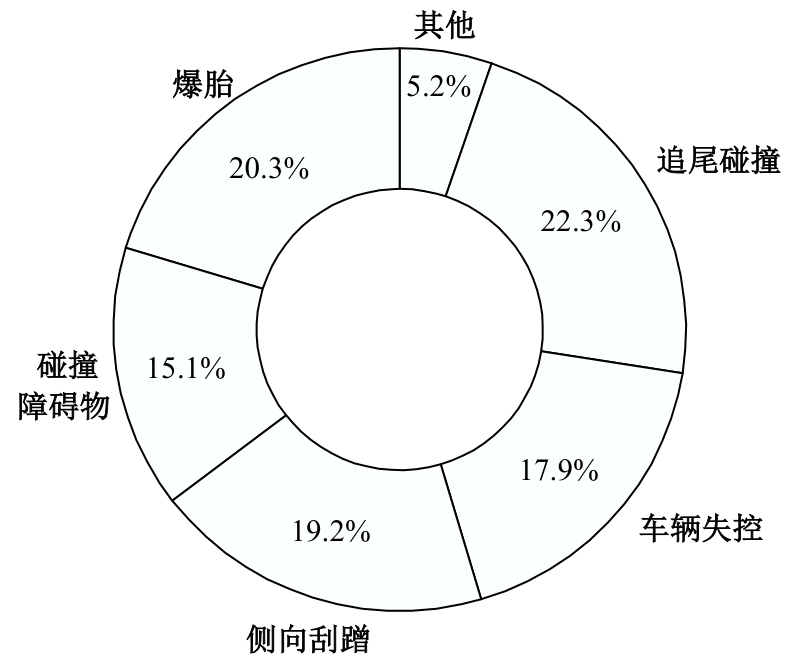

Fig 3

Distribution of accident types"

Table 8

Example analysis and correction of truck stopping sight distance reliability （v=80 km/h）"

序号桩号范围纵坡/%

事故率/

（次·km-1）

区间车速失效概率/%95%可靠度视距值/m
最大值/（km·h-1）最小值/（km·h-1）
1K149+40~K149+850520.7772.758.238.27171
2K152+500~K153+350412.6171.159.923.22153
3K165+600~K166+740321.8873.160.139.51172
4K171+800~K172+700315.4271.759.428.87155
5K176+500~K177+50511.6469.660.613.71148
6K185+300~K186+100314.7767.561.830.43157
7K189+900~K190+100415.8368.660.327.19155
8K197+000~K198+50311.8465.959.915.89149

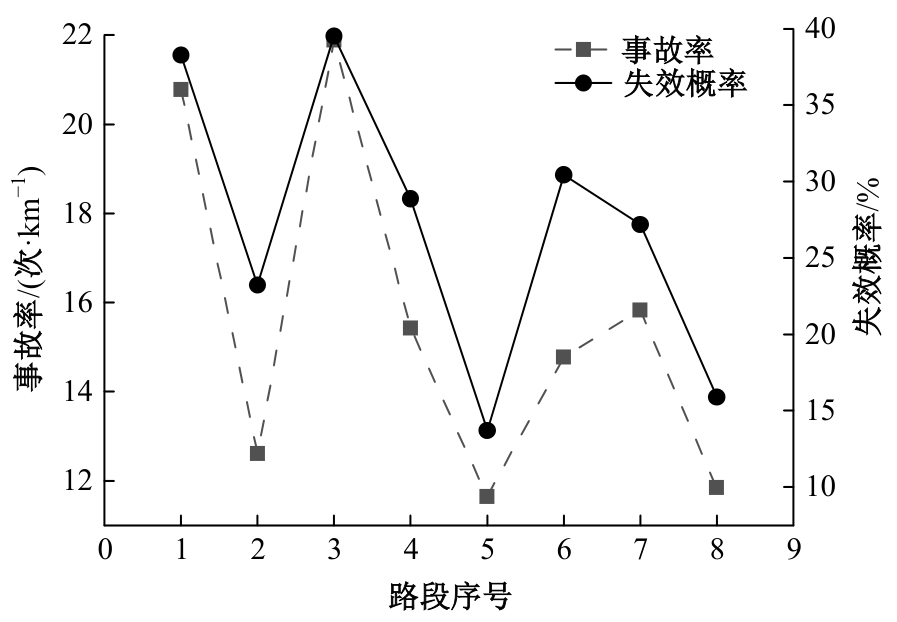

Fig 4

Relationship between accident rate and failure probability of stopping sight distance"

Table 9

Main vehicle parameters of TruckSim"

参 数数值
整车质量/kg49 000
车长/mm6 800
车宽/mm2 500
车高/mm3 700
发动机最大功率/kW270
最大扭矩/（N·m-1）900
比功率/（kW·t-1）5.51

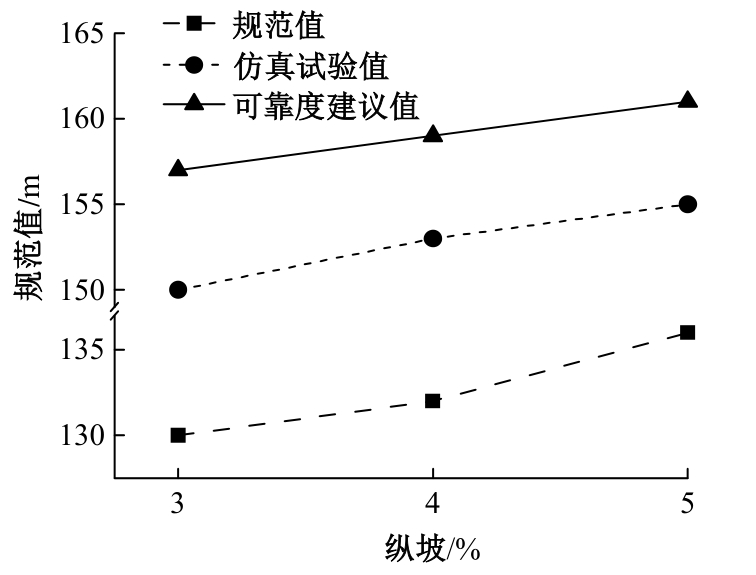

Fig.5

Simulation results and comparison"

[1] 李硕, 马玉坤, 韩晖, 等. 山区高速公路货车事故严重度致因及随机参数分析[J]. 公路交通科技, 2023, 40(4): 228-236.
Li Shuo, Ma Yu-kun, Han Hui, et al. Analysis of causes and random parameters of truck accident severity on mountainous highways[J]. Journal of Highway and Transportation Research and Development, 2023, 40(4): 228-236.
[2] 程国柱,程瑞,徐亮,等.基于乘员伤害分析的公路路侧事故风险评价[J]. 吉林大学学报:工学版, 2021, 51(3): 875-885.
Cheng Guo-zhu, Cheng Rui, Xu Liang, et al. Risk evaluation of highway roadside accidents based on occupant injury analysis[J]. Journal of Jilin University (Engineering and Technology Edition), 2021, 51(3): 875-885.
[3] Xu Z W, Zhang L, Rong X. Clutter suppression for hypersonic vehicle-borne radar with frequency diverse array[J]. Systems Engineering and Electronics,2017, 28(3): 481-492.
[4] Qin P P, Chen C C, Guo H L. Analyzing the influence of aggregate properties on stopping distance on truck escape ramps[J].Journal of Shanghai Jiaotong University (Science), 2019, 24(3): 323-327.
[5] 吴善根, 李涛, 林宣财, 等. 基于制动减速度的高速公路停车视距研究[J]. 公路交通科技, 2021, 38(9): 51-59.
Wu Shan-gen, Li Tao, Lin Xuan-cai, et al. Research on stopping sight distance of highway based on braking deceleration[J]. Journal of Highway and Transportation Research and Development, 2021, 38(9):51-59.
[6] Mavromatis S, Matragos V, Pasias P, et al. Vertical clearance assessment of overpassing structures on sag vertical curves[J].Transportation Research Record, 2022, 2676(8): 376-385.
[7] Navin F P D. Reliability indices for road geometric design[J]. Canadian Journal of Civil Engineering, 1992, 19(5): 760-766.
[8] Chen Y, Zhu F, Chen W Y, et al. A new stopping sight distance model and fuzzy reliability analysis comparison[J]. IEEE Access, 2022, 10: 69568-69576.
[9] 盛旭高, 于梦阁, 霍炜. 基于停车视距的强降雨环境下公路车辆制动安全可靠性研究[J]. 公路交通科技, 2023, 40(1): 227-235.
Sheng Xu-gao, Yu Meng-ge, Huo Wei. Research on the safety reliability of highway vehicle braking under heavy rainfall based on parking sight distance[J]. Journal of Highway and Transportation Research and Development, 2023, 40(1): 227-235.
[10] 公路路线设计规范 [S].
[11] 机动车运行安全技术条件 [S].
[12] 周志立,徐立友. 汽车ABS原理与结构[M]. 北京:机械工业出版社, 2011.
[13] 单慧敏. 多车道高速公路停车视距研究[D]. 西安:长安大学公路学院, 2020.
Shan Hui-min. Research on stopping sight distance of multi-lane highway[D]. Xi'an: College of Highway, Chang'an University, 2020.
[14] 公路工程技术标准 [S].
[15] 张驰, 任士鹏, 王博, 等. 长大下坡路段货车运行速度特性及预测[J]. 华南理工大学学报: 自然科学版, 2022, 50(3): 38-49.
Zhang Chi, Ren Shi-peng, Wang Bo, et al. Characterization and prediction of truck operating speed on long downhill sections[J]. Journal of South China University of Technology (Natural Science Edition), 2022, 50(3):38-49.
[16] Lenzo B. Vehicle Dynamics[M]. Berlin: Springer International Press, 2022.
[17] 谢静芳, 吕得宝, 王宝书. 高速公路路面摩擦气象指数预报方法[J]. 气象与环境学报, 2006(6): 18-21.
Xie Jing-fang, De-bao Lyu, Wang Bao-shu. Forecasting method of meteorological index of highway pavement friction[J]. Journal of Meteorology and Environment, 2006(6): 18-21.
[18] 齐聪. 高速公路遇气象灾害情况下交通安全管理方法[D]. 长春: 吉林大学建设工程学院, 2014.
Qi Cong. Traffic safety management method of highway in case of meteorological disasters[D]. Changchun: College of Construction Engineering, Jilin University, 2014.
[19] 王元元. 沥青路面抗滑特性与其表面粗糙特性之关系研究[D]. 南京: 东南大学交通学院, 2017.
Wang Yuan-yuan. Research on the relationship between skid resistance characteristics of asphalt pavement and its surface roughness characteristics[D]. Nanjing: College of Transportation, Southeast University, 2017.
[20] Kane M, Zhao D, Do M T.Exploring the ageing effect of binder on skid resistance evolution of asphalt pavement[J].Road Materials and Pavement Design, 2010, 11: 543-557.
[21] 刘晨阳. 货车超载运输对公路的危害及经济效益影响[D]. 郑州: 河南农业大学机电工程学院, 2016.
Liu Chen-yang. Hazards of overloading transportation of trucks on highway and the impact of economic benefits[D]. Zhengzhou: College of Mechanical & Electrical Engineering, Henan Agricultural University, 2016.
[22] 郭梦竹. 基于反应时间的驾驶员疲劳状态监测与预警技术研究[D]. 长春: 吉林大学交通学院, 2017.
Guo Meng-zhu. Research on driver fatigue state monitoring and warning technology based on reaction time [D]. Changchun: College of Transportation, Jilin University, 2017.
[23] 潘少猷, 冯浩, 张志勇, 等. 制动协调时间在车速鉴定中的运用[J]. 中国司法鉴定, 2012(6): 88-91.
Pan Shao-you, Feng Hao, Zhang Zhi-yong, et al. The use of braking coordination time in speed identification[J]. China Judicial Appraisal, 2012(6): 88-91.
[24] 公路工程结构可靠性设计统一标准 [S].
[25] 吕震宙, 宋述芳, 李璐祎, 等. 结构/机构可靠性设计基础[M]. 西安:西北工业大学出版社, 2019.
