Journal of Jilin University(Engineering and Technology Edition) ›› 2025, Vol. 55 ›› Issue (8): 2746-2752.doi: 10.13229/j.cnki.jdxbgxb.20240772

Previous Articles

Detection of mixed attribute features of multi-source heterogeneous data in software defined IoT

Lian-lian ZHANG1,2(),Wei GUO2,Feng LIU1()

  1. 1.School of Electronics and Information Engineering，Beihang University，Beijing 100191，China
    2.School of Electrical Engineering，Hebei University of Architecture，Zhangjiakou 075000，China
  • Received:2024-07-12 Online:2025-08-01 Published:2025-11-14
  • Contact: Feng LIU E-mail:lianlianzhang@buaa.com.cn;liufuil@sina.com

RICH HTML

 0

PDF (PC)

15

Abstract:

In the software defined Internet of Things （IoT）， multi-source heterogeneous data comes from different devices and has different formats， structures， and qualities， which increases the complexity of feature detection. Therefore， a mixed attribute feature detection method for multi-source heterogeneous data in software defined IoT is proposed. Using the joint Kalman filtering algorithm to fuse multi-source heterogeneous data in the software defined Internet of Things， completing the initial integration of heterogeneous data. Combined with evidence classification algorithms， network data with the same mixed attributes are divided into the same dataset to achieve classification of multi-source heterogeneous data. Based on the inverse similarity characteristics of multi-source data， an edge operator calculation method is introduced to split the classified data attribute features， and combined with support vector machines， accurate detection of multi-source heterogeneous data attribute features is achieved. The experiment shows that the covariance calculation results of the proposed method are always below 0.15， and the distinction between different attribute features is more obvious， with a detection probability of over 0.8. This method can achieve precise partitioning of mixed attributes of multi-source heterogeneous data in software defined IoT.

Key words: joint Kalman filtering algorithm, software defined Internet of things, evidence classification algorithm, edge operator, support vector machine

CLC Number:

  • TP311.13

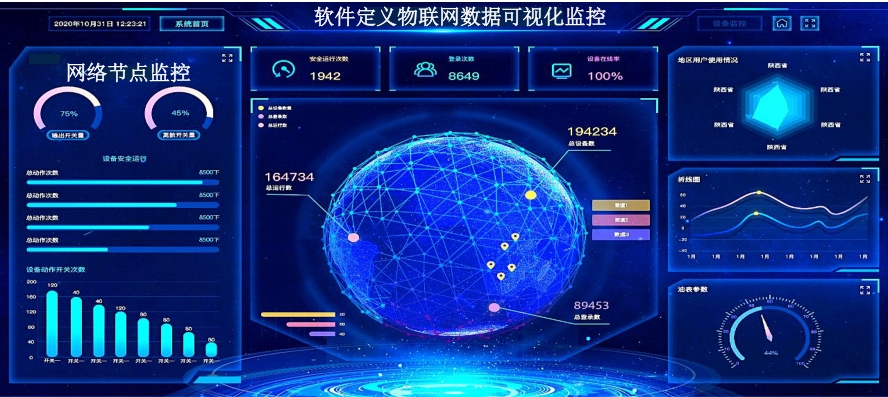

Fig.1

Data visualization detection environment"

Table 1

Comparison of data fusion effects"

数据集

编号

协方差值
本文方法时间序列算法加权融合算法
10.150.420.73
20.130.360.32
30.140.510.27
40.120.370.56
50.130.440.47
60.150.450.36
70.140.560.58
80.130.600.66

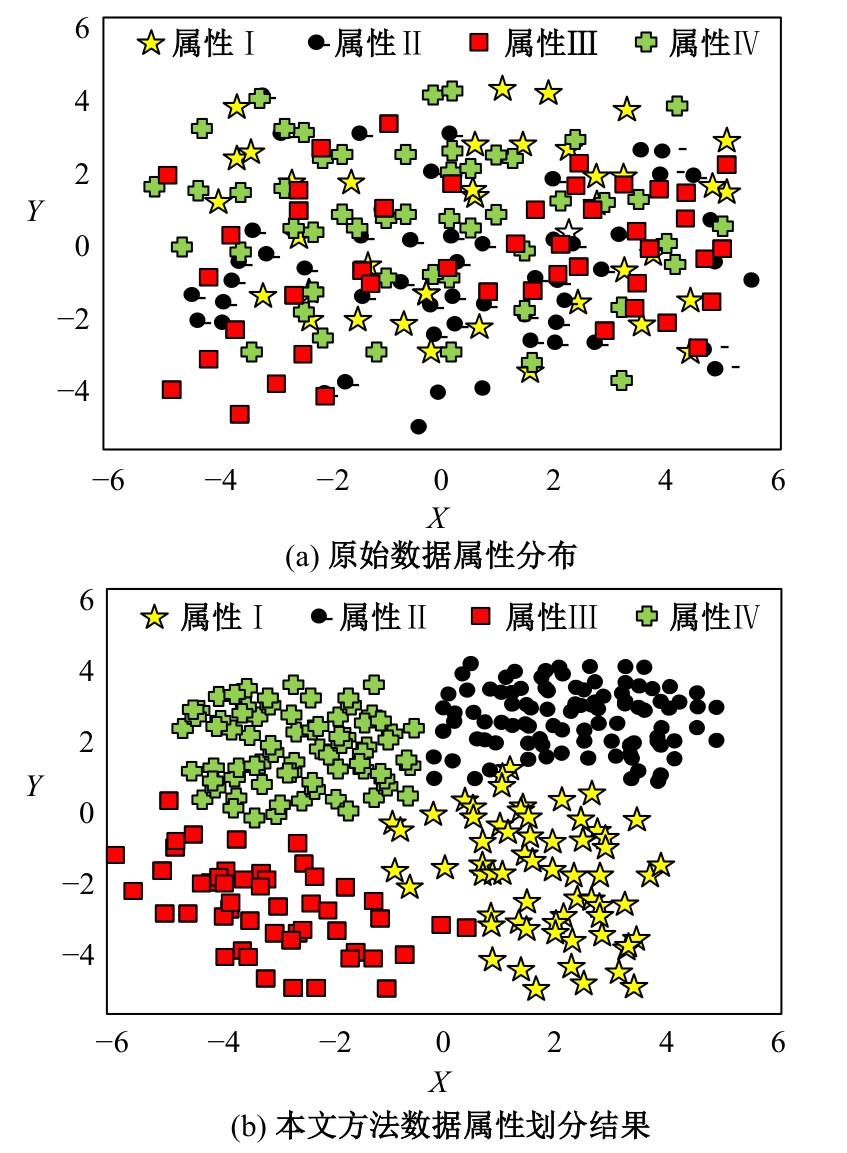

Fig.2

Mixed attribute feature division effect"

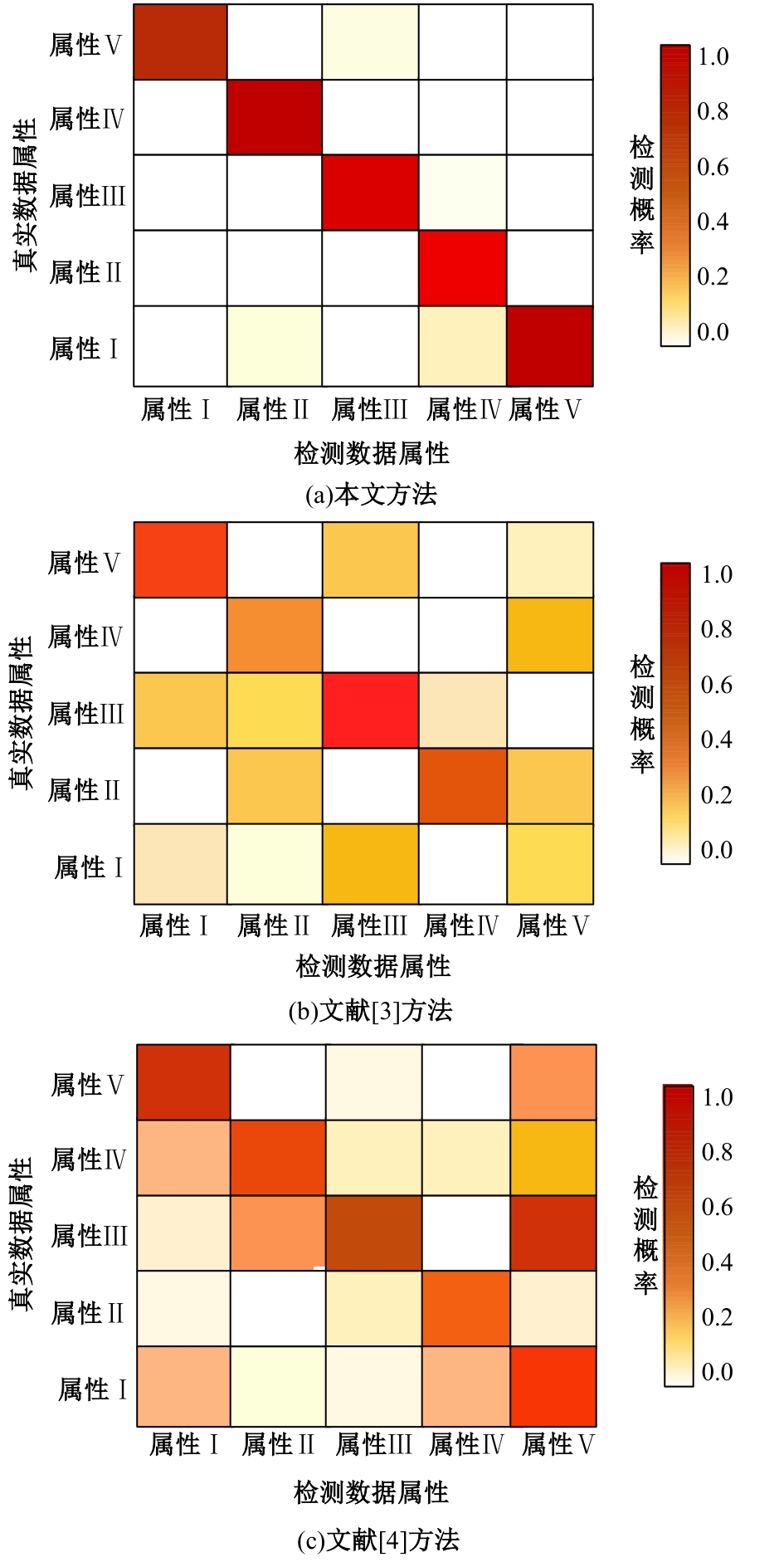

Fig.3

Comparison of detection effects of different methods"

[1] 覃伟荣, 劳燕玲. 基于3D关联规则深度学习的异构遥感数据检测[J]. 计算机仿真, 2023, 40(9): 482-486.
Qin Wei-rong, Lao Yan-ling. Detection of heterogeneous remote sensing data based on deep learning of 3D association rules[J].Computer Simulation, 2023,40(9): 482-486.
[2] 洪德华, 刘翠玲, 赵林燕, 等. 基于多域特征分析与选择的电力数据识别方法[J]. 水电能源科学, 2023, 41(9): 211-215.
Hong De-hua, Liu Cui-ling, Zhao Lin-yan, et al. Power data identification method based on multi-domain feature analysis and selection[J]. Water Resources and Power, 2023, 41(9): 211-215.
[3] Puerto S C, Larrañaga P, Bielza C. Feature subset selection in data-stream environments using asymmetric hidden Markov models and novelty detection[J]. Neurocomputing, 2023, 554: 126641.
[4] 刘晋成, 唐伦, 陈前斌. 基于数据特征的多传感器融合实时目标检测[J]. 计算机应用研究, 2023, 40(11):3456-3461.
Liu Jin-cheng, Tang Lun, Chen Qian-bin. Multi-sensor fusion real-time target detection based on data characteristics[J]. Application Research of Computers, 2023, 40(11): 3456-3461.
[5] 顾伟, 行鸿彦, 侯天浩. 基于网络流量时空特征和自适应加权系数的异常流量检测方法[J]. 电子与信息学报, 2024, 46(6): 1-8.
Gu Wei, Xing Hong-yan, Hou Tian-hao. Anomalous traffic detection method based on spatiotemporal characteristics of network traffic and adaptive weighting coefficients[J]. Journal of Electronics & Information Technology, 2024, 46(6): 1-8.
[6] 史鼎元, 王晏晟, 郑鹏飞, 等. 面向企业数据孤岛的联邦排序学习[J]. 软件学报, 2021, 32(3): 669-688.
Shi Ding-yuan, Wang Yan-sheng, Zheng Peng-fei, et al. Cross-silo federated learning-to-rank[J]. Journal of Software, 2021, 32(3): 669-688.
[7] 夏伟, 蔡文婷, 刘阳, 等. 基于联合卡尔曼滤波的配电网多源异构数据融合[J]. 电力系统保护与控制,2022, 50(10): 180-187.
Xia Wei, Cai Wen-ting, Liu Yang, et al. Multi-source heterogeneous data fusion of a distribution network based on a joint Kalman filter[J]. Power System Protection and Control, 2022, 50(10): 180-187.
[8] 王楠, 周喜超, 彭勇, 等. 基于证据KNN分类器的蓄电池一致性诊断[J]. 太阳能学报, 2022, 43(4): 13-19.
Wang Nan, Zhou Xi-chao, Peng Yong, et al. Battery consistency diagnosis based on evidential KNN classifierr[J].Acta Energiae Solaris Sinica, 2022, 43(4): 13-19.
[9] 宋丽萍, 陈德峰, 田甜, 等. 基于雷达测距和测速的GEO目标实时关联算法[J]. 北京航空航天大学学报, 2023, 49(8): 2167-2175.
Song Li-ping, Chen De-feng, Tian Tian, et al. A real-time correlation algorithm for GEO targets based on radar ranging and velocity measurement[J]. Journal of Beihang University, 2023, 49(8): 2167-2175.
[10] 殷炜宏, 王若愚, 段倩倩, 等. 基于时态边缘算子的时间序列自主分段表示法[J]. 计算机工程与科学,2021, 43(6): 1104-1111.
Yin Wei-hong, Wang Ruo-yu, Duan Qian-qian, et al. An autonomous segmental representation of time series based on temporal edge operator[J]. Computer Engineering & Science, 2021, 43(6): 1104-1111.
[11] 杨建新, 兰小平, 冯亚东, 等. 基于改进樽海鞘群和最小二乘支持向量机算法的新型弹药质量评估方法[J]. 兵工学报, 2022, 43(5): 1012-1022.
Yang Jian-xin, Lan Xiao-ping, Feng Ya-dong, et al. An ammunition quality evaluation method based on least squares support vector machine[J]. Acta Armamentarii, 2022, 43(5): 1012-1022.
[12] 陈越, 俞耀文. 基于代理拉格朗日松弛的电-氢耦合网络优化调度[J]. 控制工程, 2023, 30(12): 2280-2287.
Chen Yue, Yu Yao-wen. Optimal scheduling of electricity-hydrogen coupling network based on surrogate lagrangian relaxation[J]. Control Engineering of China, 2023, 30(12): 2280-2287.
