Journal of Jilin University(Engineering and Technology Edition) ›› 2025, Vol. 55 ›› Issue (9): 2847-2857.doi: 10.13229/j.cnki.jdxbgxb.20250242

Previous Articles

Humanized stop⁃and⁃go control strategy for adaptive cruise system of pure electric vehicle

Tian-jun SUN1,2,3(),Hui-zhe YANG2,Rong-gui CAI2,Jia-yi FENG3(),Rui RAN2,Bin LIU4

  1. 1.National Key Laboratory of Automotive Chassis Integration and Bionics，Jilin University，Changchun 130022，China
    2.College of Automotive Engineering，Jilin University，Changchun 130022，China
    3.Ministry of Industry and Information Technology Equipment Industry Development Center，Beijing 100846，China
    4.FAW General R&D Institute，Changchun 130013，China
  • Received:2025-03-24 Online:2025-09-01 Published:2025-11-14
  • Contact: Jia-yi FENG E-mail:sun_tj@jlu.edu.cn;fengjiayi@eidc.org.cn

RICH HTML

 0

PDF (PC)

33

Abstract:

Addressing the issue of insufficient adaptation to driving styles in the traditional adaptive cruise system of pure electric vehicles， a humanized stop-and-go control strategy based on driving behavior characteristics was proposed. Firstly， real driver stop-and-go data were analyzed and features extracted， and construction of a driving style classification model using principal component analysis and the K-Means++ algorithm. Secondly， a two-layer control architecture was designed to implement the human-like control logic for switching between driving and braking. Thirdly， a humanization factor was designed based on Bayesian linear regression and maximum entropy inverse optimization methods. Finally， the consistency between the proposed method and real drivers' control behaviors was validated through simulation tests aralysis.

Key words: automotive engineering, pure electric vehicles, adaptive cruise control, stop-and-go control, humanized decision-making control

CLC Number:

  • U461.1

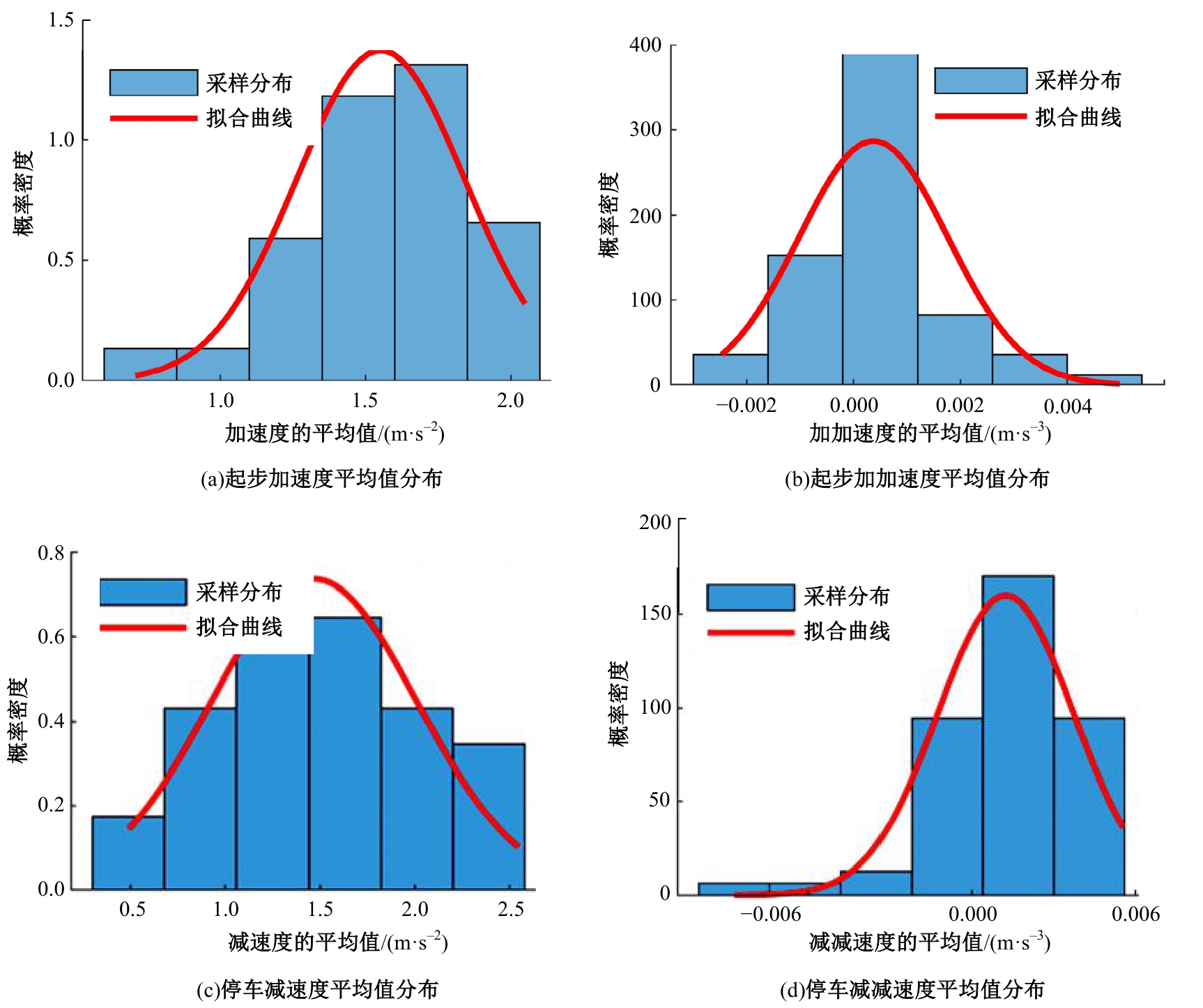

Fig.1

Driving behavior parameter distribution in lead vehicle absent start/stop scenarios"

Fig.2

Data collection for stop-and-go experiments based on driving simulator"

Table 1

Experimental acquisition parameters table"

类别参数名称符号单位
自车运动信息自车车速vhkm/h
自车纵向加速度ahm/s2
自车纵向加加速度jhm/s3
前车运动信息前车车速vfkm/h
前车纵向加速度afm/s2
相对运动信息与前车相对距离dm
与前车相对速度Δvkm/h
与前车相对加速度Δam/s2

Fig.3

Principal component variance contribution rate and cumulative variance contribution rate of characteristic parameters"

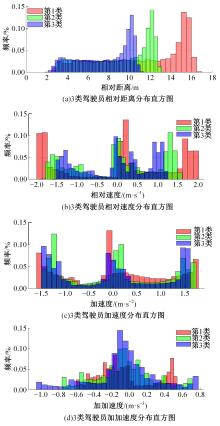

Fig.4

Three types of drivers feature parameter distribution histogram"

Fig.5

Workshop longitudinal following diagram"

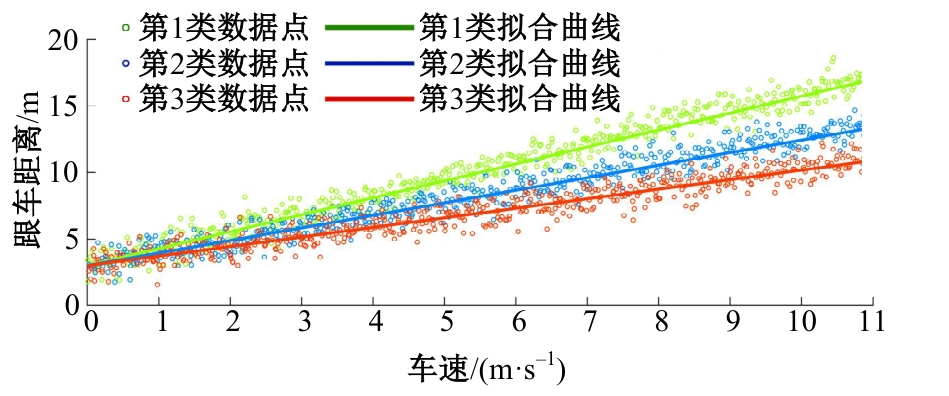

Fig.6

Driver speed-following distance chart for different driving styles"

Table 2

Time headway bayesian linear regression fitting parameters for different driving style"

驾驶员类型车头时距拟合值车头时距拟合方差/10-5
第1类1.273 32.143 6
第2类0.943 62.251 2
第3类0.717 62.214 9

Table 3

Multi-objective weight parameter value table for three types of driving styles"

驾驶风格δΔδδΔvδahδa˙des
第1类4.156 77.123 919.826 430.204 4
第2类7.462 68.773 07.763 45.419 3
第3类7.513 714.828 20.528 90.732 9

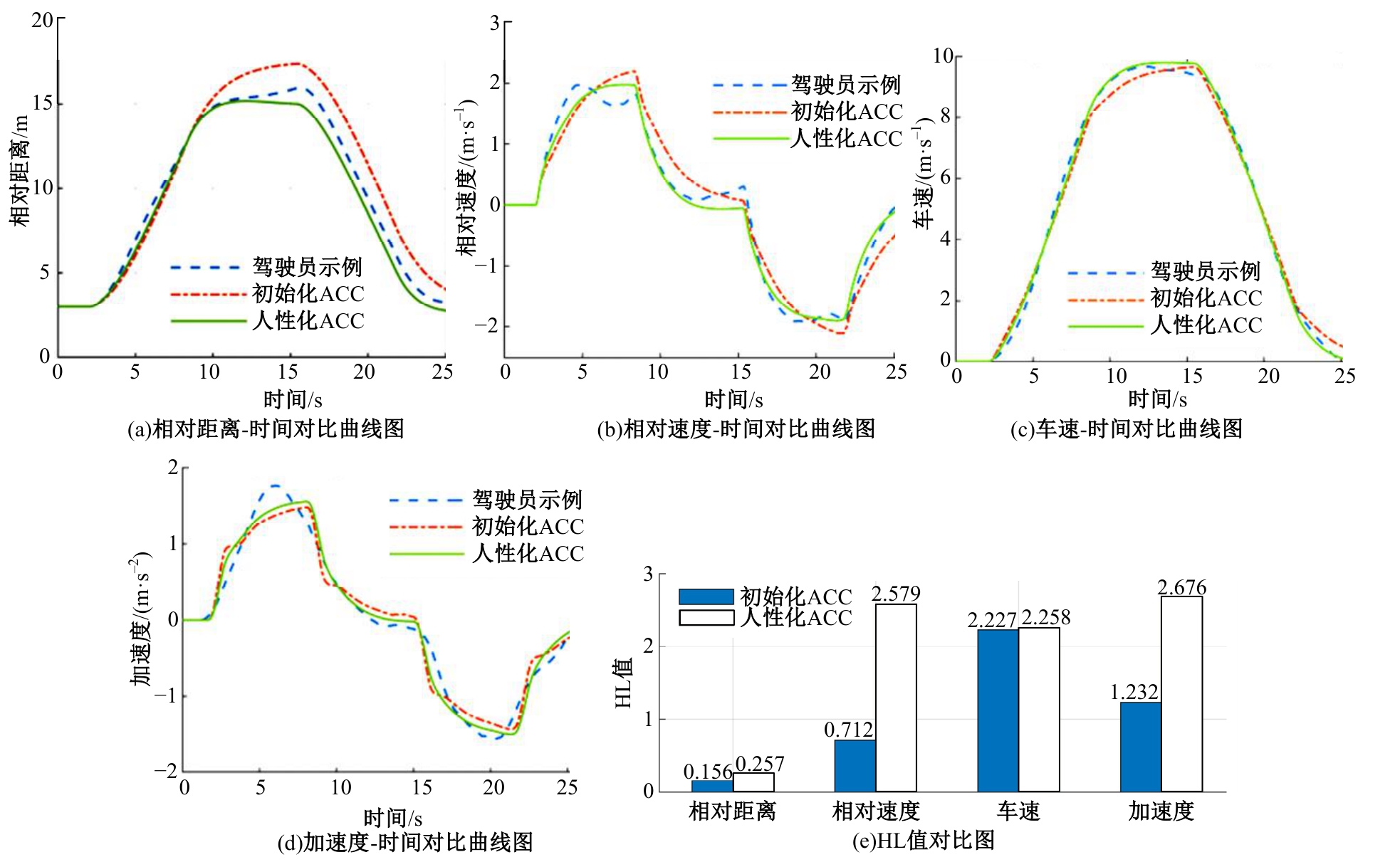

Fig.7

Comparison chart between initialized ACC and type 1 driving style humanized ACC outputs"

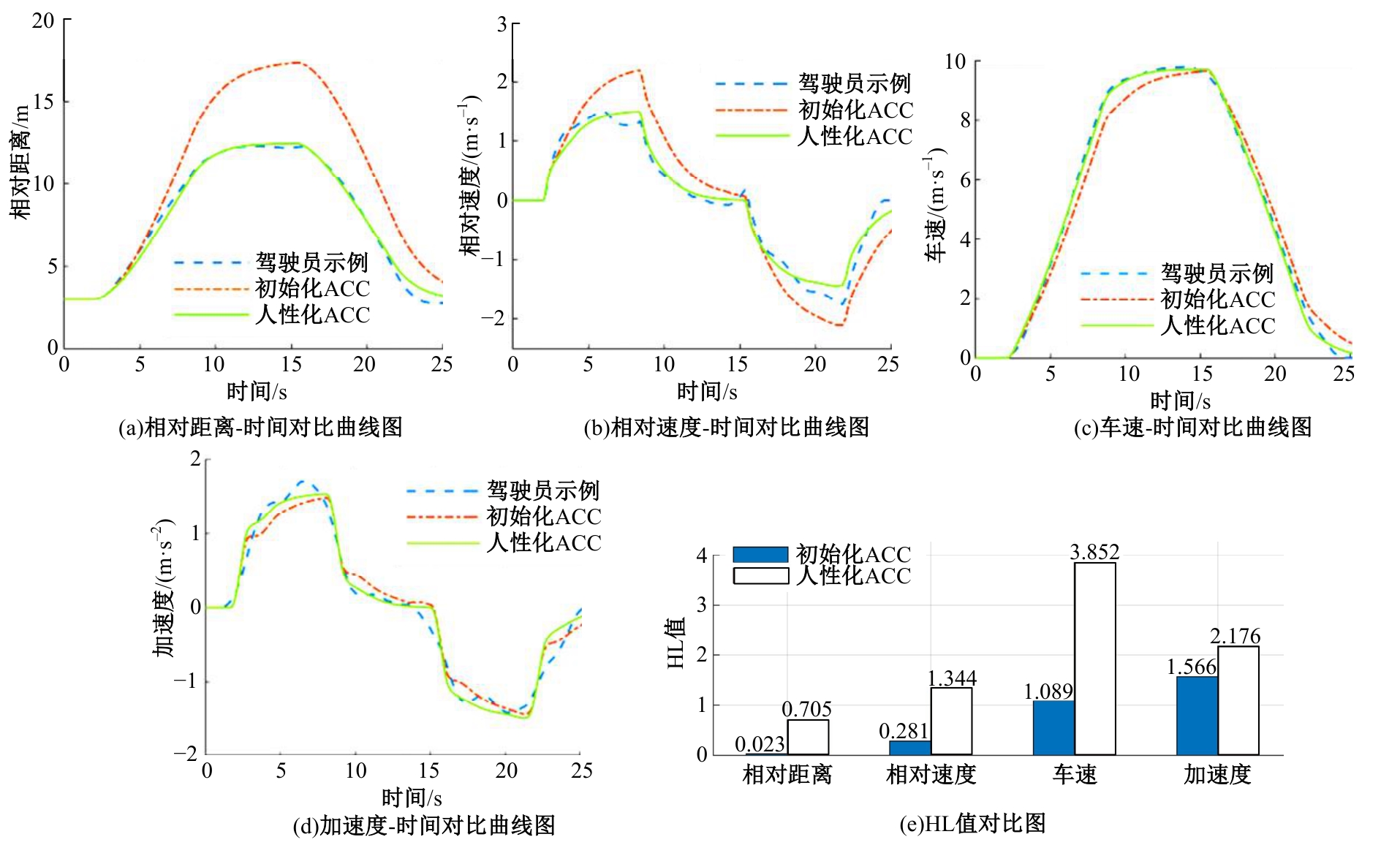

Fig.8

Comparison chart between initialized ACC and type 2 driving style humanized ACC outputs"

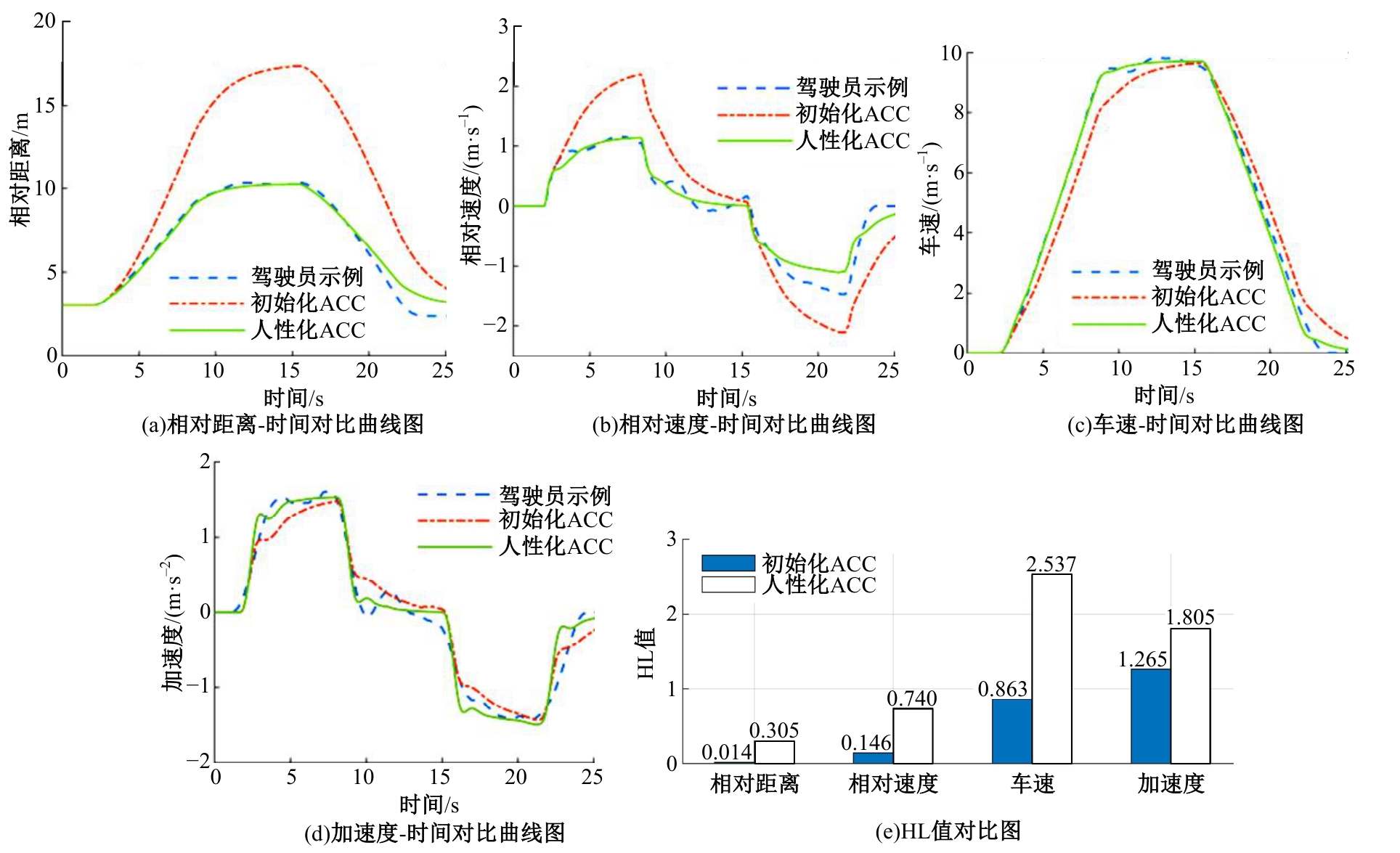

Fig.9

Comparison chart between initialized ACC and type 3 driving style humanized ACC outputs"

[1] 高镇海, 孙天骏. 汽车智能辅助驾驶系统技术[M]. 北京:机械工业出版社, 2024.
[2] 孙天骏. 基于学习控制的汽车全速自适应巡航决策与控制算法研究[D]. 长春: 吉林大学汽车工程学院, 2019.
Sun Tian-jun. Research on decision and control algorithm for vehicle full-speed adaptive cruise based on learning[D]. Changchun: College of Automotive Engineering, Jilin University, 2019.
[3] 徐顺鑫, 谢辉, 刘昌文. 基于参数自学习的智能电动公交车起停加速度跟踪控制[J]. 武汉大学学报: 工学版, 2024, 57(7): 950-963.
Xu Shun-xin, Xie Hui, Liu Chang-wen. Start-stop acceleration tracking control of intelligent electric bus based on parameter self-learning[J]. Engineering Journal of Wuhan University (Engineering Edition), 2024, 57(7): 950-963.
[4] Zhang Y, Lin Y, Qin Y, et al. A new adaptive cruise control considering crash avoidance for intelligent vehicle[J]. IEEE Transactions on Industrial Electronics, 2024, 71(1): 688-696.
[5] 中汽协会行业信息部. 中国汽车工业协会信息发布会[EB/OL].[2025-03-14].
[6] Yu L, Wang R. Researches on adaptive cruise control system: a state of the art review[J]. Proceedings of the Institution of Mechanical Engineers Part D-Journal of Automobile Engineering, 2022, 236(2/3): 211-240.
[7] Yu S, Pan X, Georgiou A, et al. A robust model predictive control framework for ecological adaptive cruise control strategy of electric vehicles[EB/OL]. [2025-03-14].
[8] Fleming J, Midgley W J B. Energy-efficient automated driving: Effect of a naturalistic eco-ACC on a following vehicle[C]∥2023 IEEE International Conference on Mechatronics. Piscataway, NJ: IEEE, 2023: 1-6.
[9] 张哲, 丁海涛, 张袅娜, 等. 智能网联电动汽车经济性巡航速度规划[J]. 汽车工程, 2022, 44(4): 609-616, 637.
Zhang Zhe, Ding Hai-tao, Zhang Niao-na, et al. Economie cruising speed planning of intelligent network connected eleetrie vehicle[J]. Automotive Engineering, 2022, 44(4): 609-616, 637.
[10] 张亮修, 吴光强, 郭晓晓. 车辆自适应巡航控制系统的建模与分层控制[J]. 汽车工程, 2018, 40(5): 547-553.
Zhang Liang-xiu, Wu Guang-qiang, Guo Xiao-xiao. Modeling and hierarchical control of vehicle ACC system[J]. Automotive Engineering, 2018, 40(5): 547-553.
[11] 初亮, 李天骄, 孙成伟. 纯电动车自适应巡航纵向控制方法研究[J]. 汽车工程, 2018, 40(3): 277-282, 296.
Chu Liang, Li Tian-jiao, Sun Cheng-wei. A research on adaptive cruise longitudinal control scheme for battery electric vehicles[J]. Automotive Engineering, 2018, 40(3): 277-282, 296.
[12] Jia Y, Jibrin R, Görges D. Energy-optimal adaptive cruise control for electric vehicles based on linear and nonlinear model predictive control[J]. IEEE Transactions on Vehicular Technology, 2020, 69(12): 14173-14187.
[13] Yang M, Tian J. Longitudinal and lateral stability control strategies for ACC systems of differential steering electric vehicles[J]. Electronics, 2023, 12(19): No.4178.
[14] Guo J, Li W, Wang J, et al. Safe and energy-efficient car-following control strategy for intelligent electric vehicles considering regenerative braking[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(7): 7070-7081.
[15] Yarlagadda J, Pawar D S. Heterogeneity in the driver behavior: An exploratory study using real-time driving data[J]. Journal of Advanced Transportation, 2022, 2022: No.4509071.
[16] Gilman E, Keskinarkaus A, Tamminen S, et al. Personalized assistance for fuel-efficient driving[J]. Transportation Research Part C: Emerging Technologies, 2015, 58: 681-705.
[17] Li Z H, Li Z L, Zhao X H, et al. Development of human-like automated driving following rules: a comparison between China and Germany[J]. Transportation Planning and Technology, 2024, 48(2): 366-386.
[18] Gao Z, Wang J, Hu H, et al. Control mode switching strategy for ACC based on intuitionistic fuzzy set multi-attribute decision making method[J]. Journal of Intelligent & Fuzzy Systems, 2016, 31(6): 2967-2974.
[19] 黄晶, 韦伟, 邹德飚. 基于个性化间距策略的自适应巡航系统模式切换策略研究[J]. 汽车工程, 2020, 42(10): 1302-1311.
Huang Jing, Wei Wei, Zou De-biao. Research on multi-mode switching strategy of adaptive cruise Control system based on personalized spacing strategy[J]. Automotive Engineering, 2020, 42(10): 1302-1311.
[20] 朱乃宣. 仿驾驶员行为的智能汽车横向决策方法研究[D].吉林: 吉林大学汽车工程学院, 2024.
Zhu Nai-xuan. Research on lateral decision-making method for intelligent vehicles imitating driver behavior[D]. Jilin: College of Automotive Engineering, Jilin University, 2024.
