超大跨波形钢腹板箱梁弯扭耦合性能试验

doi:10.13229/j.cnki.jdxbgxb.20240607

Abstract

Abstract:

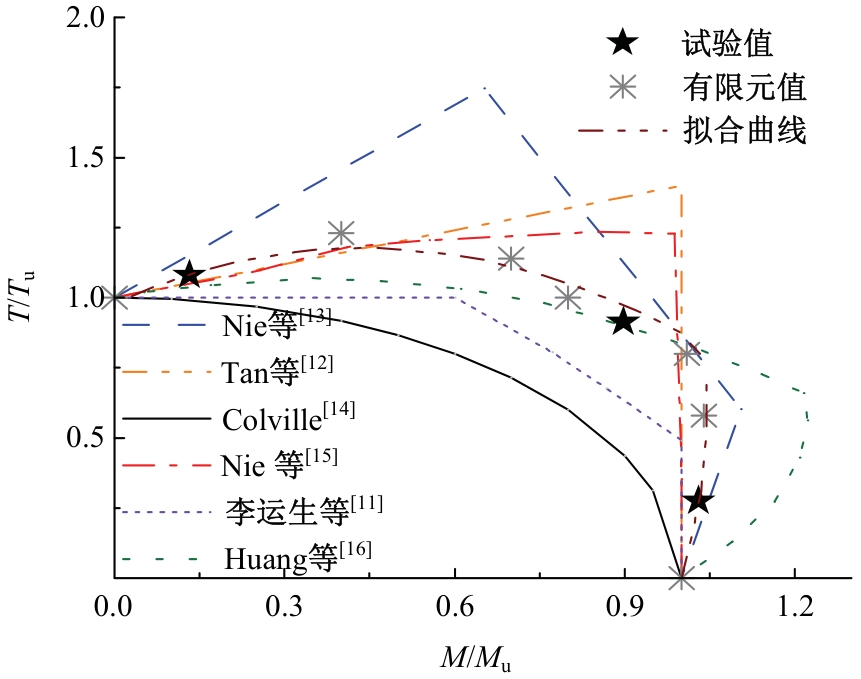

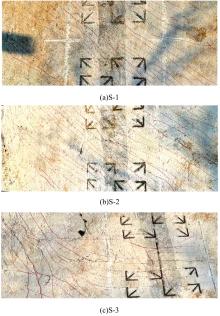

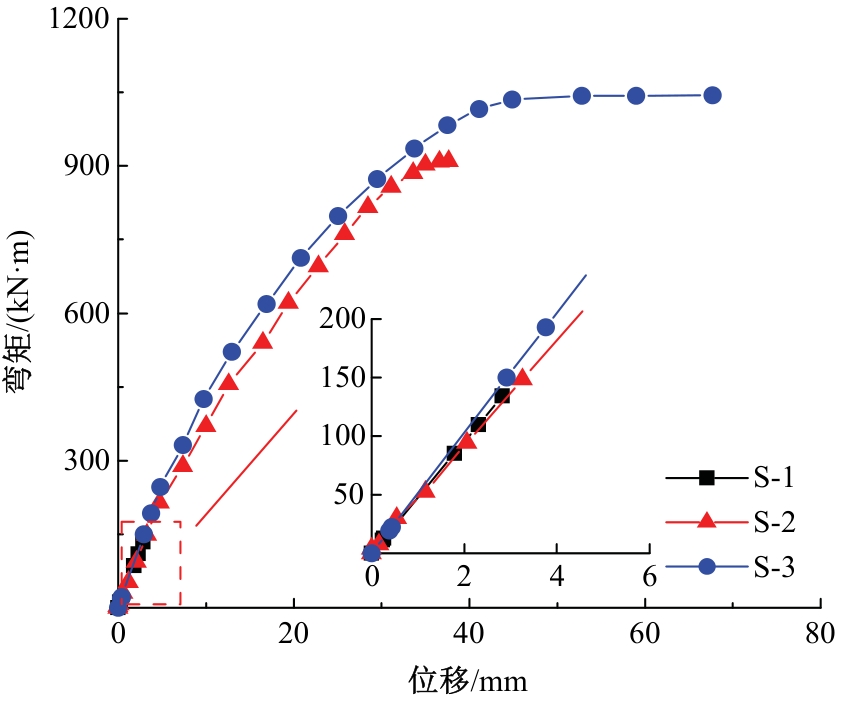

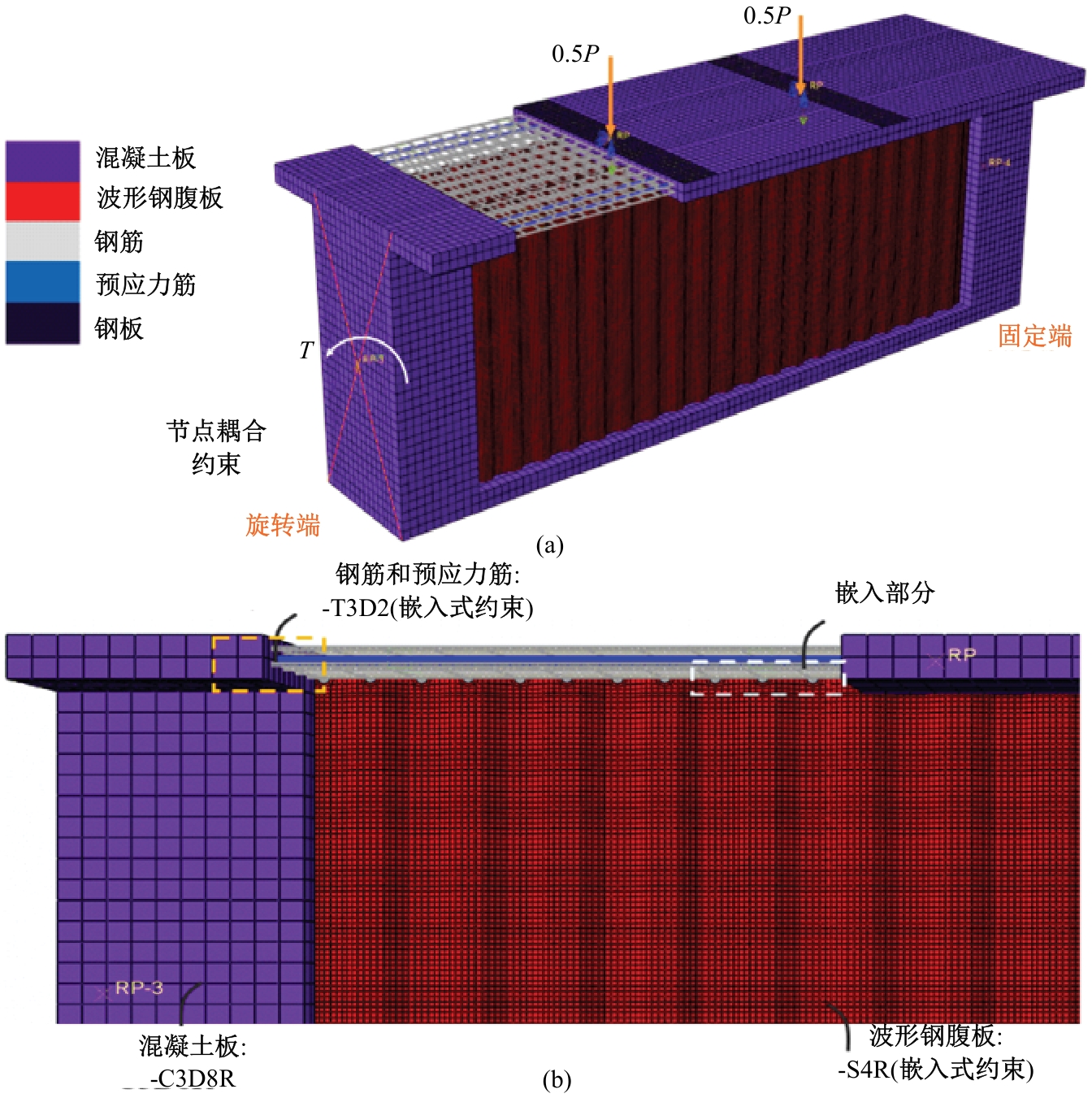

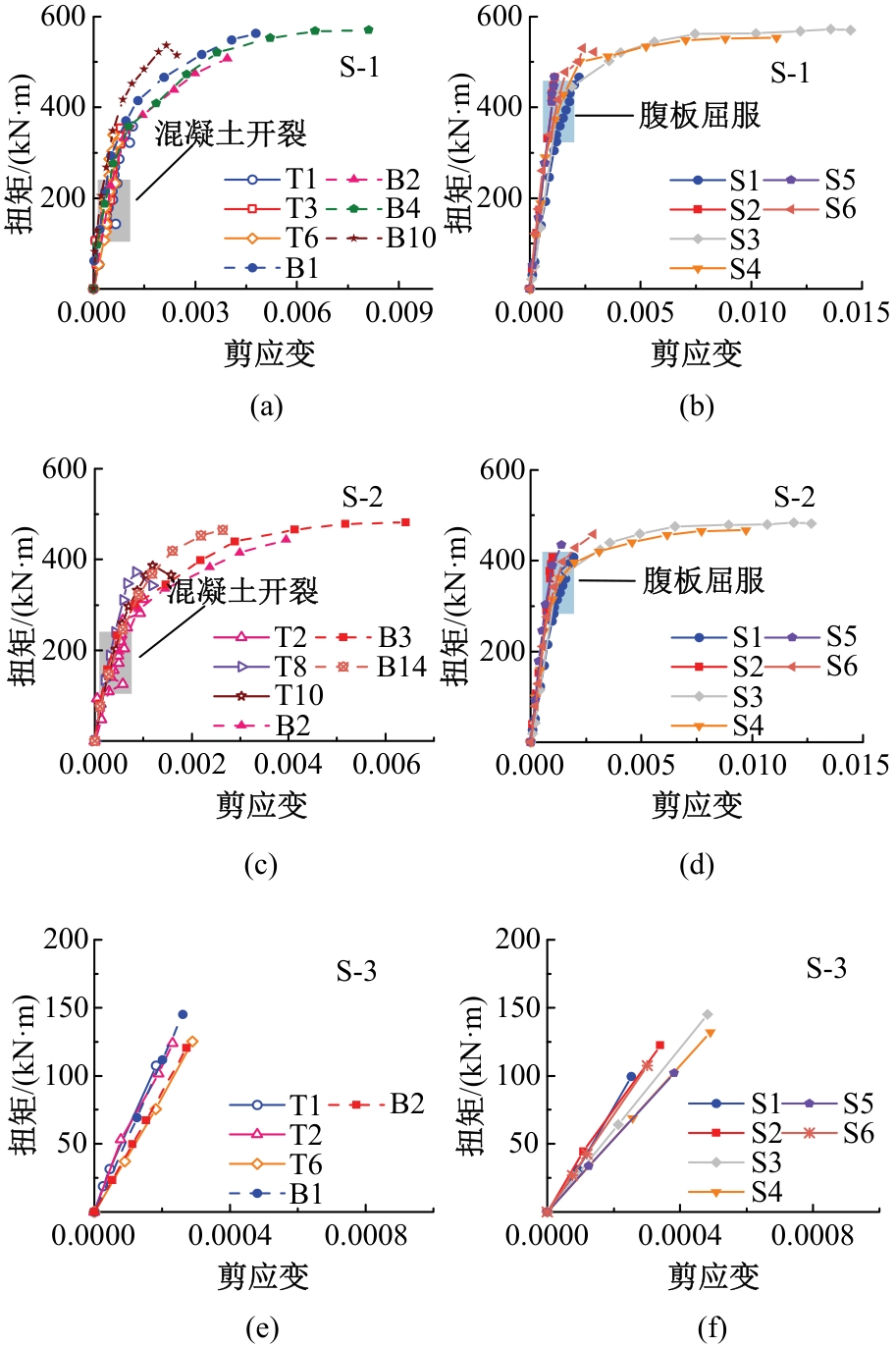

Three super-span composite box girders with corrugated steel webs （CSW） under combined bending and torsion were designed and experimentally investigated in this paper， and the failure modes， torque-twist curves， bending moment-displacement curves， and strain distribution laws were obtained. Based on the verified finite element analysis （FEA） method， a parametric analysis was carried out. The bending-torsional relationship curves and the simplified calculation method for capacity were proposed according to the failure modes. The results show that the failure modes of the composite box girders are the bending and torsional failure， with crushing of the concrete top slab and spalling of the concrete bottom slab， respectively. Global buckling of bending failure occurs in the bending-shear-torsional section， whereas that of torsional failure is concentrated in the bending-torsional section. The bending moment enhances the torsional strength of the composite box girders within a certain range. The proposed bending-torsional relationship curves and the simplified calculation method both provide high accuracy， with a maximum error of less than 6%.

Key words: bridge and tunnel engineering, super-span, corrugated steel webs, failure modes, bending-torsional relationship curves, simplified load capacity calculation method

CLC Number:

U488.21

Hao ZHANG,Yi-yan CHEN,Jun-yu YE,Ju-can DONG,Qiu ZHAO. Experiment on bending-torsional performance of super- span box girders with corrugated steel webs[J].Journal of Jilin University(Engineering and Technology Edition), 2026, 56(1): 209-218.

Figures/Tables 19

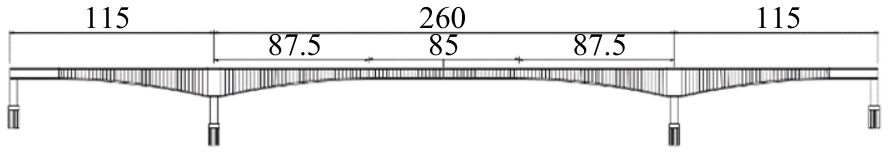

Fig.1

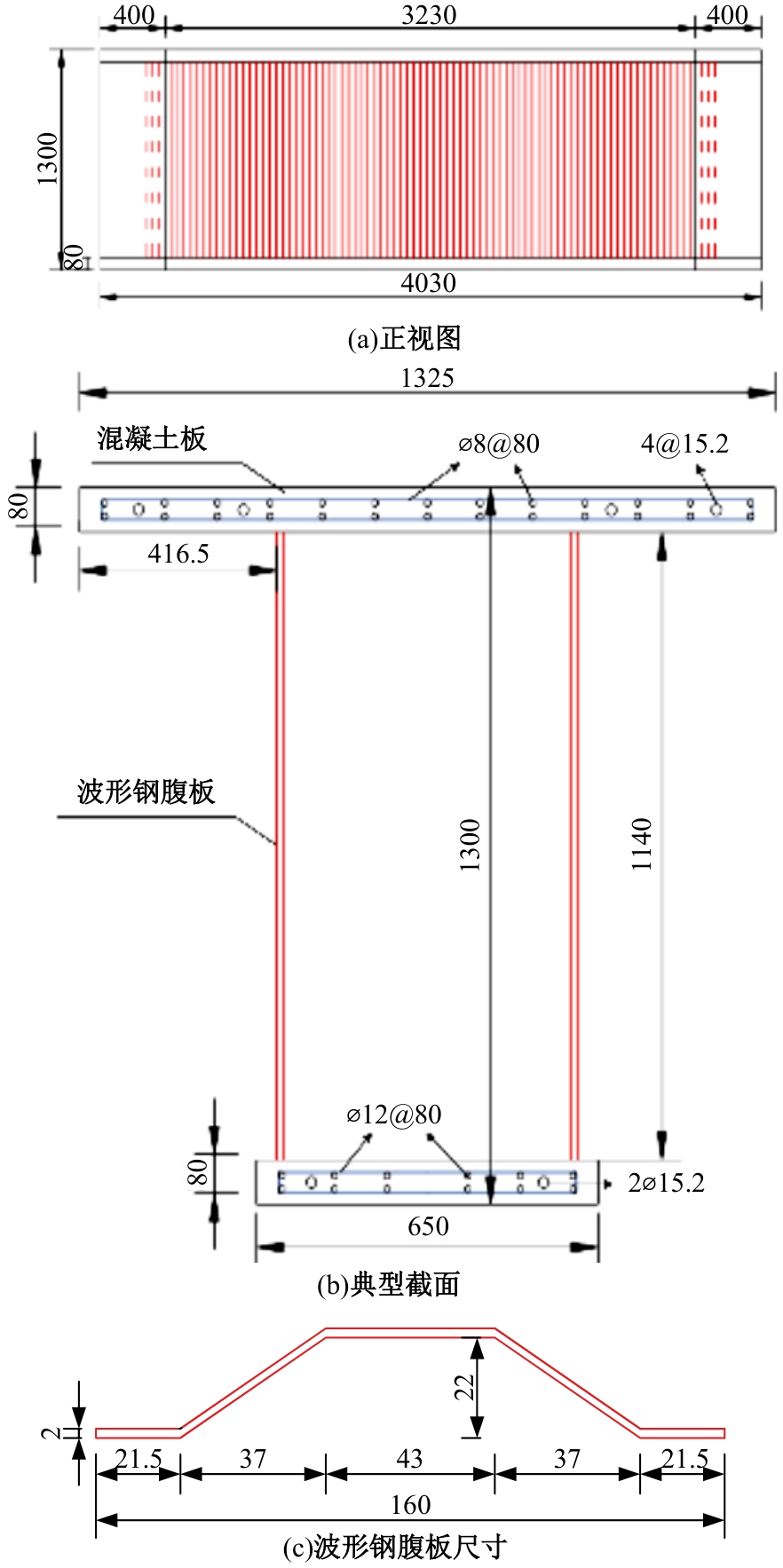

Fig.2

Table 1

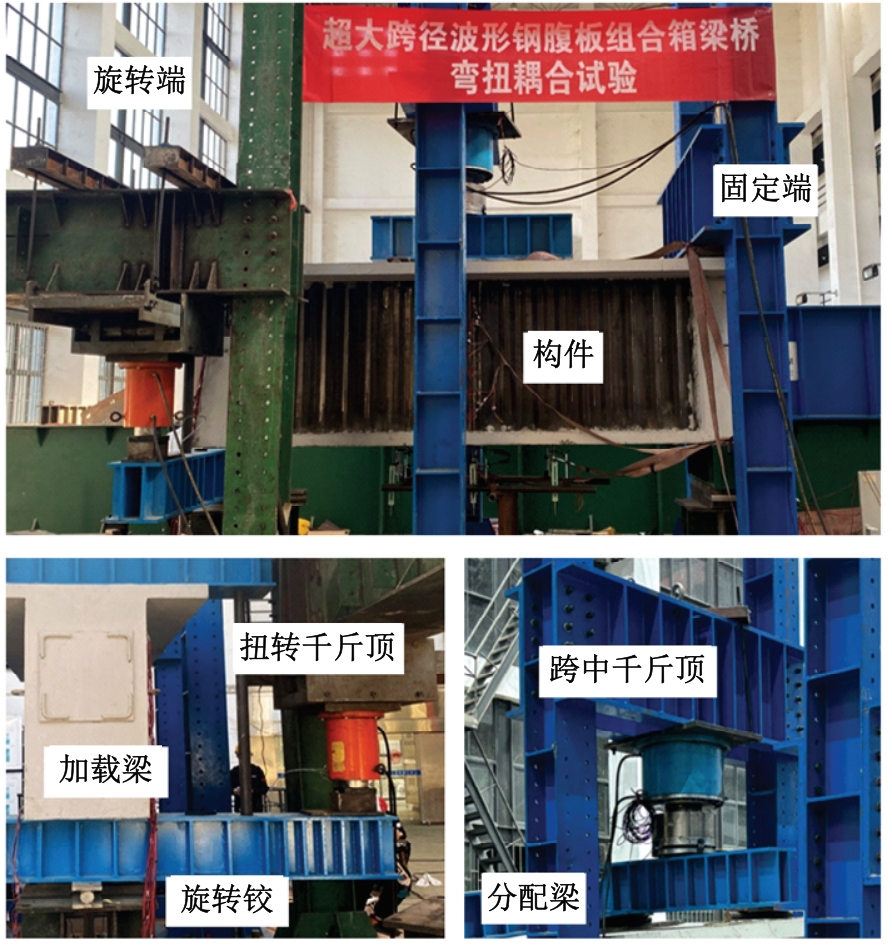

Fig.3

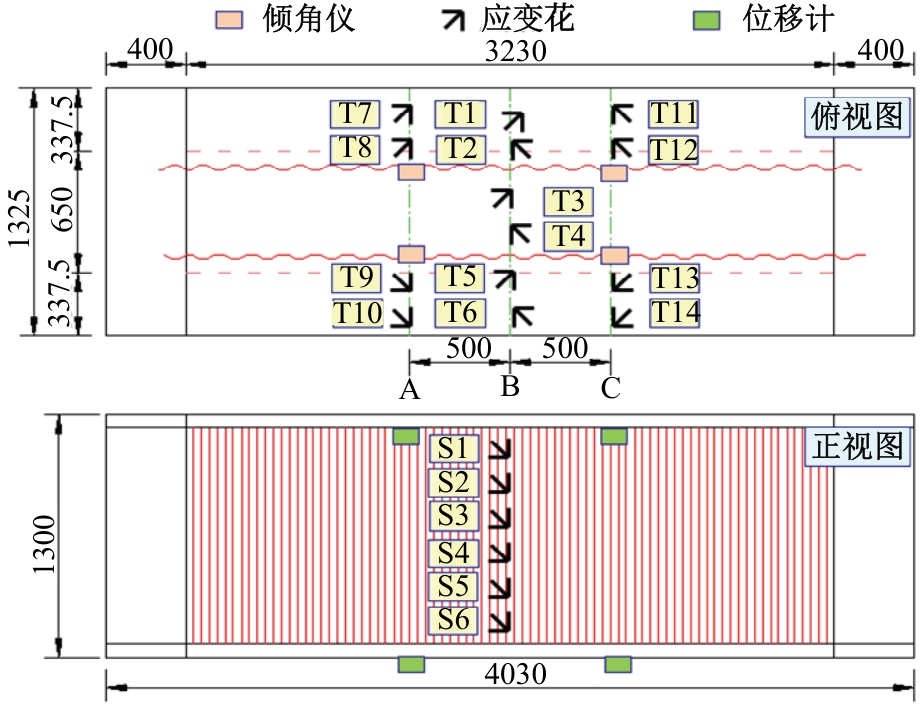

Fig.4

Fig.5

Fig.6

Fig.7

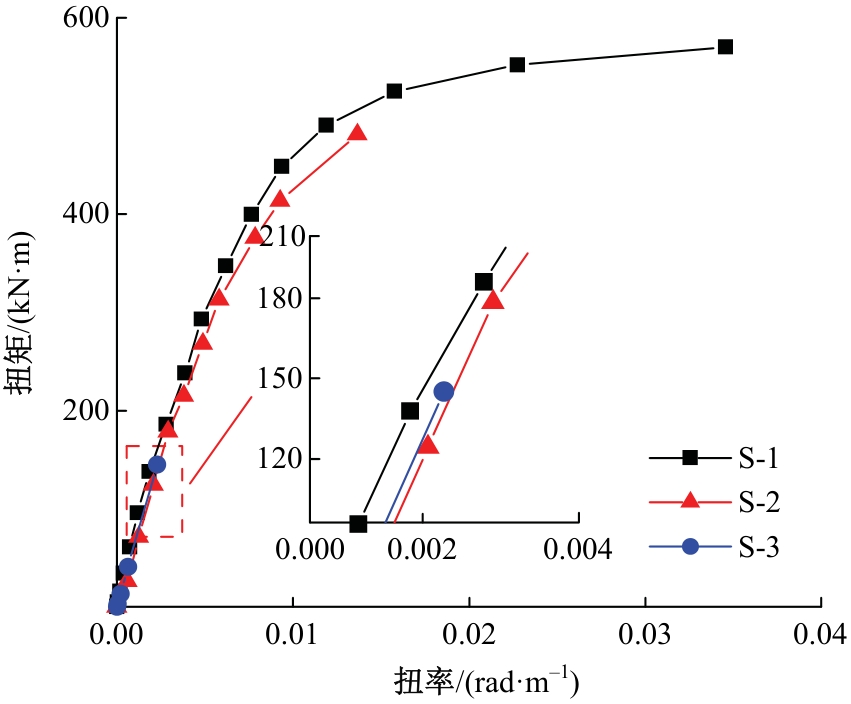

Fig.8

Fig.9

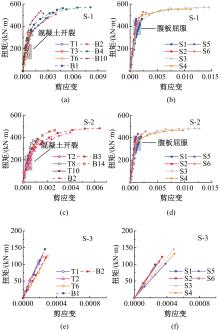

Fig.10

Fig.11

Fig.12

Table 2

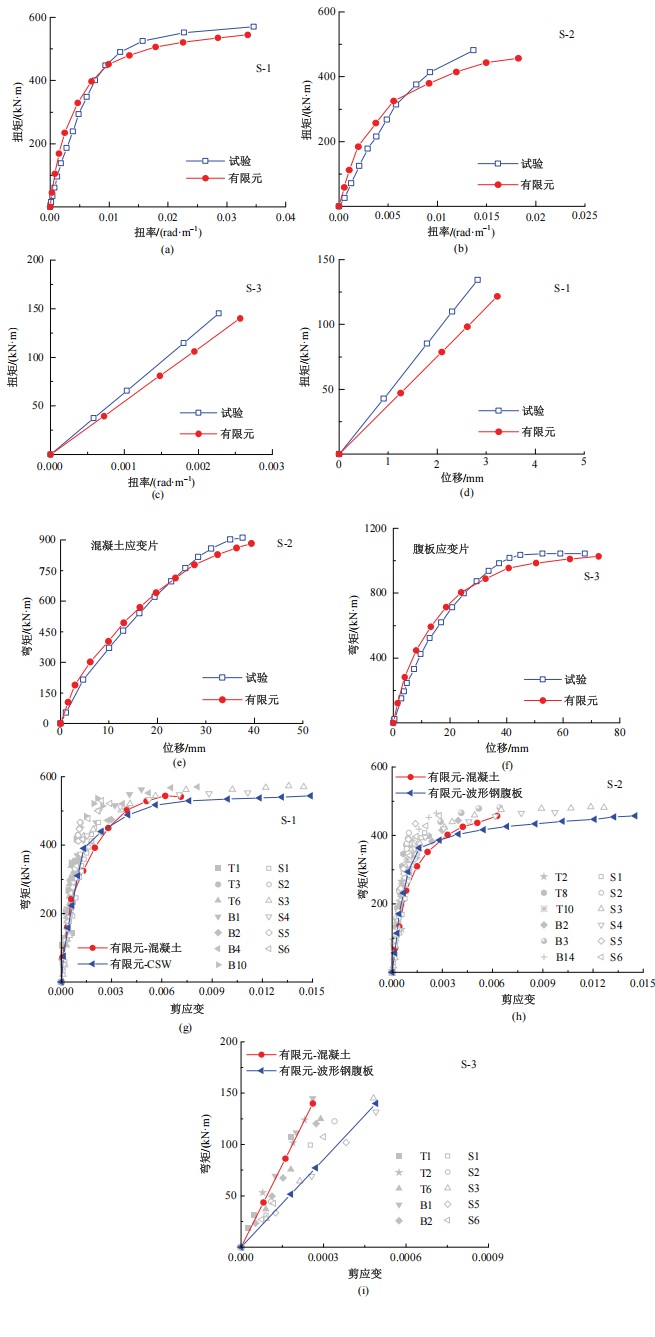

Comparison of torques with FEA results"

试验梁	加载方式	弹性阶段			开裂阶段			腹板屈服阶段			极限承载力阶段			破坏模式
试验梁	加载方式	$T e, E x p$ /（kN·m）	$T e, F E A$ /（kN·m）	$T e, E x p T e, F E A$	$T c r, E x p$ /（kN·m）	$T c r, F E A$ /（kN·m）	$T c r, E x p T c r, F E A$	$T w y, E x p$ /（kN·m）	$T w y, F E A$ /（kN·m）	$T w y, E x p T w y, F E A$	$T u, E x p$ /（kN·m）	$T u, F E A$ /（kN·m）	$T u, E x p T u, F E A$	破坏模式
S-1	先弯后扭	—	—	—	164.81	169.10	0.975	458.03	461.72	0.992	570.26	543.98	1.048	扭型破坏
S-2	先扭后弯	—	—	—	158.62	161.37	0.983	453.36	451.39	1.004	481.23	457.37	1.052	扭型破坏
S-3	先扭后弯	145.07	139.94	1.037	—	—	—	—	—	—	—	—	—	弯型破坏

Table 2

Table 3

Comparison of bending moments with FEA results"

试验梁	加载方式	弹性阶段			开裂阶段			腹板屈服阶段			极限承载力阶段			破坏模式
试验梁	加载方式	$M e, E x p$ /（kN·m）	$M e, F E A$ /（kN·m）	$M e, E x p M e, F E A$	$M c r, E x p$ /（kN·m）	$M c r, F E A$ /（kN·m）	$M c r, E x p M c r, F E A$	$M w y, E x p$ /（kN·m）	$M w y, F E A$ /（kN·m）	$M w y, E x p M w y, F E A$	$M u, E x p$ /（kN·m）	$M u, F E A$ /（kN·m）	$M u, E x p M u, F E A$	破坏模式
S-1	先弯后扭	134.35	121.60	1.105	—	—	—	—	—	—	—	—	—	扭型破坏
S-2	先扭后弯	—	—	—	—	—	—	—	—	—	910.23	882.95	1.031	扭型破坏
S-3	先扭后弯	—	—	—	275.60	281.89	0.978	769.90	782.35	0.984	1 043.93	1 027.85	1.016	弯型破坏

Table 3

Fig.13

Fig.14

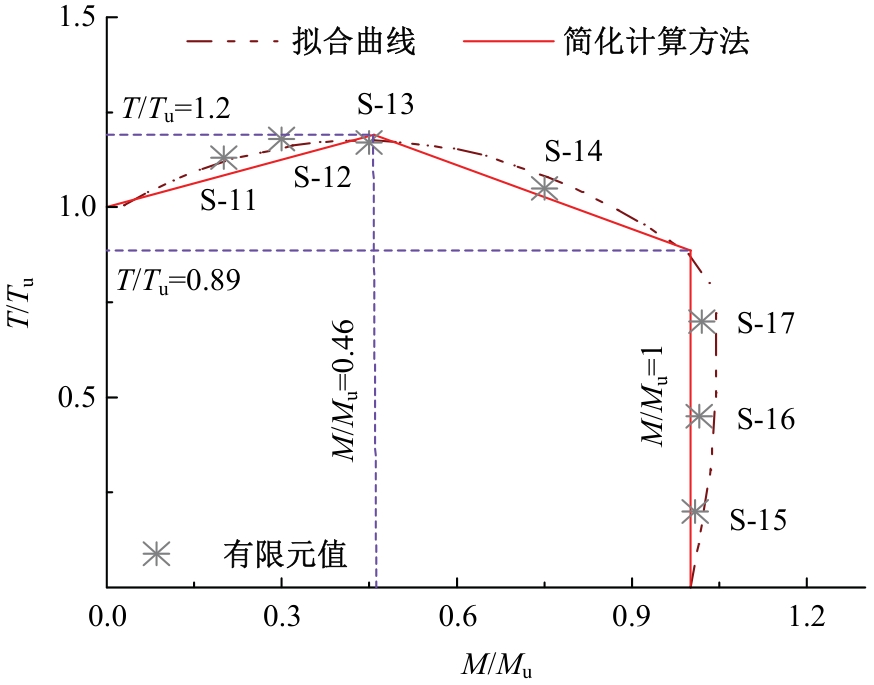

Fig.15

Table 4

Parametric analysis results"

有限元梁	加载方式	有限元		$α F$	$α N$	$α S$	$α N / α F$	$α S / α F$	破坏模式
有限元梁	加载方式	$T$ /（kN·m）	$M$ /（kN·m）	$α F$	$α N$	$α S$	$α N / α F$	$α S / α F$	破坏模式
S-11	先弯后扭	584.54	202.70	0.177	0.179	0.185	1.011	1.045	扭型破坏
S-12	先弯后扭	610.40	304.06	0.254	0.255	0.267	1.004	1.051	扭型破坏
S-13	先弯后扭	605.23	456.08	0.385	0.383	0.379	0.995	0.984	扭型破坏
S-14	先弯后扭	543.15	760.14	0.714	0.706	0.725	0.989	1.015	扭型破坏
S-15	先扭后弯	103.46	1 021.63	5.040	5.060	5.000	1.004	0.992	弯型破坏
S-16	先扭后弯	232.78	1 028.72	2.256	2.169	2.222	0.961	0.985	弯型破坏
S-17	先扭后弯	362.10	1 033.79	1.457	1.442	1.429	0.990	0.981	扭型破坏
平均值		—	—	—	—	—	0.993	1.007	—
标准差		—	—	—	—	—	0.015	0.028	—

Table 4

References 16

[1]	丁勇, 江克斌, 周寅智, 等. 波形钢腹板PC组合箱梁纯扭作用下抗扭承载力计算模型[J]. 计算力学学报, 2013, 30(1): 137-142.
	Ding Yong, Jiang Ke-bin, Zhou Yin-zhi, et al. Analytical model for torsional strength of prestressed concrete box-girder with corrugated steel webs[J]. Chinese Journal of Computational Mechanics, 2013, 30(1): 137-142.
[2]	李立峰, 侯立超, 孙君翠. 波形钢腹板抗剪性能的研究[J]. 湖南大学学报:自然科学版,2015,42(11):56-63.
	Li Li-feng, Hou Li-chao, Sun Jun-cui. Research on shear mechanical property of corrugated steel webs[J]. Journal of Hunan University(Natural Sciences), 2015, 42(11): 56-63.
[3]	赵品, 荣学亮, 邵旭东, 等. 节段预制拼装波形钢腹板单箱双室箱梁抗弯性能试验研究[J]. 铁道学报, 2022, 44(12): 142-149.
	Zhao Pin, Rong Xue-liang, Shao Xu-dong, et al. Research on bending mechanism of precast segmental composite box girder with corrugated steel webs[J]. Journal of the China Railway Society, 2022, 44(12): 142-149.
[4]	黄汉辉, 陈康明, 吴庆雄, 等. 波形钢腹板-钢管混凝土桁式弦杆组合梁抗扭性能研究[J]. 土木工程学报, 2023, 56(1): 93-104.
	Huang Han-hui, Chen Kang-ming, Wu Qing-xiong, et al. Research on torsional behavior of composite girders with CSW-CFST truss chords[J]. Journal of Civil Engineering,2023, 56(1): 93-104.
[5]	Zhang H, Zhao Q, Xiao F, et al. Improved softened truss model for prestressed concrete composite box girders with corrugated steel webs under pure torsion[J]. Engineering Structures, 2024, 302: No.117380.
[6]	Chen Y, Dong J, Tong Z, et al. Flexural behavior of composite box girders with corrugated steel webs and trusses[J]. Engineering Structures, 2020, 209: No.110275.
[7]	宋随弟, 陈克坚, 袁明. 波形钢腹板连续刚构桥极限跨度研究[J]. 桥梁建设, 2017, 47(4): 72-77.
	Song Sui-di, Chen Ke-jian, Yuan Ming. Study of ultimate spans of continuous rigid-frame bridges with corrugated steel webs[J]. Bridge Construction,2017, 47(4): 72-77.
[8]	李宏江,万水,钱培舒,等. 波形钢腹板预应力混凝土箱梁的试验研究[J]. 中国公路学报, 2004,17(4): 34-39.
	Li Hong-jiang, Wan Shui, Qian Pei-shu, et al. Experimental study on prestressed concrete box girder with corrugated steel web[J]. China Highway Journal,2004, 17(4): 34-39.
[9]	丁勇, 江克斌, 林铸明, 等. 波形钢腹板PC组合箱梁弯扭复合作用下抗扭强度试验研究[C]∥第23届全国结构工程学术会议论文集(第Ⅱ册), 兰州,2014: 17-21.
	Ding Yong, Jiang Ke-bin, Lin Zhu-ming, et al. Experimental research on ultimate torsional strength of PC composite box girder with corrugated steel webs under torsion combined bending[C]∥Proceedings of the 23rd National Structural Engineering Conference (Volume II), Lanzhou, China, 2014: 17-21.
[10]	黄洪猛. 考虑剪切变形的波形钢腹板组合箱梁扭转和畸变理论及其应用[D]. 兰州: 兰州交通大学土木工程学院, 2023.
	Huang Hong-meng. Theory and application on torsion and distortion of composite box girders with corrugated steel webs considering shear deformation[D]. Lanzhou: School of Civil Engineering, Lanzhou Jiaotong University, 2023.
[11]	李运生, 李孟彪, 王亚萍, 等. 钢-混凝土波形钢腹板组合梁弯扭性能研究[J]. 河北科技大学学报, 2022, 43: 99-109.
	Li Yun-sheng, Li Meng-biao, Wang Ya-ping, et al. Study on the bending and torsion performance of steel-concrete corrugated steel web beams[J]. Journal of Hebei University of Science and Technology, 2022, 43(1): 99-109.
[12]	Tan E L, Uy B. Experimental study on straight composite beams subjected to combined flexure and torsion[J]. Journal of Constructional Steel Research. 2009, 65(8): 784-793.
[13]	Nie J, Luo L, Hu S. Experimental study on composite steel-concrete beams under combined bending and torsion[J]. Composite and Hybrid Structures, 2000, 2: 631-638.
[14]	Colville J. Tests of curved steel-concrete composite beams[J]. Journal of the Structural Division, 1973, 99(7): 1555-1570.
[15]	Nie J, Tang L, Cai C. Performance of steel-concrete composite beams under combined bending and torsion[J]. Jouranal of Structural Engineering,2009, 135(9): 1048-1057.
[16]	Huang H, Chen K, Wu Q, et al. Experimental investigation on composite girders with CSW-CFST truss chords subjected to combined flexure and torsion[J]. Advances in Structural Engineering,2023, 26(8): 1468-1485.

Related Articles 13

[1]	Fang-xu WANG,Shi-zhong LIU,Xia-lin YANG,Ning JIANG,Xin-yi LIU,Chi MA. Calculation method of deflection of composite box beam with considering the deformation of the steel truss web [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(8): 2619-2629.
[2]	Fu-cheng ZHOU,Yuan-hai ZHANG,Yan-hong WEI. Transverse bending moment analysis considering the influence of the distortion warping stress distribution range of the corrugated steel webs [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(11): 3498-3506.
[3]	Chao ZHANG,Zheng-rong ZHAO,You-jun XU,Xu-zhi NIE. Shear deformation and failure characteristics of precast utility tunnel joints by foundation [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(10): 3262-3273.
[4]	Jian-qing BU,Zhi-bo GUO,Ji-ren ZHANG,Jing-chuan XUN,Xiao-ming HUANG. Finite element analysis method for mechanical properties of steel⁃concrete composite beam bridges with multiple damages [J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(6): 1621-1637.
[5]	Ya-na MAO,Shi-zhong LIU,Jian XING,Hua YANG,Yu-bo JIAO. Bond⁃slip characterization between ultra⁃high performance glass sand concrete and high⁃strength reinforcement based on acoustic emission parameters [J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(6): 1686-1694.
[6]	Zhi-qiang HAN,Gang XIE,Yong-jun ZHOU,Shi-zhong LIU,Min-jie JIN. Numerical analysis method of vehicle⁃bridge coupling vibration of curved bridge [J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(2): 515-522.
[7]	Jin-song ZHU,Ya-ting QIN,Zhou-qiang LIU. Section optimization design of prestressed UHPC-NC composite beams [J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(11): 3151-3159.
[8]	Guo-jun YANG,Qi-wei TIAN,Ming-hang LYU,Yong-feng DU,Guang-wu TANG,Zong-jian HAN,Yi-duo FU. Review of mechanic characteristics of tunnel⁃type anchorage of long⁃span suspension bridge [J]. Journal of Jilin University(Engineering and Technology Edition), 2022, 52(6): 1245-1263.
[9]	Zhi-yuan YUANZHOU,Bo-hai JI,Jun-yuan XIA,Tong SUN. Pneumatic impact test on rib⁃to⁃diaphragm fatigue crack of steel box girder [J]. Journal of Jilin University(Engineering and Technology Edition), 2022, 52(12): 2883-2891.
[10]	Chun-liang LI,Zhi-hao LIN,Luo-luo ZHAO. Effect of damaged hinge joint and damaged slab on transverse force of hollow slab bridge [J]. Journal of Jilin University(Engineering and Technology Edition), 2021, 51(2): 611-619.
[11]	NI Ying-sheng, SUN Qi-xin, MA Ye, XU Dong. Calculation of capacity reinforcement about composite box girder with corrugated steel webs based on tensile stress region theory [J]. 吉林大学学报(工学版), 2018, 48(1): 148-158.
[12]	NI Ying-sheng, MA Ye, XU Dong, LI Jin-kai. Space mesh analysis method for shear lag effect of cable-stayed bridge with corrugated steel webs [J]. 吉林大学学报(工学版), 2017, 47(5): 1453-1464.
[13]	SU Ying-she, YANG Yuan-yuan. Seismic compression performance of the concrete under high temperature [J]. 吉林大学学报(工学版), 2015, 45(5): 1436-1442.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

试验梁	混凝土抗压强度/MPa	波形钢腹板屈服强度/MPa	钢筋屈服强度/MPa	预应力筋拉伸强度/MPa
S-1	51.2	260	410	1 860
S-2	50.5	260	405
S-3	50.9	260	403
