减小驱动桥啸叫噪声的锥轴承游隙设计

doi:10.13229/j.cnki.jdxbgxb.20231402

吉林大学学报(工学版) ›› 2025, Vol. 55 ›› Issue (10): 3141-3150.doi: 10.13229/j.cnki.jdxbgxb.20231402

• 车辆工程·机械工程 • 上一篇

减小驱动桥啸叫噪声的锥轴承游隙设计

杨继轩¹(),张贵辉²,陈志勇¹(),史文库¹,刘健³,苑仁飞³,赵燕燕³

^1.吉林大学汽车底盘集成与仿生全国重点实验室，长春 130022
^2.吉林大华机械制造有限公司，长春 130103
^3.中国重汽集团汽车研究总院，济南 250100

收稿日期:2024-03-26 出版日期:2025-10-01 发布日期:2026-02-03
通讯作者: 陈志勇 E-mail:yangjx22@mails.jlu.edu.cn;chenzy@jlu.edu.cn
作者简介:杨继轩（1999-），男，博士研究生.研究方向：汽车系统动力学与控制.E-mail： yangjx22@mails.jlu.edu.cn
基金资助:
国家重点研发计划项目(2018YFB0106200)

Clearance design of taper roller bearings for reducing drive axle whine

Ji-xuan YANG¹(),Gui-hui ZHANG²,Zhi-yong CHEN¹(),Wen-ku SHI¹,Jian LIU³,Ren-fei YUAN³,Yan-yan ZHAO³

^1.National Key Laboratory of Automotive Chassis Integration and Bionics，Jilin University，Changchun 130022，China
^2.Dahua Machine Manufacturing Co. ，Ltd. ，Changchun 130103，China
^3.Automotive Research Institute，China National Heavy Duty Truck（Group Corp. ），Jinan 250100，China

Received:2024-03-26 Online:2025-10-01 Published:2026-02-03
Contact: Zhi-yong CHEN E-mail:yangjx22@mails.jlu.edu.cn;chenzy@jlu.edu.cn

摘要/Abstract

摘要：

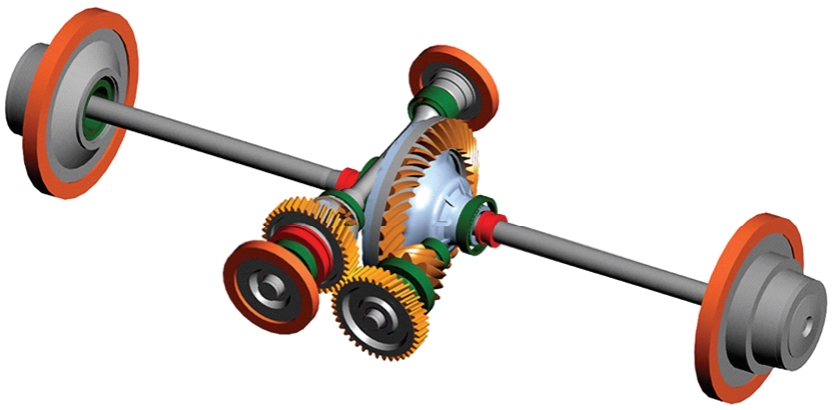

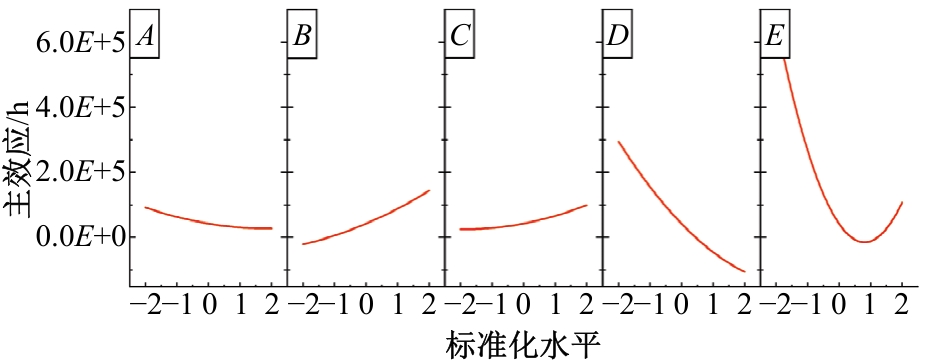

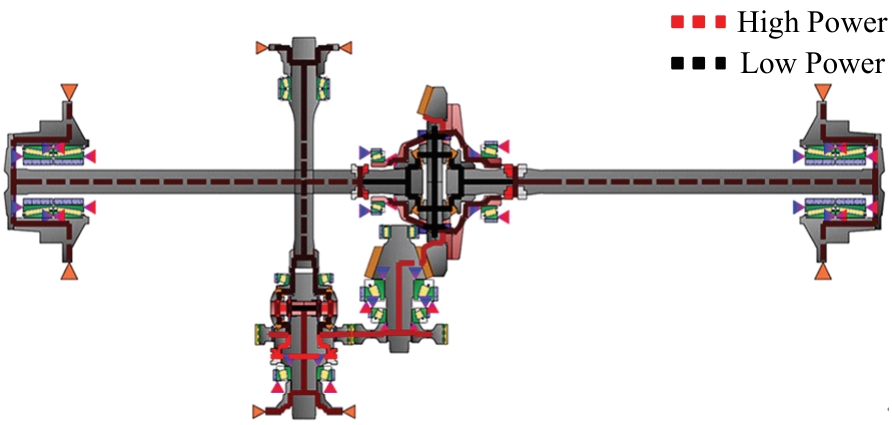

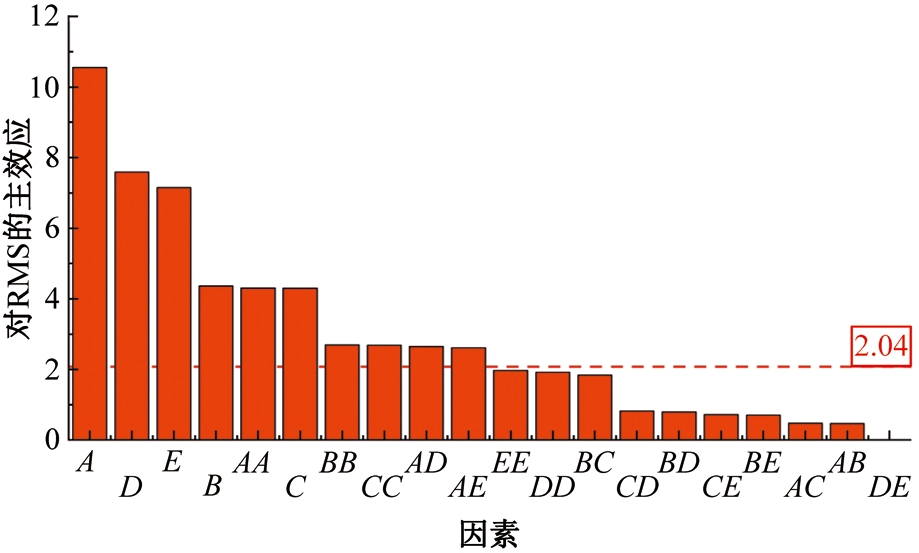

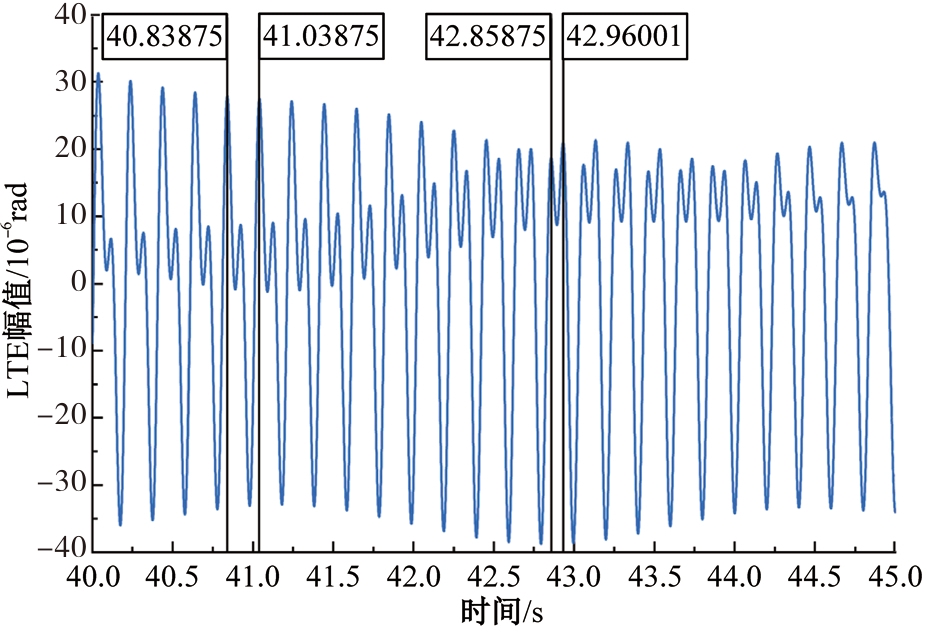

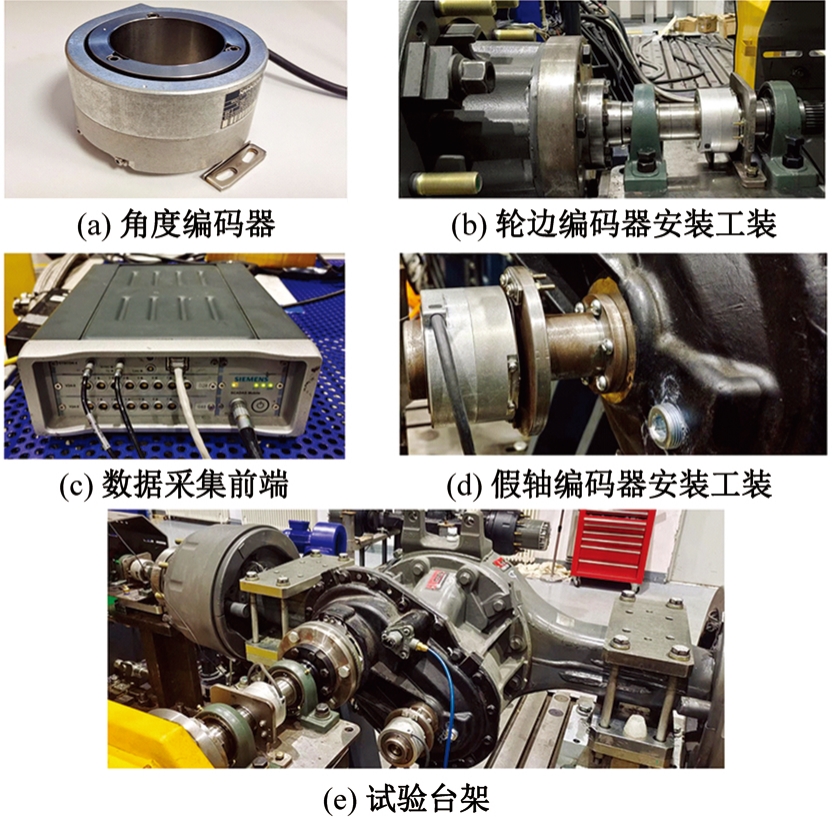

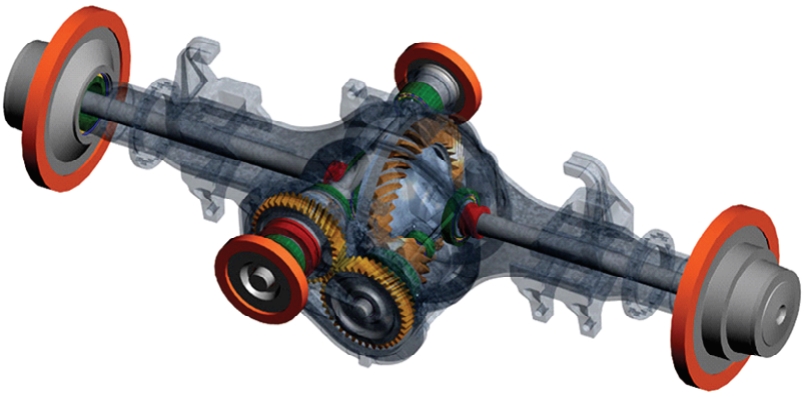

针对驱动桥的啸叫这一系统性问题，提出了通过调整锥轴承游隙进行减振降噪的分析流程。该流程基于包含齿-轴系统、轴承、壳体在内的中桥总成动力学仿真模型，模型的正确性通过锥齿轮的传递误差试验进行验证。以支承输入轴、小齿轮轴与差速器壳等5个锥轴承的游隙为设计变量，使用响应曲面方法分别为桥壳表面的振动响应以及小齿轮轴球轴承的疲劳寿命建立了代理模型，并通过多目标优化得到了考虑轴承寿命的驱动桥啸叫问题改进方案。结果表明，流程具有较好的效果和适应性。

关键词: 车辆工程, 受载传递误差, 轴承游隙, 轴承疲劳寿命, 响应曲面法

Abstract:

A proposed analytical process aims to reduce vibration and noise by adjusting the clearance of the taper bearings for the systematic issue of whine in the drive axle. This process is based on a simulation model of the dynamics of the mid-axle assembly， which includes the gear， axle， bearings， and housing. The accuracy of the model is verified by the transmission error test of the bevel gears. By considering the clearances of five taper bearings that support the input shaft， pinion shaft， and differential as design variables， the response surface method was employed to establish a surrogate model for the vibration response of the axle case and the fatigue life of the pinion shaft ball bearings. Through multi-objective optimization， an improvement plan for addressing the drive axle whistling issue was obtained， considering the bearing life. The results show that this process yields better outcomes and demonstrates high adaptability.

Key words: automotive engineering, loaded transmission error, bearing clearance, bearing fatigue life, response surface method

中图分类号:

TH133.33

杨继轩,张贵辉,陈志勇,史文库,刘健,苑仁飞,赵燕燕. 减小驱动桥啸叫噪声的锥轴承游隙设计[J]. 吉林大学学报(工学版), 2025, 55(10): 3141-3150.

Ji-xuan YANG,Gui-hui ZHANG,Zhi-yong CHEN,Wen-ku SHI,Jian LIU,Ren-fei YUAN,Yan-yan ZHAO. Clearance design of taper roller bearings for reducing drive axle whine[J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(10): 3141-3150.

图/表 25

表1

表2

图1

图2

图3

图4

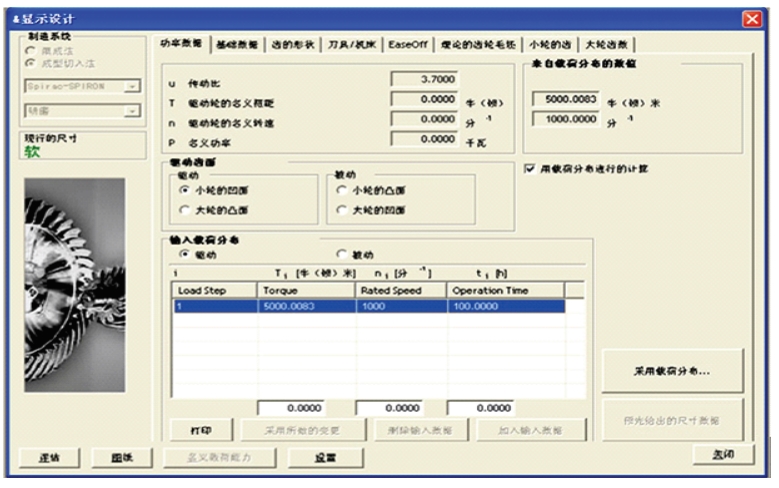

图5

图6

图7

图8

图9

图10

表3

图11

表4

图12

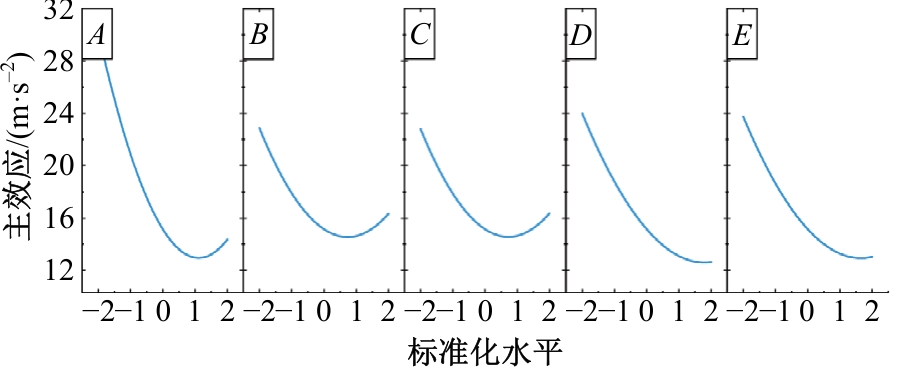

图13

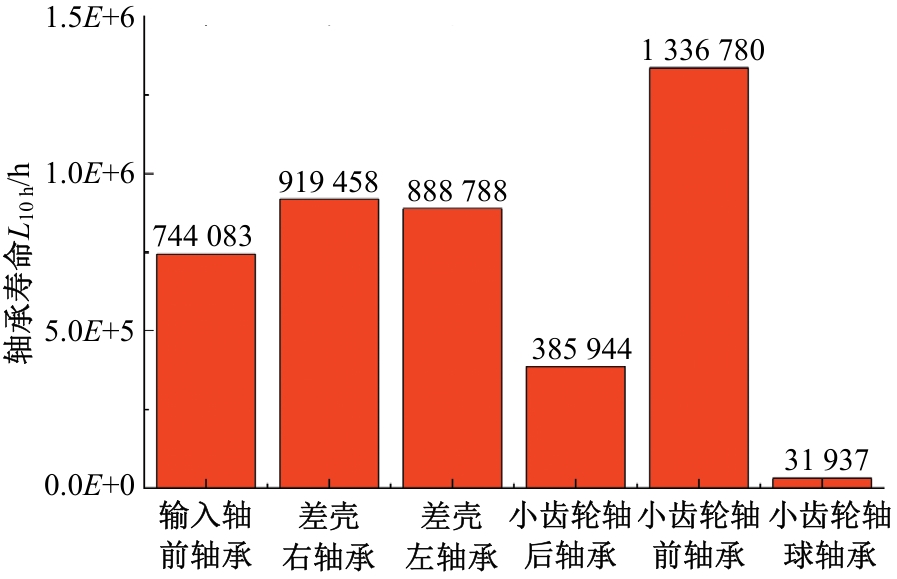

图14

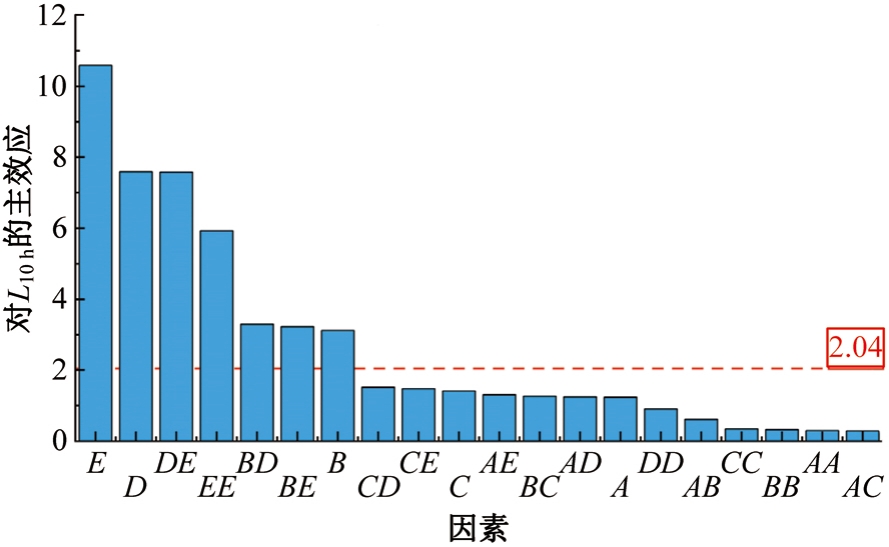

图15

图16

图17

表5

表6

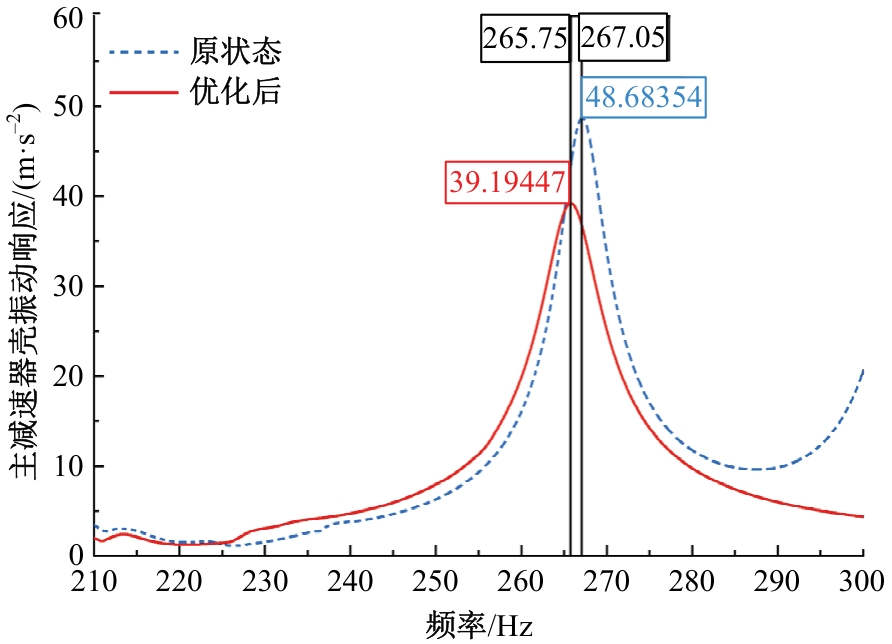

图18

图19

参考文献 19

[1]	张靖, 陈兵奎, 吴长鸿, 等. 圆锥滚子轴承预紧力对变速器啸叫噪声的影响分析[J]. 中国机械工程, 2013, 24(11): 1453-1458.
	Zhang Jing, Chen Bing-kui, Wu Chang-hong, et al. Analysis of effect of taper roller bearing preload on gear whine in manual transmission[J]. China Mechanical Engineering, 2013, 24(11): 1453-1458.
[2]	刘国政, 史文库, 陈志勇. 驱动桥啸叫试验与降噪措施研究[J]. 传动技术, 2021, 35(4): 19-23.
	Liu Guo-zheng, Shi Wen-ku, Chen Zhi-yong. Test and lmprovement of the drive axle whine[J]. Drive System Technique, 2021, 35(4): 19-23.
[3]	Lin C, Wang Y, Wang K, et al. Optimization of hypoid gear tooth profile modifications on vehicle axle system dynamics[C]∥SAE Paper, 2019-1527.
[4]	赖长发, 聂少武, 徐国祥,等. 基于齿面拓扑修形的驱动桥主减齿轮啸叫分析与优化[J]. 机床与液压, 2020, 48(16): 15-19.
	Lai Chang-fa, Nie Shao-wu, Xu Guo-xiang, et al. Drive bridge main reducer gear whine analysis and optimization based on tooth surface topology modification[J]. Machine Tool & Hydraulics, 2020, 48(16): 15-19.
[5]	Artoni A, Gabiccini M, Guiggiani M, et al. Multi-objective ease-off optimization of hypoid gears for their efficiency, noise, and durability performances[J]. J Mech Des, 2011, 133(12):No. 121007.
[6]	郑煜圣. 汽车驱动桥振动噪声分析与改进措施研究[D]. 长春: 吉林大学汽车工程学院, 2018.
	Zheng Yu-sheng. Analysis and improvement measures of vibration and noise for automobile drive axle[D]. Changchun: College of Automotive Engineering, Jilin University, 2018.
[7]	焦东风, 刘志峰. 汽车驱动桥NVH性能分析与优化[J]. 汽车工程, 2020, 42(2): 240-249.
	Jiao Dong-feng, Liu Zhi-feng. NVH Performance analysis and optimization of automobile drive axle[J]. Automotive Engineering, 2020, 42(2): 240-249.
[8]	奚育宏. 圆锥滚子轴承减振降噪技术 [J]. 锻压装备与制造技术, 2023, 58(3): 75-77.
	Xi Yu-hong. Tapered roller bearing vibration and noise reduction technology[J]. China Metalforming Equipment & Manufacturing Technology, 2023, 58(3): 75-77.
[9]	Turek P, Skoczyński W. Model research on the influence of bearing preload change on the frequency and form if natural vibrations of the spindle system[J]. Advances in Science and Technology Research Journal, 2020, 14(4): 284-297.
[10]	Gunduz A, Dreyer J, Singh R. Effect of bearing preloads on the modal characteristics of a shaft-bearing assembly: experiments on double row angular contact ball bearings[J]. Mechanical Systems and Signal Processing, 2012, 31:176-195.
[11]	Bal H, Ateş K, Karaçay T, et al. Effect of preload on the vibrations of EHL angular contact ball bearings: theoretical and experimental results[J]. Lubricants, 2022, 10(3):No. 46.
[12]	Gunduz A, Dreyer J, Singh R. Effects of preloads on vibration transmission through double row angular contact ball bearings[J]. International Design Engineering Technical Conferencesand Computers and Information in Engineering Conference, 2012,8: 15-24.
[13]	蔡鹏飞, 赵旭恒, 张绪文, 等. 基于Romax的卡车轮毂轴承单元游隙计算[J]. 轴承, 2023(9): 24-27, 38.
	Cai Peng-fei, Zhao Xu-heng, Zhang Xu-wen, et al. Calculation on clearance of truck hub bearing units based on Romax[J]. Bearing, 2023(9): 24-27, 38.
[14]	胡迪, 米承继, 刘祥环, 等. 新能源汽车减速器锥轴承预紧量研究[J]. 机电工程, 2022, 39(8): 1071-1079.
	Hu Di, Mi Cheng-ji, Liu Xiang-huan, et al. Preload study of tapered bearing for new energy vehicle reducer[J]. Journal of Mechanical & Electrical Engineering, 2022, 39(8): 1071-1079.
[15]	汤春球, 曹甜马, 莫易敏, 等. 轴承游隙对驱动桥传动性能影响的试验探究[J]. 机械传动, 2015, 39(9): 142-145, 150.
	Tang Chun-qiu, Cao Tian-ma, Mo Yi-min, et al. Experimental research on the influence of bearing clearance on the transmission performance of driving axle[J]. Journal of Mechanical Transmission, 2015, 39(9): 142-145, 150.
[16]	Migal V, Lebedev A, Shuliak M,et al. Reducing the vibration of bearing units of electric vehicle asynchronous traction motors[J]. Journal of Vibration and Control, 2020, 27(9-10): 1123-1131.
[17]	Ha H. Preload effects of a guide bearing on the metal temperature and the shaft vibration[J]. Journal of Tribol, 2001, 123(1): 144-150.
[18]	Liu J, Yan Y, Feng Q, et al. The analysis of influence of lateral free clearance of axle box bearings on heavy haul locomotive [C]∥International Conference on Transportation Information and Safety, Wuhan,China,2011: 2290-2297.
[19]	Yang J, Chen Z, Shi W, et al. Vibration control of commercial vehicle drive axles based on modification of helical gears[J]. Mechanical Systems and Signal Processing, 2023, 193: No.110252.

相关文章 15

[1]	高镇海,鲍明喜,赵睿,唐明弘,高菲. 基于目标锚点驱动的多模态轨迹预测方法[J]. 吉林大学学报(工学版), 2026, 56(1): 21-30.
[2]	张向文,王子豪. 电动汽车制动模式切换过程电液协调控制策略[J]. 吉林大学学报(工学版), 2026, 56(1): 31-43.
[3]	兰巍,周政,王冠宇,王伟,张苗苗. 基于机器学习的汽车设计智能拟合方法[J]. 吉林大学学报(工学版), 2025, 55(9): 2858-2863.
[4]	孙天骏,杨惠喆,蔡荣贵,冯嘉仪,冉锐,刘斌. 面向纯电动汽车自适应巡航系统的人性化起停控制策略[J]. 吉林大学学报(工学版), 2025, 55(9): 2847-2857.
[5]	李寿涛,贾湘怡,朱军,郭洪艳,于丁力. 基于Level-K的智能驾驶汽车无信控交叉路口决策方法[J]. 吉林大学学报(工学版), 2025, 55(9): 3069-3078.
[6]	朱冰,孟鹏翔,刘斌,韩嘉懿,赵健,陈志成,宋东鉴,陶晓文. 基于交通环境信息的虚拟车道线拟合方法[J]. 吉林大学学报(工学版), 2025, 55(9): 2935-2945.
[7]	赵俊武,曲婷,胡云峰. 基于自适应采样的智能车辆轨迹规划方法[J]. 吉林大学学报(工学版), 2025, 55(8): 2802-2816.
[8]	于贵申,陈鑫,唐悦,赵春晖,牛艾佳,柴辉,那景新. 激光表面处理对铝-铝粘接接头剪切强度的影响[J]. 吉林大学学报(工学版), 2025, 55(8): 2555-2569.
[9]	高金武,孙少龙,王舜尧,高炳钊. 基于电机转矩补偿的增程器转速波动抑制策略[J]. 吉林大学学报(工学版), 2025, 55(8): 2475-2486.
[10]	贾美霞,胡建军,肖凤. 基于多软件联合的车用电机变工况多物理场仿真方法[J]. 吉林大学学报(工学版), 2025, 55(6): 1862-1872.
[11]	宋学伟,于泽平,肖阳,王德平,袁泉,李欣卓,郑迦文. 锂离子电池老化后性能变化研究进展[J]. 吉林大学学报(工学版), 2025, 55(6): 1817-1833.
[12]	肖纯,易子淳,周炳寅,张少睿. 基于改进鸽群优化算法的燃料电池汽车模糊能量管理策略[J]. 吉林大学学报(工学版), 2025, 55(6): 1873-1882.
[13]	李伟东,马草原,史浩,曹衡. 基于分层强化学习的自动驾驶决策控制算法[J]. 吉林大学学报(工学版), 2025, 55(5): 1798-1805.
[14]	卢荡,索艳茹,孙宇航,吴海东. 基于无量纲格式的轮胎侧倾侧偏力学特性预测[J]. 吉林大学学报(工学版), 2025, 55(5): 1516-1524.
[15]	高镇海,郑程元,赵睿. 真实与虚拟场景下自动驾驶车辆的主动安全性验证与确认综述[J]. 吉林大学学报(工学版), 2025, 55(4): 1142-1162.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

项目	主动齿轮	被动齿轮
法向模数/mm	5.75	5.75
齿数/个	38	38
螺旋角/（°）	15	15
旋向	左旋	右旋
法向压力角/（°）	20	20
齿宽/mm	46	46

项目	主动齿轮	被动齿轮
轴交角/（°）	90	90
偏置距/mm	30	30
旋向	右旋	左旋
齿数/个	10	37
名义压力角/（°）	22.5	22.5

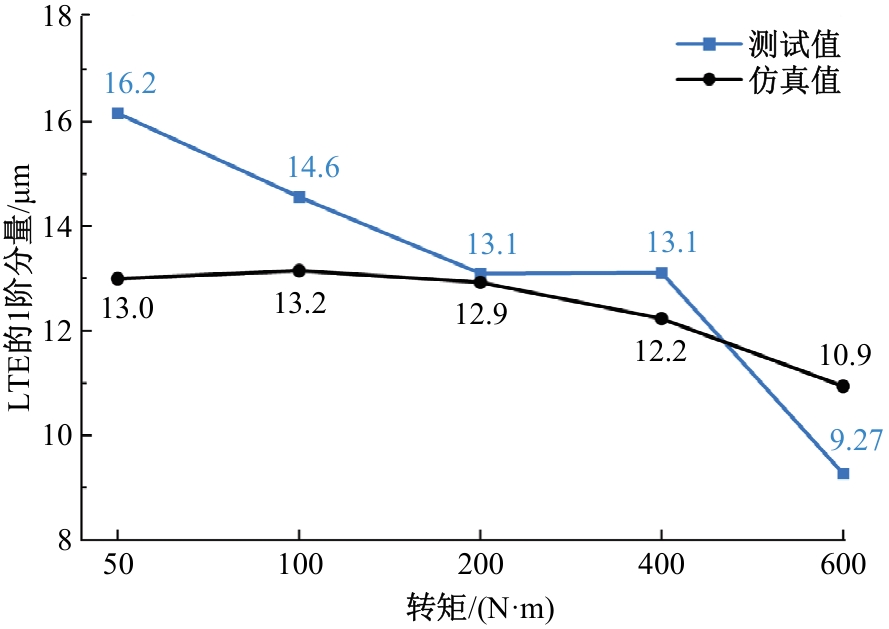

参数	转矩工况/（N·m）
参数	50	100	200	400	600
测试值/μm	16.163	14.561	13.094	13.112	9.269
仿真值/μm	12.994	13.152	12.926	12.232	10.940
仿真精度/%	80.40	90.33	98.72	93.29	84.73

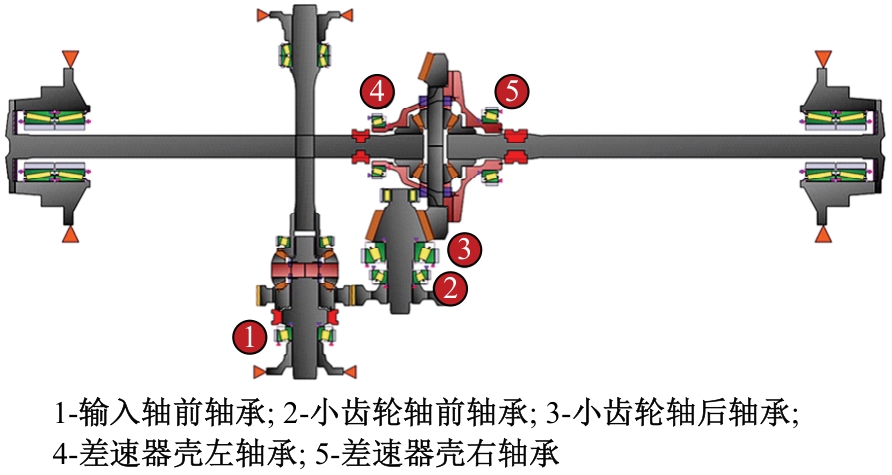

因素	对应轴承	水平
因素	对应轴承	-1	1
A	输入轴前轴承	-300	300
B	差速器壳右轴承	-300	300
C	差速器壳左轴承	-300	300
D	小齿轮轴后轴承	-300	300
E	小齿轮轴前轴承	-300	300

参数	拟合值	仿真值
10阶振动RMS值/（m·s^-2）	12.05	13.21

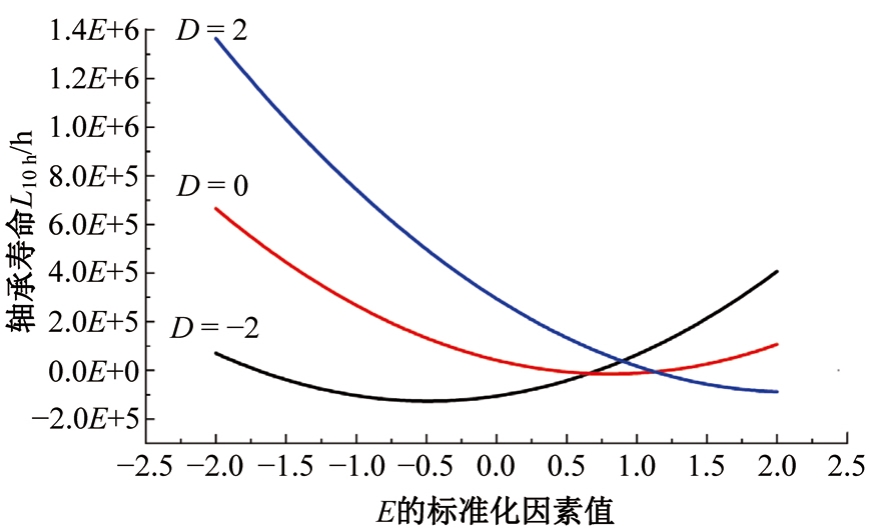

球轴承寿命 L_{10 h}/h	100 000.2	105 521.8
