多自由度尺寸可调下肢外骨骼机器人的设计与分析

doi:10.13229/j.cnki.jdxbgxb.20231444

摘要/Abstract

摘要：

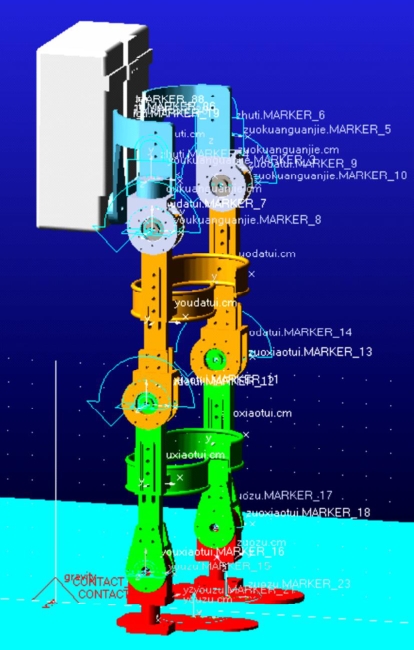

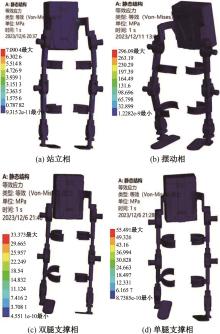

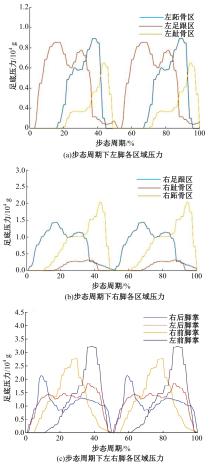

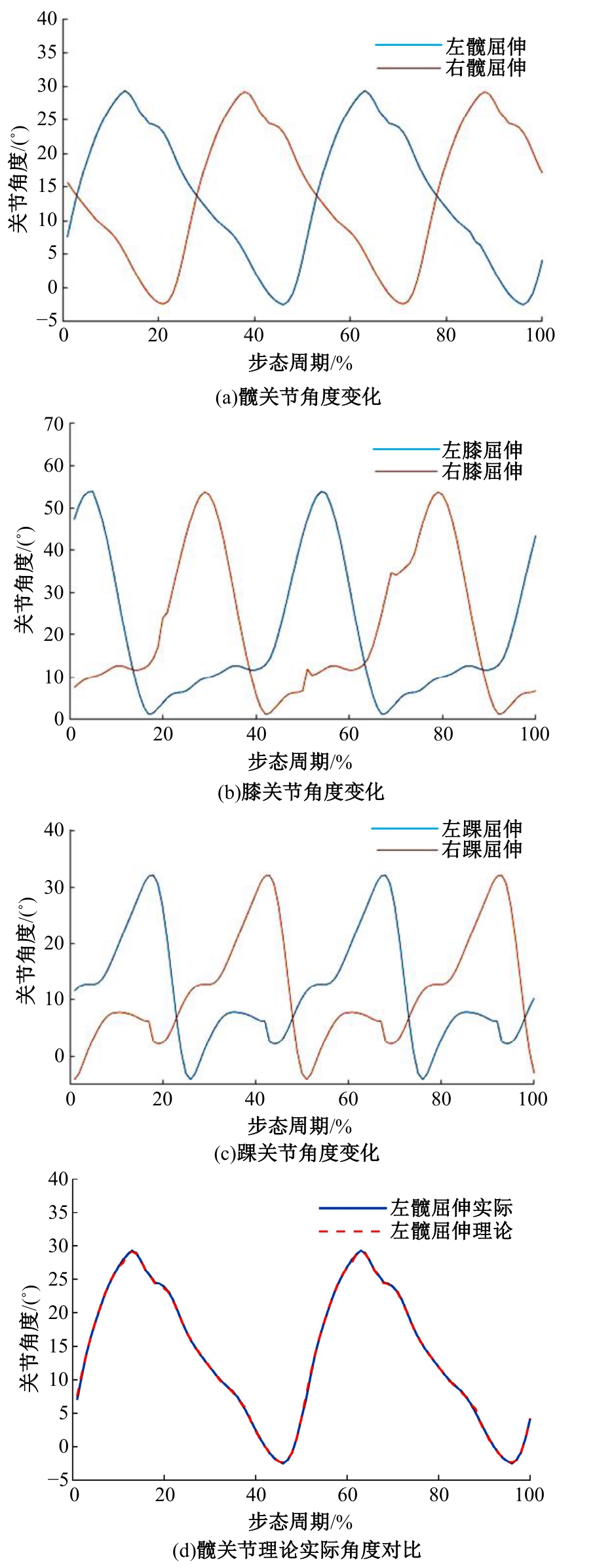

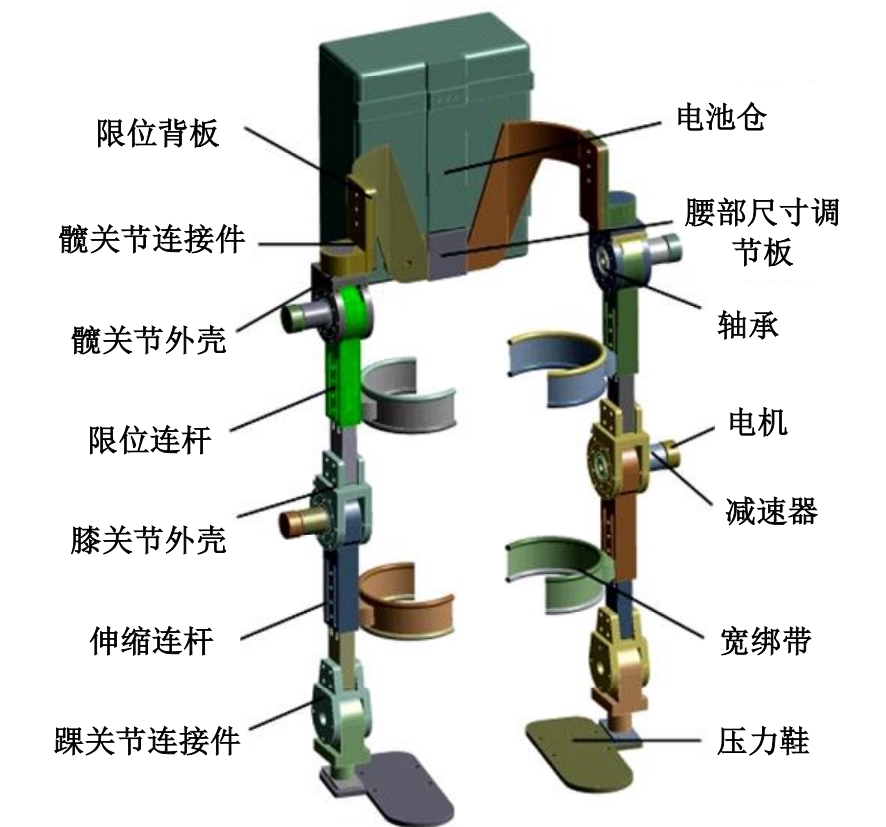

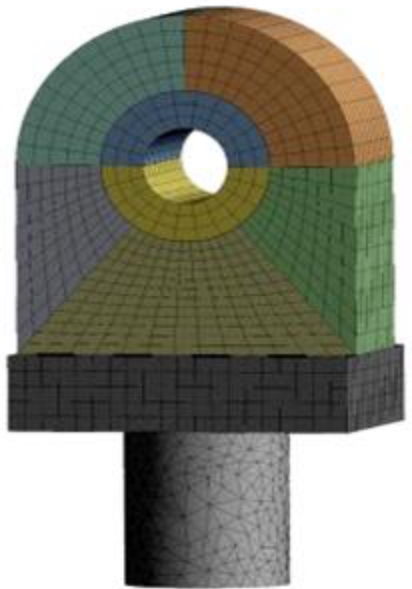

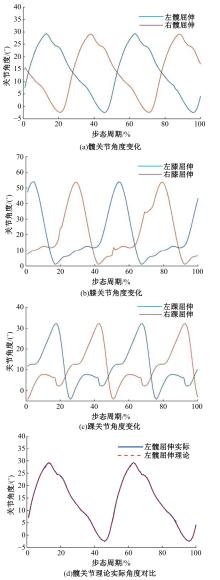

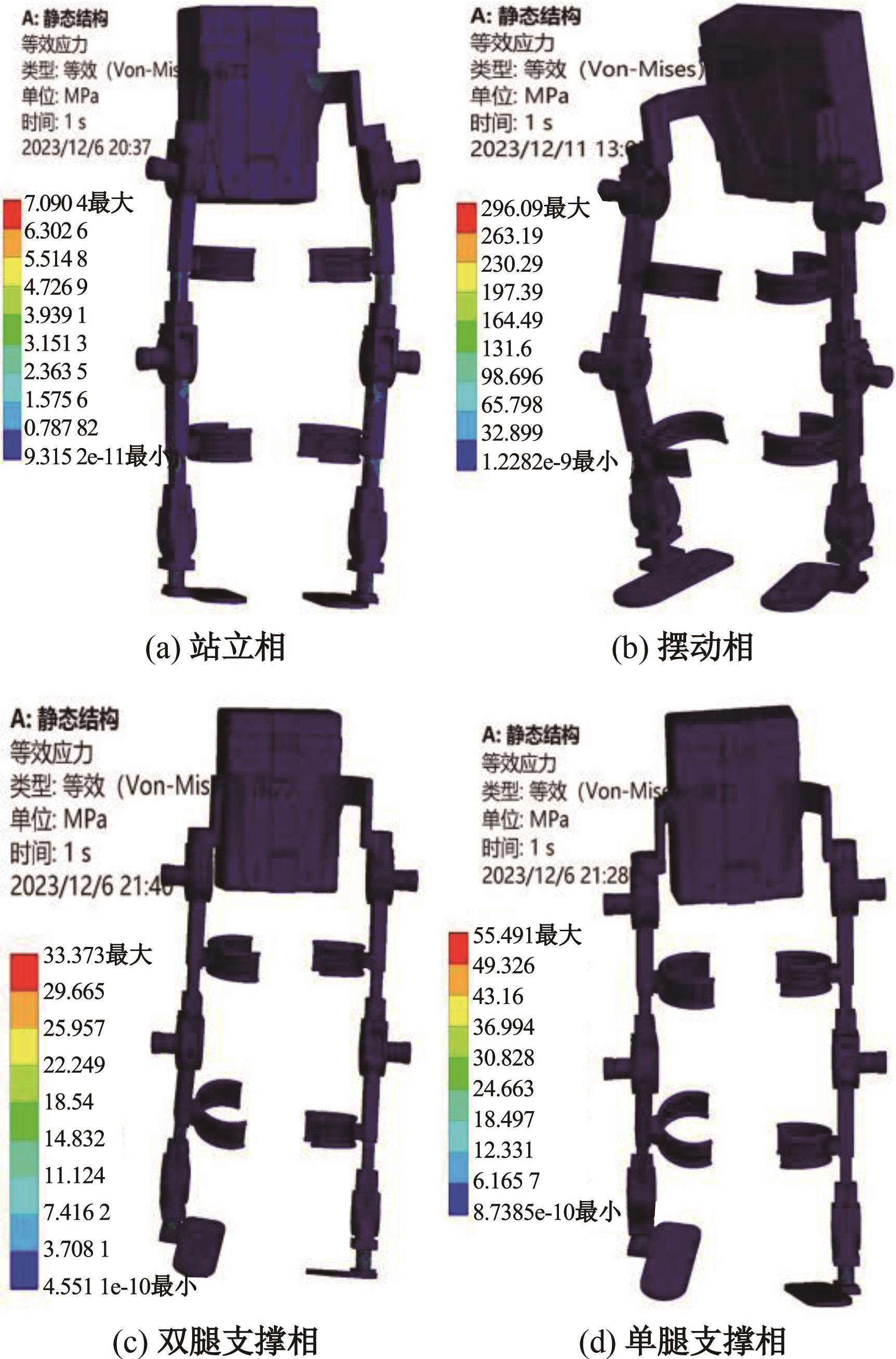

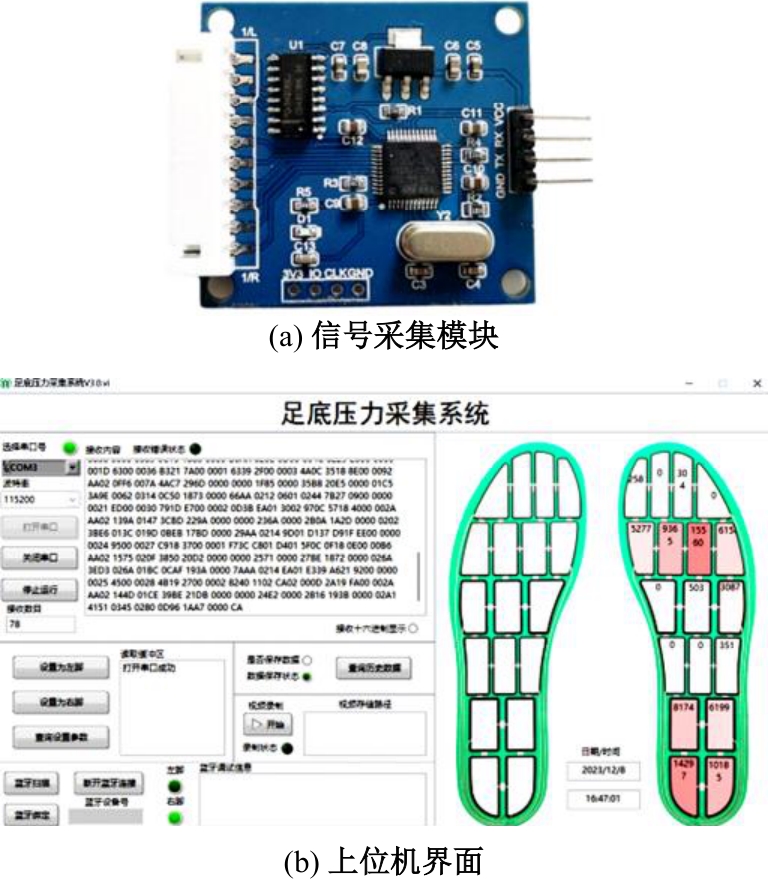

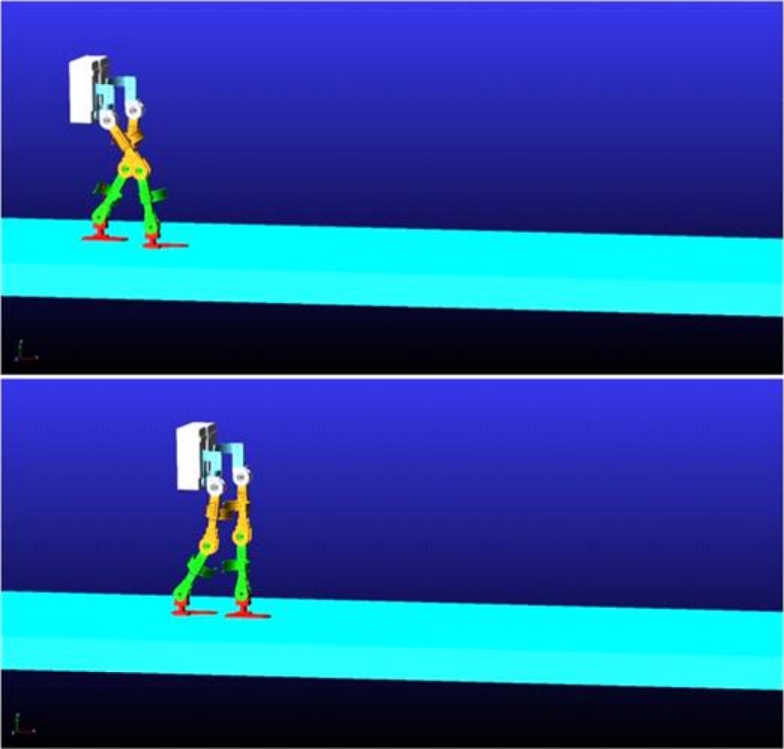

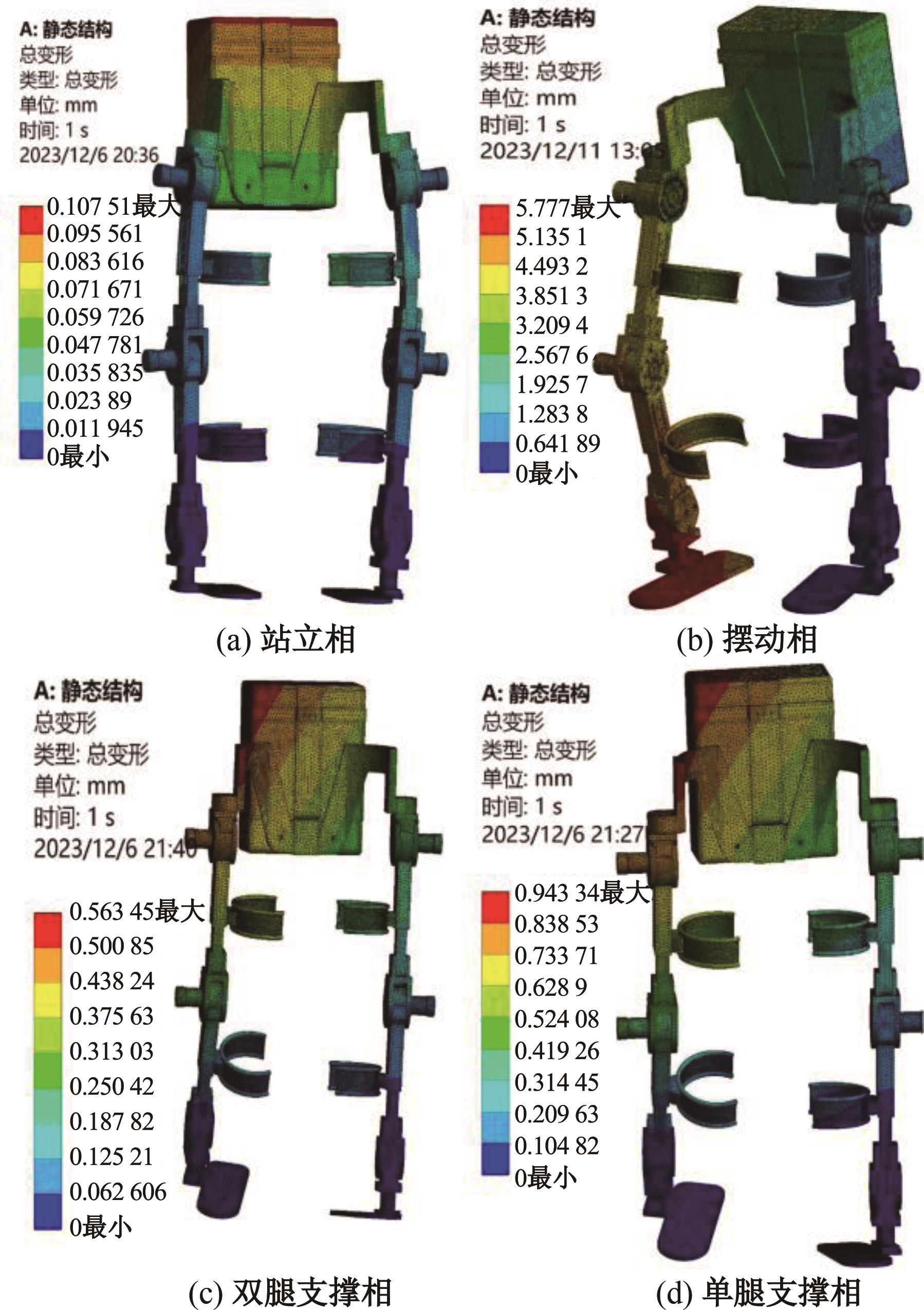

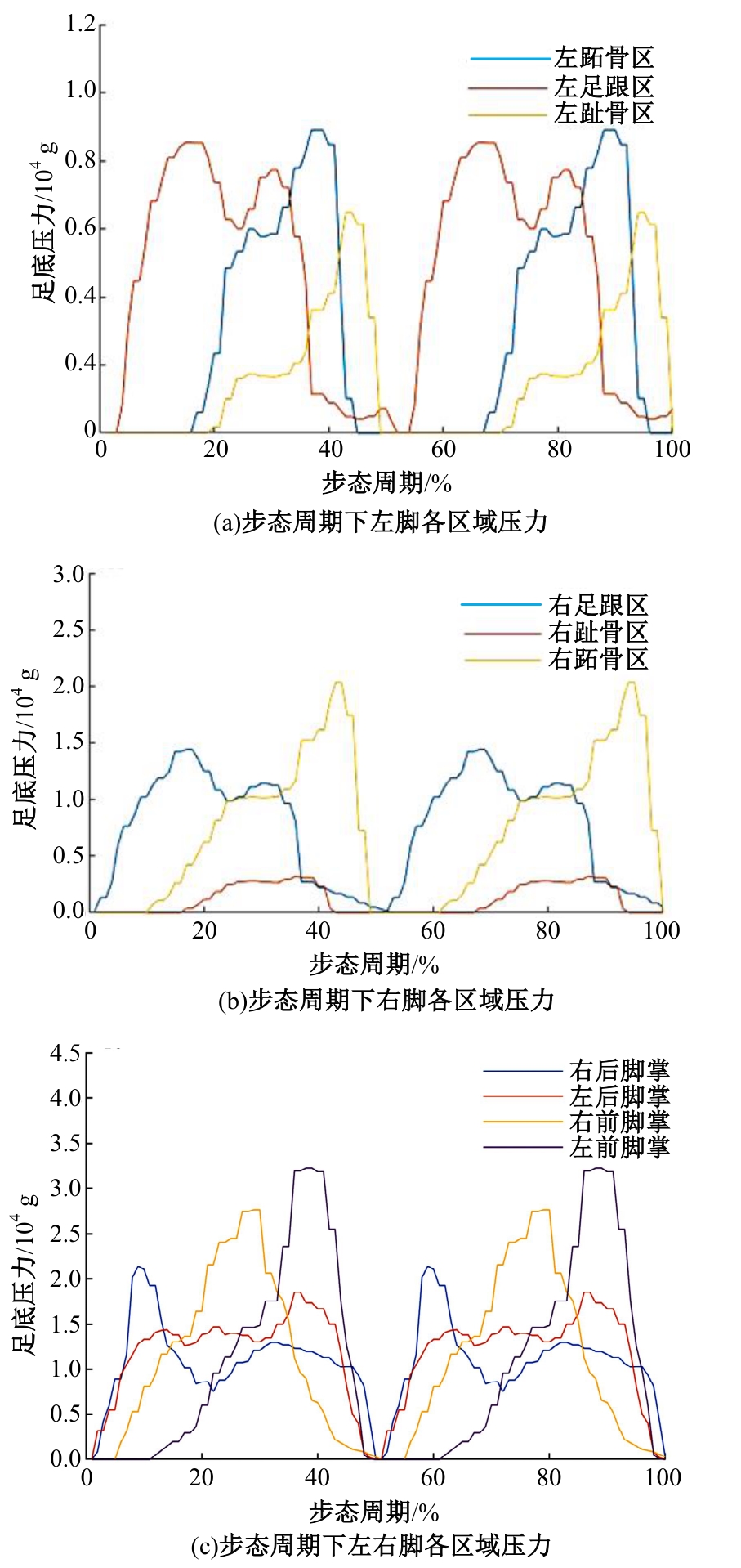

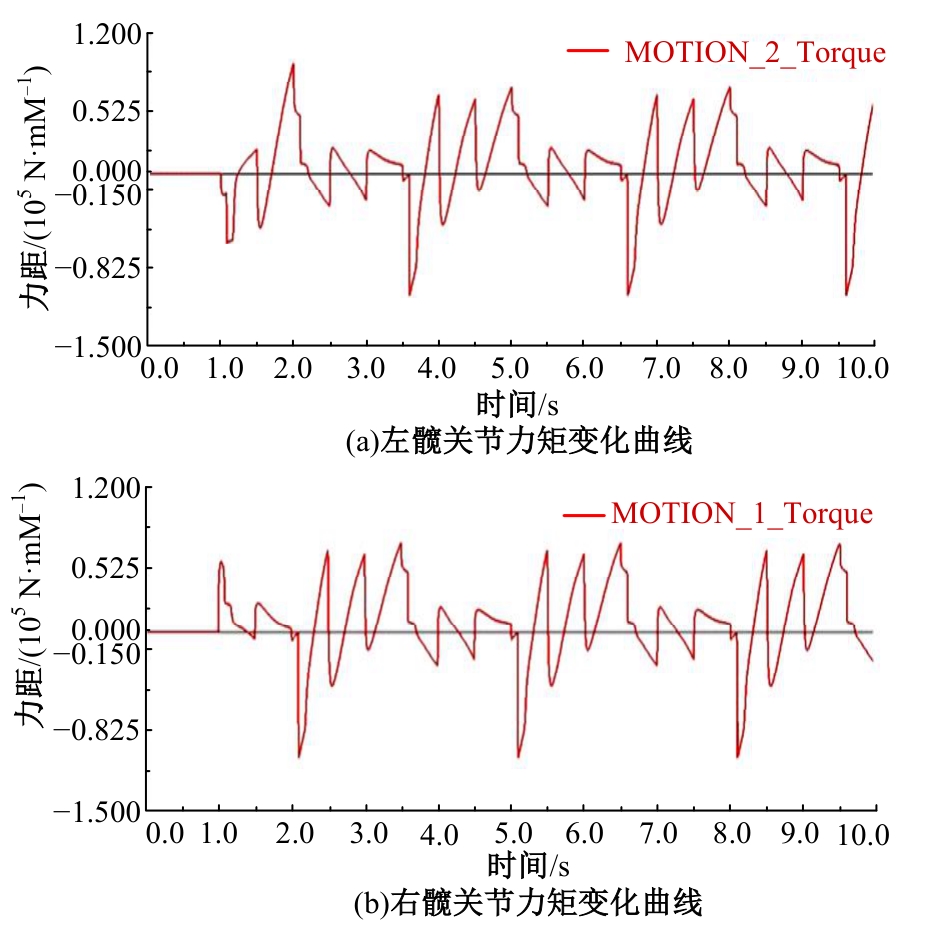

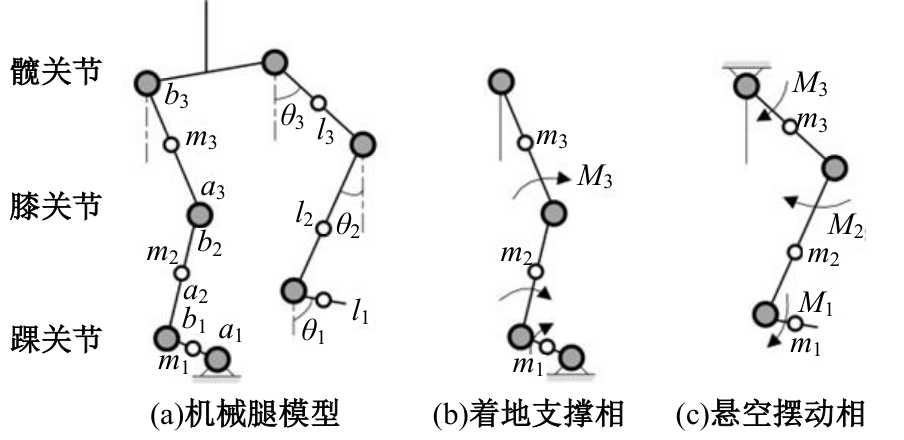

针对当前下肢外骨骼结构冗余及人机匹配性差的问题，设计了一种多自由度尺寸可调的下肢助力外骨骼机器人，并在关节处设置了限位装置；采用有限元方法模拟了外骨骼结构在行走过程中的受力、变形、应力和共振情况；利用足底压力传感器系统采集和分析了人体足底的受力及变化规律；采用拉格朗日方程建立了外骨骼关节机械腿的动力学模型，并求解了各关节的受力情况；将实验和求解结果作为关节驱动函数的参数，对外骨骼进行动力学仿真，获得了外骨骼运动的样条数据。所得结果为后续机器人的驱动控制提供了依据，同时验证了下肢助力外骨骼机器人的人机协调性和合理性。

关键词: 下肢外骨骼, 动力学仿真, 足底压力, 结构设计

Abstract:

To address the current problems of structural redundancy and poor human-machine compatibility in lower-limb exoskeletons， a multi-degree-of-freedom， size-adjustable lower-limb power-assist exoskeleton robot was designed with mechanical limit devices installed at each joint. The force， deformation， stress and resonance of the exoskeleton structure during walking were simulated by the finite-element method. A plantar-pressure-sensor system was used to collect and analyze the force distribution and its variation on the human sole. Lagrange’s equations were employed to establish the dynamic model of the exoskeleton leg， and the loads at every joint were solved. The experimental and analytical results were then taken as parameters of the joint drive functions to perform a dynamic simulation of the exoskeleton， yielding spline data of the exoskeleton motion. The obtained results provide a basis for the subsequent drive control of the robot and simultaneously verify the human–machine coordination and rationality of the proposed lower-limb power-assist exoskeleton.

Key words: lower limb exoskeleton, dynamic simulation, foot pressure, structural design

中图分类号:

TP242

丁海涛,刘鹏,王京华,马天赐,许星宇,邓泽珩. 多自由度尺寸可调下肢外骨骼机器人的设计与分析[J]. 吉林大学学报(工学版), 2025, 55(10): 3131-3140.

Hai-tao DING,Peng LIU,Jing-hua WANG,Tian-ci MA,Xing-yu XU,Ze-heng DENG. Design and analysis of a multi-degree-of-freedom size-adjustable lower limb exoskeleton robot[J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(10): 3131-3140.

图/表 15

图1

表1

表2

图2

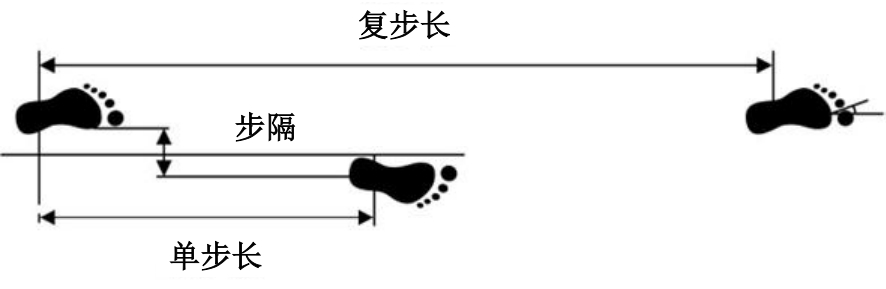

图3

图4

图5

图6

图7

图8

图9

图10

表3

图11

图12

参考文献 26

[1]	宋遒志, 王晓光, 王鑫, 等. 多关节外骨骼助力机器人发展现状及关键技术分析[J]. 兵工学报, 2016, 37(1): 172-185.
	Song Qiu-zhi, Wang Xiao-guang, Wang Xin, et al. Development of multi-joint exoskeleton-assisted robot and its key technology analysis: an overview[J]. Acta Armamentarii, 2016, 37(1): 172-185.
[2]	Kalita B, Narayan J, Dwivedy S K. Development of active lower limb robotic-based orthosis and exoskeleton devices: a systematic review[J]. International Journal of Social Robotics, 2021, 13: 775-793.
[3]	Pamungkas D S, Caesarendra W, Soebakti H, et al. Overview: types of lower limb exoskeletons[J]. Electronics, 2019, 8(11): No.1283.
[4]	朱惠盈, 杨海乐, 林星羽. 外骨骼穿戴式助力助行机器人技术综述[J]. 计量与测试技术, 2019, 46(7): 54-58, 63.
	Zhu Hui-ying, Yang Hai-le, Lin Xing-yu. Review of exoskeleton wearable assisting robot[J]. Metrology & Measurement Technique, 2019, 46(7): 54-58, 63.
[5]	何育民, 骆婷, 郭思宇, 等. 下肢外骨骼运动学与动力学研究综述[J]. 兵器装备工程学报, 2023, 44(5): 285-293.
	He Yu-min, Luo Ting, Guo Si-yu, et al. Research review on kinematics and dynamics of lower limb exoskeleton[J]. Journal of Ordnance Equipment Engineering, 2023, 44(5): 285-293.
[6]	Young A J, Ferris D P. State of the art and future directions for lower limb robotic exoskeletons[J]. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 2016, 25(2): 171-182.
[7]	Mohammed S, Amirat Y, Rifai H. Lower-limb movement assistance through wearable robots: State of the art and challenges[J]. Advanced Robotics, 2012, 26(1/2): 1-22.
[8]	Kazerooni H, Steger R. The Berkeley lower extremity exoskeleton[J]. Journal of Dynamic Systems, Measurement, and Control, 2006, 128(1): 14-25.
[9]	Qin T, Yang Y, Wen B, et al. Research on human gait prediction and recognition algorithm of lower limb-assisted exoskeleton robot[J]. Intelligent Service Robotics, 2021, 14(3): 445-457.
[10]	尹军茂. 穿戴式下肢外骨骼机构分析与设计[D]. 北京: 北京工业大学机械工程与应用电子技术学院, 2010.
	Yin Jun-mao. Analysis and design of wearable lower extremity exoskeleton[D]. Beijing: College of Mechanical Engineering and Applied Electronics Technology, Beijing University of Technology, 2010.
[11]	贾山. 下肢外骨骼的动力学分析与运动规划[D]. 南京: 东南大学机械工程学院, 2016.
	Jia Shan. Dynamics and motion planning of lower extremity exoskeleton[D]. Nanjing: School of Mechanical Engeering, Southeast University, 2016.
[12]	张超. 下肢助力外骨骼机器人研究[D]. 哈尔滨: 哈尔滨工业大学机电工程学院, 2016.
	Zhang Chao. Research on lower limbs powered exoskeletonrobot[D]. Harbin: School of Mechanical and Electrical Engineering, Harbin Institute of Technology, 2016.
[13]	衣淳植, 郭浩, 丁振, 等. 下肢外骨骼研究进展及关节运动学解算综述[J]. 智能系统学报, 2018, 13(6): 878-888.
	Yi Chun-zhi, Guo Hao, Ding Zhen, et al. Research progress of lower-limb exoskeleton and joint kinematics calculation[J]. CAAI Transactions on Intelligent Systems, 2018, 13(6): 878-888.
[14]	Baser O, Kizilhan H, Kilic E. Employing variable impedance (stiffness/damping) hybrid actuators on lower limb exoskeleton robots for stable and safe walking trajectory tracking[J]. Journal of Mechanical Science and Technology, 2020, 34: 2597-2607.
[15]	Zheng Y, Wang Y Q, Liu J X. Analysis and experimental research on stability characteristics of squatting posture of wearable lower limb exoskeleton robot[J]. Future Generation Computer Systems, 2021, 125: 352-363.
[16]	汪步云, 王月朋, 梁艺, 等. 下肢外骨骼助力机器人关节驱动设计及试验分析[J]. 机械工程学报, 2019,55(23): 55-66.
	Wang Bu-yun, Wang Yue-peng, Liang Yi, et al. Design on articular motion & servo driving with experimental analysis for lower limb exoskeleton robot[J]. Journal of Mechanical Engineering, 2019, 55(23): 55-66.
[17]	宋纪元, 朱爱斌, 屠尧, 等. 人机交互力对下肢助力外骨骼关节期望角度的预测[J]. 西安交通大学学报, 2021, 55(12): 55-63, 69.
	Song Ji-yuan, Zhu Ai-bin, Tu Yao, et al. Prediction of expected angle of joints of lower limb assisted exoskeleton with human-robot interaction[J]. Journal of Xi'an Jiaotong University, 2021, 55(12): 55-63, 69.
[18]	陈炜, 王立柱, 张林琰, 等. 下肢外骨骼康复机器人动力学分析与仿真[J]. 机械设计, 2018, 35(4): 71-77.
	Chen Wei, Wang Li-zhu, Zhang Lin-yan, et al. Dynamic analysis and simulation for lower limb exoskeleton rehabilitation robot[J]. Journal of Machine Design, 2018, 35(4): 71-77.
[19]	陈树洋. 下肢外骨骼助力机器人结构设计与仿真分析[D]. 镇江: 江苏大学机械工程学院, 2018.
	Chen Shu-yang. Structure design and simulation analysis of lower-limb exoskeletonassisted robot[D]. Zhenjiang: School of Mechanical Engineering, Jiangsu University, 2018.
[20]	Dadi V V, Sathwik P, Mahesh D, et al. Structural design and analysis of a lower limb exoskeleton for elderly[J]. International Journal of Advanced Mechatronic Systems, 2020, 8(2/3): 65-74.
[21]	Li J F, Zhang Z Q, Tao C J, et al. Structure design of lower limb exoskeletons for gait training[J]. Chinese Journal of Mechanical Engineering, 2015, 28(5): 878-887.
[22]	陈伟, 王勇, 沈进东, 等. 基于气囊结构鞋垫的足底压力分布测量系统[J]. 重庆理工大学学报: 自然科学, 2023, 37(10): 202-210.
	Chen Wei, Wang Yong, Shen Jin-dong, et al. Plantar pressure based on airbag insole distributedmeasurement system[J]. Journal of Chongqing University of Technology (Natural Science), 2023, 37(10): 202-210.
[23]	Yan Y, Chen Z L, Huang C, et al. Modelling and analysis of coupling dynamics of swinging a lower limb exoskeleton[J]. Nonlinear Dynamics, 2023, 111(2): 1213-1234.
[24]	张燕, 李梵茹, 李威, 等. 基于人机耦合的下肢外骨骼动力学分析及仿真[J]. 应用数学和力学, 2019, 40(7): 780-790.
	Zhang Yan, Li Fan-ru, Li Wei, et al. Dynamic analysis and simulation of the lower extremity exoskeleton based on human-machine interaction[J]. Applied Mathematics and Mechanics, 2019, 40(7): 780-790.
[25]	张淑珍, 周瑞, 毕彦峰, 等. 下肢外骨骼机器人踝关节建模及动力学仿真[J]. 机械科学与技术, 2020, 39(5): 695-700.
	Zhang Shu-zhen, Zhou Rui, Bi Yan-feng, et al. Ankle joint modeling and dynamics simulation of wearable lower limb exoskeleton robot[J]. Mechanical Science and Technology for Aerospace Engineering, 2020, 39(5): 695-700.
[26]	陈贵亮, 李子浩, 蔡超, 等. 基于人体动力学分析的下肢外骨骼助力设计及机构优化[J]. 工程设计学报, 2023, 30(3): 362-371.
	Chen Gui-liang, Li Zi-hao, Cai Chao, et al. Design and mechanism optimization of lower limb exoskeleton based on human dynamics analysis[J]. Chinese Journal of Engineering Design, 2023, 30(3): 362-371.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

机体结构	骨骼比例	可调尺寸/mm	仿真尺寸/mm
髋-膝	0.206H	330~381	360
膝-踝	0.220H	352~407	385
胯	0.190H	304~351	332

关节	自由度	最大范围/（°）	限位保护/（°）
髋关节	伸展/弯曲	140/-45	90/-30
	外展/内收	60/-30	30/-5
	旋内/旋外	50/-50	30/-30
膝关节	伸展/弯曲	0/-150	-5/-120
踝关节	跖屈/背屈	50/-30	25/-35
踝关节	外旋/内旋	20/-40	17/-5

参数	数值	参数	数值
刚度	10 000	静摩擦因数	0.5
力指数	2.2	动摩擦因数	0.5
阻尼	5 000	静平移速度	100
穿透深度	0.1	摩擦平移速度	1 000
