Journal of Jilin University(Engineering and Technology Edition) ›› 2025, Vol. 55 ›› Issue (9): 2969-2977.doi: 10.13229/j.cnki.jdxbgxb.20240473

Previous Articles

Decision optimization of urban road network performance restoration under waterlogged conditions

Hong-fei JIA1(),Bo ZHUANG1,Qing-yu LUO1(),Ling LIU2,Qiu-yang HUANG1

  1. 1.College of Transportation，Jilin University，Changchun 130022，China
    2.College of Civil Engineering，Changchun University of Architecture and Civil Engineering，Changchun 130607，China
  • Received:2024-04-30 Online:2025-09-01 Published:2025-11-14
  • Contact: Qing-yu LUO E-mail:jiahf@jlu.edu.cn;luoqy@jlu.edu.cn

RICH HTML

 0

PDF (PC)

45

Abstract:

To explore the optimal road network restoration decision scheme under waterlogged conditions， a urban three-lane road sections cellular automaton simulation model was constructed considering the dynamic change of waterlogged depth. By improving the vehicle lane change and position update rules， the changes of driving behavior under waterlogged conditions were described， and the impact of waterlogged on road sections traffic capacity was simulated. The changes in the distribution of traffic flow on the road network caused by water accumulation leading to restricted passage of vehicles on certain road sections was analyzed， a recovery decision optimization model aiming at maximizing the cumulative road network performance index was established， and the genetic algorithm and Frank-Wolfe algorithm were combined to solve the problem. Sioux-Falls network was selected to verify the model，the results show that the recovery strategy obtained by the provided model has better effect on road network performance restoration than the empirical recovery strategies based on output and flow， and the improvement degree is 3.84% and 2.02%， respectively. The road section restoration order should not only consider the damage degree of the road section， but also consider the traffic demand distribution of the road network. The increase of recovery resources will significantly reduce the recovery time of the road network， but the marginal utility will gradually decrease.

Key words: transportation planning and management, urban road network, waterlogged, cellular automaton, decision optimization, bi-level programming model

CLC Number:

  • U491

Fig.1

Road section area division and parameter description"

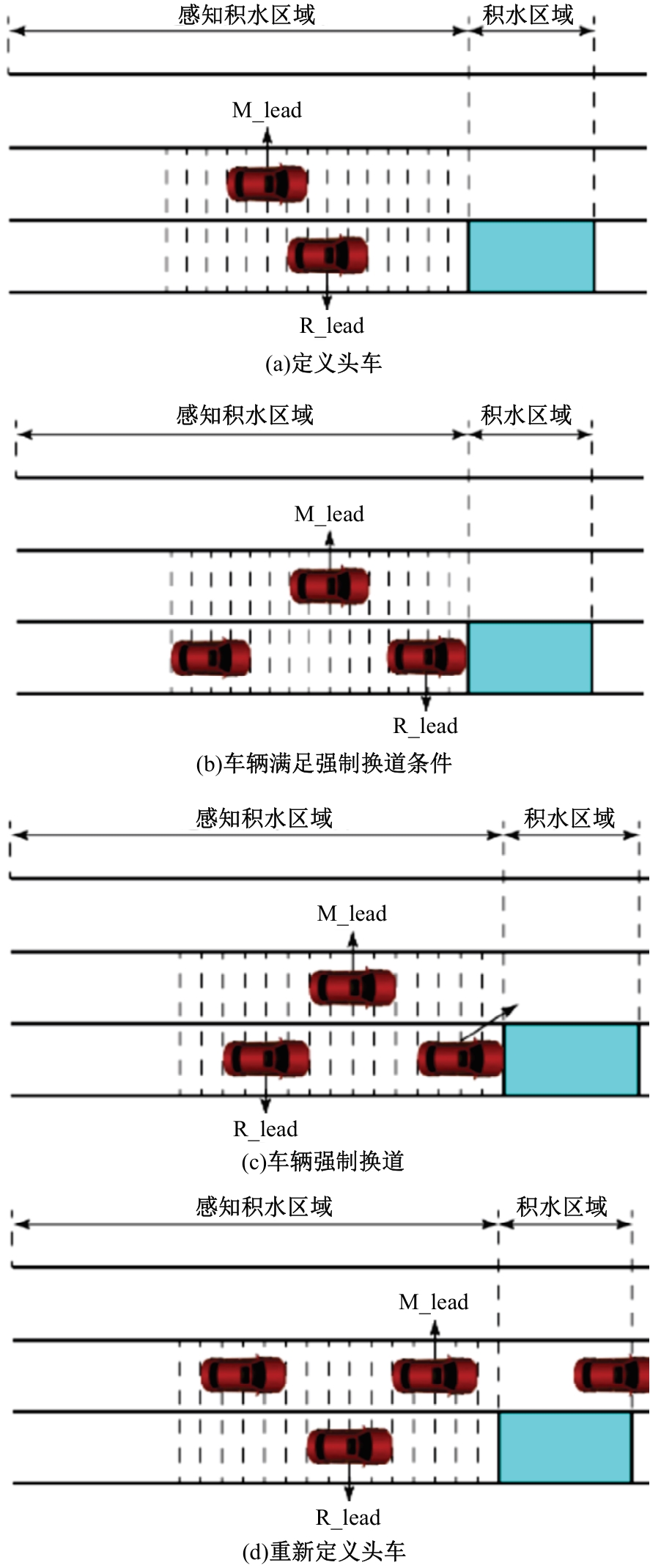

Fig.2

Schematic diagram of uehicle forced lane change"

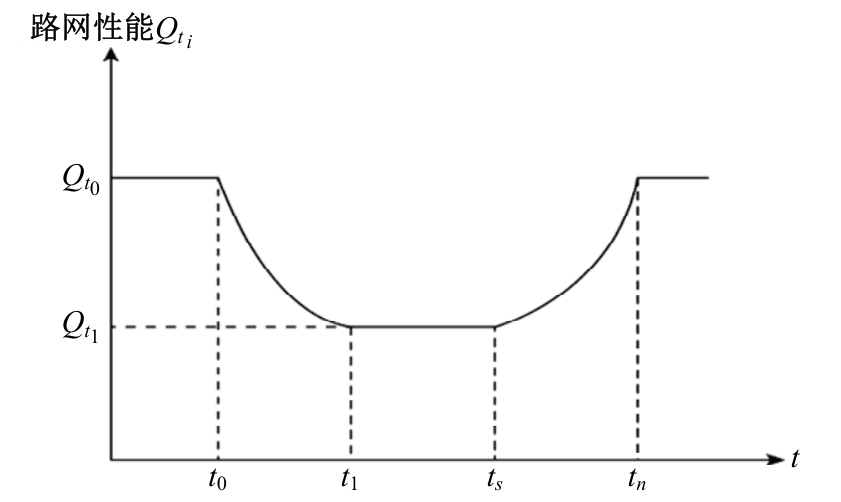

Fig.3

Road network performance change curve"

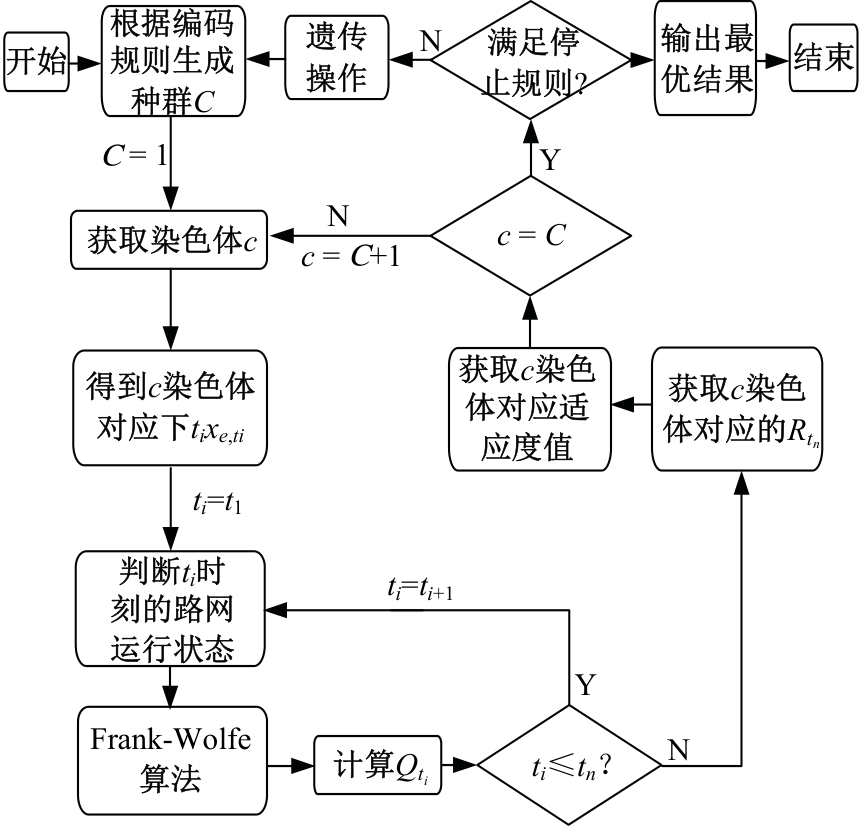

Fig.4

Two-layer programming model solving algorithm flow"

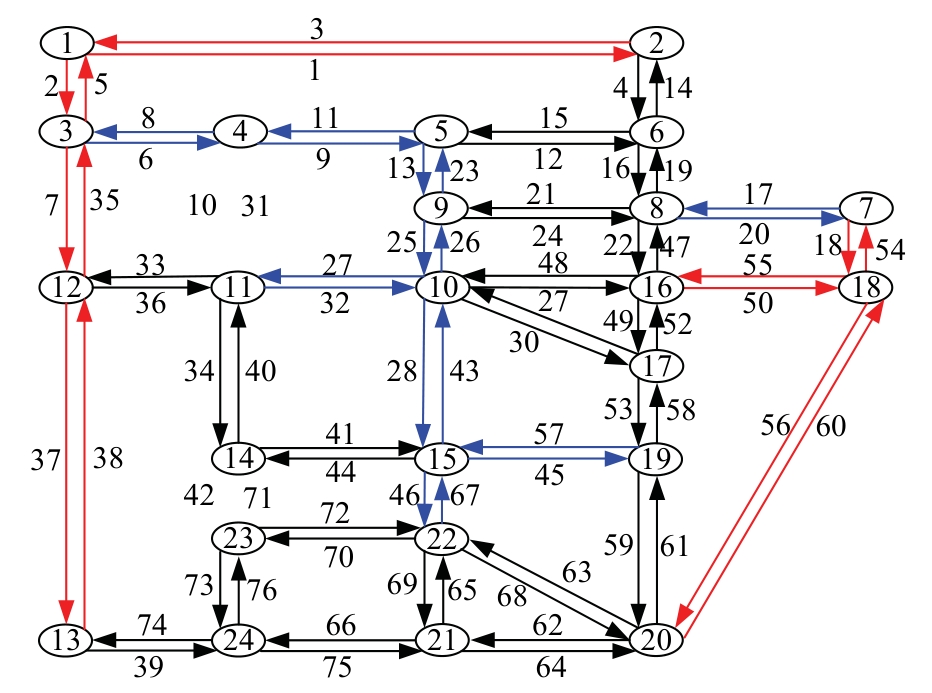

Fig.5

Sioux-Falls road network structure"

Table 1

Number of lanes in lane group and number of lanes affected by waterlogging"

参数车道组编号
313171819323760
车道数32231233
受积水影响车道数21111233

Fig.6

Iterative graph"

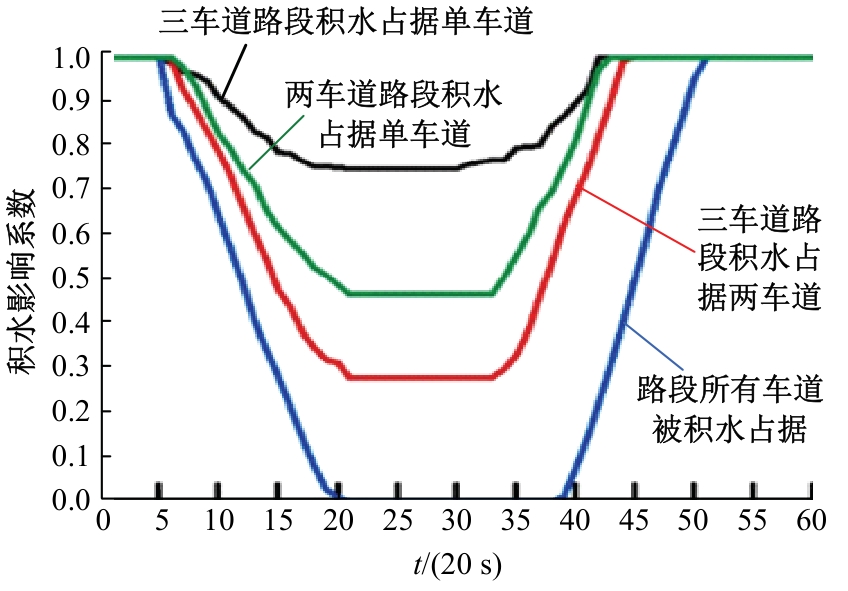

Fig.7

Change of water logged influence coefficient unber different water logged condition"

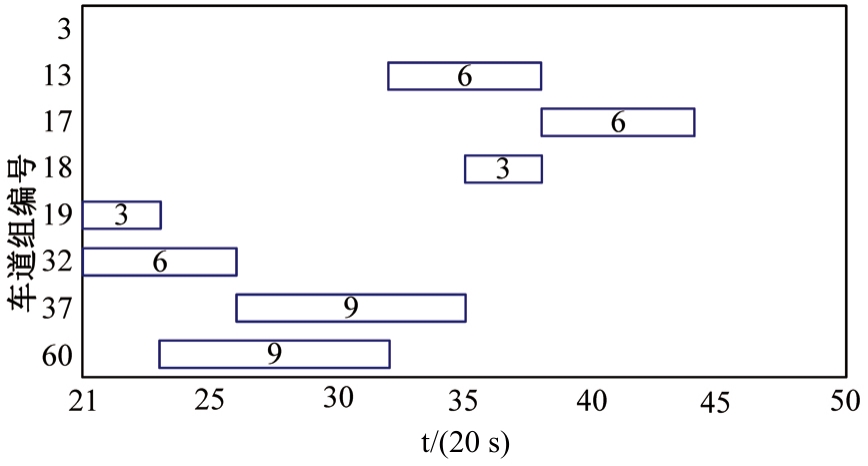

Fig.8

Target recovery strategy for recovery sequence of damaged sections"

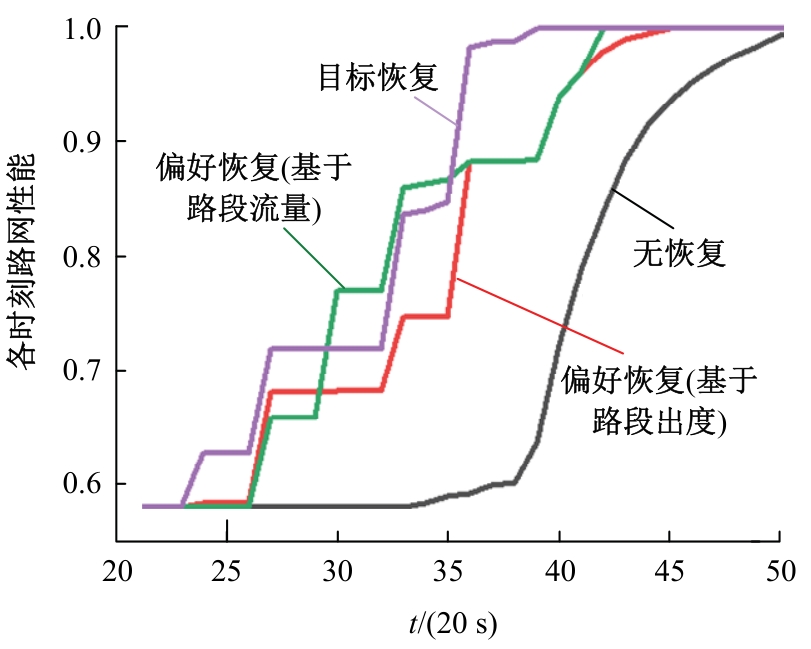

Fig.9

Road network performance change curves at different"

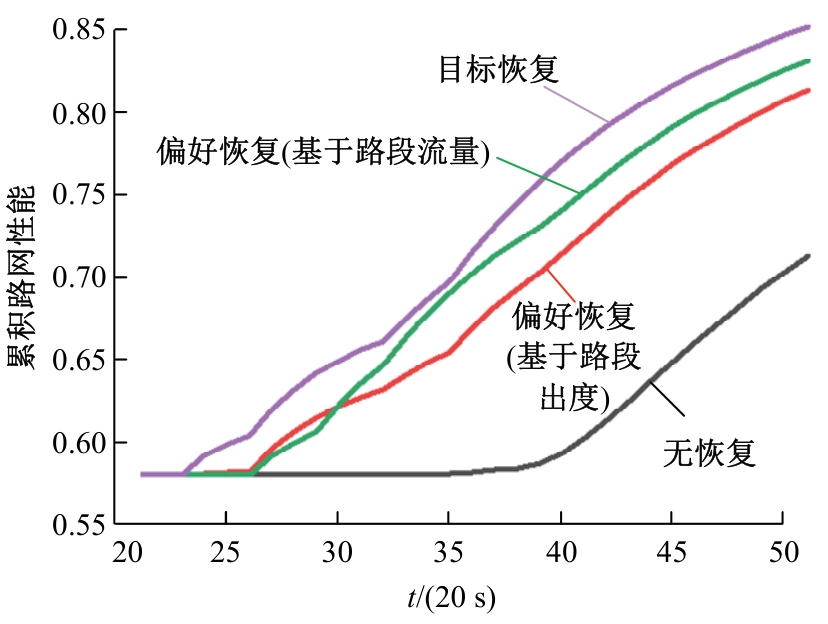

Fig.10

Cumulative road network performance change curves"

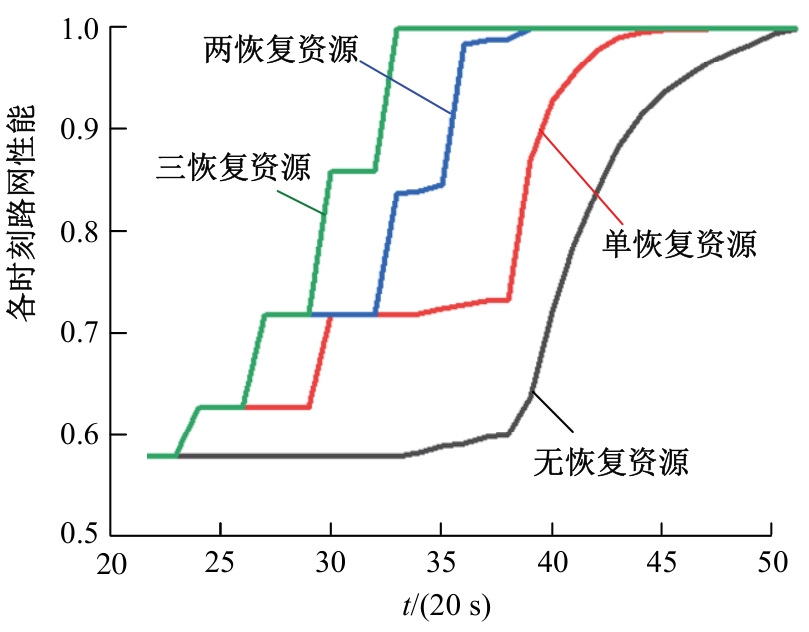

Fig.11

Road network performance under change curves at different moments different recovery resources"

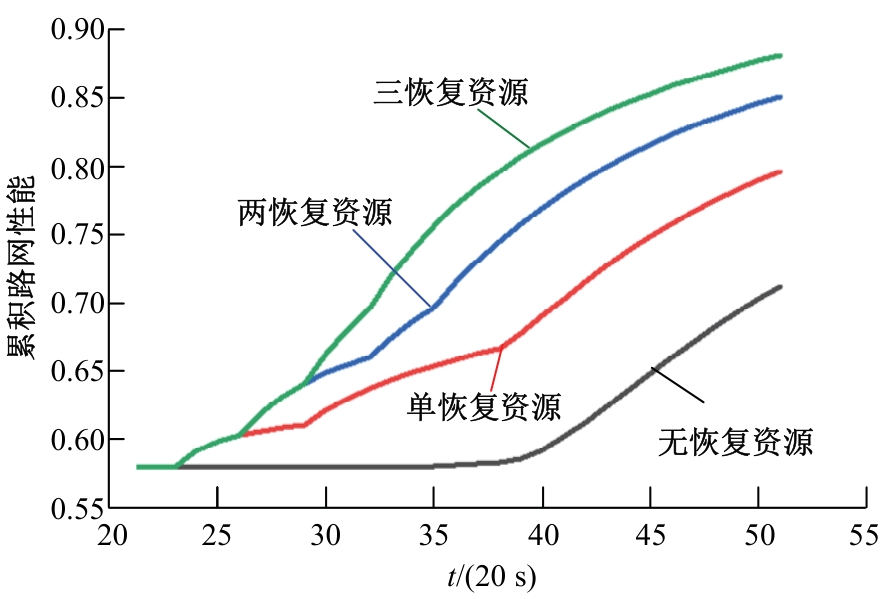

Fig.12

Cumulative road netword performance change curves under different recovery resources"

[1] Su B, Huang H, Li Y. Integrated simulation method for waterlogging and traffic congestion under urban rainstorms[J]. Natural Hazards, 2016, 81(1): 23-40.
[2] Yin J, Yu D, Yin Z, et al. Evaluating the impact and risk of pluvial flash flood on intra-urban road network: A case study in the city center of Shanghai, China[J]. Journal of Hydrology, 2016, 537: 138-145.
[3] Zhang M L, Xu M H, Wang Z L,et al. Assessment of the vulnerability of road networks to urban waterlogging based on a coupled hydrodynamic model[J]. Journal of Hydrology, 2021, 603: No.127105.
[4] 陈海然. 海绵化改造对城市内涝及交通的影响研究——以东莞市中心片区为例[D]. 广州: 华南理工大学土木与交通学院, 2020.
Chen Hai-ran. Research on the impact of urban waterlogging and traffic under the concept of sponge city—a case study in downtown district of Dongguan[D]. Guangzhou: School of Civil Engineering and Transportation, South China University of Technology, 2020.
[5] Liao T Y, Hu T Y, Ko Y N. A resilience optimization model for transportation networks under disasters[J]. Natural Hazards, 2018, 93(1): 469-489.
[6] Zhao T, Zhang Y. Transportation infrastructure restoration optimization considering mobility and accessibility in resilience measures[J]. Transportation Research Part C: Emerging Technologies, 2020, 117: No.102700.
[7] Wu Y, Xu Z, Liang C, et al. Post-earthquake traffic simulation considering road traversability[J]. Sustainability, 2022, 14(18): No.11145.
[8] Pan X, Dang Y, Wang H, et al. Resilience model and recovery strategy of transportation network based on travel OD-grid analysis[J]. Reliability Engineering & System Safety, 2022, 223: No.108483.
[9] 杜磊, 杨晓宽. 不同道路积水情况对交通影响及造成损失的研究[C]∥科技创新绿色交通——第十一次全国城市道路交通学术会议论文集. 北京:中国土木工程学会,2011: 389-393.
[10] 王永明, 周磊山, 吕永波. 基于元胞自动机交通流模型的车辆换道规则[J]. 中国公路学报, 2008(1): 89-93.
Wang Yong-ming, Zhou Lei-shan, Lv Yong-bo. Lane changing rules based on cellular automaton traffic flow model[J]. China Journal of Highway and Transport, 2008(1): 89-93.
[11] Nagel K, Schreckenberg M. A cellular automaton model for freeway traffic[J]. Journal de Physique I, 1992, 2(12): 2221-2229.
[12] Nagurney A, Qiang Q. A network efficiency measure with application to critical infrastructure networks[J]. Journal of Global Optimization, 2008, 40(1-3): 261-275.
[13] 尹文君, 刘民, 吴澄. 带工艺约束并行机调度问题的一种新的遗传算法[J]. 电子学报, 2001(11): 1482-1485.
Yin Wen-jun, Liu Min, Wu Cheng. A new genetic algorithm for parallel machine scheduling with process constraint[J]. Acta Electronica Sinica, 2001(11): 1482-1485.
