基于语言推理和认知记忆的自动驾驶决策模型

doi:10.13229/j.cnki.jdxbgxb.20240606

Abstract

Abstract:

To address the issues of insufficent safety performance and low learning inefficient in traditional autonomous driving systems， an autonomous driving safety decision-making model capable of continuous learning and understanding linguistic information was proposed. Referring to the reasoning decision-making and experience accumulation processes in human driving， this model leverages a large language model （LLM） as the decision-making agent， integrating chain-of-thought reasoning， a two-stage attention mechanism， and cognitive memory storage and retrieval into the contextual safety learning of the driving process. Meanwhile， a kinematic module is employed to convert LLM decisions into executable driving commands， enabling the continuous learning of safe driving experiences. Experimental results demonstrate that the proposed decision-making model significantly improves safety and efficiency compared to rule， reinforcement learning， and knowledge-based approaches， and possesses the capability of continuous learning and adapting driving behaviors based on human instructions， providing a reference for human-like autonomous driving.

Key words: vehicle engineering, autonomous driving, continuous learning, large language model, chain-of-thought reasoning, two-stage attention mechanism

CLC Number:

U495

Xiang WANG,Guo-zhen TAN,Yan-fei PENG,Hao REN,Jian-ping LI. Autonomous driving decision⁃making model based on language reasoning and cognitive memory[J].Journal of Jilin University(Engineering and Technology Edition), 2025, 55(12): 3918-3927.

Figures/Tables 14

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Table 1

Table 2

Table 3

Fig.6

Fig.7

Fig.8

Table 4

Table 5

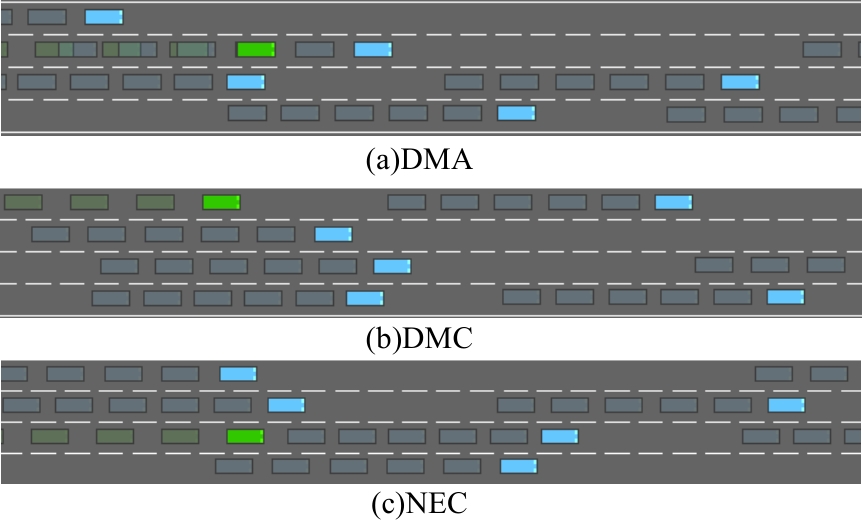

Driving behavior with different commands"

指导命令	$a ˉ$ /（m·s^-2）	$s ˉ$ /rad	$v ˉ$ /（m·s^-1）	$g ˉ$ /m	$l ˉ$
DMA	3.50	0.03	34.7	8.6	7
DMC	0.21	0.01	21.2	41.8	1
NEC	1.87	0.02	28.3	25.6	2

Table 5

Fig.9

References 15

[1]	马依宁, 姜为, 吴靖宇, 等. 基于不同风格行驶模型的自动驾驶仿真测试自演绎场景研究[J]. 中国公路报, 2023, 36(2): 216-228.
	Ma Yi-ning, Jiang Wei, Wu Jing-yu, et al. Self- evolution scenarios for simulation tests of autonomous vehicles based on different models of driving styles[J]. China Journal of Highway and Transport, 2023, 36(2): 216-228.
[2]	李伟东, 马草原, 史浩, 等. 基于分层强化学习的自动驾驶决策控制算法[J]. 吉林大学学报: 工学版, 2025, 55(5): 1798-1805.
	Li Wei-dong, Ma Cao-yuan, Shi Hao, et al. An automatic driving decision control algorithm based on
	hierarchical reinforcement learning[J]. Journal of Jilin University (Engineering and Technology Edition), 2025, 55(5): 1798-1805.
[3]	朱波, 张纪伟, 谈东奎, 等. 基于多源传感器与导航地图的端到端自动驾驶方法[J]. 汽车安全与节能学报, 2022, 13(4): 738-749.
	Zhu Bo, Zhang Ji-wei, Tan Dong-kui, et al. End-to-end autonomous driving method based on multi-source sensor and navigation map[J]. Journal of Automotive Safety and Energy, 2022, 13(4): 738-749.
[4]	Zhang Q X, Zhao Y H, Wang Y J, et al. Towards cross-task universal perturbation against black-box object detectors in autonomous driving[J]. Computer Networks, 2020, 180: No.107388.
[5]	Wang S Y, Zhu Y X, Li Z H, et al. ChatGPT as your vehicle co-pilot: An initial attempt[J]. IEEE Transactions on Intelligent Vehicles, 2023, 8(12): 4706-4721.
[6]	Cui Y D, Huang S C, Zhong J M, et al. DriveLLM: charting the path toward full autonomous driving with large language models[J]. IEEE Transactions on Intelligent Vehicles, 2023, 9(1): 1450-1464.
[7]	Kojima T, Gu S S, Reid M, et al. Large language models are zero-shot reasoners[J]. Advances in Neural Information Processing Systems, 2022, 35: 22199- 22213.
[8]	王祥, 谭国真. 基于知识与大语言模型的高速环境自动驾驶决策研究[J]. 系统仿真学报, 2025(5): 1246-1255.
	Wang Xiang, Tan Guo-zhen. Research on decision-making of autonomous driving in highway environment based on knowledge and large language model[J]. Journal of System Simulation, 2025(5): 1246-1255.
[9]	Peng Y F, Tan G Z, Si H W, et al. DRL-GAT-SA: Deep reinforcement learning for autonomous driving planning based on graph attention networks and simplex architecture[J]. Journal of Systems Architecture, 2022, 126: No.102505.
[10]	胡宏宇, 张慧珺, 姚荣涵, 等. L3级自动驾驶接管过程驾驶员情景意识研究[J]. 吉林大学学报: 工学版, 2024, 54(2): 410-418.
	Hu Hong-yu, Zhang Hui-jun, Yao Rong-han, et al. Driver's situational awareness in takeover process of L3 automated vehicles[J]. Journal of Jilin University (Engineering and Technology Edition), 2024, 54(2): 410-418.
[11]	Nie X T, Liang Y P, Ohkura K. Autonomous highway driving using reinforcement learning with safety check system based on time-to-collision[J]. Artificial Life and Robotics, 2023, 28(1): 158-165.
[12]	Chang M K, Lee S H, Chung C C. Comparative evaluation of dynamic and kinematic vehicle models[C]∥Conference on Decision and Control, Los Angeles, CA, USA, 2015: 648-653.
[13]	Treiber M, Hennecke A, Helbing D. Congested traffic states in empirical observations and microscopic simulations[J]. Physical Review E, 2000, 62(2): 1805.
[14]	Xin L, Kong Y T, Li S E, et al. Enable faster and smoother spatio-temporal trajectory planning for autonomous vehicles in constrained dynamic environment[J].Journal of Automobile Engineering, 2021, 235(4): 1101-1112.
[15]	Li G F, Li S L, Li S, et al. Deep reinforcement learning enabled decision-making for autonomous driving at intersections[J]. Automotive Innovation, 2020, 3: 374-385.

Related Articles 15

[1]	Wei LAN,Zheng ZHOU,Guan-yu WANG,Wei WANG,Miao-miao ZHANG. Intelligent fitting method for vehicle design based on machine learning [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(9): 2858-2863.
[2]	Bing ZHU,Peng-xiang MENG,Bin LIU,Jia-yi HAN,Jian ZHAO,Zhi-cheng CHEN,Dong-jian SONG,Xiao-wen TAO. Virtual lane lines fitting method based on traffic environment information [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(9): 2935-2945.
[3]	Shou-tao LI,Xiang-yi JIA,Jun ZHU,Hong-yan GUO,Ding-li YU. Uncontrolled intersections decision⁃making method for intelligent driving vehicles based on Level⁃K [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(9): 3069-3078.
[4]	Gui-shen YU,Xin CHEN,Yue TANG,Chun-hui ZHAO,Ai-jia NIU,Hui CHAI,Jing-xin NA. Effect of laser surface treatment on the shear strength of aluminum-aluminum bonding joints [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(8): 2555-2569.
[5]	Jun-wu ZHAO,Ting QU,Yun-feng HU. Trajectory planning for intelligent vehicles based on adaptive sampling [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(8): 2802-2816.
[6]	Jin-wu GAO,Shao-long SUN,Shun-yao WANG,Bing-zhao GAO. Speed fluctuation suppression strategy of range extender based on motor torque compensation [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(8): 2475-2486.
[7]	Mei-xia JIA,Jian-jun HU,Feng XIAO. Multi⁃physics simulation method of vehicle motor under varying working conditions based on multi⁃software combination [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(6): 1862-1872.
[8]	Xue-wei SONG,Ze-ping YU,Yang XIAO,De-ping WANG,Quan YUAN,Xin-zhuo LI,Jia-wen ZHENG. Research progress on the performance changes of lithium⁃ion batteries after aging [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(6): 1817-1833.
[9]	Chun XIAO,Zi-chun YI,Bing-yin ZHOU,Shao-rui ZHANG. Fuzzy energy management strategy of fuel cell electric vehicle based on improved pigeon⁃inspired optimization [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(6): 1873-1882.
[10]	Jian WANG,Chen-wei JIA. Trajectory prediction model for intelligent connected vehicle [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(6): 1963-1972.
[11]	Wei-dong LI,Cao-yuan MA,Hao SHI,Heng CAO. An automatic driving decision control algorithm based on hierarchical reinforcement learning [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(5): 1798-1805.
[12]	Dang LU,Yan-ru SUO,Yu-hang SUN,Hai-dong WU. Estimation of tire camber and sideslip combined mechanical characteristics based on dimensionless expression [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(5): 1516-1524.
[13]	Zhen-hai GAO,Cheng-yuan ZHENG,Rui ZHAO. Review of active safety verification and validation for autonomous vehicles in real and virtual scenarios [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(4): 1142-1162.
[14]	Tao ZHANG,Huang-da LIN,Zhong-jun YU. Real-time rolling optimization control method for gearshift of hybrid electric vehicles [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(4): 1215-1224.
[15]	Dang LU,Xiao-fan WANG,Hai-dong WU. Analysis of uniform distribution characteristics of contact pressure of TWEEL tires [J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(3): 811-819.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

数据流	参数	类型	说明
输入	model	string	llama2-7b-chat-v2
	messages	list	输入的内容
	result_format	string	用户返回的内容类型
输出	request_id	string	llama2-7b-chat-v2
	output	list	调用结果信息
	usage.input_ tokens	int	用户输入文本转换为Token后的长度
	usage.output_ tokens	int	模型生成回复转换为Token后的长度

结构	取值
输入	［·，6］
层数	编码器［64，64］；2个注意力头；d_k =32；解码器［64，64］
参数量	3.4×10⁴

场景	方法	C	ζ	t	P_D	P_d	C_n
高速环境	LRCMM	0	12.8	26.4	1.35	1.31	13.89
	RBM	4	26.8	19.7	3.25	3.13	27.83
	MFRLM	8	35.2	15.7	3.84	3.45	46.95
	KDM	3	14.6	29.5	2.47	2.31	20.84
十字路口	LRCMM	0	32.8	47.2	1.84	0.91	24.22
	RBM	2	75.1	32.1	4.21	2.64	48.11
	MFRLM	9	68.4	30.5	5.28	1.06	50.50
	KDM	7	42.5	58.5	3.98	3.61	40.31

场景	TAM	CM	C	ζ	t	P_D	P_d	C_n
高速环境	×	×	6	69.5	34.3	4.35	3.94	48.00
	√	×	4	64.7	36.5	3.84	3.12	43.82
	×	√	3	38.6	28.4	2.37	1.26	26.90
	√	√	0	14.7	27.1	1.44	1.29	14.97
十字路口	×	×	2	33.7	48.9	4.21	3.95	38.03
	√	×	3	32.5	47.8	4.18	3.84	37.35
	×	√	1	32.1	47.3	3.89	3.52	35.57
	√	√	0	31.7	46.2	3.74	3.43	34.55
