Journal of Jilin University(Engineering and Technology Edition) ›› 2025, Vol. 55 ›› Issue (9): 3079-3088.doi: 10.13229/j.cnki.jdxbgxb.20250566

Previous Articles

Bionic structure design and acoustic and mechanical properties of expressway sound barrier panels

Zheng-lei YU1,2(),Chao-lei ZHANG2,Li-xin CHEN2,Ping HU3(),Tao XU3,Bin-kai GUO2

  1. 1.State Key Laboratory of Automotive Simulation and Control，Jilin University，Changchun 130022，China
    2.Key Laboratory of Bionic Engineering，Ministry of Education，Jilin University，Changchun 130022，China
    3.Huanbo Jingwei New Material Technology （Weihai） Co. ，Ltd. ，Weihai 255000，China
  • Received:2025-05-04 Online:2025-09-01 Published:2025-11-14
  • Contact: Ping HU E-mail:zlyu@jlu.edu.cn;641815930@qq.com

RICH HTML

 1

PDF (PC)

47

Abstract:

To address the inadequate performance of traditional sound barriers， two bionic sound barrier panels were designed based on the armadillo shell and honeycomb structure as prototypes. The performance of these panels was studied and analyzed through simulation and validated by field testing. The results indicate that the sound insulation performance of the bionic sound barrier panels significantly surpasses that of traditional steel panels. Specifically， the sound insulation of the bionic armadillo shell sound barrier panel reaches 37.711 dB， an increase of 38.1%. Furthermore， in this paper a parametric design was conducted on the height of the protrusions and the overall thickness of the bionic sound barrier panels. Field tests date show that the insertion loss of the bionic sound barrier is 23.3 dB， which is an improvement of 50.3% over traditional sound barriers. This design achieves a balance between sound insulation performance， mechanical performance， and cost， providing a new design concept and research method for highway sound barrier panels.

Key words: engineering bionics, expressway, sound barrier, noise reduction performance, finite element simulation, insertion loss

CLC Number:

  • TB52

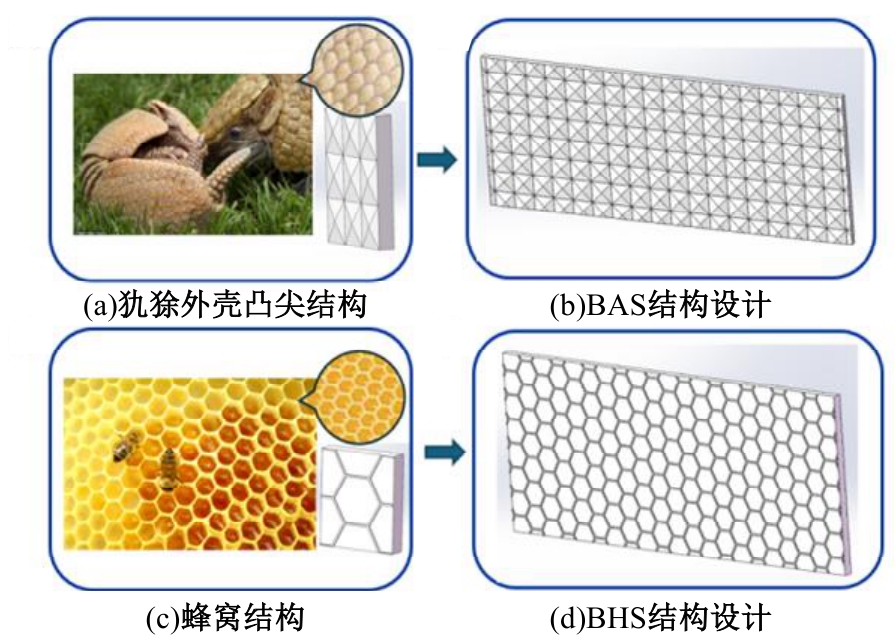

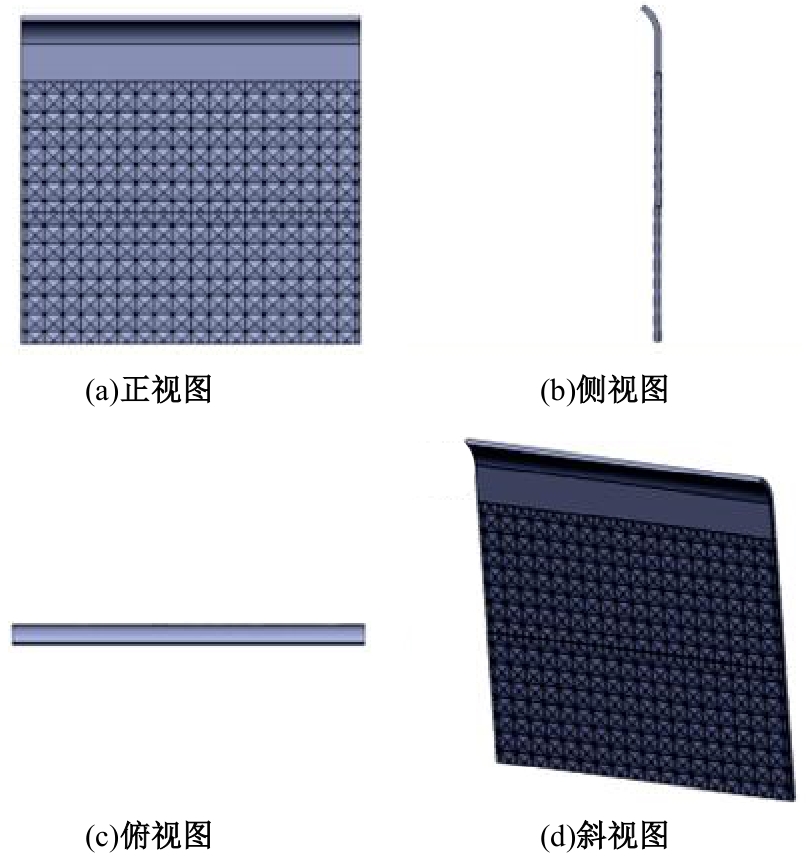

Fig.1

Bionic sound barrier plate design"

Fig.2

Design parameters of bionic sound barrier panels （unit：mm）"

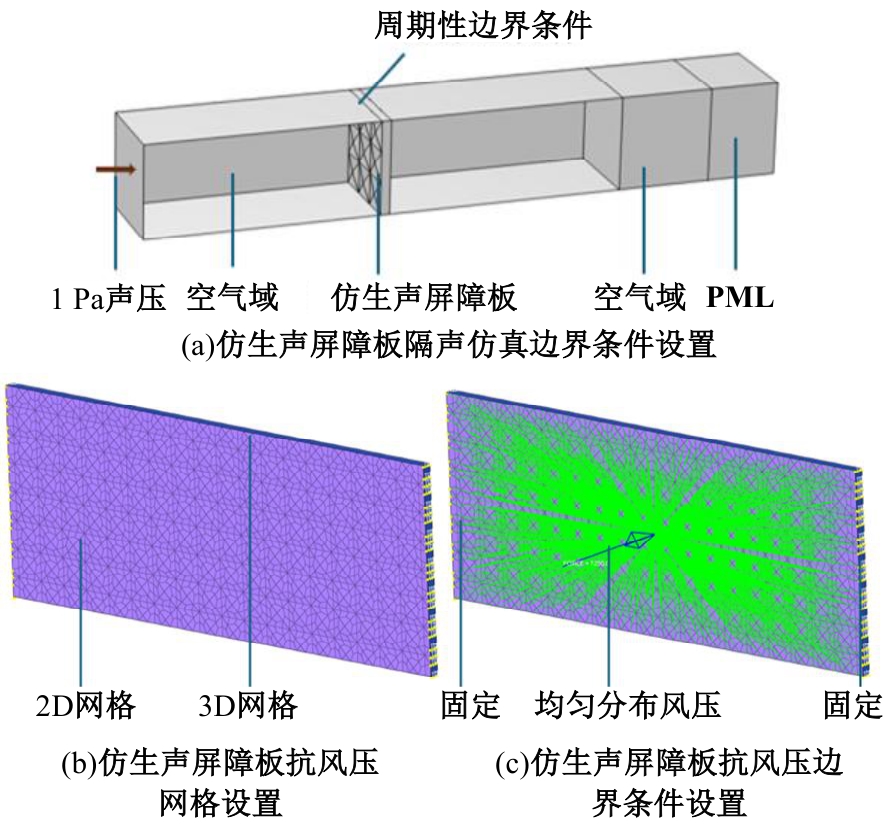

Fig.3

Simulation design of bionic sound barrier panels"

Fig.4

Schematic diagram of the positions of reference points and the receiving points for the sound barrier panels test on the expressway"

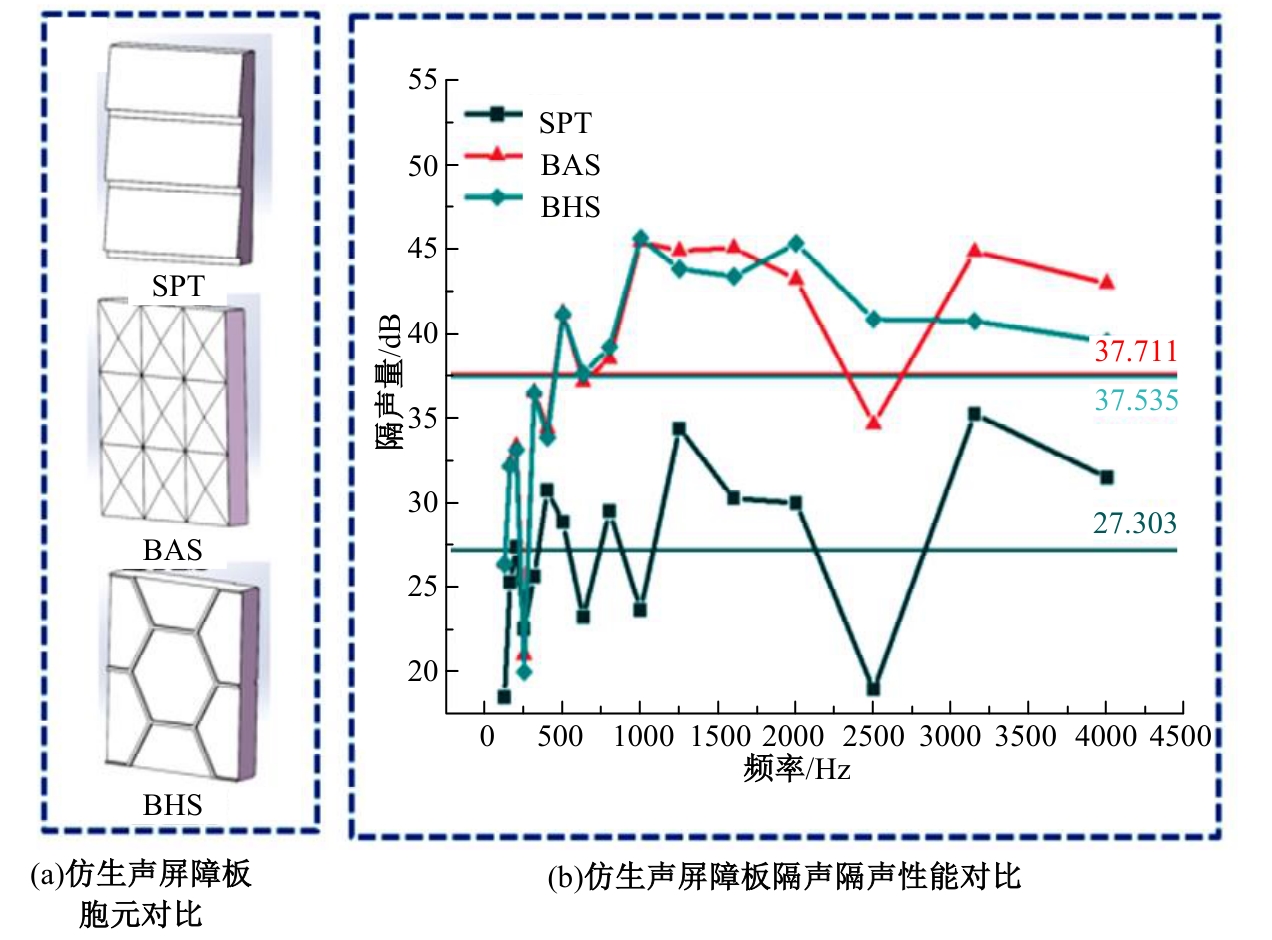

Fig.5

Comparison of cell and sound insulation performance of bionic sound barrier panels"

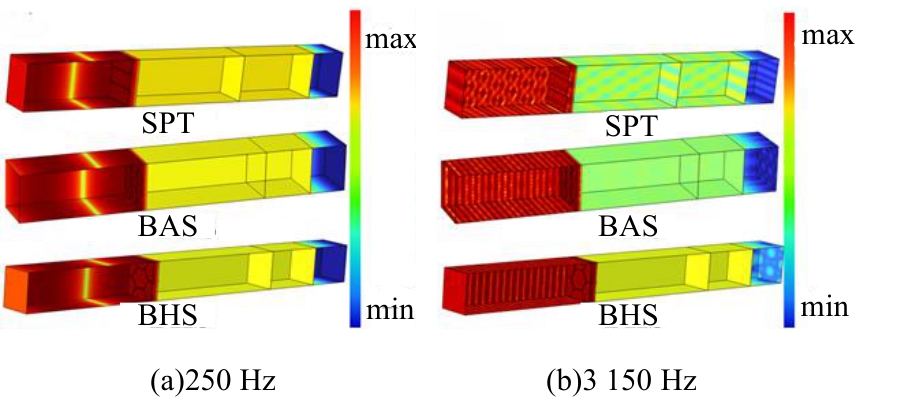

Fig.6

Comparison of sound pressure levels of the bionic sound barrier panels"

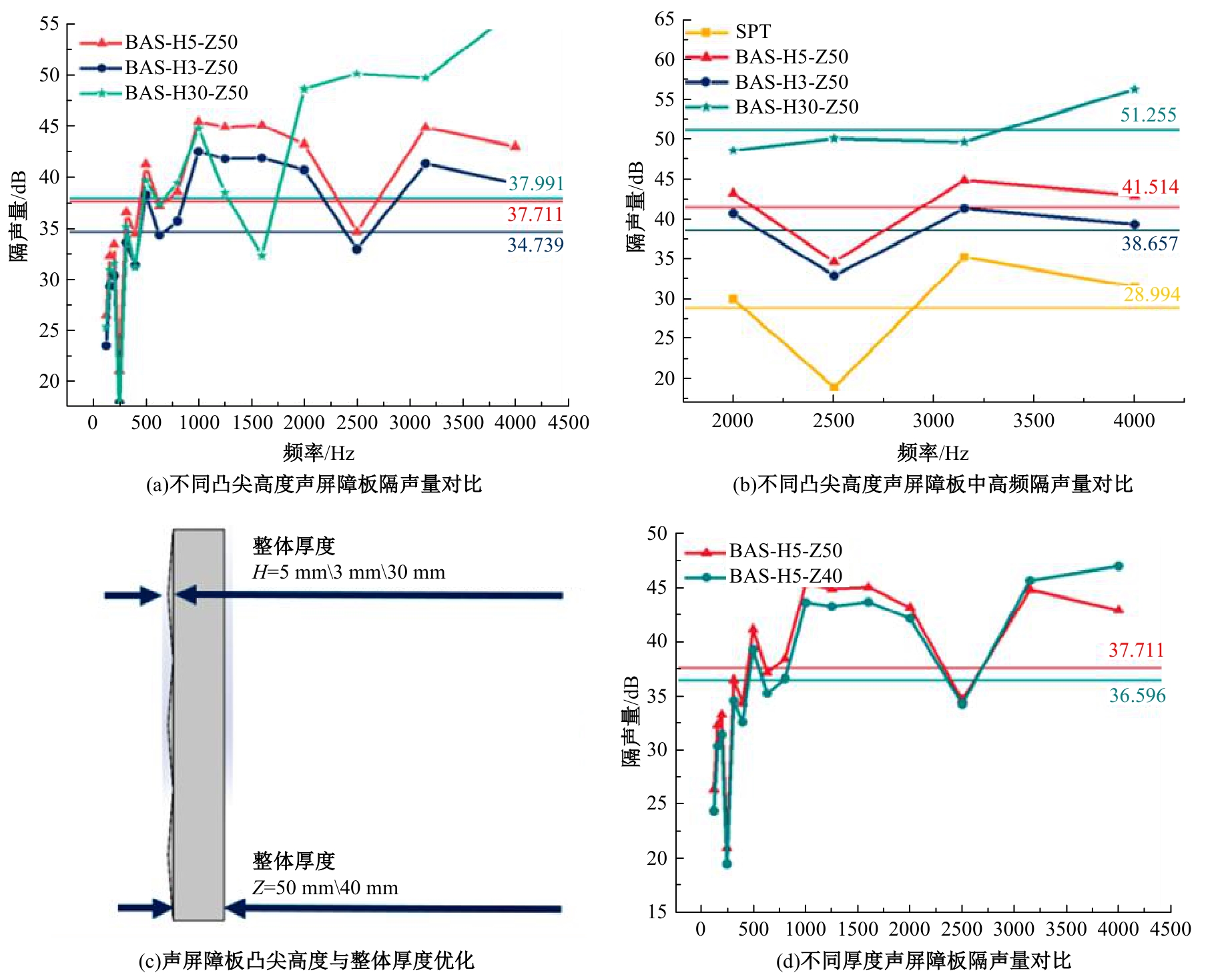

Fig.7

Comparison of parameters of bionic sound barrier panels"

Table 1

Sound insulation values of sound barrier panels"

声屏障板SPTBHS

BAS

-H5-Z50

BAS

-H3-Z50

BAS

-H30-Z50

BAS

-H5-Z40

隔声量/dB27.30337.53537.71134.73937.99136.596

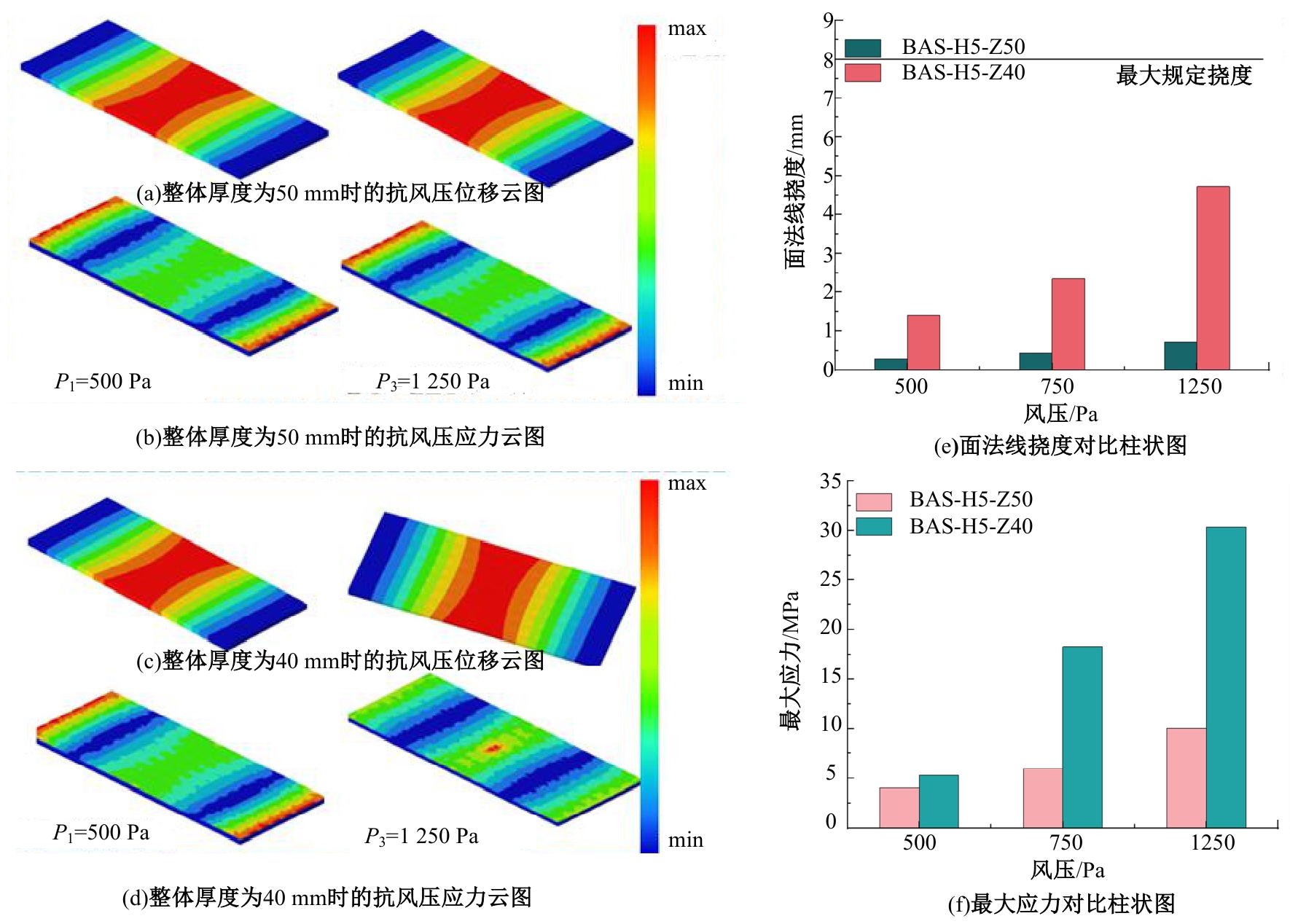

Fig.8

Comparison of structural strength parameters of bionic sound barrier panels"

Table 2

Surfaces normal deflection and maximum stress of different thickness"

风压/PaZ=50 mm面法线挠度/mmZ=40 mm面法线挠度/mmZ=50 mm最大应力/MPaZ=40 mm最大应力/MPa
P1=5000.289 11.4114.0195.357
P2=7500.4322.3526.01318.210
P3=1 2500.7234.71110.05030.350

Fig.9

Schematic diagram of the structure installation of the bionic sound barrier plate"

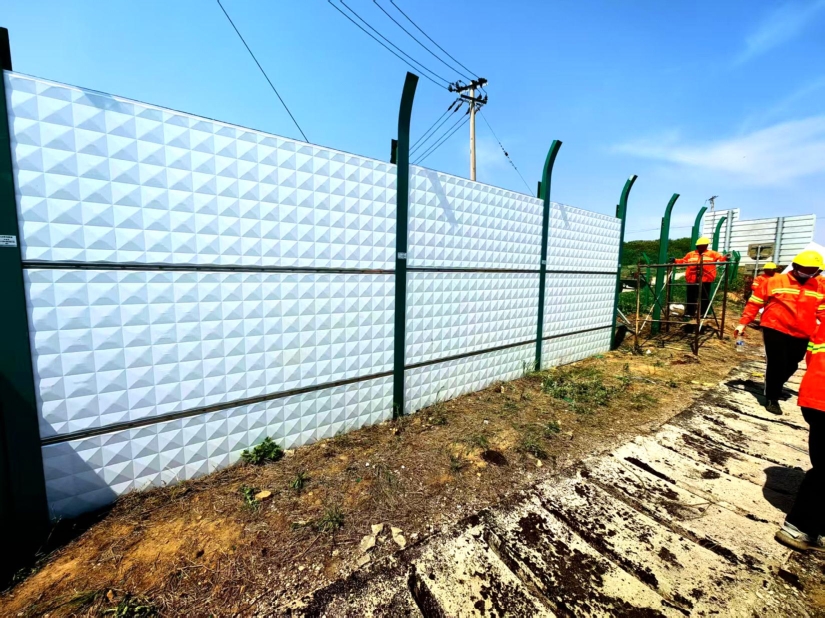

Fig.10

On-site installation of the bionic sound barrier panels structure by workers"

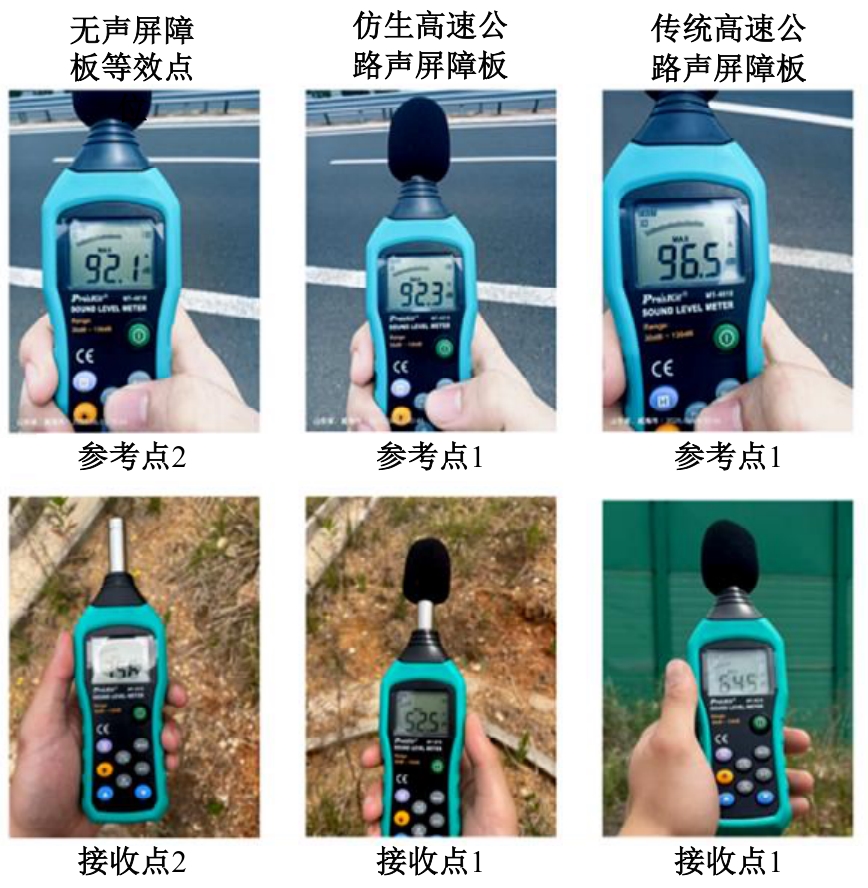

Fig.11

On-site detection of sound pressure level of sound barrier insertion loss on expressways"

Table 3

Detection of insertion loss of expressway sound barriers"

类型参考点2接收点2参考点1接收点1插入损失
新型高速公路声屏障92.175.692.352.523.3
传统高速公路声屏障92.175.696.564.515.5
[1] 陈亮. 高速公路噪声污染法律责任研究[D]. 兰州: 兰州大学法学院, 2018.
Chen Liang. Research on legal responsibility of highway noise pollution[D]. Lanzhou: Law School, Lanzhou University, 2018.
[2] 路晓东. 城市规划层面的道路交通噪声控制研究[D]. 大连: 大连理工大学土木工程学院, 2013.
Lu Xiao-dong. Study on road traffie noise control from the angle of urban planning[D]. Dalian: College of Civil Engineering, Dalian University of Technology, 2013.
[3] 张子健. 高速公路声屏障顶端加强降噪结构设计及降噪性能分析[D]. 北京: 北京交通大学交通运输学院, 2024.
Zhang Zi-jian. Design and performance analysis of noise reduction structures at the top of highway noise barriers[D]. Beijing: College of Transportation, Beijing Jiaotong University, 2024.
[4] 熊积斌. 浅谈噪声污染的现状、危害及其治理[J]. 资源节约与环保, 2018(6): 139.
Xiong Ji-bin. A brief discussion on the current situation, hazards and control of noise pollution[J]. Resources Economization & Environmental Protection, 2018(6): 139.
[5] 党广彬. 山东省高速公路现状交通噪声特性分析[J]. 山东交通科技, 2019(1): 86-89, 94.
Dang Guang-bin. Analysis of the current highwaytraffic noise characteristics in Shandong province[J]. Shandong Transportation Science and Technology, 2019(1): 86-89, 94.
[6] 王立璇. 高速公路噪声污染及治理对策[J]. 生物化工, 2022, 8(2): 105-109.
Wang Li-xuan. Analysis of highway noise pollution and treatment countermeasures[J]. Biological Chemical Engineering, 2022, 8(2): 105-109.
[7] 林向楠, 乔小龙, 王琳. 京津冀地区高速公路车辆噪声分析与声屏障设计研究[J]. 交通世界, 2024, (7): 7-9.
Lin Xiang-nan, Qiao Xiao-long, Wang Ling. Research on vehicle noise analysis and sound barrier design of expressways in the Beijing-Tianjin-Hebei region[J]. Transpo World, 2024(7): 7-9.
[8] Qian D W, Yang X W, Zhang Z, et al. Analysis of the noise reduction of low-height porous absorptive barrier in urban rail transit[C]∥Second International Conference on Rail Transportation. Reston, VA: American Society of Civil Engineers, 2021: 495-502.
[9] Astrauskas T, Baltrėnas P, Januševičius T, et al. Louvred noise barrier for traffic noise reduction[J]. 2021,16(1): No.18641.
[10] 陈立庚.废旧轮胎橡胶颗粒/水泥复合声屏障研究[D].哈尔滨: 哈尔滨工业大学建筑与设计学院, 2019.
Chen Li-geng. Study on the noise barrier manufactured by the waste-tyre crumb rubber and cement composites[D]. Harbin: School of Architecture and Design, Harbin Institute of Technology, 2019.
[11] 廖陈畅. 发泡混凝土声屏障声学与力学性能试验研究[D].南京: 东南大学土木工程学院,2022.
Liao Chen-chang. Study on acoustic and mechanical properties of foamed concrete sound barrier[D]. Nanjing: School of Civil Engineering, Southeast University, 2022.
[12] Thakre C, Bisarya A, Laxmi V, et al. An innovative design and development of noise barrier with newly composite mix of acoustic panel[J]. Journal of Environmental Management, 2024, 361: No.121276.
[13] Yang C C, Lin D K, Xiao X W, et al. A compact honeycomb-based ventilated sound barrier with broad bandwidth and a subwavelength thickness[J]. Applied Acoustics, 2024, 226: No.110182.
[14] 张志成. PET发泡材料结构性能关系模型及其夹芯结构的优化设计方法研究[D]. 北京: 北京化工大学机电工程学院, 2024.
Zhang Zhi-cheng. Study on the structure and properties of PET foam and its sandwich[D]. Beijing: College of Mechanical and Electrical Engineering, Beijing University of Chemical Technology, 2024.
[15] 张磊, 刘哲, 谭宗尚, 等. 不同高性能工程树脂在玻璃纤维增强热塑性复合材料中的应用研究[J]. 纤维复合材料, 2025, 42(3): 40-45.
Zhang Lei, Liu Zhe, Tan Zong-shang, et al. Application of different high-performance engineering resins in GFRTP[J]. Fiber Composites, 2025, 42(3): 40-45.
[16] 张立华, 韩忠铎, 毕超, 等.碳纤维高速公路仿生声屏障板降噪性能分析[J]. 时代汽车, 2025(9): 181-183.
Zhang Li-hua, Han Zhong-duo, Bi Chao, et al. Analysis of noise reduction performance of carbon fiber highway bionic sound barrier board[J]. Auto Time, 2025(9): 181-183.
[17] Wang Y H, Xu C Y, Wan Y L, et al. A modal approach for the efficient analysis of a bionic multi-layer sound absorption structure[J]. Steel and Compoite. Structures, 2016, 21(2): 249-266.
[18] Wang Y H, Zhang C C, Ren L Q, et al. Acoustic performance analysis of bionic coupling multi-layer structure[J]. Applied Mechanics and Materials, 2014, 461: 22-30.
[19] Ji G S, Cui J, Fang Y, et al. Nano-fibrous composite sound absorbers inspired by owl feather surfaces[J]. Applied Acoustics, 2019, 156: 151-157.
[20] Wang X X, Fu T. Improvement of broadband low-frequency sound insulation of sandwich plates with negative Poisson's ratio butterfly-shaped auxetic cellular[J]. Engineering Analysis with Boundary Elements, 2024, 166: No.105852.
[21] Li X Y, Wang X Y H, Wu Q Q, et al. Design of lightweight multifunctional honeycomb membrane-type acoustic metastructures for sound insulation[J]. Mechanical Systems and Signal Processing, 2025, 227: No.112364.
[22] Zhang X, Wu J W, Mao Q B, et al. Design of a honeycomb-microperforated panel with an adjustable sound absorption frequency[J]. Applied Acoustics, 2020, 164: No.107246.
[23] Xie S C, Yang S C, Yan H Y, et al. Sound absorption performance of a conch-imitating cavity structure[J]. Science Progress, 2022, 105(1): No.35102795.
[24] 周信. 高速铁路声屏障降噪效果预测及新型声屏障设计[D]. 重庆: 西南交通大学机械工程学院, 2013.
Zhou Xin. Noise reduction prediction and design of new type of noise barrier for high-speed train[D]. Chongqing: School of Mechanical Engineering, Southwest Jiaotong University, 2013.
[25] Rhee H, Horstemeyer M F, Ramsay A. A study on the structure and mechanical behavior of the Dasypus novemcinctus shell[J]. Materials Science and Engineering: C, 2011, 31(2): 363-369.
[26] JT∕T 646.2—2016. 公路声屏障 第2部分: 总体技术要求 [S].
[27] JT∕T 646.4—2016. 公路声屏障 第4部分: 声学材料技术要求及检测方法 [S].
[28] JT∕T 646.5—2017. 公路声屏障 第5部分: 降噪效果检测方法 [S].
[29] 李杰,李佳莉,周兴宇,等.拓宽桥梁大跨全封闭声屏障车道噪声仿真分析[J/OL]. [2025-04-15].
[30] 杨帆. 新型嵌板型声屏障在福建省高速公路中的应用与效果评估[J]. 福建交通科技, 2024, 12: 175-179.
Yang Fan. Application and effect evaluation of the new panel-type sound barrier in expressways of Fujian province[J]. Fujian Traffic Science and Technology, 2024, 12: 175-179.
