Journal of Jilin University(Engineering and Technology Edition) ›› 2025, Vol. 55 ›› Issue (8): 2548-2554.doi: 10.13229/j.cnki.jdxbgxb.20231176

Previous Articles

Dynamic friction action and ultrasonic softening during high-power ultrasonic welding process of pure copper

Huan LI(),Qian-xi LIU,Chang-xin ZHANG,Jian ZHANG

  1. School of Mechanical Engineering，Yangtze University，Jingzhou 434023，China
  • Received:2023-10-30 Online:2025-08-01 Published:2025-11-14

RICH HTML

 0

PDF (PC)

8

Abstract:

Based on the experimental results of interfacial temperature and sonotrode displacement， the finite element method was employed to investigate the friction and material softening process in pure copper ultrasonic welding， and the distribution of the temperature fields and plastic strain during the welding process were also analyzed. The results show that the established model can better simulate the dynamic friction coefficient and ultrasonic softening variation processes during welding. The average friction coefficient of the workpiece contact surface increased rapidly in the early stages of welding， and then decreased sharply， and presented smooth fluctuations after welding time of 0.2 s. The ultrasonic softening coefficlent of copper increased sharply in the early stages of welding， then slowly increased， and began to increase significantly when the welding time was 0.3 s. Ultrasonic softening is the main physical mechanism of materials plastic deformation.

Key words: materials synthesis and processing technology, ultrasonic welding, finite element simulation, friction coefficient, ultrasonic softening

CLC Number:

  • TG456.9

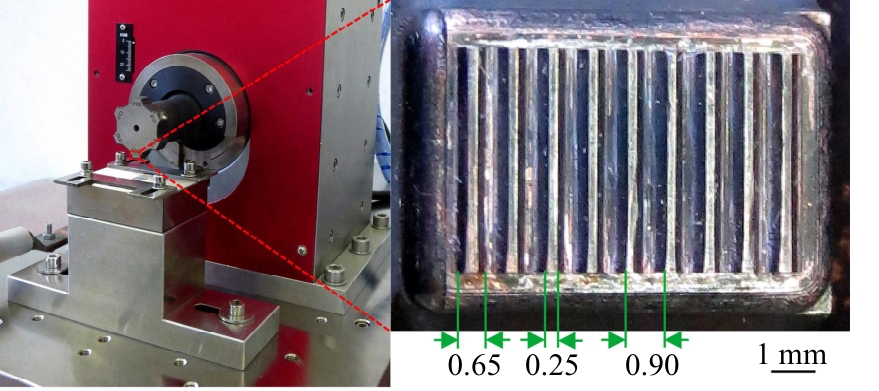

Fig.1

High-power ultrasonic metal welding machine"

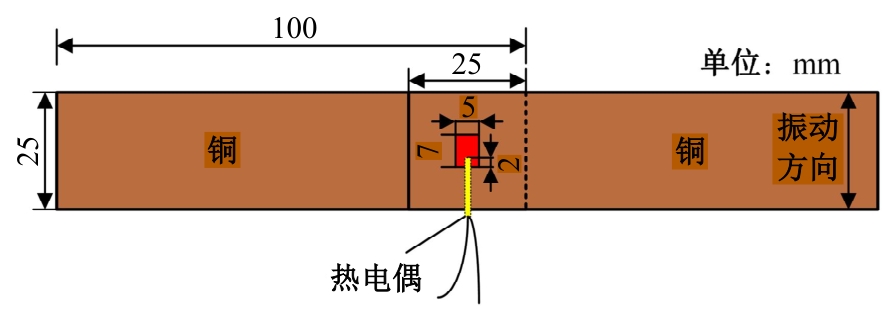

Fig.2

Schematic diagram of thermocouple temperature measurement"

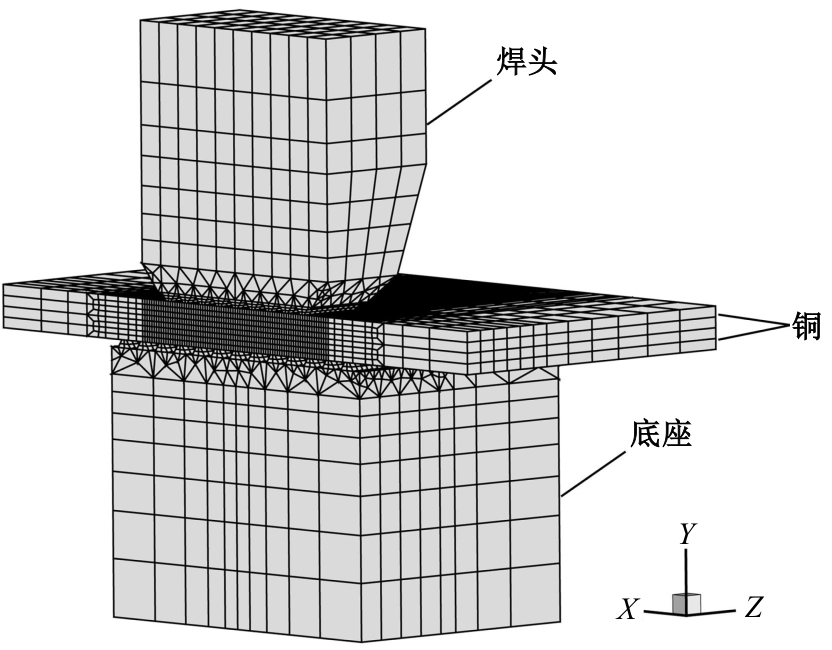

Fig.3

Finite element model"

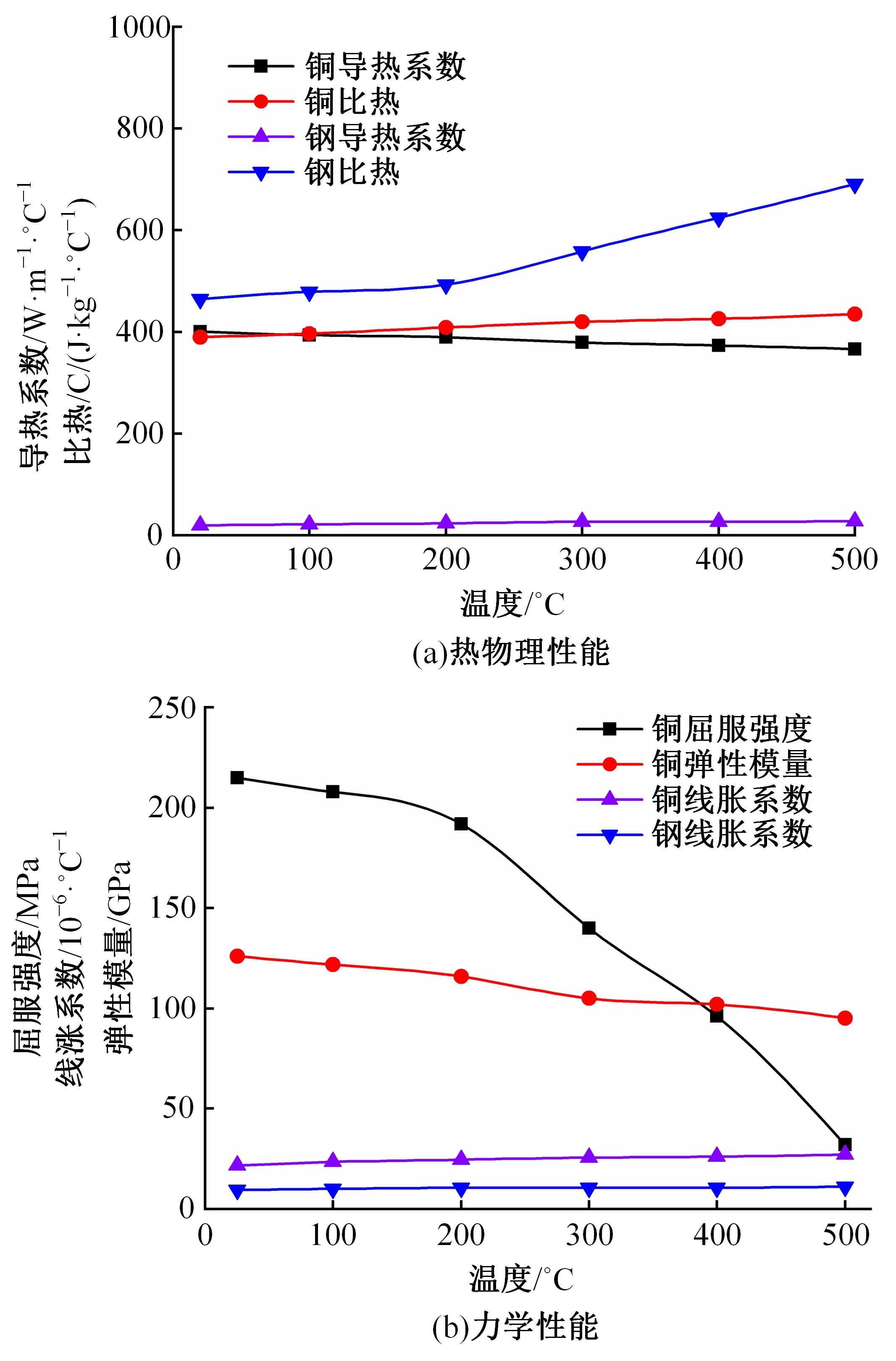

Fig.4

Material properties change with temperature"

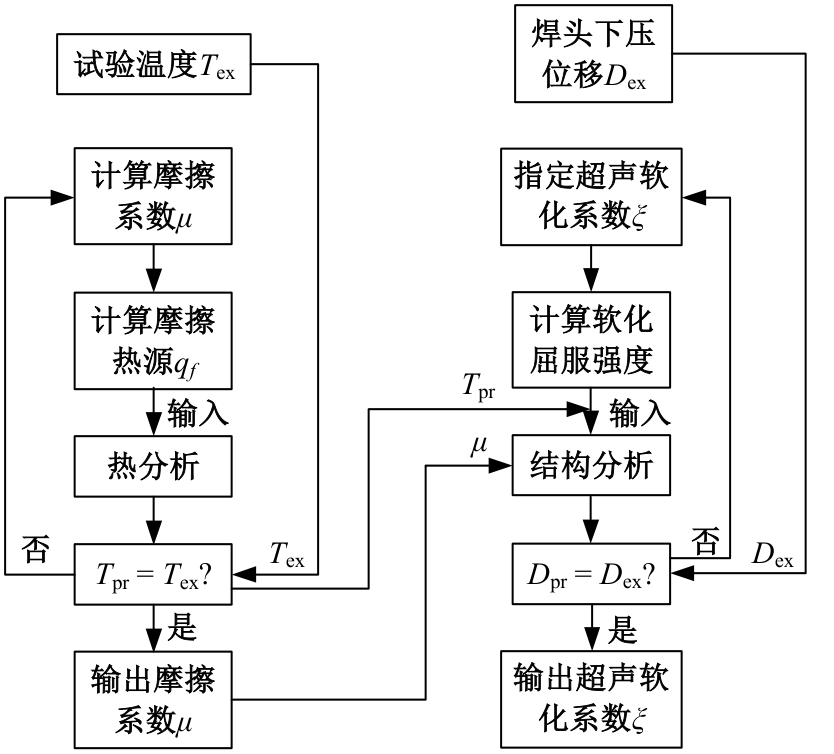

Fig.5

Simulation calculation process"

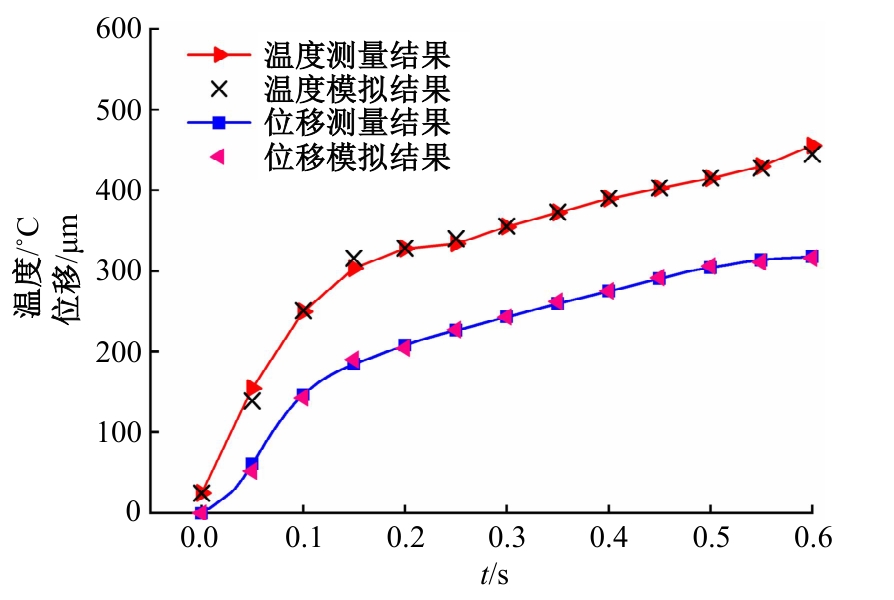

Fig.6

Comparison of simulation results and experimental results"

Fig.7

Comparison of macroscopic image of experiment and simulated joint cross-sections"

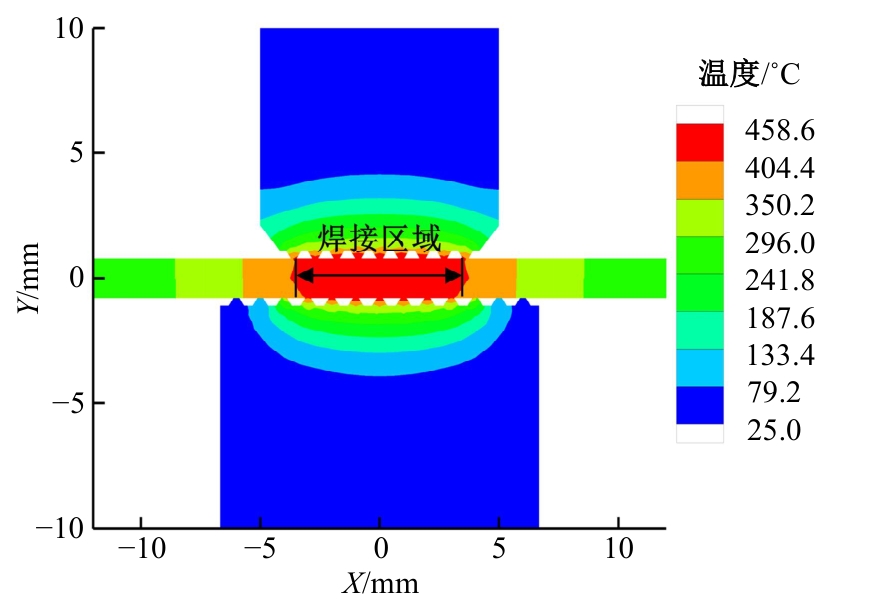

Fig.8

Temperature field distributions at 0.6 s"

Fig.9

Temperature distribution at the welding interface under different welding times"

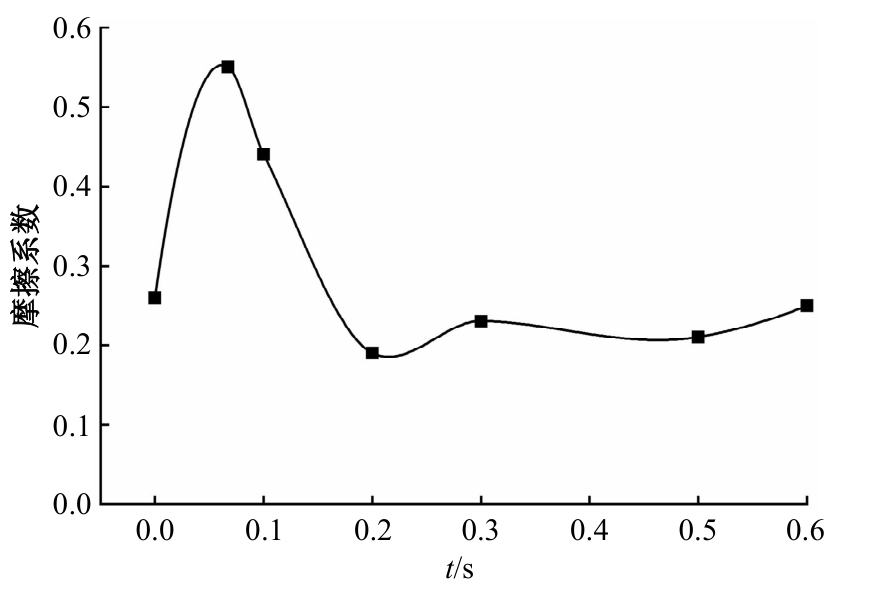

Fig.10

Dynamic change in friction coefficient"

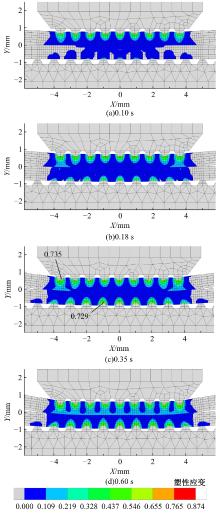

Fig.11

Plastic strain distribution in welded cross-section at different welding time"

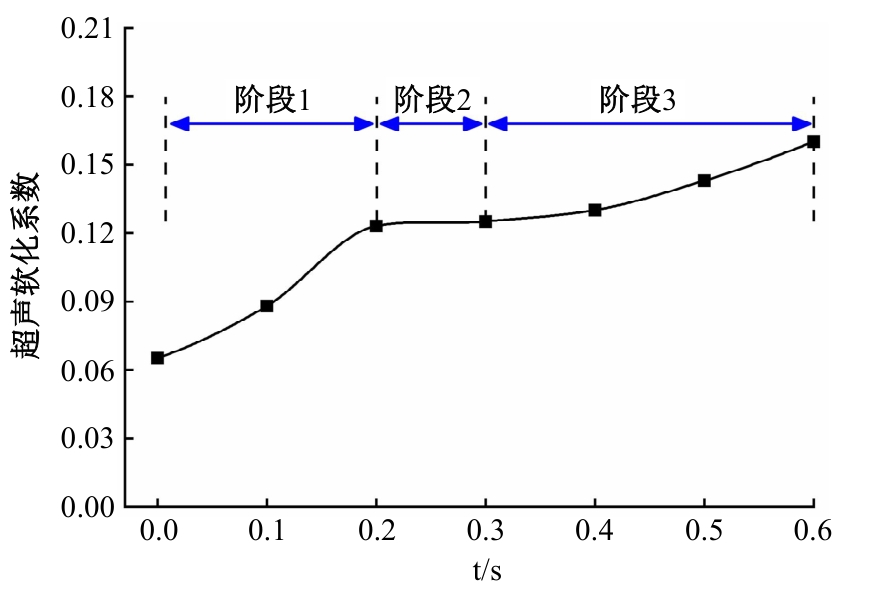

Fig.12

Dynamic change of ultrasonic softening coefficient"

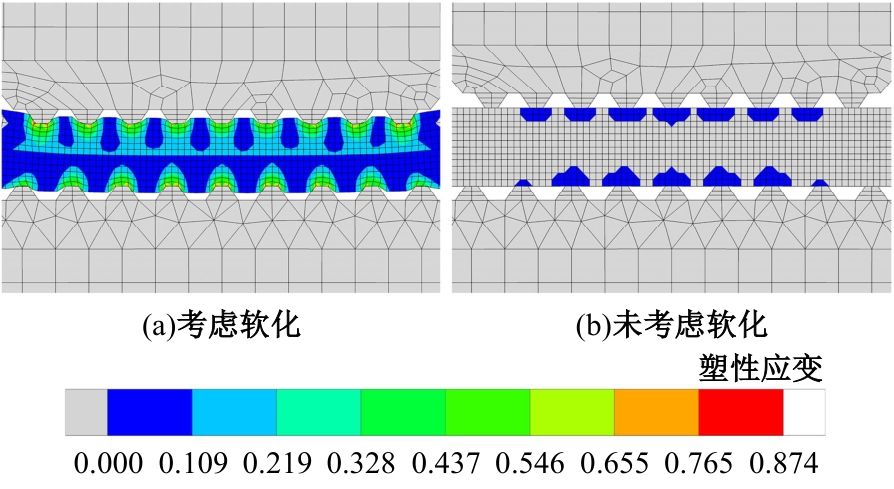

Fig.13

Comparison of simulation results of plastic deformation of welding cross section"

[1] Ma Q C, Ma J Y, Zhou J L, et al. Abnormal dislocation substructure in the ultrasonically welded joints of Cu single crystals[J]. Science and Technology of Welding and Joining, 2022, 27(8): 606-614.
[2] 刘亚俊, 汤勇, 万珍平, 等. 太阳能集热铜片与铜管的超声波缝焊技术[J]. 华南理工大学学报: 自然科学版, 2003, 31(1): 48-50.
Liu Ya-jun, Tang Yong, Wan Zhen-ping, et al. Ultrasonic seam welding of copper plates and tubes for collecting solar energy[J]. Journal of South China University of Technology (Natural Science Edition), 2003, 31(1): 48-50.
[3] 李欢, 周亢, 曹彪, 等. 铝合金大功率超声波焊接界面及接头性能研究[J]. 机械工程学报, 2021, 57(6): 87-95.
Li Huan, Zhou Kang, Cao Biao, et al. Analysis of welding interface and joint properties of high power ultrasonic welding of aluminum alloy[J]. Journal of Mechanical Engineering, 2021, 57(6): 87-95.
[4] 谷晓燕, 刘东锋, 刘婧, 等. 焊接能量对Cu/Al超声波焊接接头组织与性能的影响[J]. 吉林大学学报: 工学版, 2019, 49(5): 1600-1607.
Gu Xiao-yan, Liu Dong-feng, Liu Jing, et al. Effect of welding energy on microstructure and mechanical properties of Cu/Al joints welded by ultrasonic welding[J]. Journal of Jilin University (Engineering and Technology Edition), 2019, 49(5): 1600-1607.
[5] 谷晓燕, 隋成龙, 狄星, 等. 焊接能量对铜/钛超声波焊接接头性能的影响[J]. 吉林大学学报: 工学版,2020, 50(5): 1669-1676.
Gu Xiao-yan, Sui Cheng-long, Di Xing, et al. Effect of welding energy on performance of Cu/Ti joints obtained by ultrasonic welding[J]. Journal of Jilin University (Engineering and Technology Edition), 2020, 50(5): 1669-1676.
[6] Ma Q C, Ma J Y, Zhou J L, et al. Intrinsic dependence of welding quality and recrystallization on the surface-contacted micro-asperity scale during ultrasonic welding of Cu-Cu joints[J]. Journal of Materials Research and Technology, 2022, 17(3/4): 353-364.
[7] Ni Z L, Wang X X, Li S, et al. Mechanical strength enhancement of ultrasonic metal welded Cu/Cu joint by Cu nanoparticles interlayer[J]. Journal of Manufacturing Processes, 2019, 38(12): 88-92.
[8] Shen N, Samanta A, Cai W W, et al. 3D finite element model of dynamic material behaviors for multilayer ultrasonic metal welding[J]. Journal of Manufacturing Processes, 2021, 62(2): 302-312.
[9] Ma Z N, Zhang Y S. Characterization of multilayer ultrasonic welding based on the online monitoring of sonotrode displacement[J]. Journal of Manufacturing Processes, 2020, 54(6): 138-147.
[10] Sanga B, Wattal R, Nagesh D S. An FEA based study of thermal behaviour of ultrasonically welded phosphor bronze sheets[J]. Journal of Mechanical Engineering and Sciences, 2021, 15(2): 8057-8071.
[11] Cheng X, Li X. Investigation of heat generation in ultrasonic metal welding using micro sensor arrays[J]. Journal of Micromechanics and Microengineering, 2007, 17(2): 273-282.
[12] Elangovan S. Experimental and theoretical investigations on temperature distribution at the joint interface for copper joints using ultrasonic welding[J]. Manufacturing Review, 2014, 1(10): 13-26.
[13] Siddiq A, Ghassemieh E. Thermomechanical analyses of ultrasonic welding process using thermal and acoustic softening effects[J]. Mechanics of Materials, 2008, 40(12): 982-1000.
[14] Ngo T T, Huang J H, Wang C C. The BFGS method for estimating the interface temperature and convection coefficient in ultrasonic welding[J]. International Communications in Heat & Mass Transfer, 2015, 69(15): 66-75.
[15] Li H, Cao B, Yang J W, et al. Modeling of resistance heat assisted ultrasonic welding of Cu-Al joint[J]. Journal of Materials Processing Technology, 2018, 256(6): 121-130.
[16] Andrade U, Meyers M A, Vecchio K S, et al. Dynamic recrystallization in high-strain, high-strain-rate plastic deformation of copper[J]. Acta Metallurgica et Materialia, 1994, 42(9): 3183-3195.
[17] Wen H, Zhao Y, Topping T D, et al. Influence of pressing temperature on microstructure evolution and mechanical behavior of ultrafine-grained Cu processed by equal-channel angular pressing[J]. Advanced Engineering Materials, 2012, 14(3): 185-194.
[18] Li H, Cao B. Effects of welding pressure on high-power ultrasonic spot welding of Cu/Al dissimilar metals[J]. Journal of Manufacturing Processes, 2019, 46(10): 194-203.
[19] Li H, Zhang C X, Deng Y H, et al. Interfacial reactions and joint performances of high-power ultrasonic welding of aluminum to steel[J]. Journal of Materials Research and Technology, 2023, 26(9/10): 328-343.
[20] Siddiq A, Elsayed T. Acoustic softening in metals during ultrasonic assisted deformation via CP-FEM[J]. Materials Letters, 2011, 65(2): 356-359.
[21] Kelly G S, Advani S G, Gillespie J W, et al. A model to characterize acoustic softening during ultrasonic consolidation[J]. Journal of Materials Processing Technology, 2013, 213(11): 1835-1845.
