燃料电池膜电极的催化剂载量面分布非均匀设计

doi:10.13229/j.cnki.jdxbgxb.20240478

摘要/Abstract

摘要：

为提高燃料电池膜电极各处电流密度的大小及分布均匀性，采用多项式函数近似模拟催化剂载量的分布规律，并构建燃料电池平均电流密度和电流密度均匀性的加权目标函数。通过数值仿真求解多项式系数与加权目标函数的映射关系，进而优化分布函数。结果表明，与催化剂载量均匀分布的燃料电池相比，采用优化的非均匀催化剂载量分布的燃料电池虽然平均电流密度略有下降，但电流密度均匀性提升显著。综合考虑电流密度和均匀性，非均匀分布优于均匀分布，且一阶非均匀分布函数优势更加明显。

关键词: 质子交换膜燃料电池, 非均匀催化剂载量分布, 电流密度均匀性, 平均电流密度, 多目标优化

Abstract:

To improve the magnitude and distribution uniformity of current density at various locations of the fuel cell membrane electrode， a polynomial function is used to approximate the distribution law of catalyst loading， and a weighted objective function is constructed for the average current density and current density uniformity of the fuel cell. By using numerical simulation to solve the mapping relationship between polynomial coefficients and weighted objective function， the distribution function can be optimized. The results showed that compared with fuel cells with uniformly distributed catalyst loading， fuel cells with optimized non-uniform catalyst loading distribution showed a significant improvement in current density uniformity， although the average current density slightly decreased. Considering both the magnitude and uniformity of fuel cell current density，non-uniform catalyst loading surface surpasses the uniform one. Furthermore， the first-order distribution function indicates greater advantages.

Key words: proton exchange membrane fuel cell, non-uniform distribution of catalysts, uniformity of current density, average current density, multi-objective optimization

中图分类号:

TM911.4

杨钦文,王旭,肖罡. 燃料电池膜电极的催化剂载量面分布非均匀设计[J]. 吉林大学学报(工学版), 2025, 55(12): 3814-3821.

Qin-wen YANG,Xu WANG,Gang XIAO. Non⁃uniform design of catalyst distribution for fuel cell membrane electrode assembly[J]. Journal of Jilin University(Engineering and Technology Edition), 2025, 55(12): 3814-3821.

图/表 14

表1

图1

表2

图2

表3

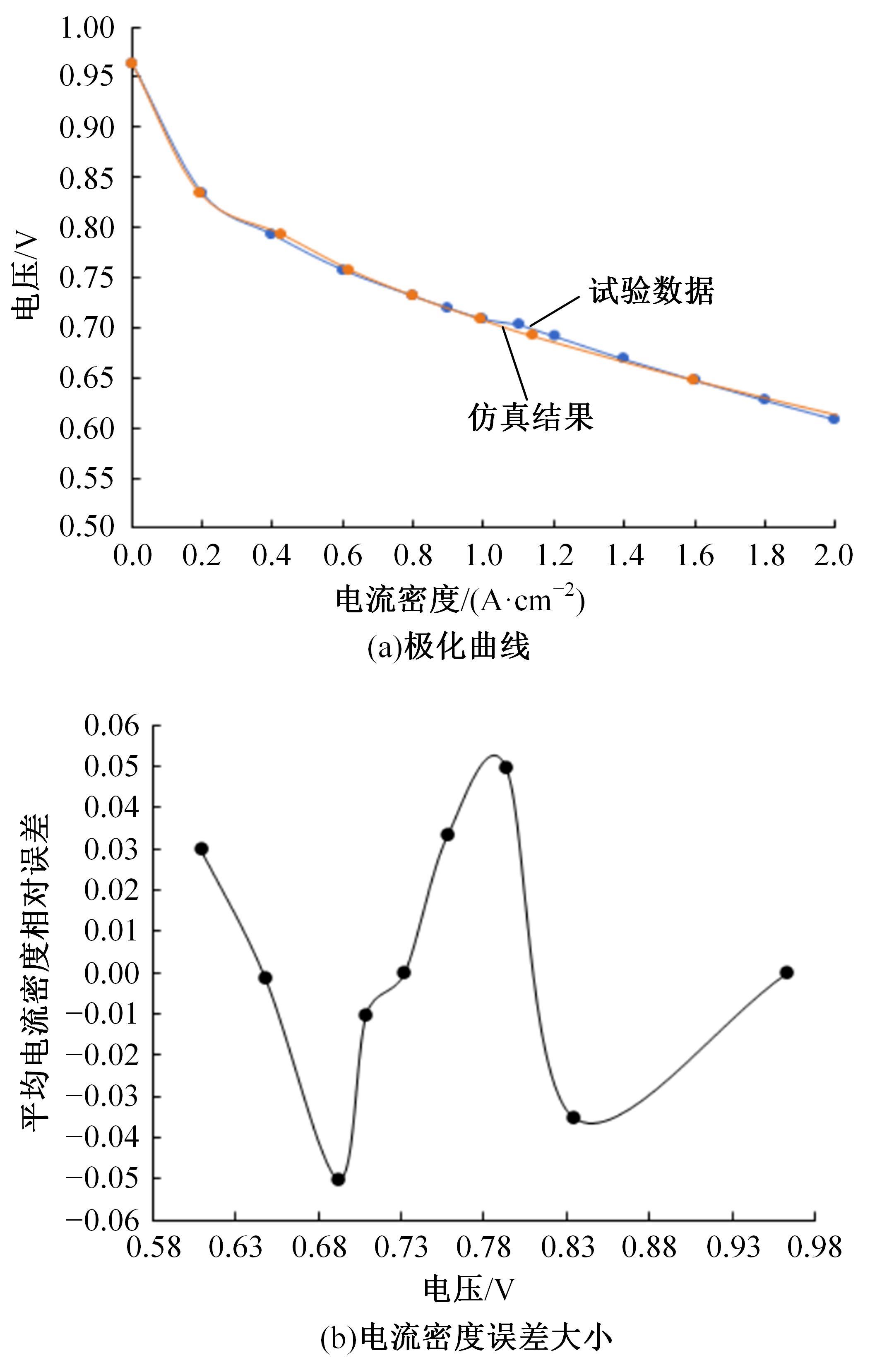

图3

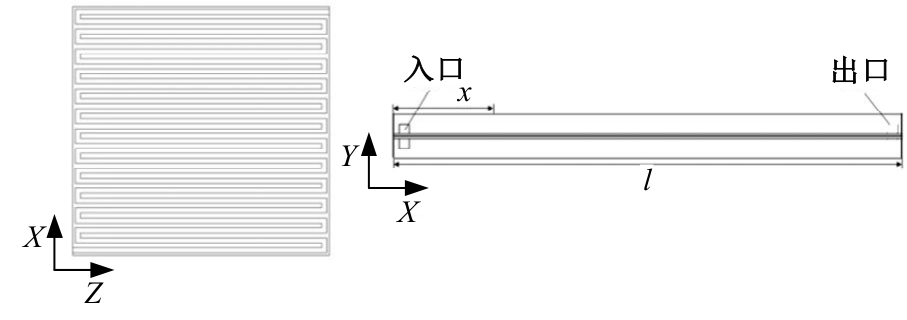

图4

图5

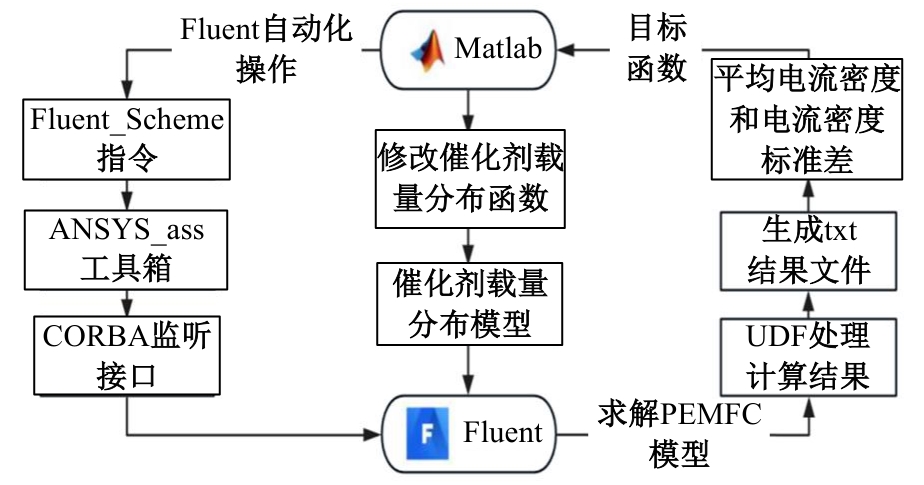

图6

表4

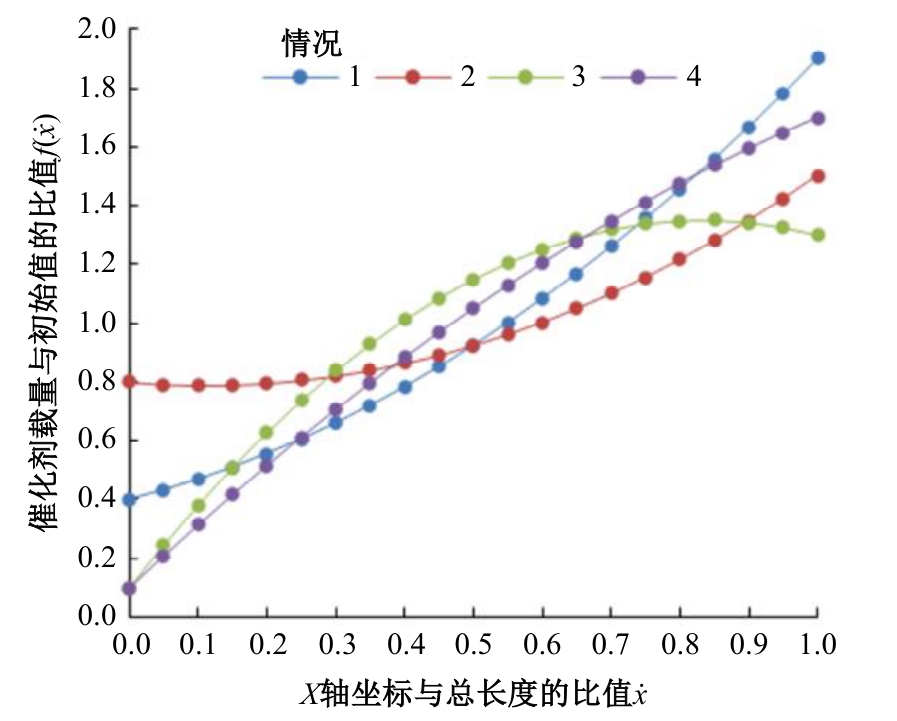

约束条件"

情况1	情况2	情况3	情况4
$a 3 + b 2 + c = 1 - b 2 a < 0 a > 0 c > 0$	$a 3 + b 2 + c = 1 0 < - b 2 a < 1 a > 0 c > 0 a + b + c > 0$	$a 3 + b 2 + c = 1 0 < - b 2 a < 1 a < 0 c > 0 a + b + c > 0$	$a 3 + b 2 + c = 1 - b 2 a > 1 a < 0 c > 0$

表4

图7

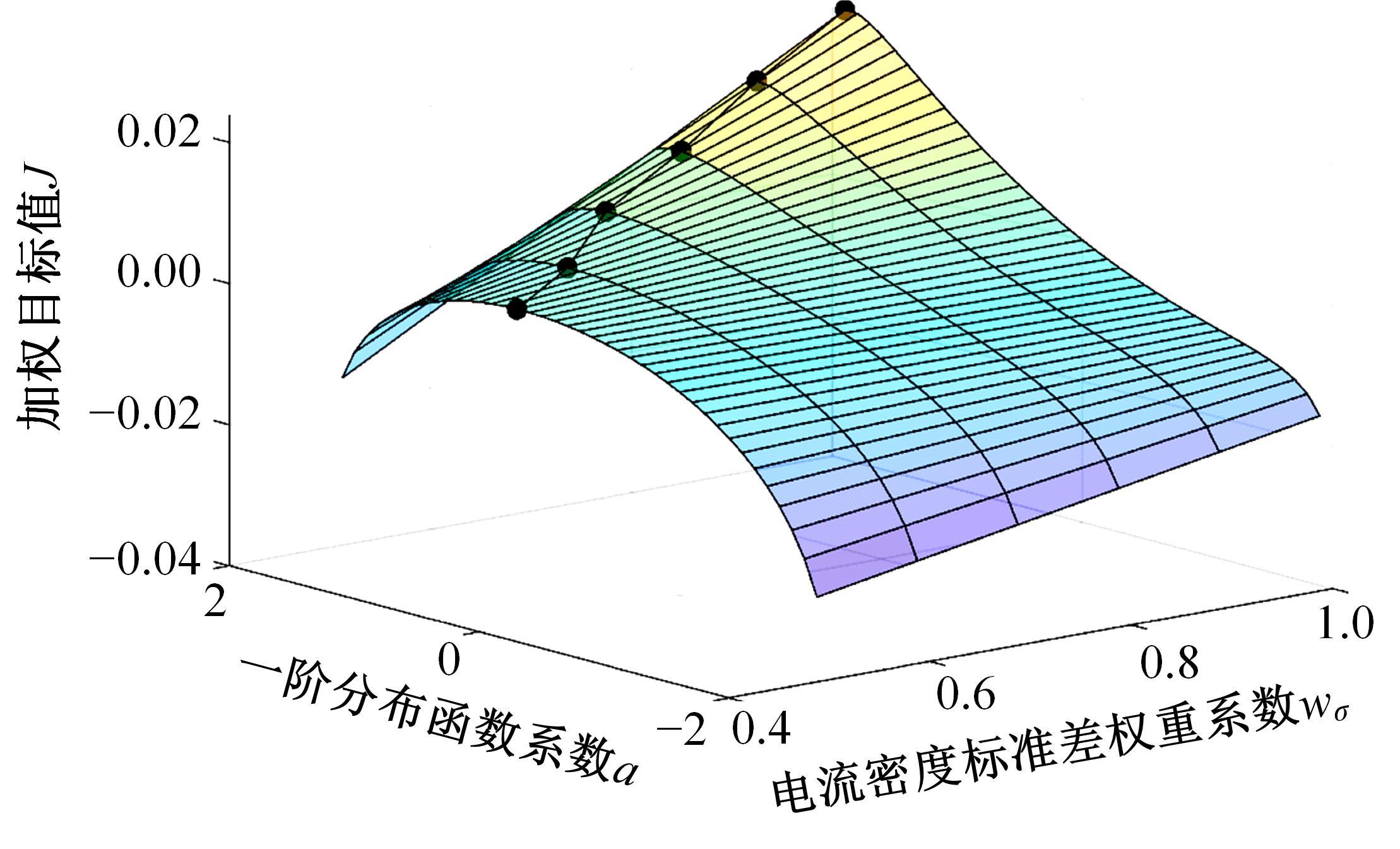

图8

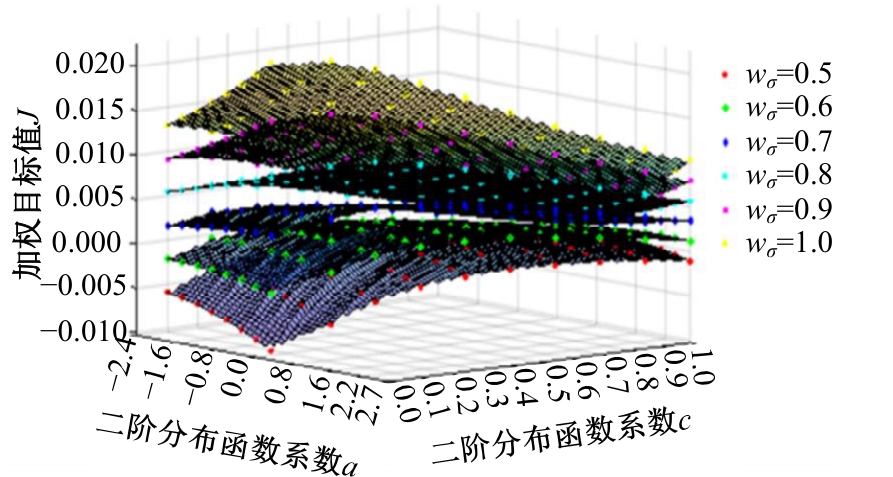

图9

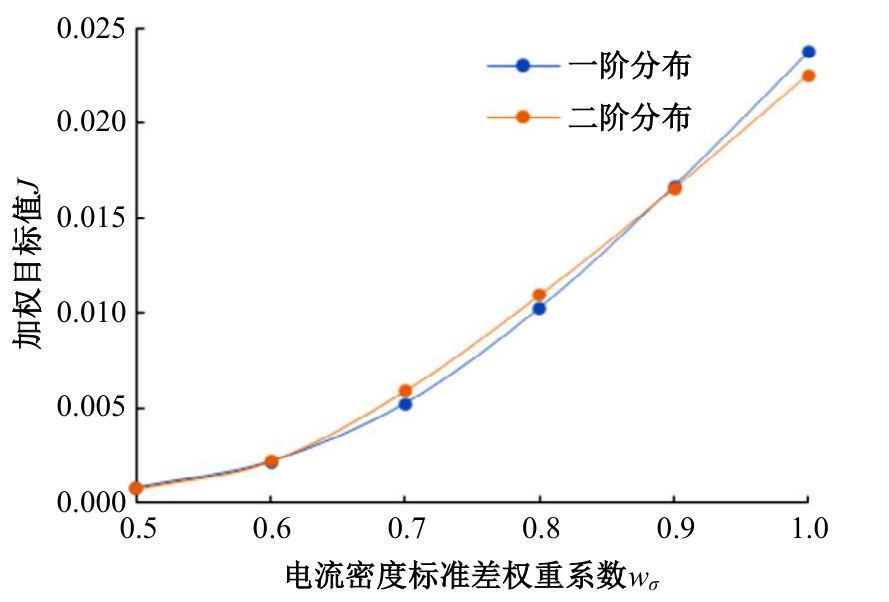

表5

最优催化剂载量分布函数"

最优分布函数	加权目标函数	电流密度均匀性提升/%	平均电流密度提升/%
$f x = 0.5 x + 0.75$	0.000 79	0.535	-0.377
$f x = 0.9 x + 0.55$	0.002 18	1.063	-1.048
$f x = 0.9 x 2 + 0.6 x + 0.4$	0.005 91	1.970	-2.627
$f x = 0.6 x 2 + x + 0.3$	0.010 94	2.147	-3.118
$f x = 1.8 x + 0.1$	0.016 67	2.369	-4.643
$f x = 1.9 x + 0.05$	0.023 71	2.371	-5.477

表5

参考文献 17

[1]	池训逞, 侯中军, 魏伟, 等. 基于模型的质子交换膜燃料电池系统阳极气体浓度估计技术综述[J]. 吉林大学学报:工学版, 2022, 52(9): 1957-1970.
	Chi Xun-cheng, Hou Zhong-jun, Wei wei, et al. A review of model-based anodic gas concentration estimation techniques for proton exchange membrane fuel cell systems[J]. Journal of Jilin University (Engineering and Technology Edition), 2022, 52(9): 1957-1970.
[2]	Zhang Y, Smirnova A, Verma A, et al. Design of a proton exchange membrane (PEM) fuel cell with variable catalyst loading[J]. Journal of Power Sources, 2015, 291: 46-57.
[3]	Yu H R, Roller M J, Mustain W E, et al. Influence of the ionomer/carbon ratio for low-Pt loading catalyst layer prepared by reactive spray deposition technology[J]. Journal of Power Sources, 2015, 283: 84-94.
[4]	Wang S Z, Li X H, Wan Z H, et al. Effect of hydrophobic additive on oxygen transport in catalyst layer of proton exchange membrane fuel cells[J]. Journal of Power Sources, 2018, 379: 338-343.
[5]	Wang H, Lin R, Cai X, et al. Transition metal dissolution control in Pt-alloy catalyst layers for low Pt-loaded PEMFCs for improving mass transfer[J]. International Journal of Heat and Mass Transfer, 2021, 178: No.121615.
[6]	Shahgaldi S, Ozden A, Li X G, et al. Cathode catalyst layer design with gradients of ionomer distribution for proton exchange membrane fuel cells[J]. Energy Conversion and Management, 2018, 171: 1476-1486.
[7]	Zheng Z F, Yang F, Lin C, et al. Design of gradient cathode catalyst layer (CCL) structure for mitigating Pt degradation in proton exchange membrane fuel cells (PEMFCs) using mathematical method[J]. Journal of Power Sources, 2020, 451: No.227729.
[8]	Wang Y L, Xu H K, Wang X D, et al. Multi-sub-inlets at cathode flow-field plate for current density homogenization and enhancement of PEM fuel cells in low relative humidity[J]. Energy Conversion and Management, 2022, 252: No.115069.
[9]	Babu V K, Geethu V, Varghese T J, et al. Optimization of graded catalyst layer to enhance uniformity of current density and performance of high temperature-polymer electrolyte membrane fuel cell[J]. International Journal of Hydrogen Energy, 2022, 47(6): 4018-4032.
[10]	Fan R J, Chang G F, Xu Y M, et al. Multi-objective optimization of graded catalyst layer to improve performance and current density uniformity of a PEMFC[J]. Energy, 2023, 262: No.125580.
[11]	Ding R, Cheng Y L, Fan X C, et al. Many-objective optimization of graded cathode catalyst layer for PEMFC on performance, gas distribution quality, and cost via AI-based model[J]. International Journal of Hydrogen Energy, 2024, 58: 1514-1525.
[12]	Xing L, Wang Y, Prodip K D, et al. Homogenization of current density of PEM fuel cells by in-plane graded distributions of platinum loading and GDL porosity[J]. Chemical Engineering Science, 2018, 192: 699-713.
[13]	柳奂宇. 质子交换膜燃料电池流场设计及水热管理[D]. 合肥: 合肥工业大学汽车与交通工程学院, 2021.
	Liu Huan-yu. Flow field design and hydrothermal management of proton exchange membrane fuel cells[D]. Hefei: College of Automotive and Transportation Engineering, Hefei University of Technology, 2021.
[14]	黄立建. 面向全生命周期的燃料电池车能量动态管理策略研究[D]. 大连: 大连理工大学汽车工程学院,2022.
	Huang Li-jian. Research on energy dynamic management strategies for fuel cell vehicles for the whole life cycle[D]. Dalian: College of Automotive Engineering, Dalian University of Technology, 2022.
[15]	Cherevko S, Keeley G P, Geiger S, et al. Dissolution of platinum in the operational range of fuel cells[J]. ChemElectroChem, 2015, 2(10): 1471-1478.
[16]	Yang Q W, Zhang N, Chen S J, et al. Non-uniform design of proton exchange membrane fuel cell and its matching with operations[J]. Journal of Cleaner Production, 2023, 428: No.139382.
[17]	王家军, 耿江涛, 邵志刚, 等. 氢燃料电池电堆寿命影响因素及机理分析[J]. 电源技术, 2023, 47(5): 551-557.
	Wang Jia-jun, Geng Jiang-tao, Shao Zhi-gang, et al. Influence factors and mechanisms of lifetime in hydrogen fuel cell stack[J]. Chinese Journal of Power Sources, 2023, 47(5): 551-557.

相关文章 15

[1]	张亚辉,李淦鑫,刘艳玲,胡云峰. 基于高阶全驱的质子交换膜燃料电池阴极进气系统控制方法[J]. 吉林大学学报(工学版), 2025, 55(8): 2791-2801.
[2]	刘长钊,宋健,李峥琪,张铁,王磊. 考虑动力学性能的高速薄壁齿轮多目标优化[J]. 吉林大学学报(工学版), 2025, 55(8): 2487-2500.
[3]	袁杰,王军博,陈歆,黄馨,张傲翔,崔安琪. 人工智能在超高性能混凝土中的应用研究进展[J]. 吉林大学学报(工学版), 2025, 55(3): 771-789.
[4]	曲俊龙,史文库,玄圣夷,陈志勇. 面向汽车传动系统多挡共振的多级吸振器参数设计方法[J]. 吉林大学学报(工学版), 2025, 55(2): 444-455.
[5]	赵慧超,刘华洋,赵洪辉,王宇鹏,韩令海. 多工况的燃料电池发动机空气路压力控制器设计及验证[J]. 吉林大学学报(工学版), 2025, 55(2): 503-511.
[6]	陈涛,周志刚,雷楠南. 粒子群算法下汽车机械式自动变速系统参数多目标优化[J]. 吉林大学学报(工学版), 2024, 54(5): 1214-1220.
[7]	杨欣,王阳,宋家锋,朱勇,黄彬兵,许述财. 基于虾螯结构的仿生夹层板设计及数值模拟[J]. 吉林大学学报(工学版), 2024, 54(3): 842-851.
[8]	吴骁,史文库,郭年程,赵燕燕,陈志勇,李鑫鹏,孙卓,刘健. 基于Ease off的准双曲面齿轮多目标优化[J]. 吉林大学学报(工学版), 2024, 54(1): 76-85.
[9]	周晓,梁燚杰,奚中轩,王宇涛. 白车身B柱焊接变形模拟及预变形控制方法[J]. 吉林大学学报(工学版), 2023, 53(8): 2212-2218.
[10]	陈鑫,张冠宸,赵康明,王佳宁,杨立飞,司徒德蓉. 搭接焊缝对铝合金焊接结构轻量化设计的影响[J]. 吉林大学学报(工学版), 2023, 53(5): 1282-1288.
[11]	龙海波,杨家其,尹靓,赵学彧,向子权. 基于鲁棒优化的不确定需求下应急物资配送多目标决策模型[J]. 吉林大学学报(工学版), 2023, 53(4): 1078-1084.
[12]	何颖,樊俊松,王巍,孙庚,刘衍珩. 无人机空地安全通信与航迹规划的多目标联合优化方法[J]. 吉林大学学报(工学版), 2023, 53(3): 913-922.
[13]	刘镇宁,江柯,赵韬韬,樊文选,卢国龙. 大功率质子交换膜燃料电池测试系统的开发及试验[J]. 吉林大学学报(工学版), 2022, 52(9): 2025-2033.
[14]	胡广地,景浩,李丞,冯彪,刘晓东. 基于高阶燃料电池模型的多目标滑模控制[J]. 吉林大学学报(工学版), 2022, 52(9): 2182-2191.
[15]	李丞,景浩,胡广地,刘晓东,冯彪. 适用于质子交换膜燃料电池系统的高阶滑模观测器[J]. 吉林大学学报(工学版), 2022, 52(9): 2203-2212.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

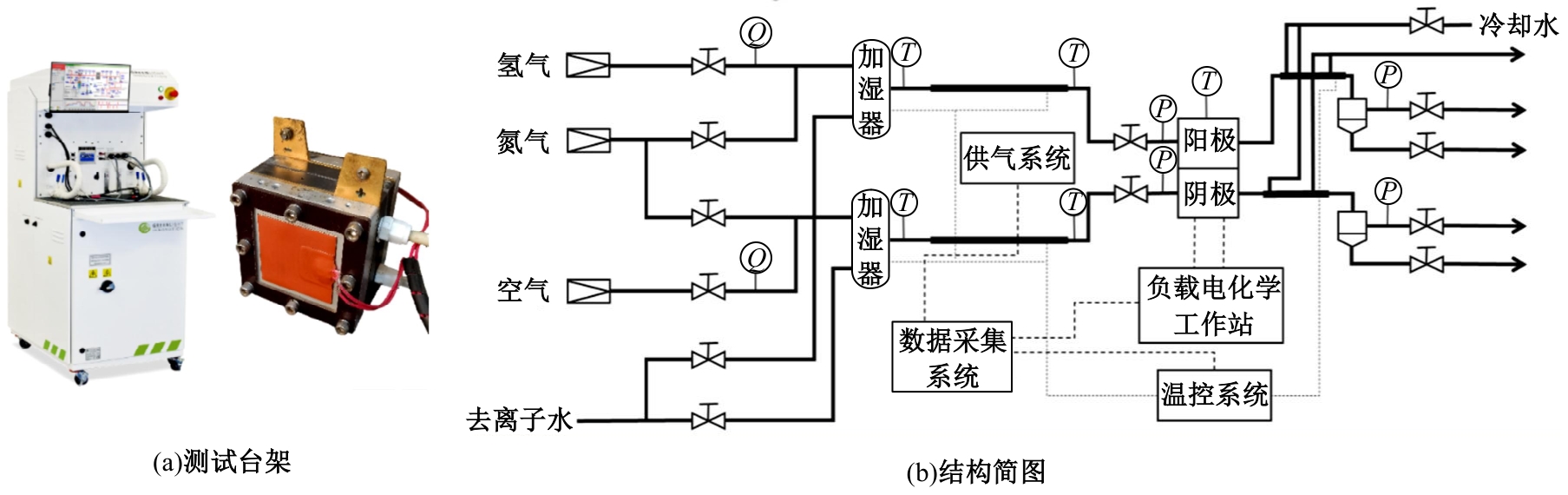

电流/A	阳极计量比	阴极计量比	气体出口压力/kPa	气体露点温度/℃	气体入口温度/℃
0	14.34	12.03	60	68	80
5	43.02	36.11	60	68	80
10	21.51	18.05	60	68	80
15	14.34	12.03	60	68	80
20	10.75	9.03	60	68	80
22.5	9.56	8.02	60	68	80
25	8.6	7.22	60	68	80
27.5	7.82	6.56	60	68	80
30	7.17	6.02	60	68	80
35	6.15	5.16	60	68	80
40	5.38	4.51	60	68	80
45	4.78	4.01	60	68	80
50	4.3	3.61	60	68	80

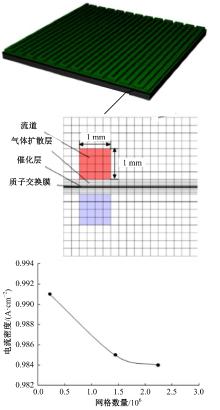

参数名称	单位	阳极侧值	阴极侧值
流道高度	mm	1	1
流道宽度	mm	1	1
气体扩散层厚度	mm	0.2	0.2
催化层厚度	mm	0.01	0.01
质子交换膜厚度	mm	0.05	0.05
气体扩散层孔隙率	-	0.6	0.6
催化层孔隙率	-	0.2	0.2
有效面积	cm²	25	25
操作压力	Pa	101 325	101 325

参数名称	单位	阳极侧值	阴极侧值
参考交换电流密度	A/m²	30 000	50
参考浓度	kmol/m³	0.8	0.8
浓度指数	-	0.05	0.002
转移系数	-	1	1
